Reach Stacker Container for Loaded ISO Containers
The Xinghao Reach Stacker Container is a 45-tonne-class diesel machine for loaded ISO container handling in ports, inland depots and intermodal yards. It provides 45 / 31 / 16 tonne row capacities with a Cummins QSM11 engine, ZF automatic transmission, AxleTech drive axle, Linde hydraulics and an ISO 20-foot / 40-foot container spreader.
Capacity by Container Row
The 45-tonne rating applies to the nearest working row. Capacity decreases as the container position moves farther from the machine.
Maximum rated capacity at the nearest working position.
Rated capacity for the second working row.
Rated capacity for the farther third-row position.
Machine and Operator Views

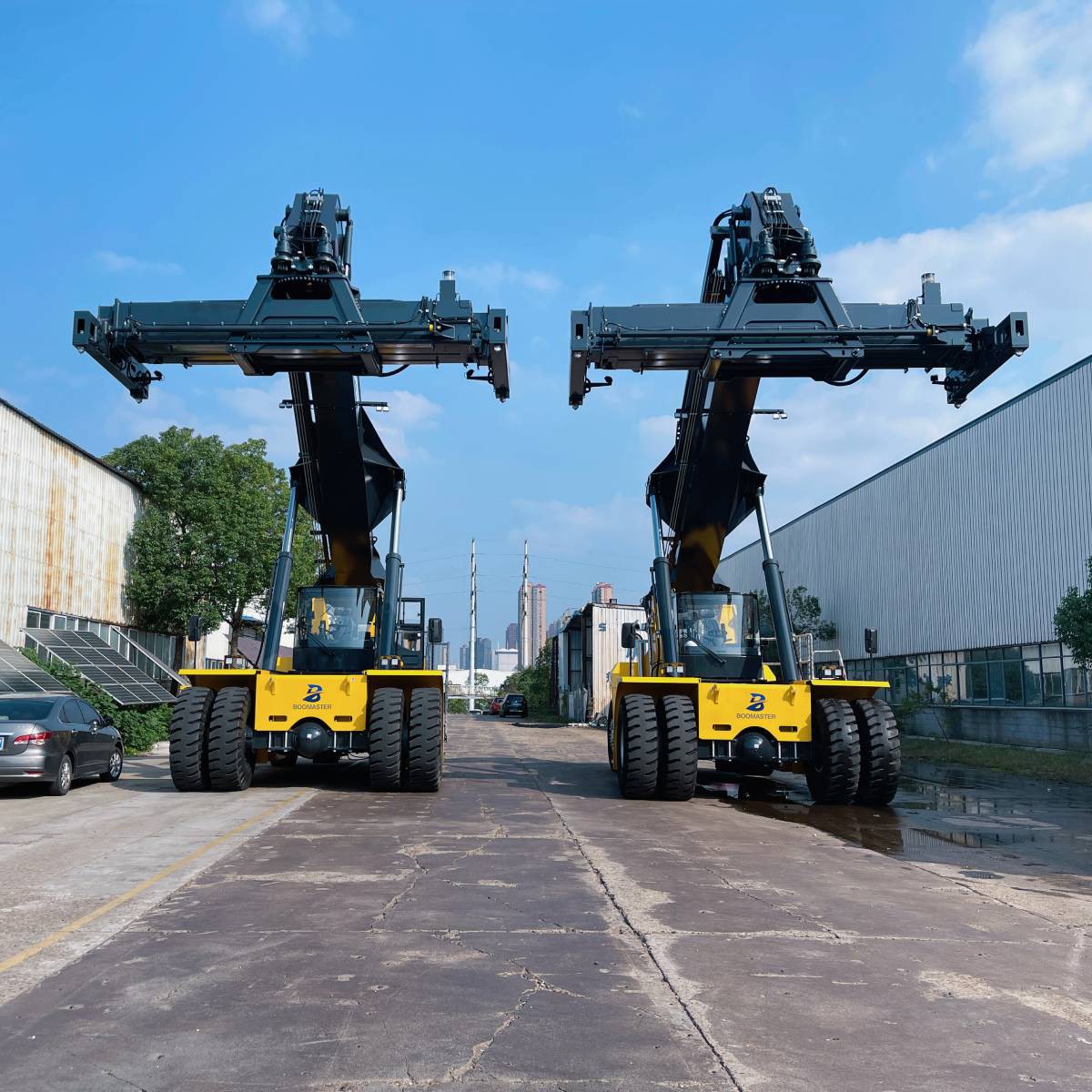

Two BOOMASTER reach stackers showing the telescopic boom and container spreader arrangement.
Machine components secured during heavy-equipment transport preparation.

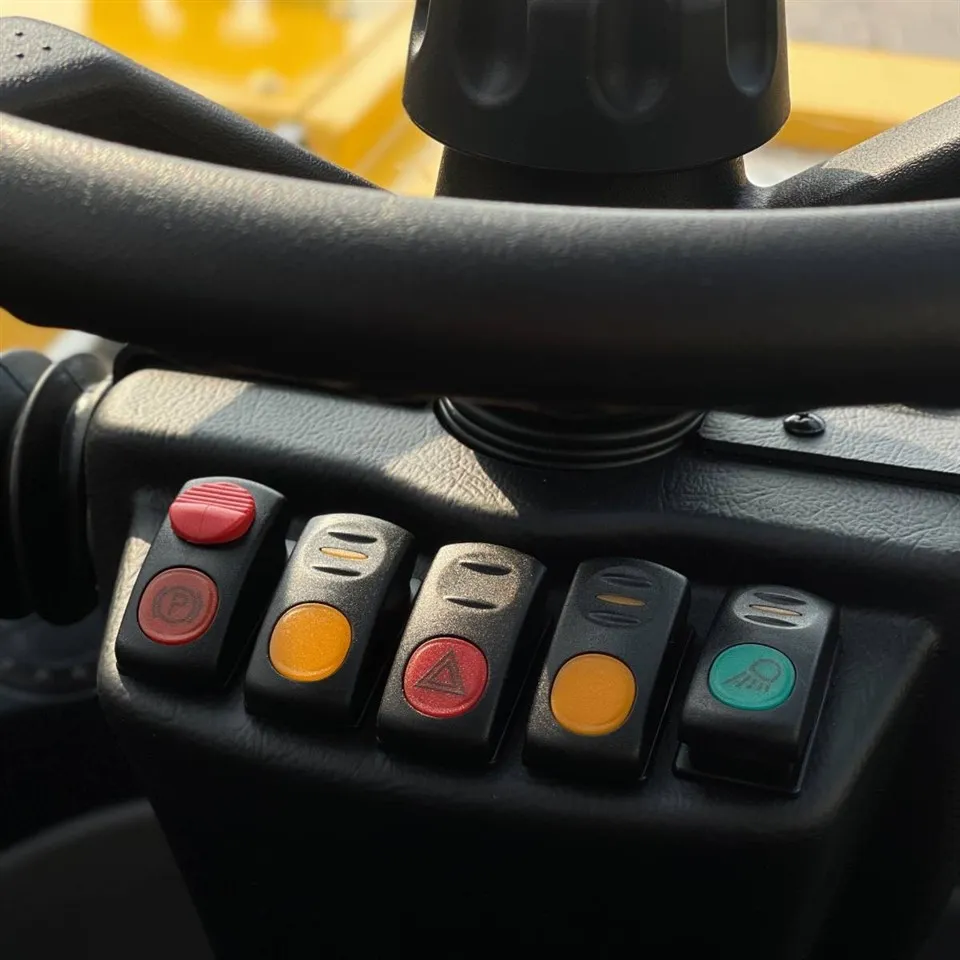

Steering wheel, parking brake control and cab switches.
Technical Specifications
| Specification | Value |
|---|---|
| Rated Capacity | 45,000 kg |
| 1st / 2nd / 3rd Row Capacity | 45 / 31 / 16 t |
| Service Weight | 71,400 kg |
| Engine | Cummins QSM11 |
| Rated Power | 250 kW @ 2,100 rpm |
| Maximum Torque | 1,674 Nm @ 1,400 rpm |
| Transmission | ZF 15WG261 automatic |
| Gear Range | 5 forward / 3 reverse |
| Drive Axle | AxleTech PRC7545W4S586C |
| Steer Axle | AnQing |
| Hydraulic System | Linde |
| Control System | Full CAN-bus |
| 20' Container Turning Radius | 8,605 mm |
| 40' Container Turning Radius | 9,900 mm |
| Overall Dimensions | 8410 × 4180 × 3400 mm |
| Tyres | 18.00-25, 40PR pneumatic |
| Container Spreader | ISO 20' / 40' |
| Service Brake | Hydraulic wet-disc |
| Parking Brake | Automatically applied when power is off |
Cummins QSM11 and ZF Automatic Transmission
The diesel configuration uses a Cummins QSM11 engine rated at 250 kW at 2,100 rpm with 1,674 Nm maximum torque at 1,400 rpm. It is paired with a ZF 15WG261 automatic transmission and AxleTech drive axle.
Linde Hydraulics and CAN-Bus Control
Match the Machine to the Container Yard
Container weight, working row and available space should be checked together before the machine configuration is selected.
Turning Space for 20 ft and 40 ft Containers
The turning radius is 8,605 mm with a 20-foot container and 9,900 mm with a 40-foot container. Additional operating clearance should be included in the yard layout.
ISO 20' and 40' Container Spreader
The spreader supports ISO 20-foot and 40-foot containers. Container size, gross mass and required working row should be confirmed together.

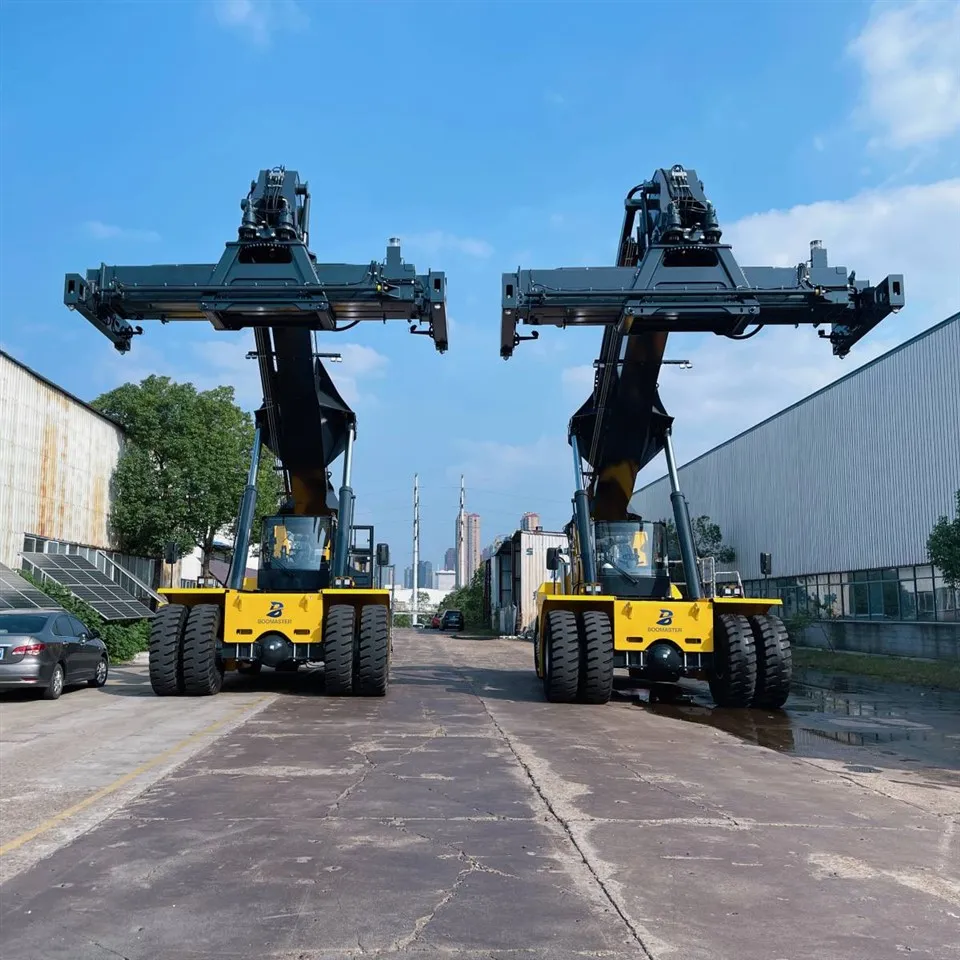

Telescopic boom and top-lift spreader arrangement for ISO containers.

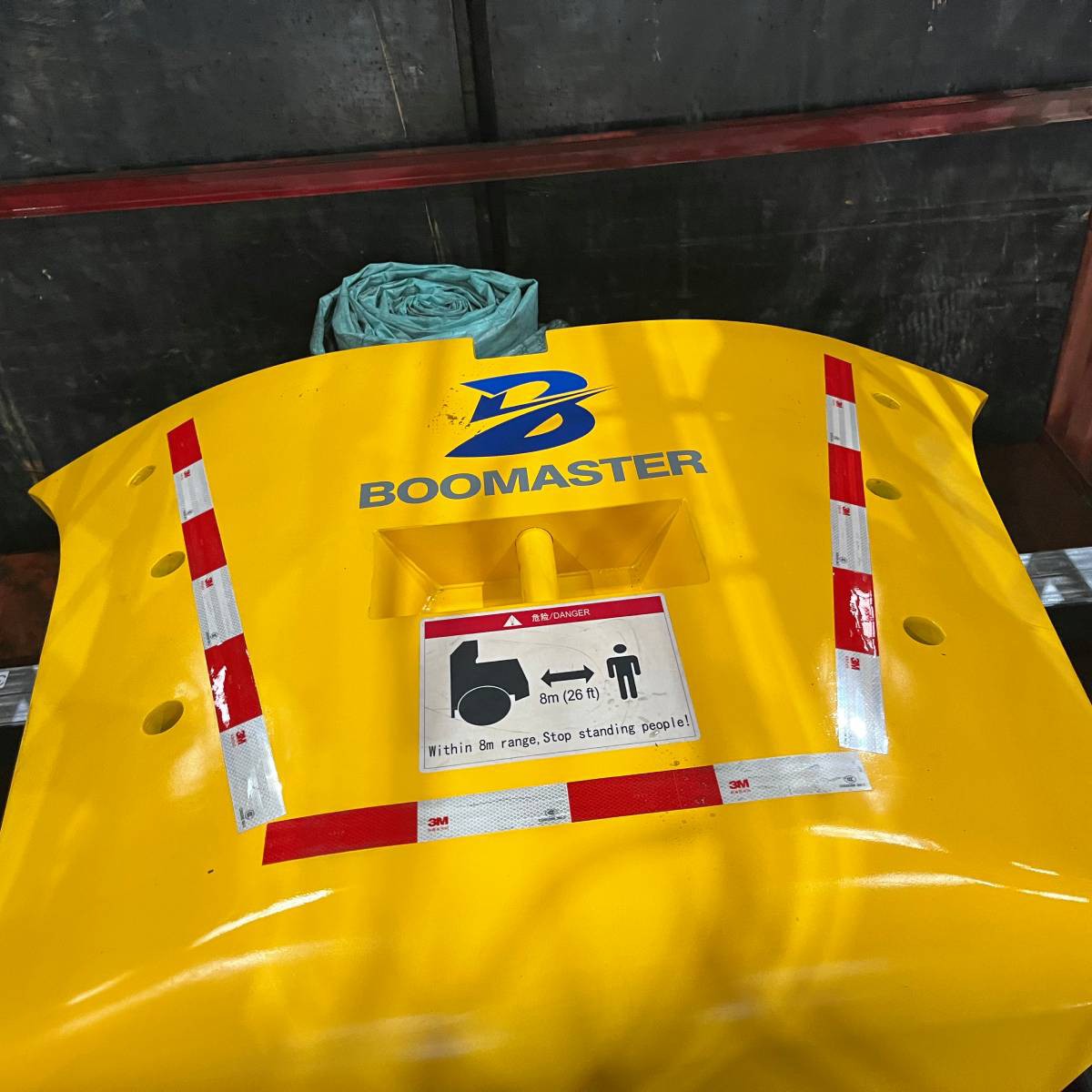

Rear machine structure with BOOMASTER branding and safety markings.
Reach Stacker Container or Another Container Handler?
For loaded ISO containers that require telescopic reach into multiple storage rows.
Compare when vertical-mast handling is sufficient and telescopic multi-row reach is not required.
Compare Container Forklifts →Compare when the primary task is handling and stacking unloaded containers.
Compare Empty Container Handlers →Related Container Handling Equipment
Reach Stacker Container FAQ
Match the Reach Stacker Container to Your Yard
Send the maximum container gross weight, 20-foot / 40-foot mix, required working rows, travel distance, yard dimensions, gradients, destination and quantity. Xinghao can review the machine configuration against the container-handling requirement.
