3 Wheel Electric Forklift

Your Professional 3 Wheel Electric Forklift Supplier

Compact electric counterbalance forklifts designed for warehouse handling, production logistics, pallet movement, and space-constrained operations. Versatile 3-wheel electric forklift configurations are available matching specific load capacities, mast heights, battery systems, and fork dimensions to precise operational requirements.

Selecting the correct model requires evaluating actual loads, load centers, lift heights, aisle widths, operating hours, and charging setups rather than relying solely on rated capacity.

Lithium Ion 3 Wheel Electric Forklift

The Lithium Ion 3 Wheel Electric Forklift combines a counterbalance lifting system with a compact three-wheel chassis and lithium-ion battery power.

Add to Inquiry
Electric Sit Down 3 Wheel Forklift

The 3-wheel electric sit-down forklift is engineered for pallet handling, loading, unloading, and rack replenishment where floor space and turning clearance are restricted.

Add to Inquiry
48V 3 Wheel Electric Forklift

The 48V 3 Wheel Electric Forklift is a sit-down counterbalance truck engineered for indoor pallet handling, loading dock operations, and high-density warehouse layouts where floor space and turning

Add to Inquiry

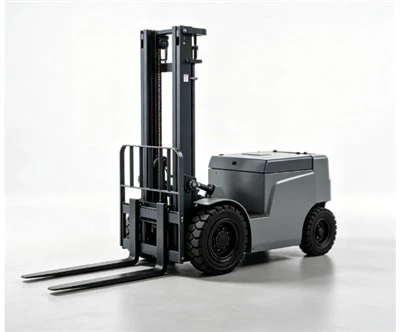

3 Wheel Electric Forklift Truck

Three-wheel electric forklift trucks utilize a battery-powered counterbalance chassis with a single rear-wheel steering configuration. This layout provides a tight turning envelope and high

Add to Inquiry
Compact 3 Wheel Electric Forklift

The Compact 3 Wheel Electric Forklift is a sit-down counterbalance truck engineered for high-density indoor warehousing, manufacturing logistics, and tight spatial layouts where maneuverability and

Add to Inquiry
3 Wheel Electric Counterbalance Forklift

The 3 Wheel Electric Counterbalance Forklift is engineered for indoor material handling where pallet access, load capacity, and restricted turning spaces intersect. By utilizing a rear-steering wheel

Add to Inquiry

Compare 3 Wheel Electric Forklift Configurations

Specification	Compact Configuration	Medium Capacity Configuration	Higher Capacity Configuration
Typical Capacity Class	1.5 t – 2.0 t	2.0 t – 2.5 t	3.0 t and above
Main Selection Priority	Maximum maneuverability	Capacity and maneuverability	Higher load handling
Typical Application	Light warehousing / production	General warehousing / logistics	Industrial material movement
Battery Choice	Lead-acid / Lithium-ion	Lead-acid / Lithium-ion	Model dependent
Lift Height Range	Configuration dependent	Configuration dependent	Configuration dependent
Turning Radius	Optimized compact radius	Balanced operational radius	Heavy-duty turning geometry

Why Choose Us

Engineering R&D & Customization Capability: An experienced in-house technical team capable of adapting machine configurations, electrical systems, battery integrations, and specialized attachments to meet specific regional requirements and OEM/ODM specifications.

Supply Chain Integration & Component Control: Established long-term partnerships with tier-one suppliers for core components (including drive motors, electronic controllers, and hydraulic systems), ensuring stable component quality, reliable lead times, and cost-effective lifecycle maintenance.

Rigorous Quality Verification Infrastructure: Operating dedicated testing facilities where every production batch undergoes multi-stage inspections—ranging from raw material metallurgical checks and weld integrity testing to full-load dynamic performance and braking evaluations prior to factory dispatch.

Global Export & Compliance Engineering: Comprehensive technical documentation capabilities, including multi-lingual operation manuals, parts catalogs, and compliance dossiers aligned with international safety standards required for smooth customs clearance and regional deployment.

Product Distinctive Features

Dual Front-Wheel Independent Drive Motors

Utilizing separate AC drive motors on the front axle for precise electronic differential steering, minimizing tire scrub during tight turnaround maneuvers in narrow warehouse aisles.

Low Center of Gravity Chassis Architecture

Positioning the heavy traction battery low within the frame profile to enhance lateral stability during high-lift material handling operations.

Ergonomic Operator Compartment Layout

Minimizing operator fatigue through a simplified step-in height, adjustable steering column angle, responsive hydraulic mini-levers, and high-visibility overhead guard structures.

Regenerative Braking Technology

Capturing kinetic energy during deceleration and lowering cycles to feed back into the battery system, extending active operating hours per charge cycle.

Simplified Thermal & Electrical Management

Integrated controller cooling fins and well-routed wiring harnesses designed to withstand high-frequency shifting environments without premature thermal degradation.

Capacity Range and Load Selection

Rated capacity is an essential starting specification, but it must never be evaluated in isolation. Electric forklift ranges include compact models such as 1.5-ton, 2.5-ton, and 3.5-ton configurations, with exact specifications varying by model.

Match Capacity to Actual Loads: Use your heaviest routine load as the baseline. For example, a 1,200 kg regular pallet points toward a 1.5-ton class, while a 2,500 kg pallet requires a 2.5-ton or heavier configuration.

Account for Load Centers: A forklift rated at 2,500 kg at a 500 mm load center cannot be treated as a 2,500 kg machine for oversized or extended loads. Long loads or shifting centers of gravity reduce applicable lifting capacity.

Key Specifications to Compare

When evaluating three-wheel electric forklifts across suppliers, focus on specifications that directly impact daily operations:

1.Capacity & Load Center: Rated load weight and the horizontal distance from the fork face to the load center.

2.Lift Height: Required fork elevation for your highest storage rack or loading bay.

3.Dimensions: Overall truck width, collapsed mast height, and overall length to verify doorway clearance.

Turning Radius

Critical for three-wheel setups, evaluated alongside aisle geometry.

Battery & Power

Voltage, capacity, chemistry, and charging parameters.

Speeds

Loaded and unloaded travel and lifting speeds.

Operating Weight

Essential for floor loading limits, transport planning, and ramp navigation.

Application Guide & Operational Limits

Understanding where the machine excels—and where it should be avoided—prevents operational mismatches:

01/

Ideal Applications: Warehouses, manufacturing plants, distribution centers, tight production lines, and smooth indoor loading bays.

02/

When to Avoid: Severe outdoor rough terrain, extreme uneven ground, unpaved gravel yards, or massive industrial capacities exceeding standard compact counterbalance thresholds.

Mast and Lift Height Options

Lift height must align precisely with your storage infrastructure. Standard configurations suit floor-level transport, while high-rack storage requires specific duplex or triplex mast arrangements.

Critical Dimensions to Verify

Standard lift height, maximum lift height, lowered mast height, free lift, and overhead guard clearance.

Facility Check

Always compare rack height + pallet height + required operating clearance against your building's clear ceiling height before confirming high-lift specifications.

Configuration, Customization, and Attachments

Tailor the machine to your exact operational footprint through modular configuration choices:

Power Systems

Lead-acid or lithium-ion batteries matched with industrial smart chargers.

Mast Varieties

Duplex and triplex masts with custom free-lift specifications.

Fork & Attachments

Customized fork lengths, widths, side shifters, fork positioners, and clamp options.

Safety & Compliance

Destination-specific safety signage, working lights, warning strobes, and operator cabins.

Maintenance, Parts Availability, and Service Support

For global dealers and fleet managers, ongoing operational support is as crucial as initial machine quality:

Consumables & Spare Parts

Readily available replacement components including filters, brakes, steering motors, and tires to minimize equipment downtime.

Modular Service Access

Engineered layouts allowing straightforward technician access for routine checks, hydraulic fluid servicing, and electrical diagnostics.

Technical Documentation

Comprehensive parts catalogs and maintenance manuals provided to support local service teams.

FAQ

Q: What is a 3 wheel electric forklift?

A: It is a counterbalanced electric forklift utilizing a three-wheel chassis layout, chosen primarily for tight turning and superior maneuverability in space-constrained material handling environments.

Q: Is a 3 wheel forklift more maneuverable than a 4 wheel forklift?

A: Yes, the three-wheel layout provides a tighter turning circle, though actual operability depends on truck dimensions, aisle layout, and pallet sizing.

Q: What capacity 3 wheel electric forklift do I need?

A: Always start by calculating your maximum load weight and load center, followed by lift height and aisle dimensions. Never select a truck based on weight capacity alone.

Q: Can I choose a lithium-ion battery?

A: Yes. Lithium-ion configurations are available across selected electric forklift models, offering opportunity charging and reduced maintenance.

Q: What information should I prepare for a quotation?

A: Provide your load weight, load center, required lift height, aisle width, daily operating hours, number of shifts, battery preference, and destination port.
