Reach Stackers (45 Ton)

Loaded Container Reach Stackers

45 Ton Reach Stackers for Port, Rail and Container Yard Operations

Our 45 ton reach stacker range is designed for loaded-container handling in ports, inland terminals, rail yards and logistics hubs. Select the machine from the complete stack plan: container gross weight, first-, second- and third-row handling requirement, stacking height, ISO container type, yard geometry, duty cycle and power source.

Get a Reach Stacker Recommendation Compare All Port Machinery

45 Ton First-row class on core loaded-container models

31 Ton Second-row reference on current 45T models

15 / 16 Ton Third-row rating depends on model

Diesel / Electric Two different power-platform directions

Power Platform

Choose Diesel or Pure Electric Before Comparing Individual Models

Conventional Port Power

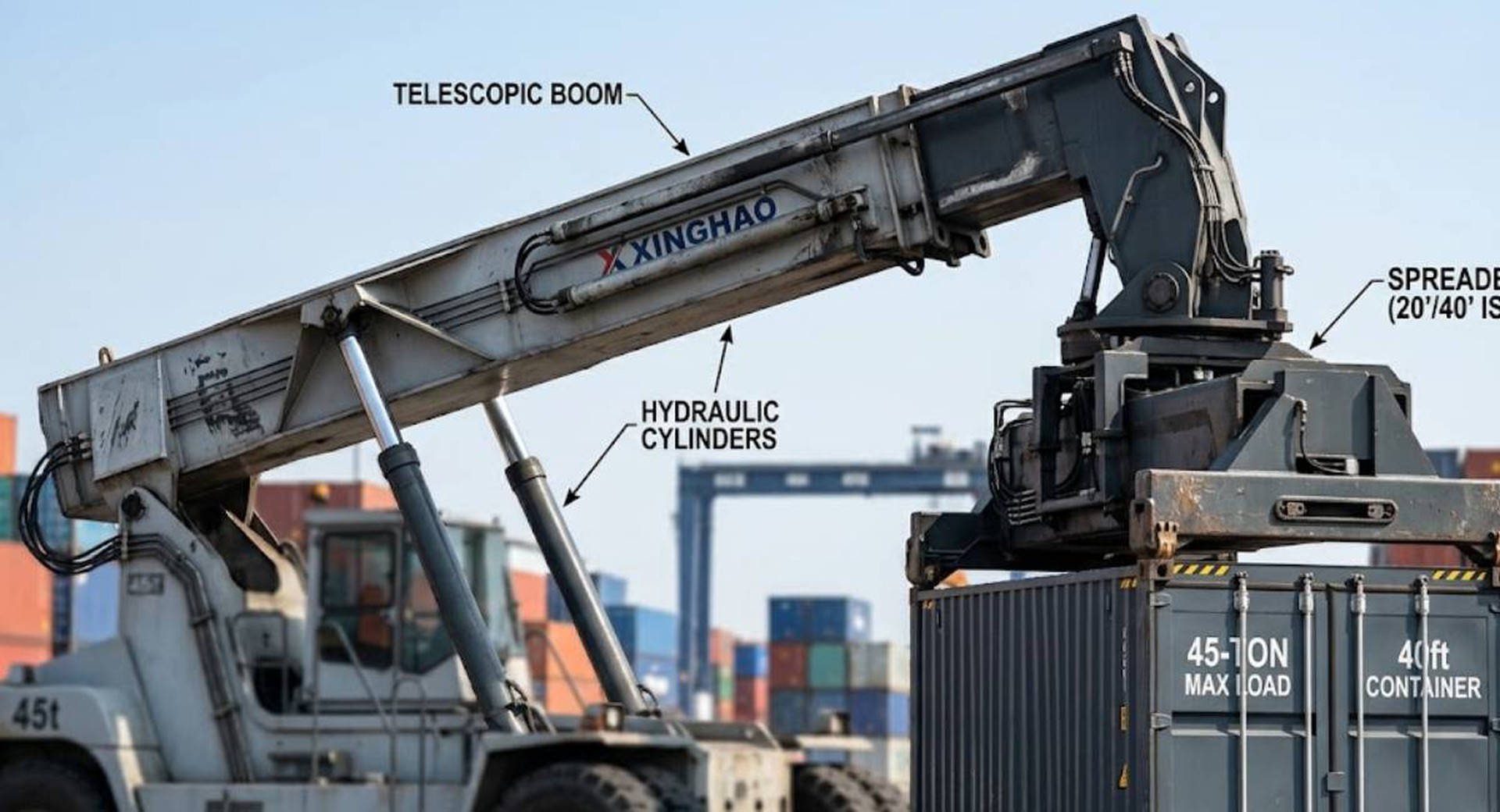

45 Ton Diesel Reach Stacker

Current diesel models publish 45 / 31 / 16 ton row capacities, Cummins QSM11 power and ZF automatic transmission on the core XH-RS45 platform.

45,000 kg first-row reference
31,000 kg second-row reference
16,000 kg third-row reference
ISO 20' / 40' spreader on core model
Fuel and emission package confirmed by market

View Diesel 45 Ton Reach Stacker →

Battery-Electric Port Platform

XH-RS45E Pure Electric Reach Stacker

Current XH-RS45E data publishes 45 / 31 / 15 ton row capacities with 423 kWh or 525 kWh lithium battery options and ISO 20' / 40' / 45' spreader capability.

45,000 kg first-row reference
31,000 kg second-row reference
15,000 kg third-row reference
423 or 525 kWh battery options
Charging infrastructure required

View XH-RS45E Electric Reach Stacker →

Before Selecting the Model

Four Yard Inputs Define the Reach Stacker Configuration

Container Weight Record the heaviest loaded container handled routinely.

Stack Rows Define how much capacity is required in the first, second and third rows.

Stack Height Record container height and the highest required stacking position.

Yard Duty Provide moves per hour, shift duration, surface and charging or fuel conditions.

First 12 Last 1/2

45 Tons Is a First-Row Rating, Not a Universal Yard Capacity

Reach-stacker capacity changes as horizontal outreach increases. A buyer should therefore define the required container weight in each operating row instead of using “45 ton” as the only technical requirement.

45 Ton First-row reference on the current core diesel and pure-electric 45T platforms.

31 Ton Second-row reference on the current core 45T platforms.

15 / 16 Ton Third-row capacity differs between the current pure-electric and diesel platforms.

Diesel vs Electric

Published 45 Ton Reach Stacker Platform Comparison

Selection Item	Diesel XH-RS45 Reference	Pure Electric XH-RS45E Reference
First / Second / Third Row	45 / 31 / 16 t	45 / 31 / 15 t
Power Platform	Cummins QSM11 diesel on current core model	Battery-electric CYAN drive platform
Energy Storage / Fuel	Diesel fuel system	423 or 525 kWh CATL lithium options
Transmission / Drive	ZF 15WG261 automatic transmission	200 kW rated / 308 kW peak drive motor on current XH-RS45E data
ISO Container Reference	20' / 40' spreader on current core model	20' / 40' / 45' spreader on current XH-RS45E configuration
Main Procurement Constraint	Fuel, engine, emission and service support	Battery duty, charging power and terminal electrical infrastructure

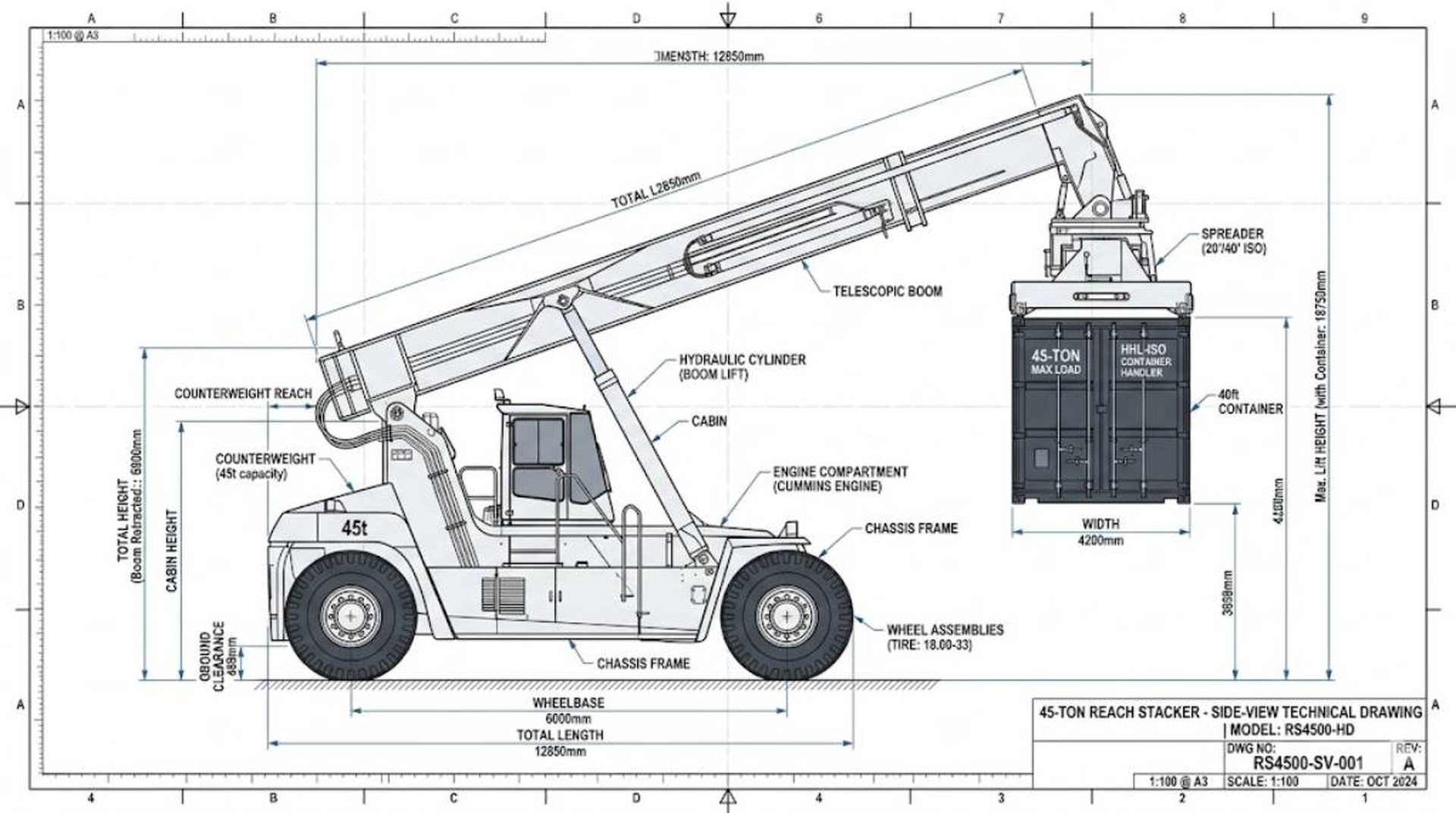

Load Chart

Request the Exact Row and Height Capacity before Ordering

Row capacity and stacking height must be reviewed together. The current diesel container stacker data, for example, publishes 45,000 kg in the first row, 31,000 kg in the second and 16,000 kg in the third, with different horizontal positions and lift heights for each row.

The pure-electric XH-RS45E uses a different third-row rating. These values should not be merged into one generic “45 ton reach stacker” load chart.

Container maximum gross weight
Required first-row capacity
Required second-row capacity
Required third-row capacity
Container height and stack level
Spreader and container size requirement

Do Not Select from 45,000 kg Alone

A machine that can lift 45 tons close to the front axle does not automatically lift the same weight at second- or third-row outreach.

Send the yard stack plan so the proposed model can be checked against the actual working envelope.

Yard Geometry

Check the Reach Stacker against the Real Terminal Lane

Working Lane Record the clear lane width between stacked containers, curbs and fixed structures.

Turning Zone Include 20' and 40' operating conditions, intersections and reversing areas.

Pavement Check surface condition and allowable ground loading for the machine and container.

Gradient Record ramps, drainage slopes and travel routes under loaded conditions.

Power Source Decision

Diesel and Electric Serve the Same Container Task Differently

Diesel Fits Better When

Fuel infrastructure is already established
Charging power is not available at the terminal
Engine service support is a purchasing priority
Duty scheduling favors rapid refueling
Market-specific engine configuration is acceptable

Electric Fits Better When

Terminal electrification is already planned
Battery charging can be integrated into shifts
Local electrical supply supports the charger
At-machine engine exhaust is undesirable
The battery package matches the required duty cycle

Spreader Selection

Container Size and Spreader Functions Belong in the RFQ

Container Size

State whether the yard handles ISO 20', 40' or 45' containers and whether one machine must cover multiple sizes.

Positioning Functions

Side shift, rotation and other spreader functions should be confirmed with the selected machine configuration.

Control Interface

Spreader controls, locking logic and machine safety functions should remain in one approved specification file.

Duty Cycle

Moves per Hour Matter as Much as Shift Length

A reach stacker working eight hours at low container throughput has a different duty from one performing repeated loaded cycles throughout the shift. Use the real terminal cycle when comparing diesel fuel demand or electric battery capacity.

Container Mix

20', 40', 45', gross weight and loaded versus empty proportion.

Stack Plan

Required rows, stack height and typical pickup position.

Throughput

Normal and peak moves per hour plus daily operating hours.

Site Support

Fuel supply or electrical charging power, maintenance resources and climate.

Related Port Equipment

Use the Right Container-Handling Equipment for the Actual Task

45 Ton Container Reach Stacker Review the current diesel XH-RS45 loaded-container platform. 45 Ton Pure Electric Reach Stacker Review the XH-RS45E battery-electric configuration. 45 Ton Container Stacker Review the diesel row-capacity and working-envelope data. Empty Container Handlers Use dedicated empty handlers when the primary task is empty-container stacking. Container Forklifts Compare forklift-based container and heavy-cargo handling. Port & Terminal Solutions Match equipment to terminal layout, container flow and duty cycle. After-sales & Parts Review technical support and replacement-parts information. Certificates Review published company and certification information.

FAQ

45 Ton Reach Stacker Buying Questions

Does a 45 ton reach stacker lift 45 tons in every row? +

No. Current Xinghao 45 ton platforms publish 45 tons in the first row and lower ratings as outreach increases. Check the exact load chart for the proposed diesel or electric model.

What is the difference between diesel and electric 45 ton reach stackers? +

They use different energy and drivetrain systems and can also have different row-capacity, spreader and duty-cycle specifications. Compare the complete machine rather than power source alone.

Can the reach stacker handle 20, 40 and 45 foot containers? +

Container-size capability depends on the selected spreader. Current diesel core data lists 20 and 40 foot handling, while the XH-RS45E electric configuration lists 20, 40 and 45 foot ISO containers.

How do I know if an electric reach stacker fits my duty cycle? +

Provide moves per hour, shift duration, container weight mix, travel distance, charging windows and available electrical supply. Battery and charger should be evaluated against the complete terminal cycle.

When should I choose an empty container handler instead? +

Compare an empty container handler when the main task is high-cycle stacking of empty containers rather than loaded containers requiring the reach-stacker load envelope.

What information should I send for a 45 ton reach stacker quote? +

Send container sizes and maximum gross weight, required row capacities, stacking height, moves per hour, shift length, yard layout, surface and gradients, diesel or electric preference, charging or fuel conditions, quantity and destination.

Reach Stacker Configuration

Send the Container Mix and Stack Plan before Choosing the Machine

We use the container gross weight, row requirement, stacking height, spreader specification, yard geometry, duty cycle and power infrastructure together to narrow the suitable 45 ton reach stacker configuration.

20' / 40' / 45' container mix
Maximum loaded-container weight
First / second / third-row requirement
Required stacking height
Moves per hour and shift duration
Yard layout and power-source preference

Request a 45 Ton Reach Stacker Configuration

Please include container sizes, maximum gross weight, row and stacking requirements, yard conditions, moves per hour, shift length, diesel or electric preference, charging or fuel conditions, quantity and destination.
