45 Ton Electric Reach Stacker for Loaded Container Handling
The Xinghao 45 Ton Electric Reach Stacker handles loaded ISO 20-foot and 40-foot containers with 45-tonne first-row, 31-tonne second-row and 15-tonne third-row capacity ratings. Its electric drivetrain, telescopic boom, container spreader and CAN-bus control system are designed for container terminals, inland depots and intermodal yards.
Container Capacity Changes with Working Row
The 45-tonne rating applies to the first-row working position. Capacity decreases as the boom reaches farther into the stack, so container gross mass and required row must be considered together.
Maximum rated capacity for the nearest container position.
Capacity available at the second-row working position.
Capacity available at the farthest listed stacking row.
Telescopic Boom, Container Spreader and Electric Drive

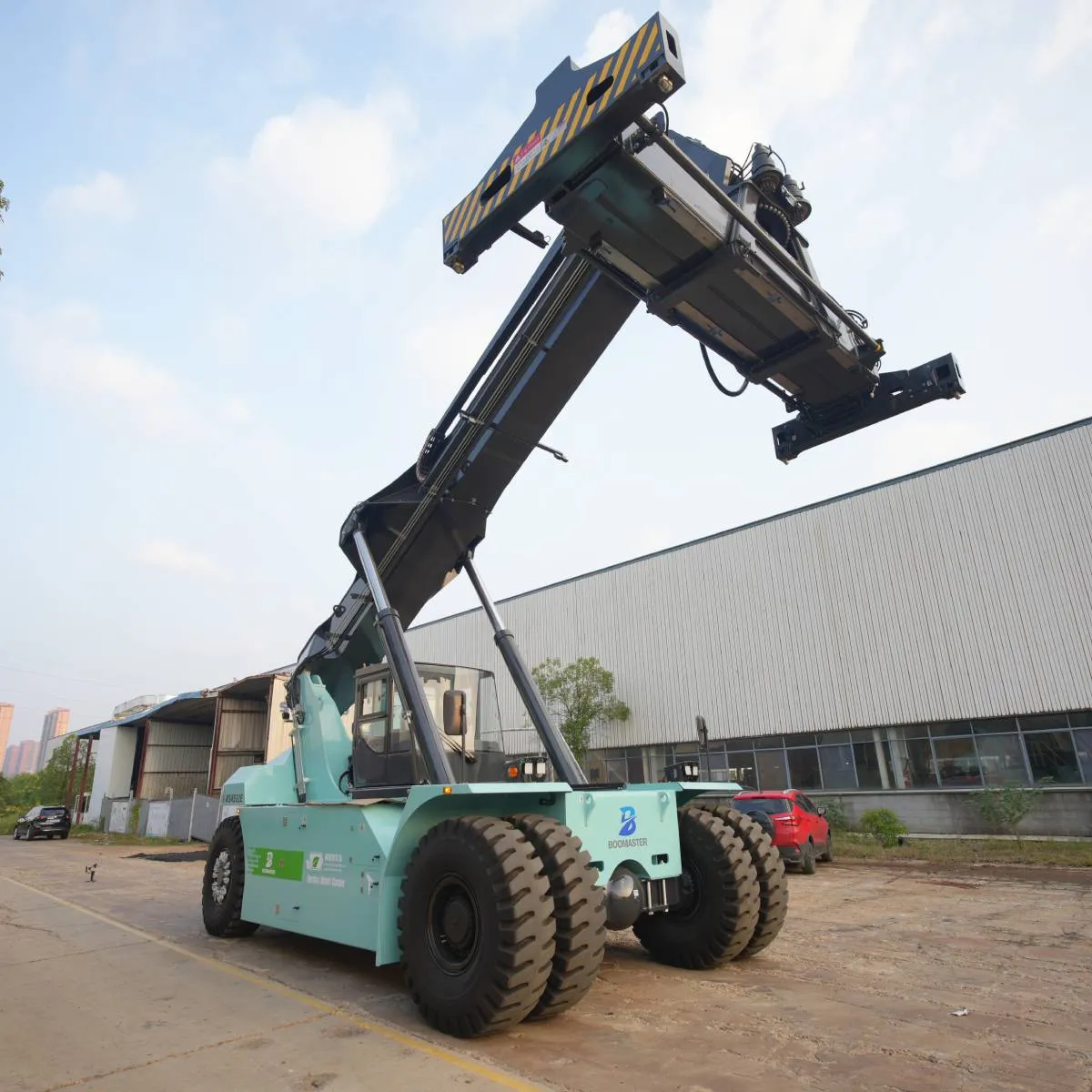

Electric reach stacker with telescopic boom and container spreader.

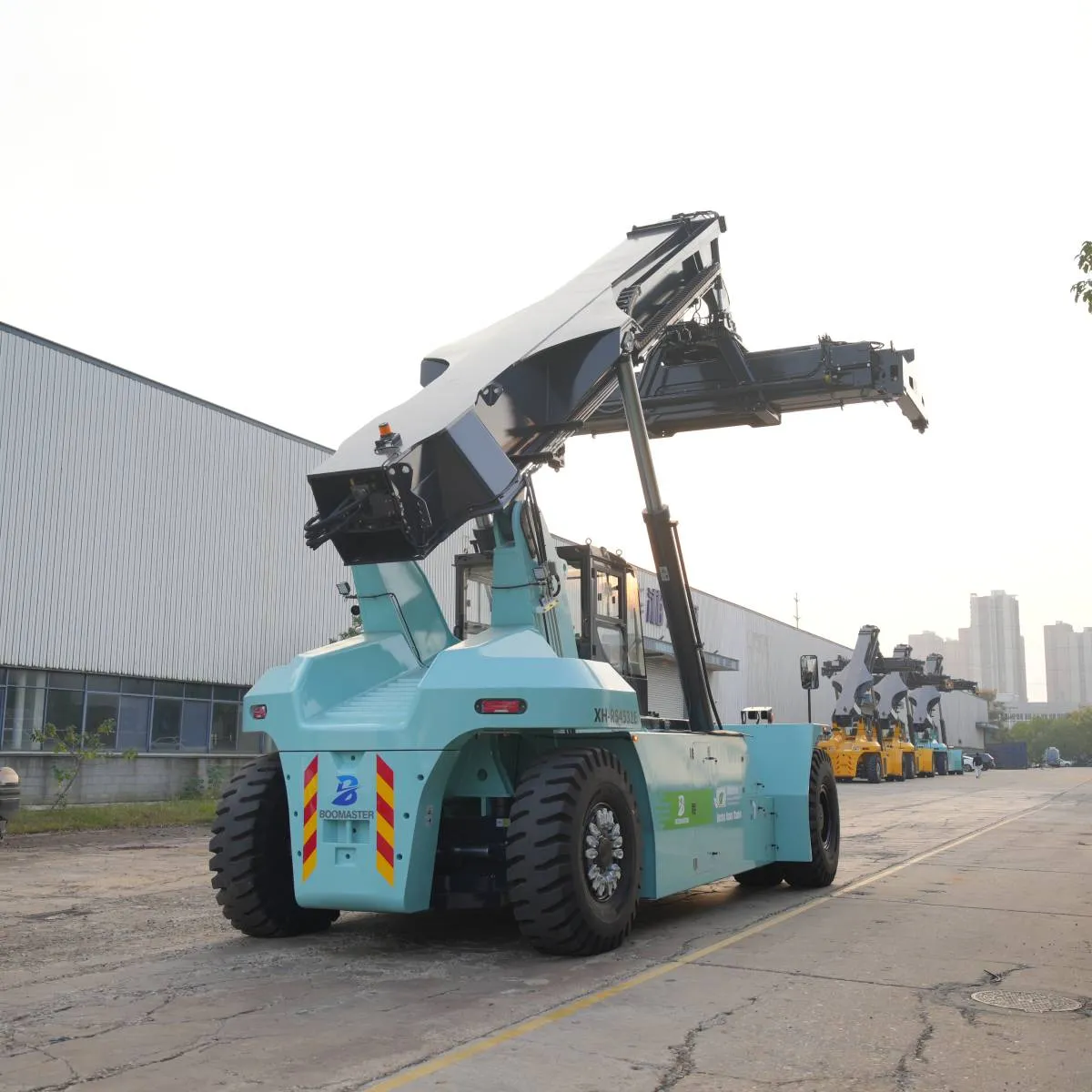

Rear-side view showing the boom, chassis and counterweight layout.

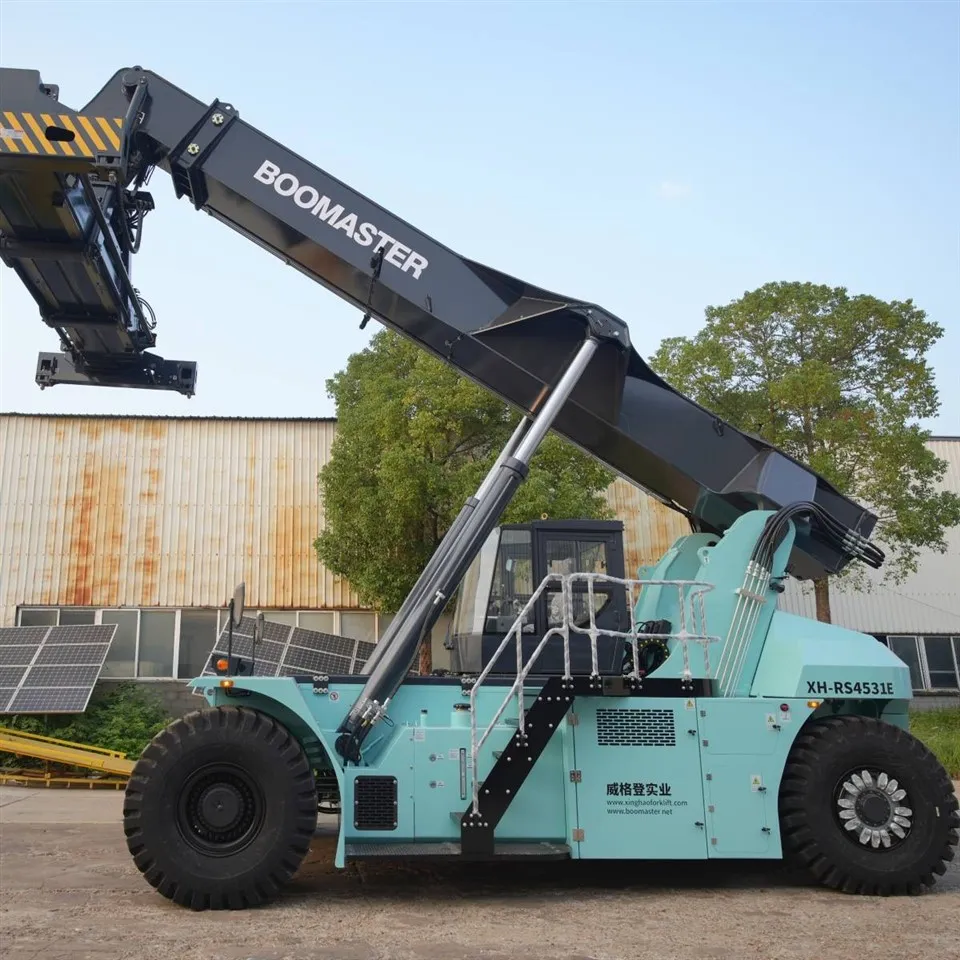

Side view showing the boom and spreader working arrangement.
45 Ton Electric Reach Stacker Specifications
| Specification | Value |
|---|---|
| Rated Load Capacity | 45,000 kg |
| 1st / 2nd / 3rd Row Capacity | 45 t / 31 t / 15 t |
| Drive Motor | CYAN Power AC motor |
| Rated Motor Output | 200 kW |
| Peak Motor Output | 308 kW |
| Drive Axle | WF0474A0 |
| Control System | Full CAN-bus |
| Service Brake | Hydraulic wet-disc |
| Parking Brake | Automatic engagement when power is off |
| Lift Cylinders | 2 dual-action cylinders |
| Extension Cylinder | 1 dual-action cylinder |
| Container Spreader | ISO 20' / 40' compatible |
| Front Tires | 18.00-25 × 4 |
| Rear Tires | 18.00-25 × 2 |
| Cab Display | Touch-sensitive high-resolution display |
| Rear Visibility | Rear CCTV |
Select the Battery and Charger from the Yard Duty Cycle
Battery and charging requirements depend on how the reach stacker is actually used. Container moves, stacking rows, travel distance, gradients, shift duration and available charging windows should be reviewed together.
- Container moves per hour
- Operating hours per shift
- Loaded and unloaded travel distance
- First-, second- and third-row work
- Yard gradients
- Available charging windows
- Available electrical supply

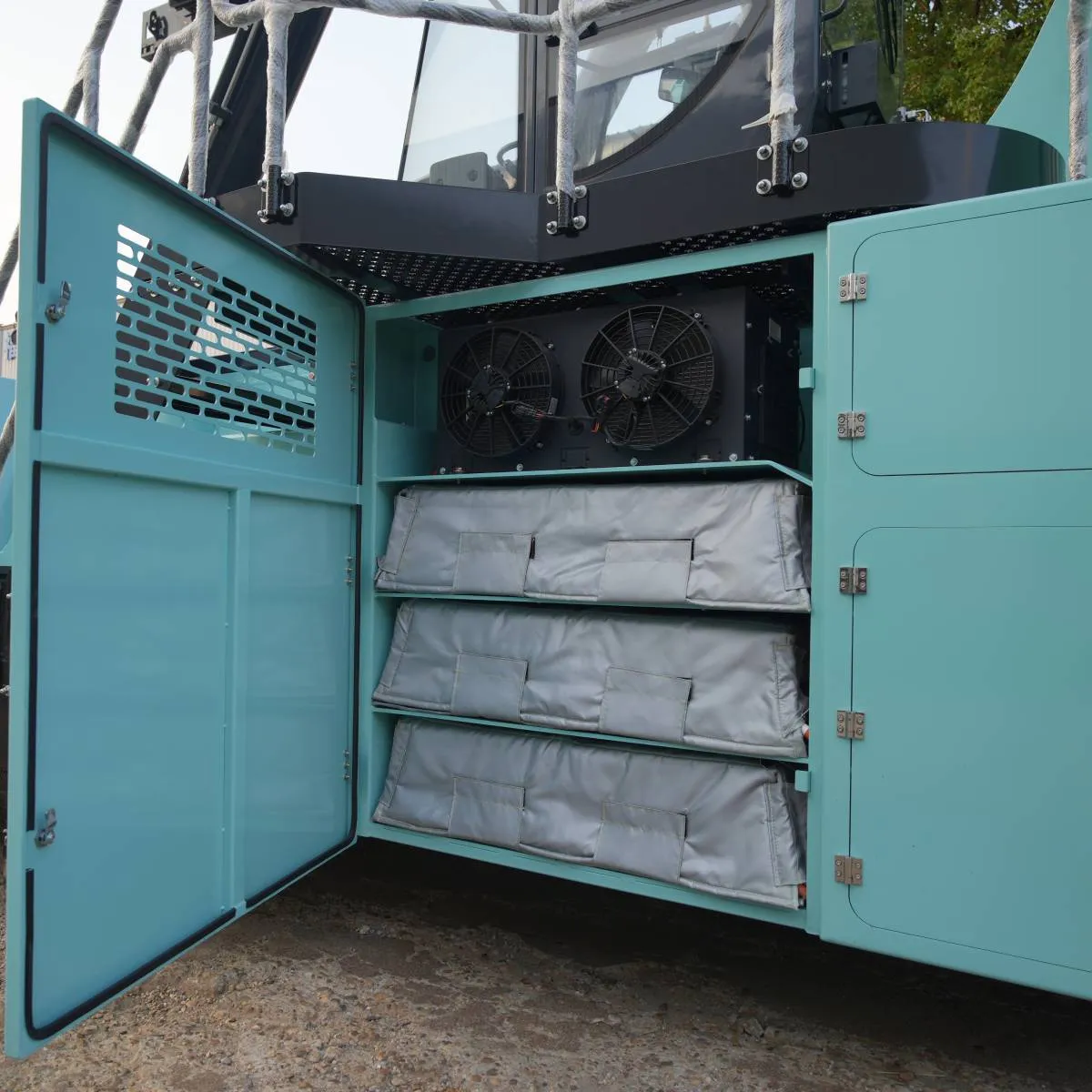

Battery and Charger Configuration
Battery capacity and charger power are selected according to the required working schedule and site electrical conditions.
The final quotation will identify the battery and charging configuration for the ordered machine.
200 kW Rated Electric Drive Motor
ISO 20' and 40' Top-Lift Container Handling
The machine uses a container spreader for top-lift handling of ISO 20-foot and 40-foot containers. The telescopic boom allows container placement beyond the first row while the applicable capacity decreases with horizontal reach.
Display and Rear Camera for Yard Visibility
Choose the Powertrain for the Operating Schedule
Suitable where the terminal can support the required charging arrangement and the selected energy system matches daily operating demand.
Compare diesel when the project requires a conventional diesel drivetrain or charging infrastructure is not available.
Compare Diesel Reach Stacker →Compare the newer XH-RS45E configuration when a defined CATL battery and DC charging package is required.
Compare XH-RS45E →Loaded Container Handling Applications
Plan Charging around the Terminal Workflow
Charging infrastructure should be included in the operating plan from the beginning. Site electrical capacity, charger location, shift breaks and machine traffic routes all affect the final arrangement.
Send Your Container and Operating Requirements
Compare Container Handling Equipment
45 Ton Electric Reach Stacker FAQ
Q: Can the electric reach stacker lift 45 tonnes in every row?
A: No. The rated capacities are 45 tonnes in the first row, 31 tonnes in the second row and 15 tonnes in the third row.
Q: What drive motor does the machine use?
A: The machine uses a CYAN Power AC drive motor rated at 200 kW with a 308 kW peak output.
Q: Can it handle 20 ft and 40 ft ISO containers?
A: Yes. The container spreader is compatible with ISO 20-foot and 40-foot containers.
Q: How is the battery configuration selected?
A: Battery and charger selection depends on shift duration, container moves, stacking rows, travel distance, gradients and available charging windows. The selected energy system is confirmed with the final technical proposal.
Q: When is an electric reach stacker suitable?
A: Electric drive is suitable where the site can provide the required charging infrastructure and the selected battery system can support the terminal's daily operating schedule.
Q: What information is needed for a quotation?
A: Provide maximum container gross weight, 20-foot / 40-foot container mix, stacking rows, stack height, moves per hour, shift duration, travel distance, yard gradients, available electrical supply, destination country and quantity.
Configure the Electric Reach Stacker for Your Terminal
Send the maximum container gross weight, 20-foot and 40-foot container mix, required stacking rows, stack height, moves per hour, shift duration, loaded travel distance, yard gradients, available electrical supply, charging windows, destination country and quantity. We can match the machine and energy configuration to the actual container-handling duty.
