Gruas Reach Stacker for International Container Handling Projects
The Xinghao Gruas Reach Stacker is a 45-tonne-class diesel container handler for ports, inland container depots and logistics yards. The machine combines 45 / 31 / 16 tonne row capacities with a Cummins QSM11 engine, ZF automatic transmission, AxleTech drive axle, Linde hydraulic system and ISO 20-foot / 40-foot container spreader.
Container Capacity Changes from the First to Third Row
The 45-tonne rating applies to the nearest listed working position. As the boom reaches farther into the stack, available container capacity decreases.
Maximum rated capacity at the nearest container working position.
Rated capacity for the second container row.
Rated capacity for the farthest listed row.
Machine, Chassis and Export Preparation Views

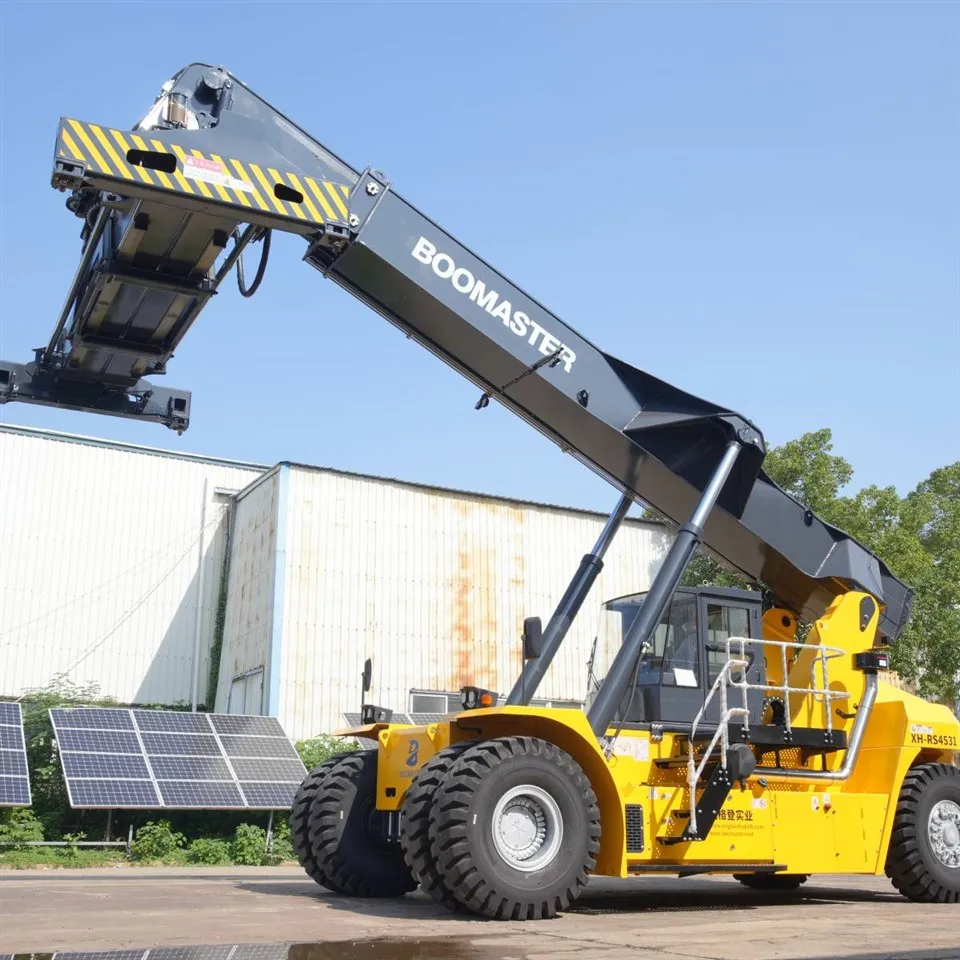

Yellow heavy-duty reach stacker with telescopic boom, container spreader, cab and counterweight chassis.
View of the heavy chassis area and secured components during preparation.
Steering wheel, control levers, pedals, switches and display inside the cab.
Gruas Reach Stacker Specifications
| Specification | Value |
|---|---|
| Rated Load Capacity | 45,000 kg |
| 1st / 2nd / 3rd Row Capacity | 45 t / 31 t / 16 t |
| Service Weight | 71,400 kg |
| Engine | Cummins QSM11 |
| Listed Engine Emission Configuration | Euro III |
| Rated Power | 250 kW @ 2,100 rpm |
| Maximum Torque | 1,674 Nm @ 1,400 rpm |
| Transmission | ZF 15WG261 automatic |
| Drive Axle | AxleTech PRC7545W4S586C |
| Steer Axle | AnQing |
| Hydraulic System | Linde |
| Control System | Full CAN-bus |
| Turning Radius with 20' Container | 8,605 mm |
| Turning Radius with 40' Container | 9,900 mm |
| Overall Dimensions | 8410 × 4180 × 3400 mm |
| Tyres | ZHONGWEI 18.00-25, 40PR pneumatic |
| Container Spreader | ISO 20' / 40' |
| Service Brake | Hydraulic wet-disc |
| Parking Brake | Automatic engagement when power is off |
| Optional Package | Cold-climate configuration |
Cummins, ZF, AxleTech and Linde Component Configuration
The current diesel configuration combines a Cummins QSM11 engine, ZF automatic transmission, AxleTech drive axle and Linde hydraulic system. These component selections should be identified in the approved machine specification before production and shipment.
Check Destination-Market Requirements before Order Confirmation
The current machine specification lists a Cummins QSM11 with a Euro III emission configuration. Buyers should confirm the engine and documentation requirements for the actual destination market before the order is fixed.
Cold-Climate Configuration for Low-Temperature Projects
A cold-climate package is listed as an optional configuration for this reach stacker. The final scope should be agreed from the expected ambient temperature, storage conditions and operating schedule.
- Lowest expected ambient temperature
- Outdoor or sheltered machine storage
- Daily cold-start requirement
- Engine and fluid specification required
- Cab heating requirement
- Battery and electrical preparation
Confirm the Climate before Production
The optional package should be defined against the project's actual temperature range rather than assumed from the destination country alone.
Turning Radius and Machine Size for Yard Planning
The published turning radius changes with container length. The yard layout should include machine width, container sweep and additional operating clearance rather than using the turning-radius number alone.
ISO 20' and 40' Loaded Container Handling
The current spreader configuration is listed for ISO 20-foot and 40-foot containers. Container gross mass and required working row should be confirmed together before equipment selection.
Prepare the Machine Configuration before Production
Export Packing and Shipment Preparation
Heavy reach stackers may require partial disassembly or component securing for transport. The shipping plan should be matched to the final machine configuration and selected transport method.
Heavy machine components secured during transport preparation.
Machine body section positioned for containerized transport preparation.
Checks before Shipment
The inspection scope should correspond to the exact machine and options ordered by the buyer.
Information Needed for an Export Quotation
Related Reach Stacker and Port Equipment
Gruas Reach Stacker FAQ
Prepare the Gruas Reach Stacker for Your Project
Send the maximum container gross weight, 20-foot / 40-foot container mix, working rows, stack height, yard conditions, expected ambient temperature, destination country, quantity and required options. Xinghao can review the machine configuration and export scope against the actual project requirements.
