Container Reach Stacker for Loaded Container Yards
The Xinghao Container Reach Stacker is a 45-tonne-class diesel container handler for port terminals, inland depots and intermodal yards. It combines a telescopic boom, ISO 20-foot / 40-foot spreader, Cummins QSM11 engine, ZF automatic transmission and CAN-bus control system for loaded container handling across multiple working rows.
Match Container Weight to the Required Working Row
The reach stacker's 45-tonne rating applies to the first-row working position. Available load decreases as horizontal reach increases, so the container gross mass and required row must be considered together.
Maximum rated capacity for the nearest container working position.
Rated capacity for container placement in the second working row.
Rated capacity for the farthest listed working row.
Telescopic Boom, Spreader and Heavy Container Chassis
Front-side machine view showing the telescopic boom and ISO container spreader arrangement.
Detailed view of the boom structure, hydraulic lines and lifting components.

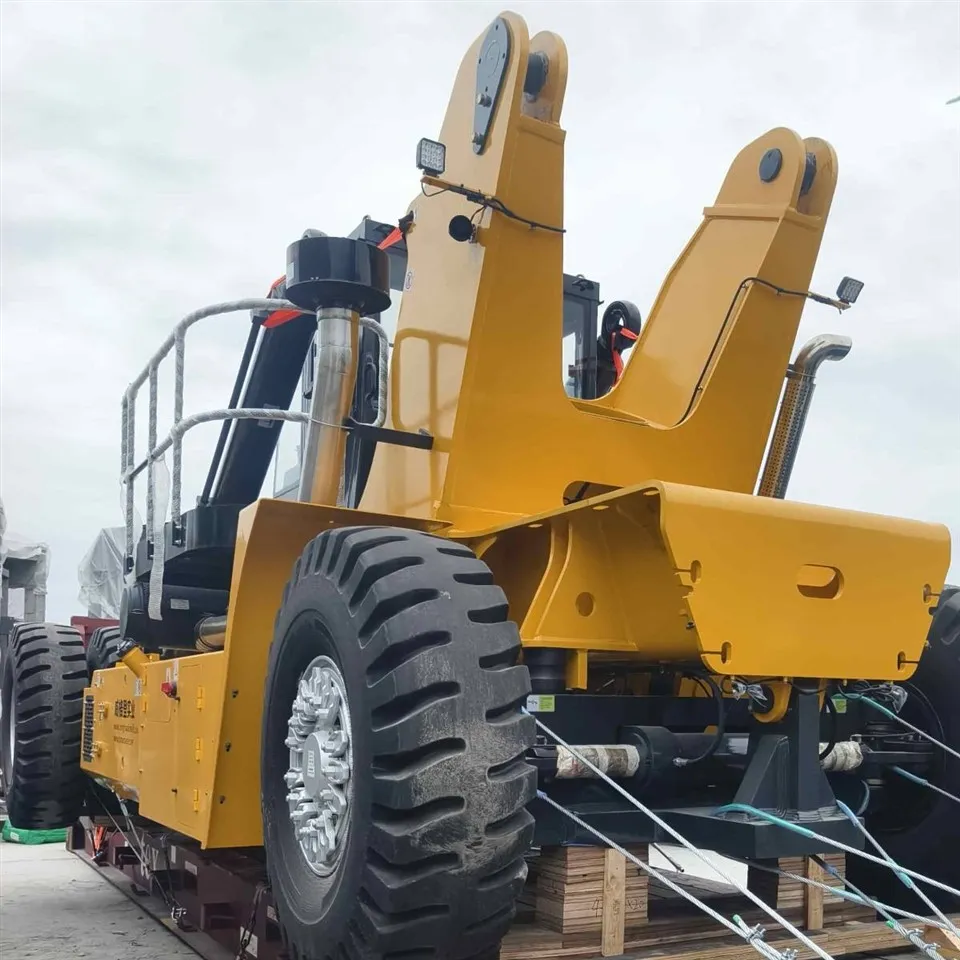

Front view showing cab position and the boom support structure around the operator area.
Container Reach Stacker Specifications
| Specification | Value |
|---|---|
| Rated Load Capacity | 45,000 kg |
| 1st / 2nd / 3rd Row Capacity | 45 t / 31 t / 16 t |
| Service Weight | 71,400 kg |
| Engine | Cummins QSM11 |
| Rated Power | 250 kW @ 2,100 rpm |
| Maximum Torque | 1,674 Nm @ 1,400 rpm |
| Transmission | ZF 15WG261 automatic |
| Drive Axle | AxleTech PRC7545W4S586C |
| Steer Axle | AnQing |
| Hydraulic System | Linde |
| Control System | Full CAN-bus |
| Spreader | ISO 20' / 40' container spreader |
| Turning Radius with 20' Container | 8,605 mm |
| Turning Radius with 40' Container | 9,900 mm |
| Overall Dimensions | 8410 × 4180 × 3400 mm |
| Tyres | 18.00-25, 40PR pneumatic |
| Service Brake | Hydraulic wet-disc |
| Parking Brake | Automatic engagement when power is off |
Cummins QSM11, ZF Transmission and AxleTech Drive Axle
The diesel powertrain combines a Cummins QSM11 engine rated at 250 kW with the ZF 15WG261 automatic transmission and AxleTech PRC7545W4S586C drive axle.
Linde Hydraulics and Full CAN-Bus Machine Control
ISO 20' and 40' Top-Lift Container Handling
The reach stacker uses a dedicated container spreader rather than standard forklift forks. The spreader engages compatible ISO container corner fittings for top-lift handling.
Plan the Reach Stacker around the Container Yard
The machine should be matched to the yard layout rather than selected from rated capacity alone. Container mass, stacking rows, traffic lanes and pavement all affect equipment fit.
- Maximum gross container weight
- 20 ft and 40 ft container mix
- Required first / second / third row
- Maximum required stacking height
- Moves per hour and shift length
- Loaded travel distance
- Yard gradients and pavement condition
Row Capacity Changes the Yard Plan
A container that fits within the 45-tonne first-row rating may exceed the 31-tonne second-row or 16-tonne third-row capacity.
Container weight and required horizontal reach should therefore be checked together.
Turning Space Changes with Container Length
The listed turning radius is 8,605 mm with a 20-foot container and 9,900 mm with a 40-foot container. Yard lanes and intersections should include suitable operating clearance beyond these machine figures.
Where a Container Reach Stacker Fits in the Terminal Fleet
Use a reach stacker when loaded containers require top-lift handling and horizontal boom reach into multiple rows.
Compare a container forklift for vertical-mast handling where telescopic multi-row reach is not required.
Compare Container Forklifts →Use a dedicated empty container handler when the primary task is stacking unloaded containers rather than loaded boxes.
Compare Empty Container Handlers →Container Reach Stacker Applications
Configure the Machine for Your Fleet and Site
Fleet buyers should define operating conditions before confirming the machine configuration. This helps keep the reach stacker, spreader, site layout and support requirements aligned.
Compare Container Handling Equipment
Container Reach Stacker FAQ
Match the Container Reach Stacker to Your Yard
Send the container weights, container sizes, required working rows, stack height, moves per hour, travel distance, pavement conditions, gradients, destination country and quantity. Xinghao can review the machine configuration against the actual terminal operating profile.
