Product Details

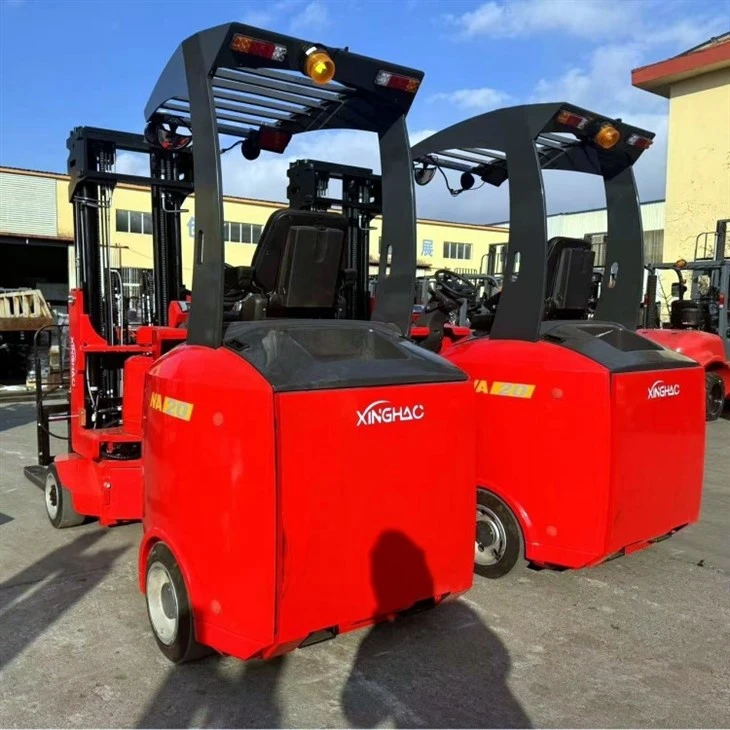

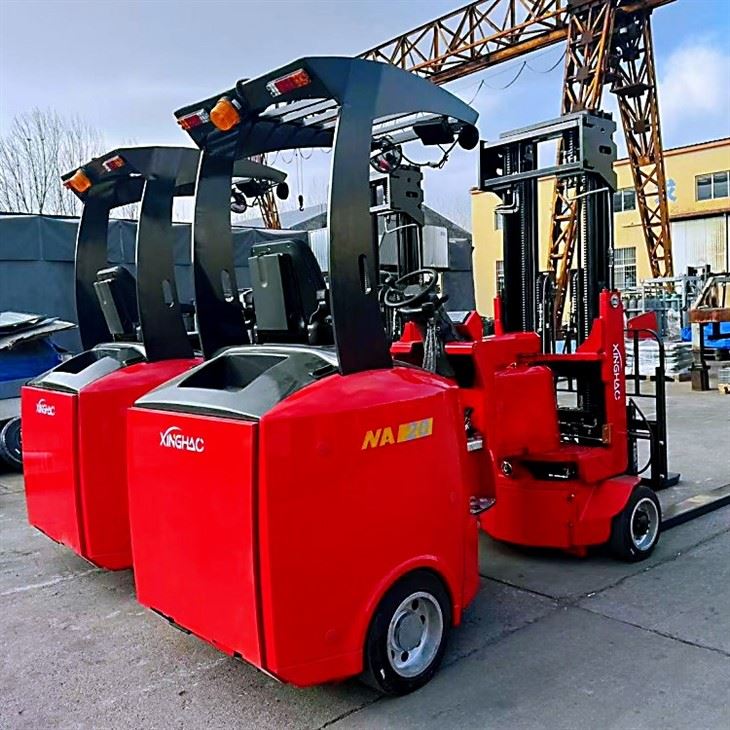

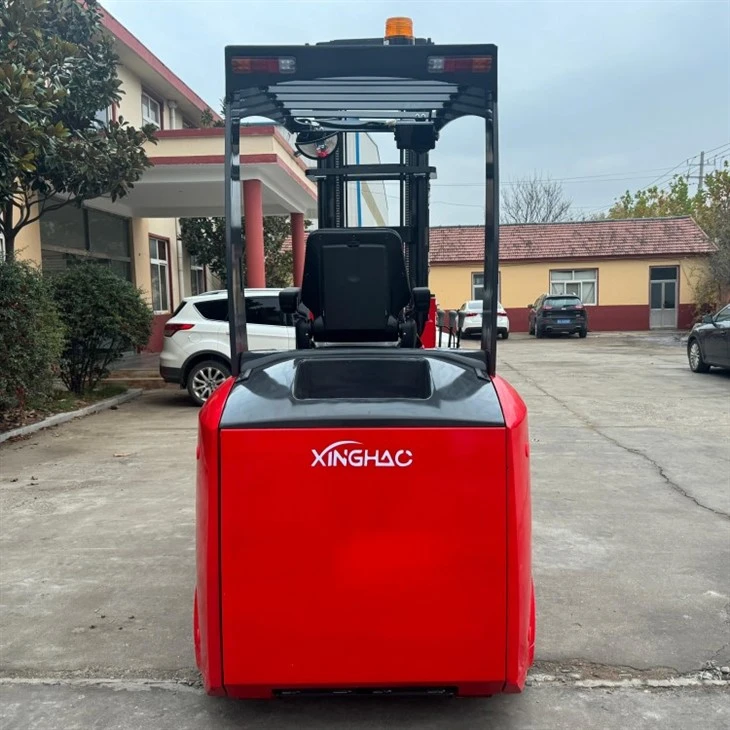

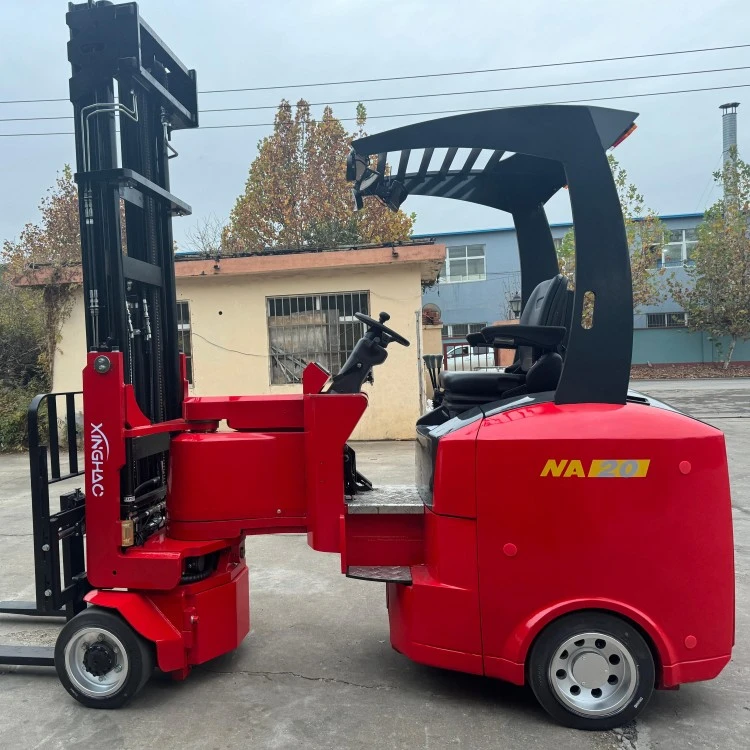

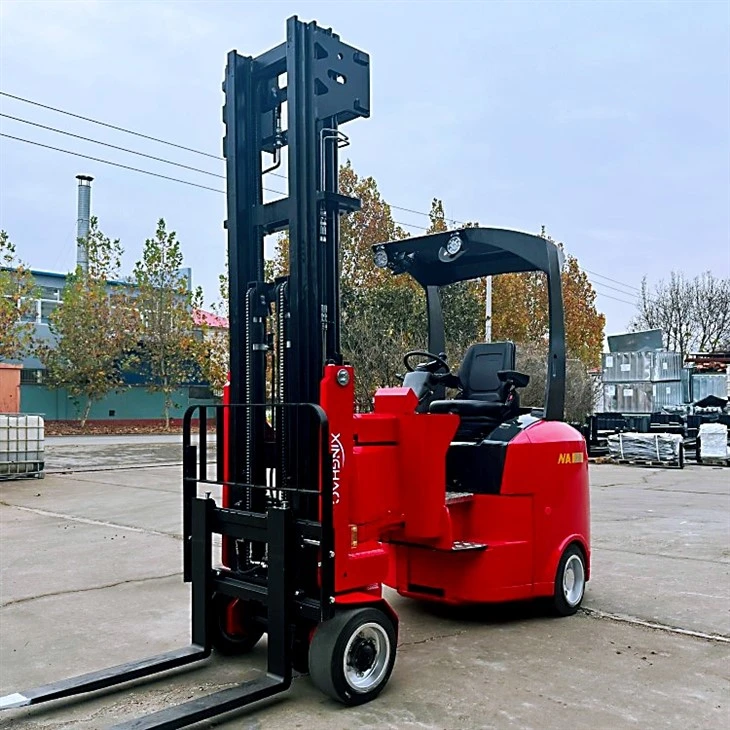

The XINGHAO 2 ton very narrow aisle master forklifts provides the lowest cost of ownership while maximizing space and productivity to benefit every users.
XINGHAO versatile narrow aisle forklifts are designed to withstand heavy-duty use both inside and outside, it can drive on any floor surface, eliminating double handling, moving pallet from lorry to racks in one step. Comparing to reach trucks, XINGHAO VNA trucks creats 30% more pallet positions, compairing to counterbance forklifts, it creats 50% morepallet positions. So the Articulated Forklift 2.0 ton can save users much time, space and money.
Full xinghao 2.0 ton Articulated Forklift ranges are standard equipped with 80V AC ZAPI dual-core controller which makes it has a lower failure rates and creates lower heat after long time using, 80V AC lifting motor and driving motor and 80V 400ah-600ah lead acid battery or li-ion battery which provides stronger power, increases efficiency and greatly reduces maintenance costs.
Video Description
Product parameters
|
Item |
NO. |
Item |
Unit |
Parameter |
||
|
CHARACTERISTICS |
CAPACITY |
1 |
Rated Capacity |
Q |
kg |
2000 |
|
LOAD CENTER |
2 |
Standard load center distance |
C |
mm |
500 |
|
|
SYSTEM |
3 |
SYSTEM |
AC |
|||
|
POWER |
4 |
Battery |
Lead-acid/ |
|||
|
DIMENSIONS |
3 STAGE FULL FREE LIFT MAST |
5 |
Mast Lifting Height |
h3 |
mm |
4500-10000 |
|
6 |
Lifting height of rated weight |
mm |
3000 |
|||
|
10 |
Mast tilt angle (forward/rear tilt) |
α/β |
° |
1/3 |
||
|
FORKLIFT SIZE |
11 |
Total length(without FORK) |
L2 |
mm |
2780 |
|
|
12 |
Total width |
b1/b2 |
mm |
1250 |
||
|
13 |
Overhead guard height |
h6 |
mm |
2400 |
||
|
FORK |
14 |
T*W*L |
mm |
40*122*960 |
||
|
15 |
Fork carriage width |
b3 |
mm |
1060 |
||
|
16 |
Fork outside width (mini) |
b4 |
mm |
244 |
||
|
17 |
Fork outside width (MAX) |
b5 |
mm |
1040 |
||
|
MINI STACKING AISLE WITDTH |
18 |
Pallet lateral width 800*1200/1000*1200 |
mm |
1800/2000 |
||
|
TURNING ANGLE |
19 |
TURNING ANGLE |
δ |
° |
210 |
|
|
TYRE SIZE |
20 |
FRONT |
mm |
412*178 |
||
|
21 |
REAR |
mm |
457*150 |
|||
|
WHEELBASE |
22 |
WHEELBASE |
Y |
mm |
1895 |
|
|
PERFORMANCE |
TRAVEL SPEED |
23 |
LOAD/NO LOAD |
km/h |
10/12 |
|
|
LIFT SPEED |
24 |
LOAD/NO LOAD |
mm/s |
350/430 |
||
|
LOW SPEED |
25 |
LOAD/NO LOAD |
mm/s |
400/340 |
||
|
GRADEABILITY |
26 |
LOAD/NO LOAD |
% |
10/10 |
||
|
BRAKE |
27 |
Mechanical/Hydraulic |
Hydraulic |
|||
|
MANUAL BRAKE |
28 |
Mechanical/Hydraulic |
Mechanical |
|||
|
SERVICE WEIGHT |
29 |
WITH BATTERY |
kg |
6900 |
||
|
POWER |
LEAD ACID BATTERY |
30 |
Electric tension/capacity |
V/Ah |
80/400 |
|
|
LITHIUM BATTERY |
31 |
Electric tension/capacity(Optional) |
V/Ah |
80/410 |
||
|
MOTOR |
32 |
Drive motors |
kW |
11 |
||
|
33 |
Lifting motor |
kW |
14 |
Our company
China Articulated VNA Forklift 2 ton catalog of Fupia 10m Electric Vna 1.5-2ton Capacity Articulated Forklift, China Manufacturer 2ton 2000kg 4400lbs

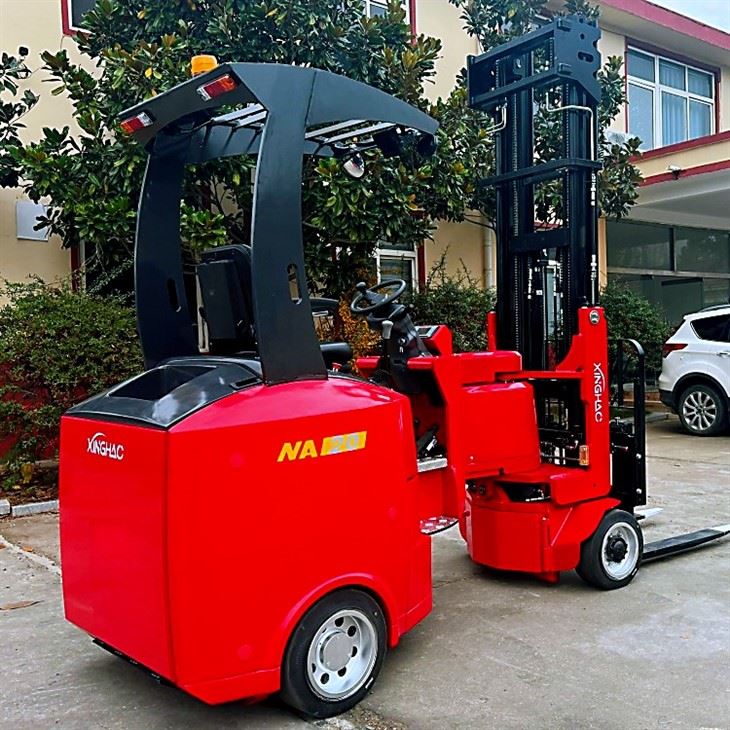

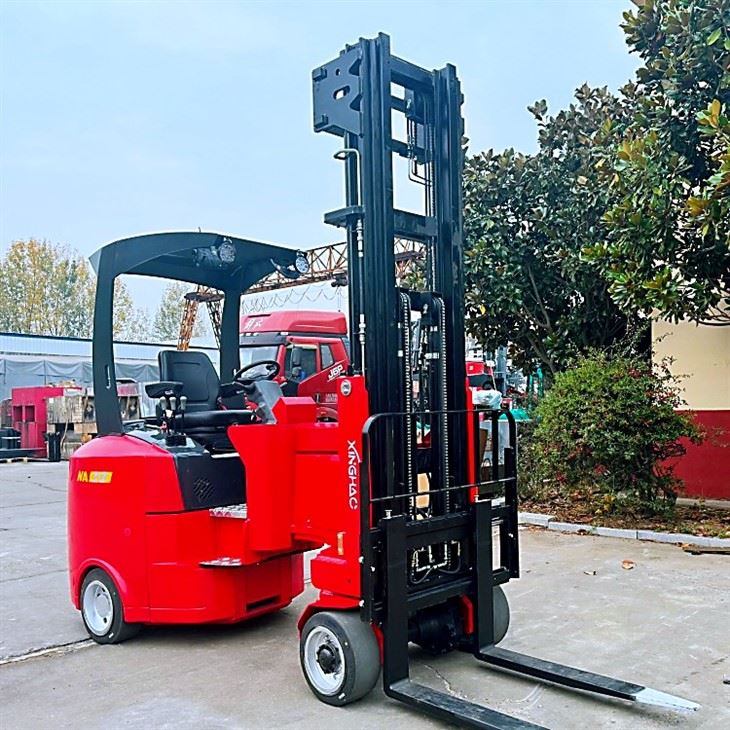

The articulated forklift has a load of 2 tons and a maximum lifting capacity of 12.5m, adopting front single drive mechanical diffiential bridge designed for 2 ton Electric Articulated Forklift for Warehouse.

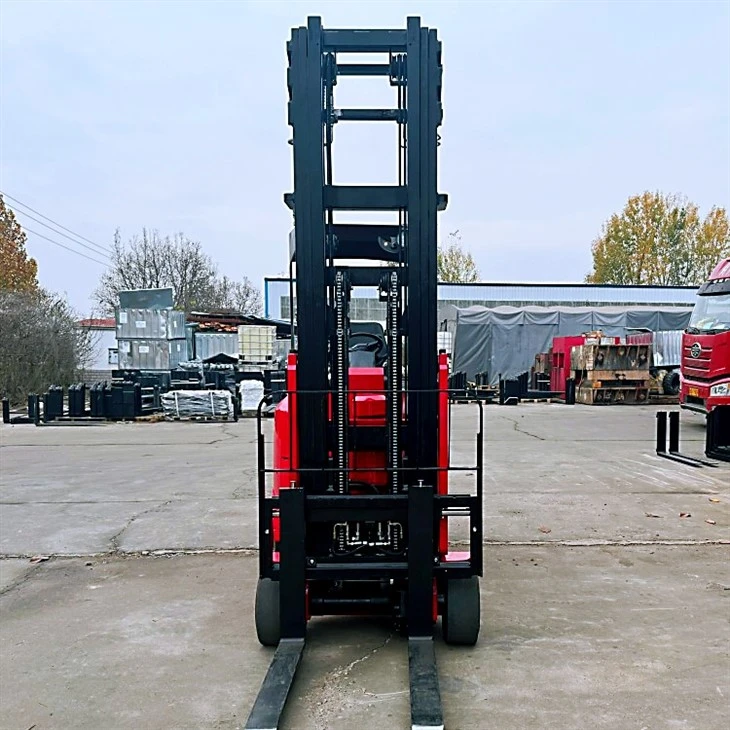

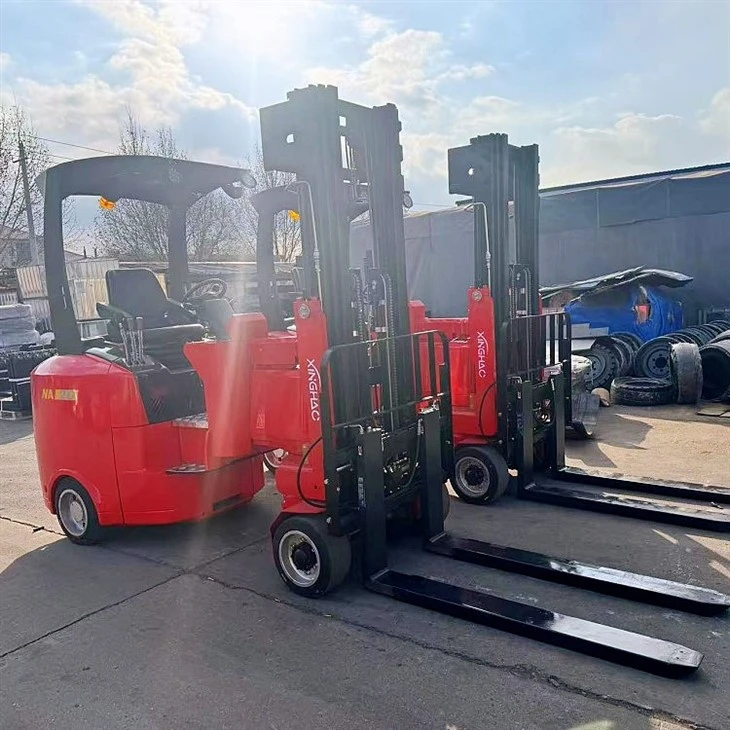

An articulated forklift truck designed for 2.0m narrow aisles, also known as a "Very Narrow Aisle" (VNA) truck, is a specialized piece of material handling equipment that maximizes storage capacity in tight spaces by allowing operation in aisles as narrow as 1.6m to 2.0m.

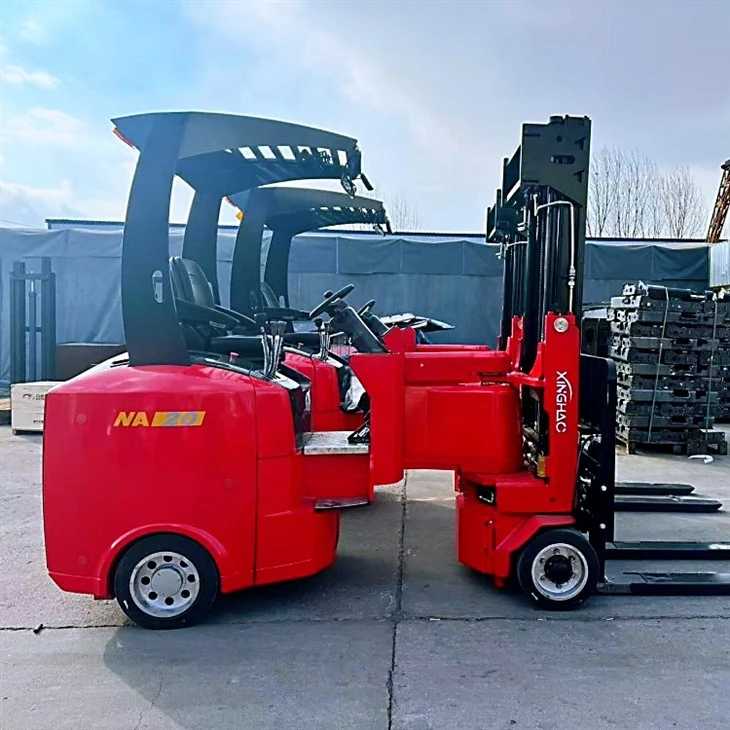

Key Features and Benefits of Articulated Forklift Truck Lift up to 8 Meters
Space Optimization:
These trucks are designed to operate in very narrow aisles, allowing businesses to significantly increase storage capacity by reducing aisle widths and adding more racking.
