2.5 Ton Articulated VNA Forklift
2.5 Ton Capacity for Very Narrow Aisle Warehouses
The 2.5 ton VNA forklift combines a 2,500 kg rated load, articulated chassis and electric AC drive for high-density pallet storage. Depending on pallet size and rack layout, typical stacking aisle requirements start at about 2.0 to 2.2 m, making aisle geometry one of the first specifications to confirm before ordering.
2,500 kg Rated load capacity
500 mm Standard load center
≈2.0 m Aisle for 800×1200 mm pallet
80 V AC electrical platform

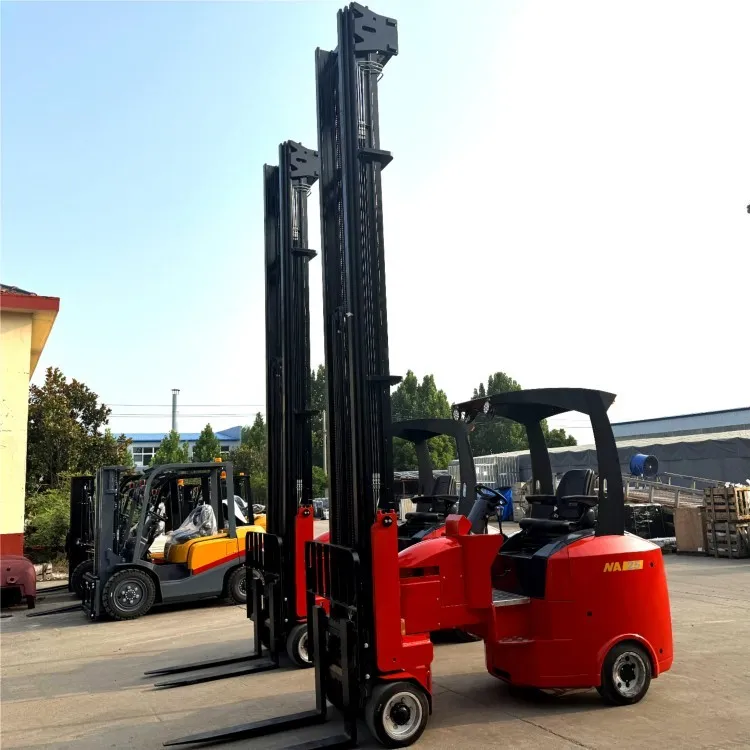

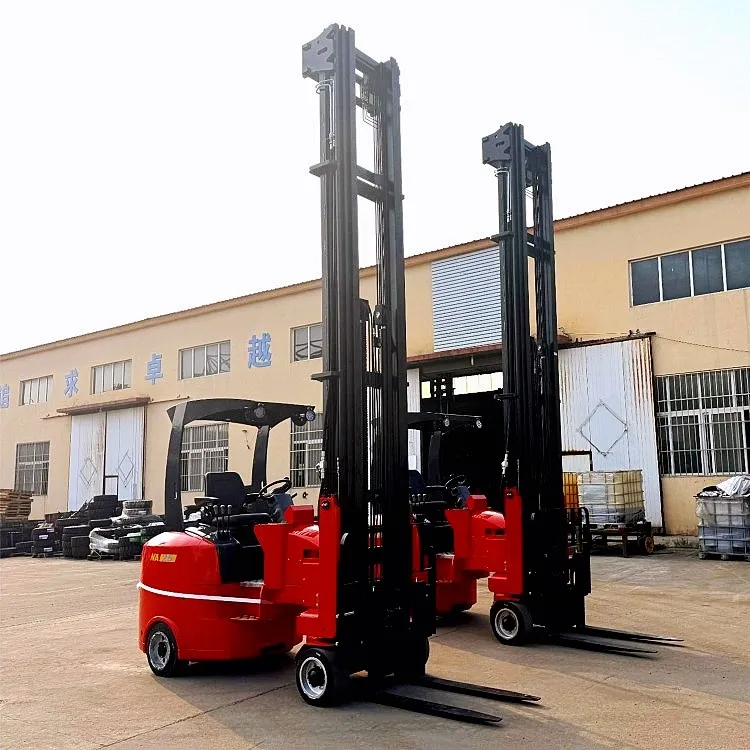

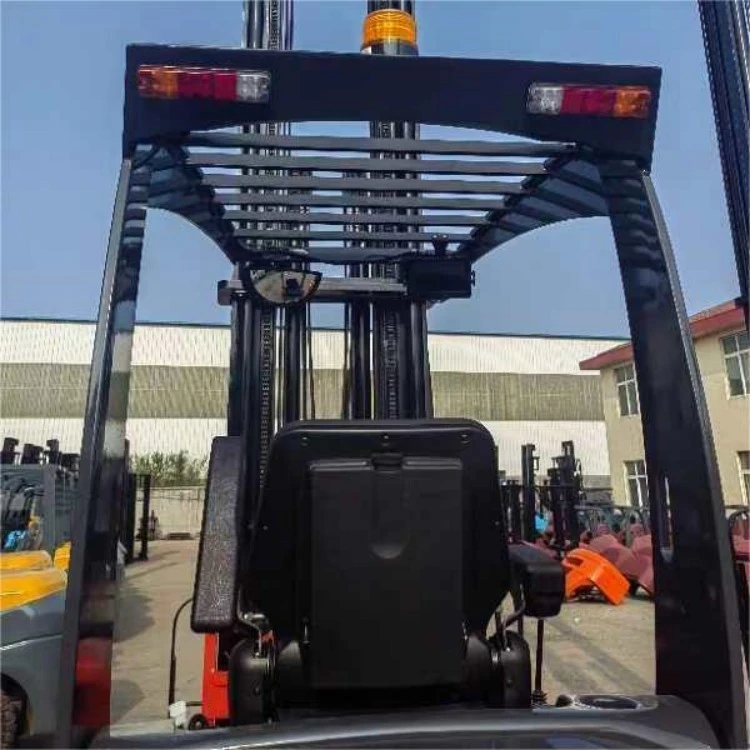

Articulated chassis, high-lift mast and operator station configuration for narrow-aisle pallet handling.
Warehouse Fit
Select the Truck Around the Aisle and Pallet
VNA forklift selection starts with warehouse geometry. Pallet dimensions, clear aisle width, rack beam height, top pallet height and floor condition determine whether the articulated truck can turn, stack and retrieve pallets safely within the available space.
2,500 kg Load Class Rated for general palletized warehouse loads at a 500 mm standard load center.
Articulated Steering The chassis articulates for rack approach inside narrower stacking aisles.
High-Rack Operation Mast configuration can be selected according to the required top pallet level.
Electric Power AC electric drive supports indoor warehouse handling without an IC engine.
Technical Data
2.5 Ton VNA Forklift Specifications
Core Selection Data
- Rated capacity: 2,500 kg
- Load center: 500 mm
- Electrical system: 80 V
- Drive motor: 11 kW
- Lift motor: 14 kW
- Wheelbase: 1,895 mm
| Product Type | Articulated VNA electric forklift |
|---|---|
| Rated Load Capacity | 2,500 kg |
| Standard Load Center | 500 mm |
| Controller | 80 V AC ZAPI dual-core |
| Battery Options | Lead-acid / lithium |
| Published Battery Range | 80 V / 400–600 Ah |
| Drive Motor Power | 11 kW |
| Lift Motor Power | 14 kW |
| Wheelbase | 1,895 mm |
| Travel Speed, Load / No Load | 10 / 12 km/h |
| Lift Speed, Load / No Load | 330 / 400 mm/s |
| Lowering Speed, Load / No Load | 400 / 340 mm/s |
| Gradeability, Load / No Load | 10% / 10% |
| Front Tire Size | 412 × 178 mm |
| Rear Tire Size | 457 × 170 mm |
| Typical Aisle Width | Approx. 2,000 mm for 800×1200 mm pallet |
| Typical Aisle Width | Approx. 2,200 mm for 1000×1200 mm pallet |
| Mast Height | Confirm required lift height with rack and top pallet dimensions before order |
Aisle Calculation
Why Pallet Size Changes the Required Aisle
The published stacking aisle figure is about 2,000 mm for an 800×1200 mm pallet and about 2,200 mm for a 1000×1200 mm pallet.
These figures should not be applied without checking pallet orientation, rack clearance, turning geometry and load overhang.
- Clear rack-to-rack aisle width
- Pallet width, depth and orientation
- Maximum load dimensions
- Rack upright clearance
- Top pallet height
- Floor level and joint condition
Send Your Warehouse Drawing
For a VNA truck, aisle width alone is not enough to confirm the machine.
Send the rack layout, aisle dimension, pallet size, maximum load and highest pallet level so the mast and truck configuration can be checked together.
Narrow-Aisle Operation
Articulation Changes How the Truck Approaches Racks
Straight Travel
The truck travels along warehouse routes with the mast aligned for normal transfer between working zones.
Articulated Rack Approach
The front mast section turns relative to the rear chassis to align the forks with the rack inside a narrow aisle.
Pallet Placement
Electro-hydraulic proportional control allows lifting and lowering speed to be adjusted for pallet positioning.
Electrical Configuration
80 V AC Drive with Lead-Acid or Lithium Options
ZAPI AC Controller
The published configuration uses an 80 V AC ZAPI dual-core controller.
11 kW Drive Motor
AC traction power is specified at 11 kW for warehouse travel and positioning.
14 kW Lift Motor
Lift motor power is listed at 14 kW for mast lifting functions.
Battery Selection
Choose the Battery Around Shift Pattern
The current product specification lists both lead-acid and lithium battery options on an 80 V electrical platform.
Battery type and capacity should be selected according to shift length, charging windows, charging infrastructure and fleet standardization.
Fleet Procurement
Standardize Configurations Across Multiple Trucks
For multi-unit purchases, using consistent battery type, controller settings and mast configuration can reduce variation between machines.
Operators should also work with the same pallet and aisle assumptions during fleet specification.
Warehouse Applications
Where an Articulated VNA Forklift Adds Value
High-Density Rack Storage
Narrower stacking aisles can allow more rack positions within the same warehouse footprint when the complete layout supports VNA use.
Rack-to-Dock Handling
Articulated operation can reduce the need to transfer pallets between separate aisle and general-purpose trucks.
Indoor & Hard-Surface Yards
The electric truck can work between indoor storage and suitable hard-surface loading areas when site conditions permit.
Before Quotation
Data Needed to Configure the VNA Forklift
1
Aisle
Send clear aisle width and rack-to-rack dimensions.
2
Pallet
Send pallet size, orientation, load center and maximum weight.
3
Rack
Send highest pallet level and required free lift or mast clearance.
4
Duty Cycle
Send shifts per day, charging window, quantity and destination.
Related Warehouse Equipment
Compare the Truck Type Before Finalizing the Layout
VNA Articulated Forklifts Compare articulated models for different pallet loads and warehouse layouts. 2 Ton VNA Forklift Compare a lighter-capacity articulated warehouse truck. 3 Ton VNA Forklift Compare additional rated load capacity for heavier pallet handling. 1.5 Ton VNA Forklift Compare a lower-capacity model for lighter warehouse duties. Electric Reach Trucks Compare reach trucks where aisle width and rack layout allow a conventional chassis. After-sales & Parts Review service and replacement-parts support. About Xinghao Review company and equipment manufacturing information. Contact Xinghao Send warehouse drawings and purchasing requirements.
FAQ
2.5 Ton VNA Forklift Buying Questions
What is the rated capacity of this VNA forklift?
The rated load capacity is 2,500 kg at a standard 500 mm load center.
What aisle width does the 2.5 ton VNA forklift need?
The published figures are approximately 2,000 mm for an 800×1200 mm pallet and 2,200 mm for a 1000×1200 mm pallet. Exact requirements depend on pallet orientation, rack layout and clearance.
How high can this articulated forklift lift?
Several mast heights are published for this product, so the required lifting height should be confirmed against the actual rack and top pallet level before the mast configuration is finalized.
Is a lithium battery available?
Yes. The current product specification lists both lead-acid and lithium battery options on an 80 V platform.
How is a VNA articulated forklift different from a reach truck?
The articulated chassis allows the mast section to turn toward the rack inside a very narrow aisle. A reach truck uses a different chassis and reach mechanism, so required aisle width and rack layout should be compared for the actual warehouse.
What information should I send for a quotation?
Send aisle width, pallet dimensions, maximum load, highest pallet level, battery preference, shift pattern, quantity and destination country.
Confirm the Aisle Before Selecting the Mast
Send the rack drawing, clear aisle width, pallet dimensions, maximum load, highest pallet level, battery preference, shift pattern, quantity and destination country. These details allow the articulated VNA configuration to be checked before quotation.
