4t - 7t Heavy Duty Electric
4–7 Ton Electric Forklifts for Heavier Industrial Loads
Our 4–7 ton electric forklift range covers heavier pallet, machinery, steel, paper and production loads where compact warehouse trucks no longer provide enough capacity. Compare the models by actual load center, truck dimensions, turning space, lift height, attachment demand and battery duty cycle. Battery voltage, capacity and lithium options are model-specific.
-
4 Ton Electric Forklift• FB40 seated counterbalance configuration• 4,000 kg rated lifting capacity• 500 mm standard load center• 14 kW AC traction motor• 80V / 450Ah lead-acid battery• 80V / 460Ah lithium battery option•Add to Inquiry -
5 Ton Electric Forklift• FB50 seated counterbalance design• 5,000 kg rated lifting capacity• 500 mm standard load center• 3,000 mm standard lift height• 80V / 630Ah standard battery• 80V / 544Ah lithium battery option• 15Add to Inquiry -
7 Ton Electric Forklift• FB70 heavy-duty counterbalance design• 7,000 kg rated lifting capacity• 600 mm standard load center• 3,000 mm standard lift height• 76.8V / 700Ah battery system• 30 kW AC driving motor• 3,355 mmAdd to Inquiry -

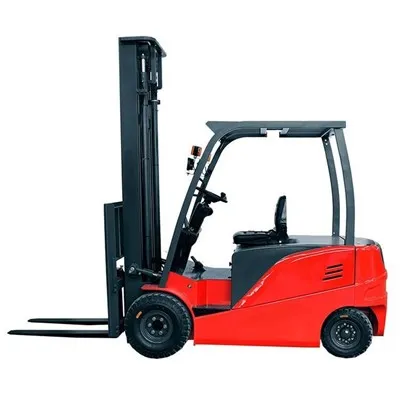

4 Ton Electric Forklift Truck• FE40 seated counterbalance configuration• Rated load capacity of 4,000 kg• Load center listed at 600 mm• Maximum lift height listed at 4,500 mm• AC electric drive system• Industrial tractionAdd to Inquiry -
5 Ton Electric Forklift Truck• 5,000 kg rated lifting capacity• 600 mm standard load center• 5.5 m maximum lifting height• 80 V electric power system• Lead-acid or lithium battery options• Four-wheel counterbalance chassis•Add to Inquiry
Start with the Load Moment, Not the Capacity Name
A 4, 5 or 7 ton nameplate does not confirm that the truck can handle every load of that weight. Load depth, attachment weight, lift height, working route and battery duty all affect the final configuration.
FB40, FB50 and FB70 Published Specifications
Current product data shows important differences in load center, chassis size, battery package and maneuvering space. Final specifications should follow the selected model and confirmed quotation.
| Model | Rated Capacity | Load Center | Standard Lift | Turning Radius | Battery Reference |
|---|---|---|---|---|---|
| FB40 | 4,000 kg | 500 mm | Confirm mast specification | Published current table: 2,300 mm | 80 V / 450 Ah lead-acid; 80 V / 460 Ah lithium option |
| FB50 | 5,000 kg | 500 mm | 3,000 mm | 2,690 mm | 80 V / 630 Ah baseline; 80 V / 544 Ah lithium option |
| FB70 | 7,000 kg | 600 mm | 3,000 mm | 3,355 mm | Published main-model table: 76.8 V / 700 Ah |
When to Move from 4 Ton to 5 Ton or 7 Ton
4 Ton Class
Start here when the real load remains within the FB40 capacity envelope and a smaller heavy-duty chassis is useful for the route.
5 Ton Class
Move to FB50 when routine loads require more capacity while the 2,690 mm turning radius and larger chassis still fit the site.
7 Ton Class
Use FB70 when the load, 600 mm reference load center and worksite can accommodate a 9,500 kg truck with a 3,355 mm turning radius.
Battery Data Must Be Confirmed by Model and Version
The heavy-duty electric range does not use one universal battery specification. FB40 and FB50 publish different lead-acid and lithium configurations, while current FB70 pages also show different battery packages between the standard model and lithium-focused variant.
We therefore match the truck, battery and charger after the working cycle is known.
- Operating hours per shift
- Number of shifts per day
- Available charging windows
- Travel distance and lift frequency
- Attachment hydraulic demand
- Site electrical supply
Avoid Mixing Variant Specifications
A lithium-focused product page may use a different battery capacity, controller, charging package or load-center reference from the standard model.
We confirm one complete machine configuration in the quotation instead of combining values from separate variants.
Heavy Electric Forklifts Need More Than Aisle Clearance
Decide by Worksite and Duty Cycle, Not Power Source Alone
Heavy Electric Fits Better When
- Engine exhaust at the truck is undesirable
- The site can support planned battery charging
- The route is suitable for the selected chassis
- Daily duty can be matched to the battery package
- Indoor noise and heat are important constraints
Compare Diesel Again When
- Charging infrastructure is not practical
- Work is mainly remote from electrical supply
- The duty cycle leaves insufficient charge windows
- Site conditions require a different chassis type
- Engine or emission configuration is preferred locally
Typical Heavy-Duty Electric Forklift Tasks
Manufacturing Components
Move dies, machine parts, fabricated assemblies and heavier production materials.
Paper, Steel and Dense Loads
Confirm load center and attachment geometry when handling rolls, coils or long dense products.
Heavy Warehouse Transfer
Move heavier pallets between receiving, production, storage and dispatch where the route supports the truck footprint.
Four Data Groups Define the Correct Heavy Electric Truck
Load
Weight, dimensions, center of gravity and fork entry direction.
Lift
Fork height, mast clearance, fork size and attachment.
Site
Floor, aisle, doorway, turning zone and ramp conditions.
Duty
Shift hours, charging windows, battery preference and quantity.
Continue from Capacity Selection to the Right Equipment Family
4–7 Ton Electric Forklift Buying Questions
Start with maximum routine load and actual load center, then verify lift height, attachment weight, truck dimensions, turning space and duty cycle. Use the capacity class that satisfies the approved configuration.
No. Current FB40, FB50 and FB70 product data shows different battery capacities and configuration options. Battery and charger specifications must be confirmed for the selected model.
No. Current main-model data lists 500 mm for FB40 and FB50 and 600 mm for FB70. Long loads should be evaluated using their actual center of gravity.
It can in suitable applications, but load, route, gradients, operating hours, charging infrastructure and attachment demand should be compared before changing power source.
Provide the load weight, diameter or dimensions, center of gravity, attachment weight, required hydraulic functions and lift height. Attachment geometry can change the usable load moment.
Send maximum load weight and dimensions, load center, lift height, fork or attachment requirement, aisle and gate dimensions, floor and ramp conditions, shift hours, battery preference, quantity and destination.
Send the Load and Duty Data Before Choosing FB40–FB70
We use the load moment, mast requirement, route geometry, attachment demand and operating schedule together to narrow the suitable heavy-duty electric forklift configuration.
- Maximum load weight and dimensions
- Actual load center or cargo drawing
- Required lift height
- Fork or attachment requirement
- Aisle, gate, floor and ramp conditions
- Shift hours and charging windows
Request a 4–7 Ton Configuration & Quote
Please include maximum load weight and dimensions, load center, required lift height, attachment, worksite dimensions, floor or ramp conditions, shift hours, battery preference, quantity and destination.
