5 Ton Electric Forklift for Heavy Material Handling
This four-wheel electric counterbalance forklift is rated for 5,000 kg at a 600 mm load center. The standard 5.5 m lift height, 80 V battery system and AC electric drive support heavy pallet handling in warehouses, production areas and logistics facilities.

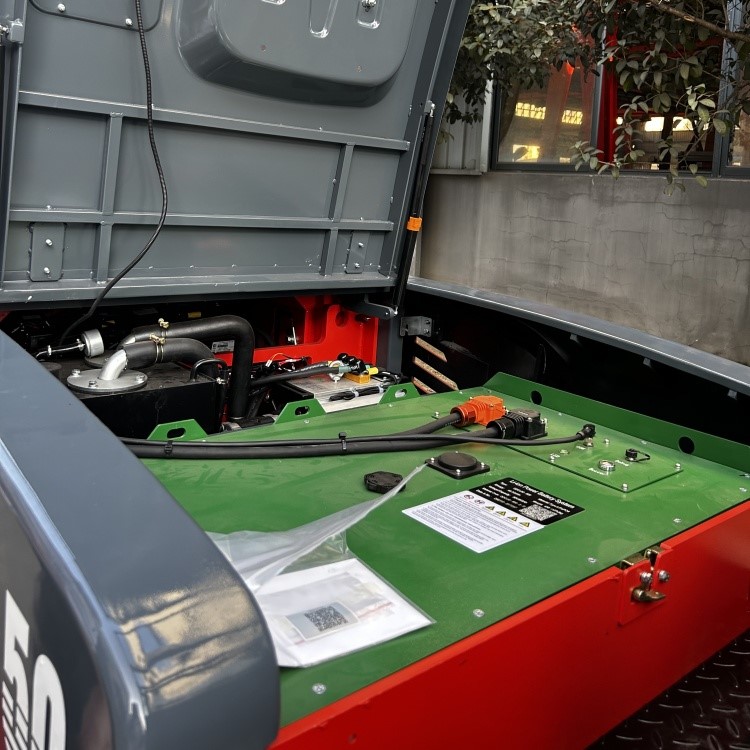

AC Electric Drive and Battery Options
The forklift uses an AC electric motor with a Curtis/ZAPI controller. Lead-acid and lithium battery configurations are available for different charging and shift requirements.
Electric traction for loaded and unloaded travel.
Industrial traction battery platform.
For conventional battery charging routines.
Alternative battery configuration for electric fleets.
Technical Specifications
| Rated Capacity | 5,000 kg |
|---|---|
| Load Center | 600 mm |
| Standard Lift Height | 5,500 mm |
| Optional Lift Height | 6,000 mm |
| Mast Type | 2-stage / 3-stage telescopic |
| Battery Voltage | 80 V |
| Battery Type | Lead-acid / lithium |
| Drive System | AC electric |
| Controller | Curtis / ZAPI |
| Travel Speed, Loaded / Unloaded | Approx. 16 / 18 km/h |
| Operating Weight | Approx. 7,200 kg |
| Turning Radius | Approx. 3.2–3.5 m |
| Wheel Configuration | Four-wheel counterbalance |
5.5 m Lift for Heavy Pallet Handling
The standard mast reaches 5.5 m, with a 6.0 m mast option available. Mast selection should consider load dimensions, load center, required fork height and the lowest doorway or overhead clearance on the working route.
- Maximum load weight
- Load dimensions and center
- Required fork height
- Attachment type and weight
- Doorway clearance
- Aisle and turning space
5 Ton Electric Forklift Video
View the forklift configuration and machine appearance in the product video.
Working Space and Maneuverability
The published turning radius is approximately 3.2–3.5 m. Actual working space should also account for pallet dimensions, fork length, attachment width, rear swing and clearance around racks or loading areas.
The four-wheel counterbalance layout is intended for seated operation on suitable industrial surfaces.
Product Views
Typical Applications
Move heavy components and production materials.
Handle heavier pallets between storage and dispatch.
Lift dense palletized loads to higher storage positions.
Transfer heavy loads on suitable operating surfaces.
Related Electric Forklifts
5 Ton Electric Forklift FAQ
Available capacity depends on the load center, mast height and attachment configuration. Confirm the actual working load and lift height before selecting the mast.
Yes. The product information lists a standard 5.5 m lift height and an optional 6.0 m mast.
Provide load weight and dimensions, lift height, attachment, doorway and aisle limits, working hours, battery preference, charging conditions, quantity and destination country.
Confirm Your 5 Ton Configuration
Send your load dimensions, lift height, attachment, working space and shift requirements to confirm the mast, battery and charger combination.
