2.5 Ton Telescopic Handler
7 m Reach for Construction, Agriculture and Outdoor Material Handling
The 2.5 ton telehandler combines a 2,500 kg rated load with a 7 m lifting height, Yanmar diesel power, closed hydrostatic transmission and self-leveling forks. Its compact chassis and auxiliary hydraulic circuit suit buyers who need one machine for lifting, transporting and positioning materials across changing outdoor work areas.
2,500 kg Rated lifting capacity
7 m Maximum lifting height
55 kW Yanmar engine output
145 L/min Hydraulic system flow

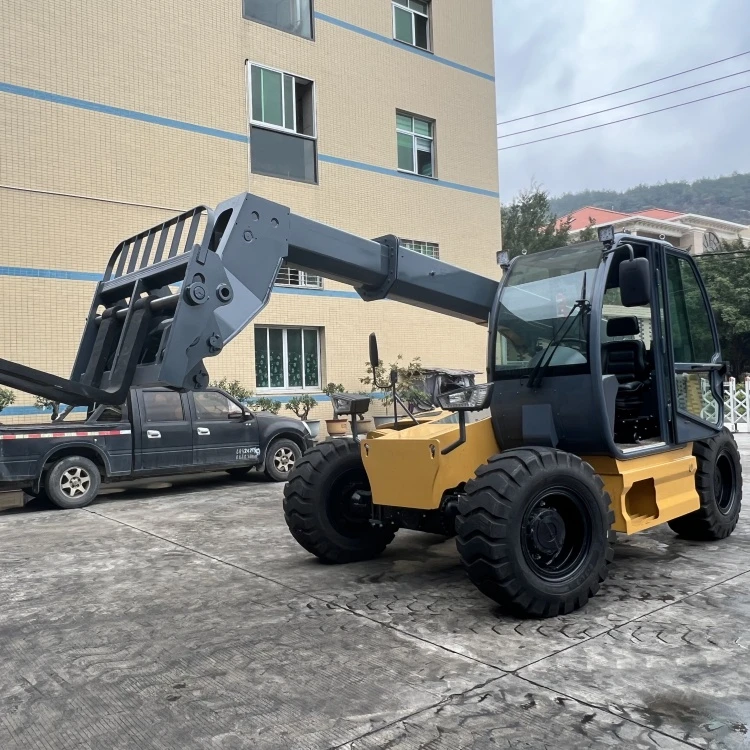

Compact telescopic handler with pneumatic off-road tires and front pallet forks.
Cab controls and forward working visibility.

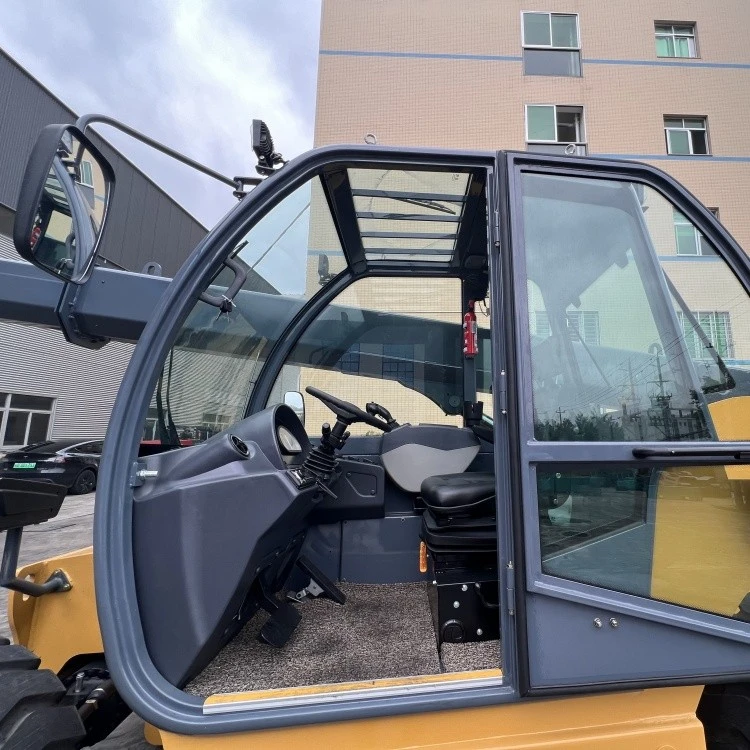

Enclosed operator cab with adjustable seating.

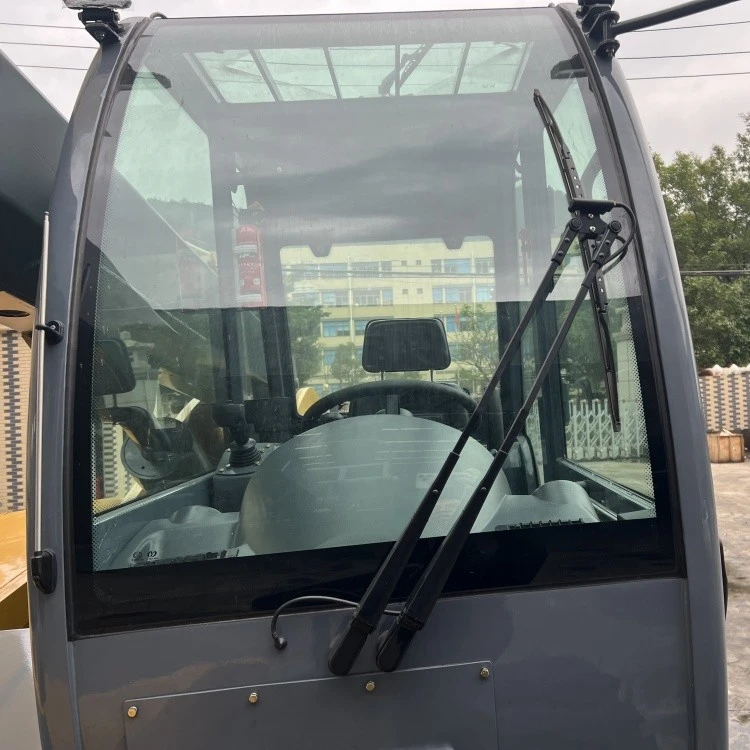

Large cab glazing supports forward visibility around the boom.
Wide tires and compact chassis for outdoor material handling.
Working Configuration
What the 2.5 Ton Telehandler Is Equipped to Do
Telehandler selection depends on more than rated capacity. Boom geometry, hydraulic response, attachment requirements and ground conditions determine whether a machine fits the actual lift.
Self-Leveling Forks
The fork-leveling system helps maintain load orientation as the telescopic boom raises and lowers.
Closed Hydrostatic Drive
Hydrostatic travel provides smooth speed control for positioning the machine around loading and placement areas.
Load Limiter
The listed configuration includes a load-limiting system for operation within the machine's permitted lifting range.
Attachment Hydraulics
Additional hydraulic piping and valves allow compatible hydraulic attachments to be specified with the machine.
Technical Specification
2.5 Ton Telehandler Operating Data
Core Machine Data
- Rated load: 2,500 kg
- Maximum lift height: 7 m
- Operating weight: 6,550 kg
- Engine: Yanmar diesel
- Maximum speed: 25 km/h
- Hydraulic pressure: 30 MPa
| Rated Capacity | 2,500 kg |
|---|---|
| Maximum Lifting Height | 7 m |
| Overall Length | 5,000 mm, forks removed |
| Overall Width | 2,220 mm |
| Overall Height | 2,410 mm |
| Machine Weight | 6,550 kg |
| Engine | Yanmar diesel |
| Engine Power | 55 kW at 2,200 rpm |
| Maximum Torque | 480 N·m at 1,600 rpm |
| Maximum Travel Speed | 25 km/h |
| Gradeability | 40% |
| Departure Angle | 33° |
| Rear Axle Frame Swing | 5° |
| Hydraulic System Pressure | 30 MPa |
| Hydraulic System Flow | 145 L/min |
| Hydraulic Tank Capacity | 120 L |
| Tire Specification | 16.70-20 pneumatic tire |
| Drive System | Closed hydrostatic system |
| Front Attachment Hydraulics | Additional hydraulic pipe and valve |
Load Selection
Rated Capacity Is Not the Capacity at Every Reach
The machine is rated for 2,500 kg, but permissible load changes as the boom extends and the load moves farther from the chassis. Required lifting height, forward reach, load center and attachment weight should therefore be confirmed before purchase.
- Maximum load weight
- Load dimensions and load center
- Required vertical lift height
- Required forward working reach
- Fork or attachment type
- Ground slope and surface condition
Send the Working Position, Not Only the Tonnage
A quotation is more accurate when the intended lift can be checked against boom position and attachment requirements.
Include the highest working point, maximum forward placement distance and the heaviest material to be handled.
Typical Work
Where a 2.5 Ton 7 m Telehandler Fits
Construction Sites
The telescopic boom can lift palletized construction materials and position loads at elevations or locations that a conventional fixed-mast forklift cannot reach.
Agriculture
Forks and compatible attachments can support handling of feed, bales, palletized supplies and other farm materials where outdoor mobility and extra reach are required.
Industrial Yards
A compact telescopic handler can move materials between storage, production and loading areas while providing more forward reach than a standard forklift.
Cab & Control
Operator Features for Repeated Outdoor Work
The listed cab configuration includes air conditioning, heating, a fan and an adjustable seat. Cab glass protection is also included in the published configuration.
Self-leveling forks and hydrostatic travel control support precise load positioning when the operator repeatedly approaches trucks, stacks or elevated placement points.
Terrain & Chassis
Check Ground Conditions Before Finalizing the Machine
Pneumatic 16.70-20 tires, a swinging rear axle frame and hydrostatic drive are relevant to outdoor operation, but actual site suitability depends on soil firmness, slopes, ruts, access width and travel distance.
Buyers working on very soft ground or unusually steep sites should provide site details during model selection rather than relying on rated tonnage alone.
Before Quotation
Information Needed to Confirm the 2.5 Ton Telehandler
1
Load
Send maximum weight, dimensions and load center.
2
Reach
Send required lift height and forward placement distance.
3
Worksite
Describe surface, slope, access width and typical travel route.
4
Order
Provide quantity, destination country and attachment requirements.
Continue Selection
Compare Related Material Handling Equipment
Telehandler Range Compare compact, mid-reach and higher-capacity telescopic handlers. 2.5 Ton Compact Telehandler 5.8m Compare the lower-profile 2.5 ton Kubota-powered compact configuration. 3 Ton Telehandler Move up in rated capacity when the load exceeds the 2.5 ton class. 4WD Rough Terrain Forklifts Compare fixed-mast off-road forklifts when telescopic reach is unnecessary. After-sales & Parts Review service and parts support for exported equipment. Certificates Review certificates currently published by Xinghao. About Xinghao Review company information and equipment manufacturing scope. Contact Xinghao Send technical requirements and purchasing information.
FAQ
2.5 Ton Telehandler Procurement Questions
What is the lifting capacity of this 2.5 ton telehandler?
The rated capacity is 2,500 kg. Permissible load at an extended boom position must be checked against the required lift height, forward reach, load center and attachment.
How high can the 2.5 ton telehandler lift?
The published configuration has a maximum lifting height of 7 meters.
What engine does the 2.5 ton telehandler use?
The listed machine uses a Yanmar diesel engine with published output of 55 kW at 2,200 rpm and maximum torque of 480 N·m at 1,600 rpm.
Can hydraulic attachments be used with this telehandler?
Yes. The listed configuration includes additional hydraulic piping and a valve for attachments. The required tool and hydraulic interface should be specified before ordering.
What is the difference between this 7 m model and the 2.5 ton compact 5.8 m telehandler?
This model is the 7 m Yanmar-powered configuration. Xinghao also lists a separate 2.5 ton compact telehandler with a 5.8 m lift height and different drivetrain, dimensions and operating specifications.
What should I provide when requesting a 2.5 ton telehandler quotation?
Provide maximum load weight, load dimensions, required lift height and reach, attachment type, ground conditions, quantity and destination country so the configuration can be checked before quotation.
Confirm the Load, Reach and Attachment Before Pricing
Send the maximum load, required lift height, forward reach, attachment type, worksite conditions, quantity and destination country. These details allow the 2.5 ton telehandler configuration to be checked against the intended job before quotation.
