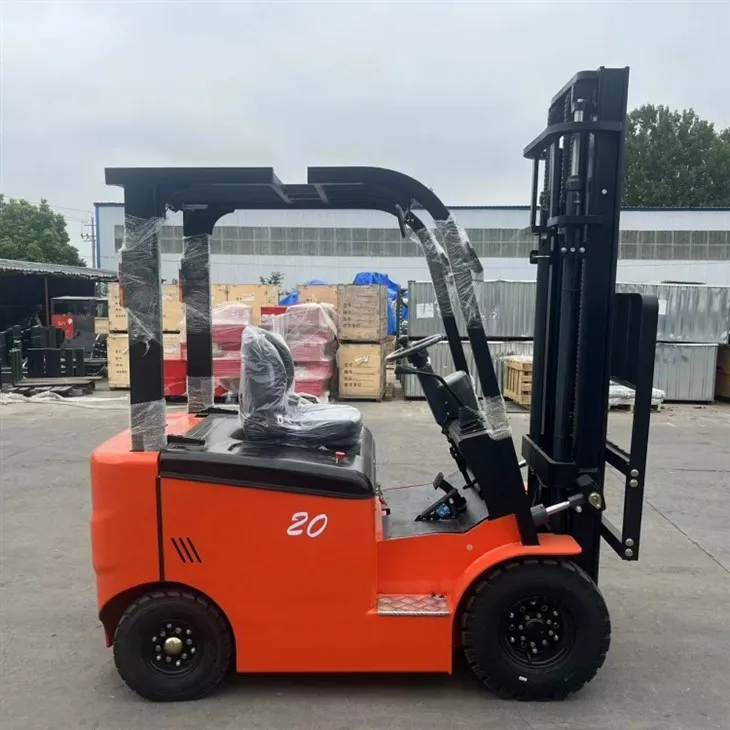

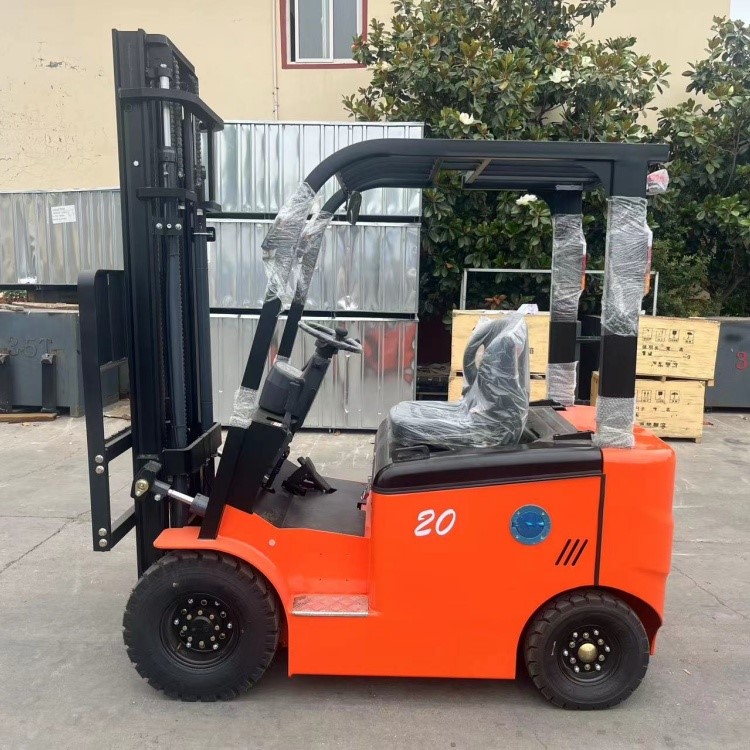

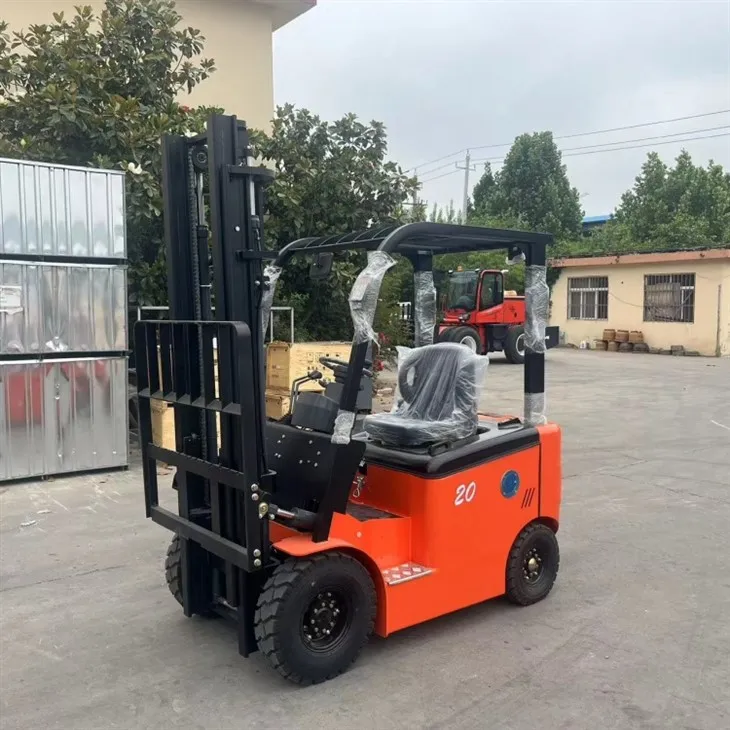

2 Ton Electric Forklift with Two Battery Platform Choices
Our FB20 is rated for 2,000 kg at a 500 mm load center and uses a 3,000 mm standard mast. The published configuration includes a 48 V / 600 Ah standard battery system, while an 80 V / 272 Ah lithium battery is listed as an option. This makes battery platform, shift pattern and site performance important parts of the buying decision.
48V Standard or 80V Lithium: Which Fits the Job?
The FB20 specification lists two different battery arrangements. The standard published system is 48 V / 600 Ah, while the lithium option is listed as 80 V / 272 Ah.
We do not recommend choosing between them from voltage alone. Daily operating hours, lift frequency, ramps, charging windows and the number of shifts all affect the better configuration.
Compact Four-Wheel Counterbalance Layout
FB20 2 Ton Electric Forklift Specifications
Key Selection Values
- Rated load: 2,000 kg
- Load center: 500 mm
- Standard lift: 3,000 mm
- Turning radius: 2,120 mm
- Battery: 48 V / 600 Ah
- Lithium option: 80 V / 272 Ah
| Model | FB20 |
|---|---|
| Rated Load Capacity | 2,000 kg |
| Load Center | 500 mm |
| Standard Lift Height | 3,000 mm |
| Maximum Working Height | 4,040 mm |
| Fork Dimensions | 1,070 × 100 × 40 mm |
| Mast Tilt, Forward / Backward | 6° / 12° |
| Mast Lowered Height | 2,035 mm |
| Overhead Guard Height | 2,150 mm |
| Distance from Fork Face to Rear Body | 2,300 mm |
| Overall Width | 1,180 mm |
| Turning Radius | 2,120 mm |
| Front Axle Center to Fork Face | 460 mm |
| Travel Speed, Loaded / Unloaded | 13 / 14 km/h |
| Lift Speed, Loaded / Unloaded | 270 / 400 mm/s |
| Lowering Speed, Loaded / Unloaded | 500 / 450 mm/s |
| Full-Load Gradeability | 15% |
| Operating Weight | 3,900 kg |
| Front Tire | 7.00-12 |
| Rear Tire | 18×7-8-14PR |
| Wheelbase | 1,500 mm |
| Front / Rear Track | 970 / 950 mm |
| Standard Battery | 48 V / 600 Ah |
| Battery Box Size | 968 × 464 × 770 mm |
| Published Battery Weight | 932 kg |
| Oil Pump Motor | 12 kW |
| Traction Motor | 11 kW |
| Optional Lithium Battery | 80 V / 272 Ah |
Check Speed, Gradeability and Lift Rate Against the Duty
Loaded and unloaded travel speed.
Loaded and unloaded lifting speed.
Published full-load gradeability.
Published turning radius for site-fit checks.
A ramp should not be approved from gradeability percentage alone. We recommend sending the ramp gradient, ramp length, surface condition and expected load so the working condition can be reviewed together.
Confirm the Controller Brand in the Final Specification
The current FB20 product information lists Curtis, ZAPI or our own controller as possible configurations. Buyers standardizing several machines may want one controller platform across the fleet for diagnostics, technician familiarity and spare-parts planning.
We confirm the controller supplied with the selected electrical configuration in the quotation rather than treating all three options as simultaneous standard equipment.
Controller Options Listed for FB20
- Curtis controller
- ZAPI controller
- Xinghao controller option
- Final option confirmed before order
When the FB20 Is a Better Choice Than 1.5 or 2.5 Tons
Choose 1.5 Ton
Use the smaller class when routine pallet loads remain within 1,500 kg and minimizing truck size has greater value.
Choose FB20
The 2-ton class fits operations that need more capacity than FB15 while retaining a compact 1,180 mm body width and 2,120 mm turning radius.
Move to 2.5 Ton
Compare FB25 when routine load requirements move beyond the intended 2,000 kg class.
Typical Work for a 2 Ton Electric Counterbalance Forklift
Warehouse Pallets
Move palletized goods between storage, receiving and dispatch areas.
Production Logistics
Transfer components and finished goods between manufacturing and storage zones.
Loading Operations
Support truck loading where floor, doorway and turning dimensions suit the machine.
Ramp-Linked Areas
Review actual ramp gradient and surface before relying on the published 15% value.
What We Need to Configure Your FB20
Load
Maximum weight, dimensions and load center.
Warehouse
Aisle width, doorway height, turning space and ramp data.
Battery
Shift hours, charging windows and preferred battery platform.
Order
Quantity, destination country and controller preference if required.
Compare Electric Forklift and Warehouse Options
FB20 Electric Forklift Buying Questions
The FB20 is rated for 2,000 kg at a 500 mm load center. Longer or irregular loads should be reviewed using their actual dimensions and center of gravity.
The current specification lists a 48 V / 600 Ah standard battery system. Battery selection should also consider shift length, charging opportunities and operating intensity.
Yes. The current FB20 specification lists an 80 V / 272 Ah lithium battery as an option. We confirm the final battery and charger configuration in the quotation.
The product information lists Curtis, ZAPI or a Xinghao controller option. We confirm the controller matched to the selected electrical configuration before the order is finalized.
The published full-load gradeability is 15%. Actual suitability should be checked against ramp gradient, length, surface, load weight and operating frequency.
Send maximum load weight and dimensions, required lift height, aisle and doorway dimensions, ramp data, shift hours, charging window, battery preference, quantity and destination country.
Configure the FB20 Around Your Battery and Work Cycle
Send us your maximum load, load dimensions, required lift height, aisle width, doorway clearance, ramp condition, shift hours, charging window, battery preference, quantity and destination country. We will use these details to confirm the suitable FB20 electrical and handling configuration before quotation.
