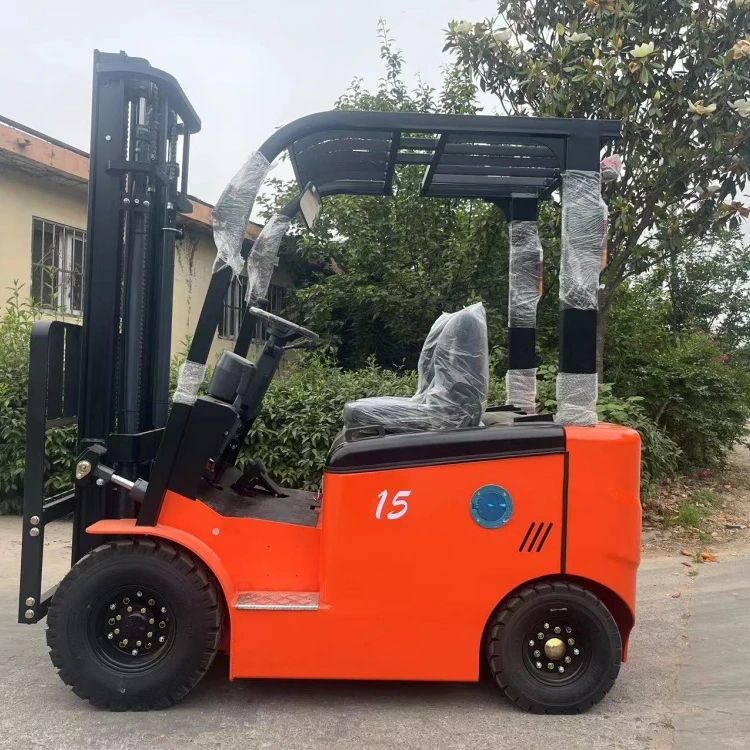

A 1.5 Ton Electric Forklift for Compact Warehouse Routes
Our FB15 combines a 1,500 kg rated load, 500 mm load center, 3,000 mm standard lift and approximately 2,000 mm turning radius. Its 1,140 mm overall width makes it suitable for pallet movement, shelf replenishment and loading work where warehouse space is a primary selection constraint.
Start with Aisle Width, Turning Space and Door Clearance
A compact electric forklift still needs enough room to turn with the actual pallet on the forks. The FB15 has an overall width of 1,140 mm and a published turning radius of approximately 2,000 mm.
We recommend checking the narrowest aisle, doorway and loading-zone corner before confirming the truck. Pallet dimensions should be included because load overhang can change the real operating envelope.
Compact Counterbalance Layout
Match the Battery Configuration to Your Shift Pattern
The FB15 specification lists a 48 V, 500 Ah battery system. Battery selection should be linked to operating hours, charging windows, daily travel distance, lift cycles and ambient conditions rather than capacity alone.
If lithium power is required, we confirm the exact lithium battery specification, charger and charging arrangement in the quotation instead of assuming that the standard 48 V / 500 Ah configuration applies to every battery option.
Standard Published Power Data
FB15 Electric Forklift Specifications
Key Procurement Values
- 1,500 kg rated load
- 500 mm load center
- 3,000 mm standard lift
- 48 V / 500 Ah battery
- 1,140 mm overall width
- Approx. 2,000 mm turning radius
| Model | FB15 |
|---|---|
| Rated Load Capacity | 1,500 kg |
| Load Center | 500 mm |
| Standard Lift Height | 3,000 mm |
| Maximum Working Height | Approx. 4,040 mm |
| Fork Dimensions | 1,070 × 100 × 35 mm |
| Mast Tilt, Forward / Backward | 6° / 12° |
| Mast Lowered Height | 2,035 mm |
| Overhead Guard Height | 2,130 mm |
| Overall Length Without Forks | Approx. 2,200 mm |
| Overall Width | 1,140 mm |
| Turning Radius | Approx. 2,000 mm |
| Wheelbase | Approx. 1,450 mm |
| Operating Weight | Approx. 3,100 kg |
| Travel Speed, Loaded / Unloaded | 13 / 14 km/h |
| Lifting Speed, Loaded / Unloaded | 300 / 480 mm/s |
| Battery Voltage / Capacity | 48 V / 500 Ah |
| Traction Motor | 6 kW |
| Pump Motor | 7.5 kW |
Three Values Decide Whether FB15 Fits the Job
Load Weight
The rated capacity is 1,500 kg. Use the heaviest routine load rather than the average pallet weight when selecting the truck.
Load Center
The rating is specified at a 500 mm load center. Long pallets or irregular goods should be checked separately before the configuration is confirmed.
Lift Height
The standard lift height is 3,000 mm. Higher stacking requirements must be checked together with mast height and overhead clearance.
Where a 1.5 Ton Electric Forklift Fits Best
Pallet Transfer
Move standard pallet loads between receiving, storage and dispatch zones.
Shelf Replenishment
Support routine stock movement where the required lift stays within the selected mast configuration.
Light Manufacturing
Transfer materials and finished goods between production, staging and warehouse areas.
Loading Areas
Handle palletized goods where turning space, doorway height and floor conditions suit the truck.
Do You Need 1.5 Ton, 2 Ton or a Larger Compact Model?
Stay with FB15
Choose the 1.5 ton class when routine loads remain within 1,500 kg and its compact dimensions better suit the warehouse.
Compare 2 Ton
Move up when normal pallet weights exceed the FB15 working requirement or additional capacity is regularly needed.
Compare the Full Range
Review the compact electric category when several load classes will be purchased for different warehouse zones.
Send These Details Before We Configure the Truck
Load
Maximum pallet weight, dimensions and load center.
Warehouse
Aisle width, doorway height and turning clearance.
Shift
Hours per shift, number of shifts and charging windows.
Order
Quantity, destination country and required battery type.
Continue Your Electric Forklift Selection
FB15 Electric Forklift Buying Questions
The FB15 is rated for 1,500 kg at a 500 mm load center. Load dimensions should also be checked because longer loads can change the actual load moment.
The published standard lift height is 3,000 mm and the maximum working height is approximately 4,040 mm. We recommend confirming both rack height and overhead clearance before ordering.
Its overall width is 1,140 mm and the published minimum turning radius is approximately 2,000 mm. Final aisle suitability also depends on pallet dimensions and the required turning pattern.
The current FB15 specification lists 48 V / 500 Ah. If a lithium battery is required, we confirm its exact voltage, capacity and charger configuration for the selected truck before quotation.
Send working hours per shift, number of shifts, available charging periods, approximate travel duty and typical lifting frequency. These details allow us to match the power configuration to the actual operating cycle.
Compare the 2 ton model when routine pallet weight exceeds the intended 1,500 kg class or when additional rated capacity is consistently required.
Match the FB15 to Your Warehouse Before Ordering
Send us the maximum pallet weight, pallet dimensions, rack height, aisle width, doorway height, shift hours, charging window, required battery type, quantity and destination country. We will use these details to confirm whether the FB15 is the right compact electric forklift for your operation.
