Rough Terrain
Rough-Terrain Forklifts & Off-Road Handling Solutions
Xinghao designs and manufactures heavy-duty rough-terrain forklifts engineered for unpaved construction sites, timber yards, agricultural fields, and poultry barns. Powered by high-torque engines, our off-road counterbalance fleet features robust 4WD configurations with limited-slip differentials and agile 3-wheel designs with ultra-tight turning circles. While our full-scale Telescopic Handlers series is hosted independently, this category showcases our premier off-road counterbalance trucks built to navigate deep mud and confined spaces with up to 300mm of ground clearance.
Core Engineering Advantages:
- True 4x4 Heavy Mobility: Heavy-duty 4WD models feature planetary drive axles and automatic differential locks to prevent tire slippage.
- 3-Wheel Maneuverability: Compact 3-wheel models utilize agricultural steering geometry to deliver a tight turning radius for narrow lanes.
- High Ground Clearance: Up to 300mm of clearance prevents chassis bottoming over rocks, mud, and uneven farmland.
- Robust Drivetrains: Configurable with Deutz, Cummins, or Xinchai engines to meet global emissions from Stage II to Stage V.
- Containerized Shipping: Optimized layouts support tire and mast disassembly, allowing up to 3 units to fit inside a single 40HQ container.
Off-Road Machinery Selection Matrix
Use the matrix below to compare our primary off-road series and directly access full specifications:
|
Series Category |
Load Capacity |
Chassis & Drivetrain |
Engine Options |
Primary Applications |
Target Specifications |
|---|---|---|---|---|---|
|
4WD Rough Terrain Series |
2.5 / 3.0 / 3.5 / 4.0 / 5.0 Tons |
4x4 Drivetrain + Oscillating Axle |
Deutz / Cummins / Isuzu |
Timber transit, brick yards, heavy construction sites |
|
|
3-Wheel Compact Series |
2.5 / 3.0 Tons |
Agile 3-Wheel + Wide Float Tires |
Deutz / Xinchai Engines |
Orchard harvest, greenhouse transit, poultry barns |
|
|
Compact RT Telehandlers |
2.5 / 3.0 Tons |
Hydrostatic 4WD + Telescopic Boom |
Kubota / Deutz Engines |
High-reach agricultural stacking, material feeding |
Products
-
2.5-Ton Agricultural Rough Terrain Forklift2500kg Ag-Payload: Calibrated specifically for standard fertilizer pallets and feed bags.Greenhouse Agility: A 2955 mm turning radius allows seamless navigation between crop rows.Ergonomic Joystick:Add to Inquiry -
3-Ton 3-Wheel Rough Terrain Forklift3000 Kg Rated Load: Standard 500 mm load center. 3000 mm Lift Height: Robust 2-stage mast system. Engine Options: Deutz or Xinchai, Stage 2 to 5. 3-Wheel Agility: Ultra-tight 2955 mm turningAdd to Inquiry -

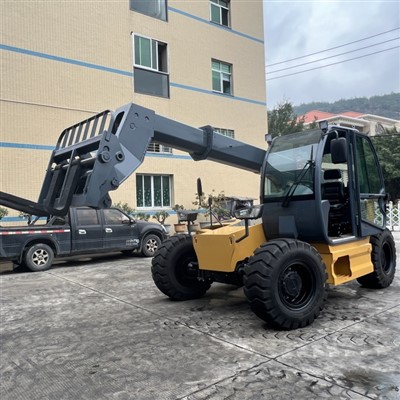

4WD Telescopic Handler 2.5T Capacity• 2,500 kg rated lifting capacity• 5.827 m maximum lifting height• 2.19 m maximum forward outreach• 800 kg capacity at maximum reach• Kubota V3307 diesel, 54.6 kW• Danfoss hydrostatic drive system•Add to Inquiry -
3500kg Rough Terrain Telehandler 4WD• 3,500 kg rated lifting capacity• 7.0 m maximum lifting height• 3.8 m maximum forward outreach• Yuchai 73 kW diesel engine• Danfoss hydrostatic drive system• Carraro wet brake drive axle• 430 mmAdd to Inquiry -

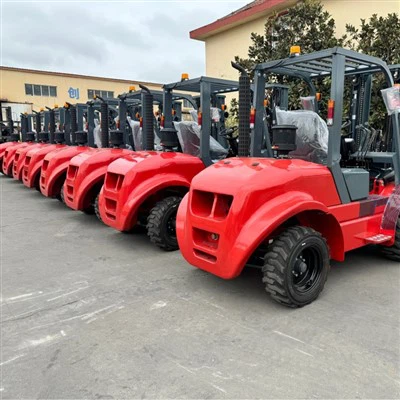

3 Ton Rough Terrain Forklift• 3,000 kg rated load capacity• 500 mm rated load center• 3,000 mm standard lift height• 2WD / 4WD drive configurations• 300 mm ground clearance• 3,800 mm turning radius• 1,220 mm standard forkAdd to Inquiry -
3.5 Ton Rough Terrain Forklift• 3,500 kg rated lifting capacity• 500 mm standard load center• 3,000 mm standard lift height• 2WD with optional 4WD drive• Approx. 280 mm ground clearance• Up to 30–35% gradeability• Up to 28 km/hAdd to Inquiry -
4 Ton Rough Terrain Forklift• 4,000 kg rated lifting capacity• 500 mm standard load center• 3,000 mm standard lift height• 2WD or 4WD drive configurations• 300 mm minimum ground clearance• ≥35% maximum gradeability• 32 km/hAdd to Inquiry -
5 Ton Rough Terrain ForkliftCapacity: 5,000 kg (Built for heavy outdoor payloads)Drivetrain: True 4WD for deep mud and loose gravelTraction: Front differential lock prevents getting stuckAxle: Oscillating rear axle maintainsAdd to Inquiry -
2.5 Ton Rough Terrain Forklift• 2,500 kg rated load capacity• 500 mm rated load center• 3,000 mm standard lift height• 2WD / 4WD drive configurations• 280 mm ground clearance• 3,600 mm turning radius• 30 km/h travel speed•Add to Inquiry
Engineered for Extreme Farmland and Construction Site Traction
Standard counterbalance trucks lose grip instantly on unpaved surfaces. Xinghao's heavy off-road forklifts are mechanically calculated to maintain absolute tyre contact, ensuring high productivity under severe muddy and incline conditions.
Heavy-Duty 4WD Differential locks and Oscillating Axles
For heavy yard and construction work, our 4x4 rough-terrain series integrates high-capacity drive axles with automatic differential locks. If one side of the machine enters deep mud and begins to spin, torque is instantly shifted to the tire with traction, pulling the vehicle through. Combined with a steering axle that supports up to 10 degrees of lateral oscillation, our 4WD vehicles maintain stability over dynamic ground slopes and heavy debris.
Compact 3-Wheel Geometry for Agricultural Agility
Modern greenhouses, orchards, and poultry barns require machines that move fast in tight corridors. Our 3-wheel counterbalance forklifts are built specifically to solve these spatial bottlenecks. By utilizing a single rear steering wheel, this design allows the operator to execute pivot turns with a tiny turning radius of just 2955 mm. Equipped with oversized front flotation tires, these compact trucks distribute weight evenly, preventing soil compaction and tire sinking in soft, wet fields.
Rigorous Off-Road Validation & Quality Control
Xinghao operates an outdoor test track mimicking unpaved, muddy construction and agricultural site conditions. Every machine must pass strict non-destructive testing before factory clearance:
- Gradeability Stall Testing:Counterbalance chassis are tested on a 20-degree incline slope under maximum rated load to verify hydrostatic transmission and brake hold capacity.
- Chassis Torsional Stress Scanning: All frame structures undergo dynamic twist testing over uneven ruts to measure welding deflection using non-destructive ultrasonic scanners.
- High-Pressure Hydraulic Durability: Hydraulic cylinders and steering pumps are cycle-tested at 125% rated pressure limits to ensure complete sealing stability in high-dust and saline outdoor environments.
Frequently Asked Questions (FAQ)
Q1: What engine options are available for Xinghao rough-terrain forklifts?
A1: We offer standard high-performance diesel powerplants depending on your market's emissions compliance requirements. For global B2B projects, you can configure your fleet with globally-supported Cummins engines, fuel-efficient Deutz engines, or reliable local emission-compliant diesel blocks. All engine options are backed by authorized global service networks for local parts and filter supply.
Q2: Why choose a 3-wheel rough-terrain forklift over a standard 4WD model?
A2: Our 3-wheel series is optimized for tight, indoor-outdoor spaces like barns and fruit row-crops where a 4WD vehicle cannot turn. The 3-wheel setup delivers an incredibly short turning radius of 2955 mm, turning almost on its own center. However, for extreme muddy terrain requiring bulk towing capacity and heavy payload transit over steep slopes, our heavy 4WD models remain the recommended standard.
Q3: Where can I find your high-capacity, long-reach telescopic handler models?
A3: To better serve our specialized construction and agricultural buyers, we have moved our long-reach telescopic handlers (such as our 13.5m and 18m reach models) to a dedicated category page. Please explore our full inventory of high-altitude telescopic equipment at Telescopic Handlers.
Why Partner with Xinghao MHE?
Procuring off-road material handling equipment dictates your field operation's long-term margin and safety envelope. As a direct B2B forklift manufacturer in China, Xinghao MHE eliminates middleman markups while maintaining strict CE and ISO compliance. We support our global network of machinery dealers, importers, and fleet managers with a reliable global supply of spare parts (dispatched via DHL/FedEx) and direct video-link engineering support.
Request Technical Drawings & Factory-Direct Quotations
Need custom attachments (like bucket grabs or wood clamps), specific mast lift heights, or regional dealer terms? Xinghao's application engineers provide complete structural CAD files, customized terrain-handling advice, and transparent FOB/CIF pricing.
