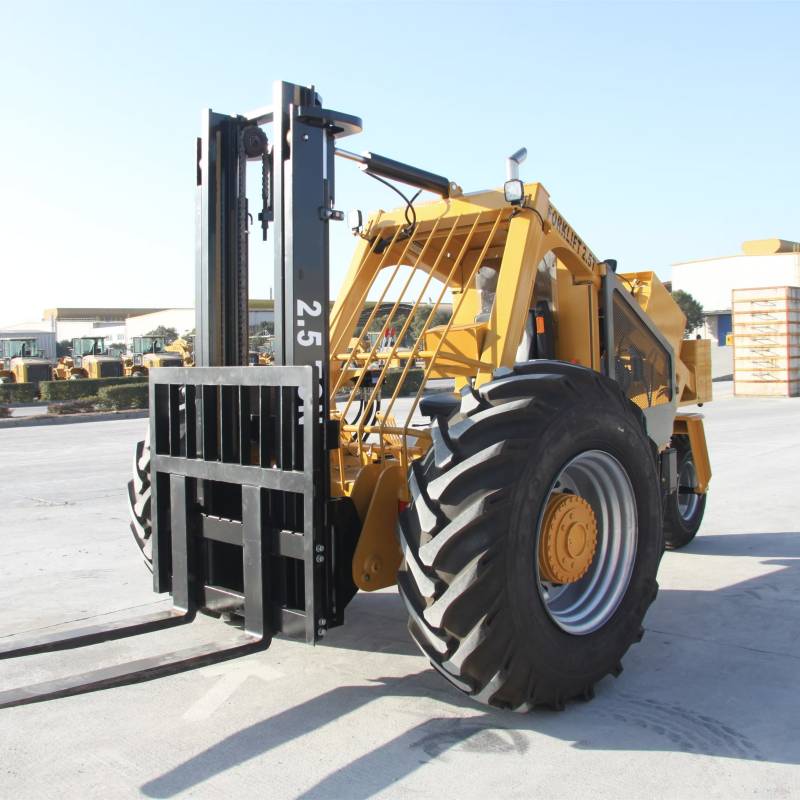

Equipment Overview
Modern farming logistics present physical challenges that standard machinery cannot overcome. Conventional 4-wheel warehouse forklifts get bogged down in rain-soaked soil, while heavy-duty telehandlers require massive Capex and simply cannot fit inside narrow poultry barns or greenhouse aisles.
As a dedicated manufacturer of agricultural material handling equipment, Xinghao calibrated the power distribution of this 2.5-ton model entirely for farm use. We utilize a compact 3-wheel array with a 1916 mm tread width, allowing the machine to execute near-zero-radius pivots similar to a farm tractor. Instead of focusing on brute-force construction towing, this unit channels its engine torque (via the MFE 15 driving motor) into agile, smooth power delivery, providing farm contractors with a highly maneuverable, low-Opex lifting solution.
Technical Specifications & Performance
| Category | Specification | Parameter Details |
| Agricultural Payload | Max Lift Capacity | 2500 Kg |
| Standard Load Center | 500 mm | |
| Physical Footprint (LxWxH) | 4300 mm x 2450 mm x 2420 mm | |
| Wheelbase / Tread Width | 2955 mm / 1916 mm | |
| Terrain Adaptability | Min. Ground Clearance | 300 mm (Clears irrigation pipes) |
| Outside Turning Radius | 2955 mm | |
| Gradeability (Loaded) | 20° (Optimized for terraced fields) | |
| Mast Tilt (Forward/Back) | 6° / 12° (Prevents load spillage on bumps) | |
| Powertrain & Hydraulics | Engine Configurations | Deutz (e.g., F4L2011) or Xinchai (Stage 2 to 5) |
| Hydraulic Pump & Motor | TA1919V20 Pump + MFE 15 Motor | |
| System Working Pressure | 13.8 Mpa | |
| Flotation Tires | Front: 18.4-26 / Rear: 400x15.5 |
Our product
Shipping & Global Delivery Solutions
To support the inventory demands of global agricultural machinery dealers, we modified the chassis for modular breakdown.
- Direct Farm Delivery (LCL): Individual units can be shipped via Less-than-Container Load, coated with anti-rust treatments and secured in industrial crating.

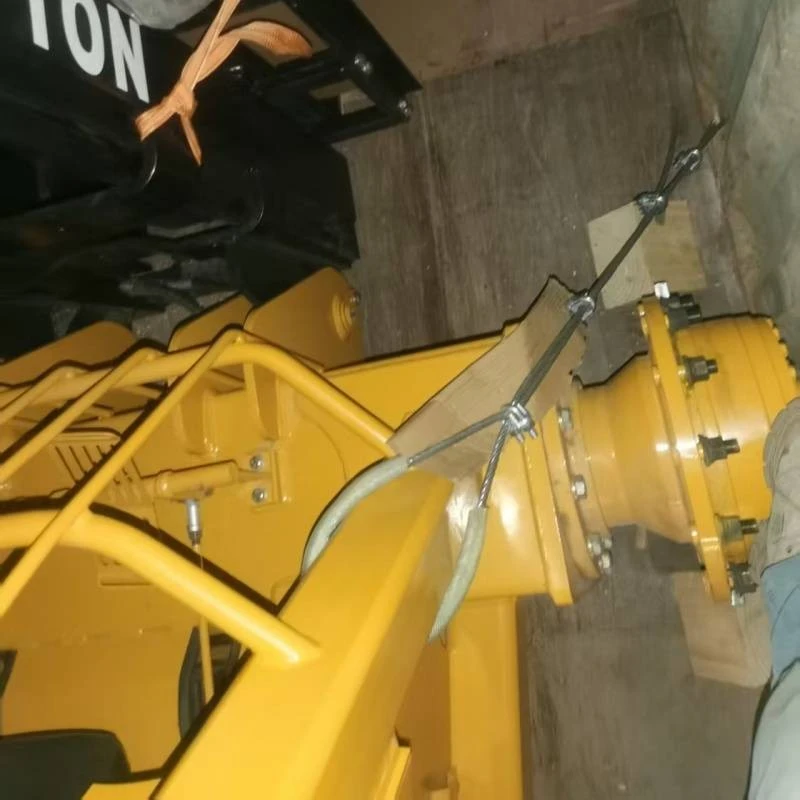

- High-Density Dealer Containerization: By dismounting the 3000 mm mast assembly and the large front tires, our loading engineers use heavy-duty steel wire ropes and timber blocking to secure 3 complete machines inside one standard 40HQ container. This specific packing method slashes cross-border freight costs by up to 60% per unit.
Typical Project Applications
- Poultry & Livestock Barns: Utilize the 2955 mm turning radius to load and unload heavy bales of hay in extremely confined feed corridors.
- Vineyards & Greenhouses: The 300 mm ground clearance allows the chassis to straddle surface-level irrigation hoses without crushing shallow crop root systems.
- Post-Harvest Processing Yards: Rapidly transfer freshly harvested produce across unpaved, muddy staging areas, completely eliminating inefficient manual labor.
Buyer FAQs

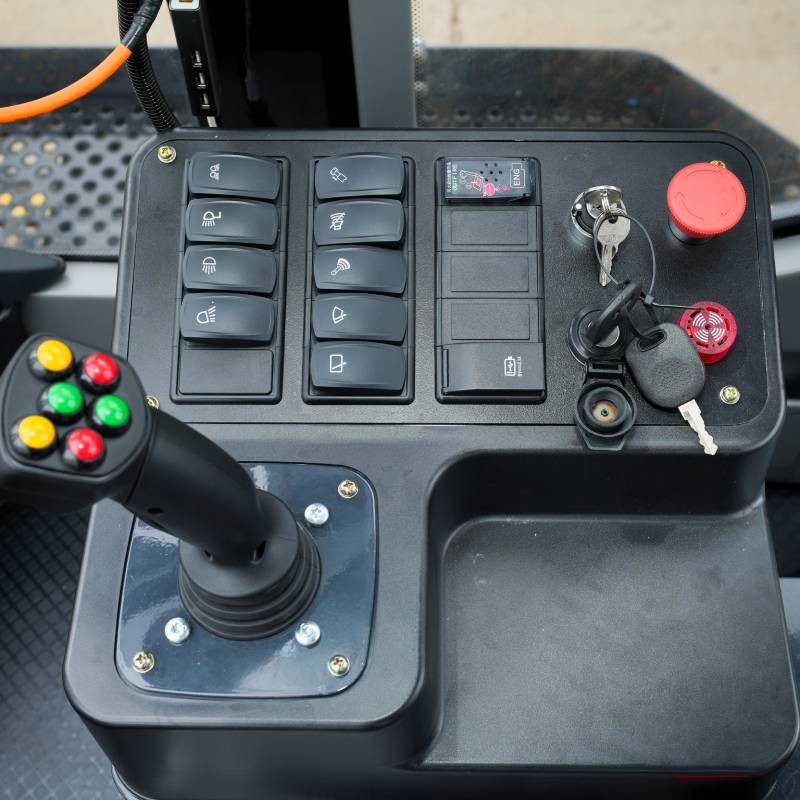

Q: Why is the joystick control better for agricultural applications?
A: Traditional mechanical multi-valve levers require the operator to constantly shift their posture. We integrated an ergonomic joystick console so the driver's arm rests securely. A simple finger movement controls mast lifting and tilting, which drastically reduces muscle fatigue when navigating highly uneven and bumpy farm fields.
Q: Can the engine handle poor-quality diesel commonly found on remote farms?
A: Yes. We understand that fuel quality fluctuates in rural areas. Alongside high-tier emission options, we offer the mechanically governed Stage 2 Deutz F4L2011 engine. This simplified injection system is highly tolerant of low-grade fuel and eliminates the maintenance headaches associated with complex common-rail electronics.
Q: Are spare parts proprietary, or can our farm mechanics service the unit?
A: The vehicle relies on a fully hydraulic-mechanical architecture with zero restrictive electronic ECUs. Consumables like hydraulic filters, seals, and tires follow international standard sizing. Any mechanic with basic tractor maintenance experience can independently perform daily servicing and troubleshooting.
Why Source From Xinghao MHE?
Optimizing farm logistics starts by avoiding dealer markups. By procuring directly from the Xinghao manufacturing facility, you gain access to factory-direct OEM pricing. From structural chassis welding to Deutz engine integration, we build agricultural handling equipment that maximizes operational uptime while our high-density container loading strictly minimizes your Capex.
Download Spec Sheet & Request a Quote
Contact our agricultural equipment export team today to receive detailed Deutz engine torque curves, hydraulic schematics, and an exact FOB Tianjin wholesale quotation.
