Equipment Overview

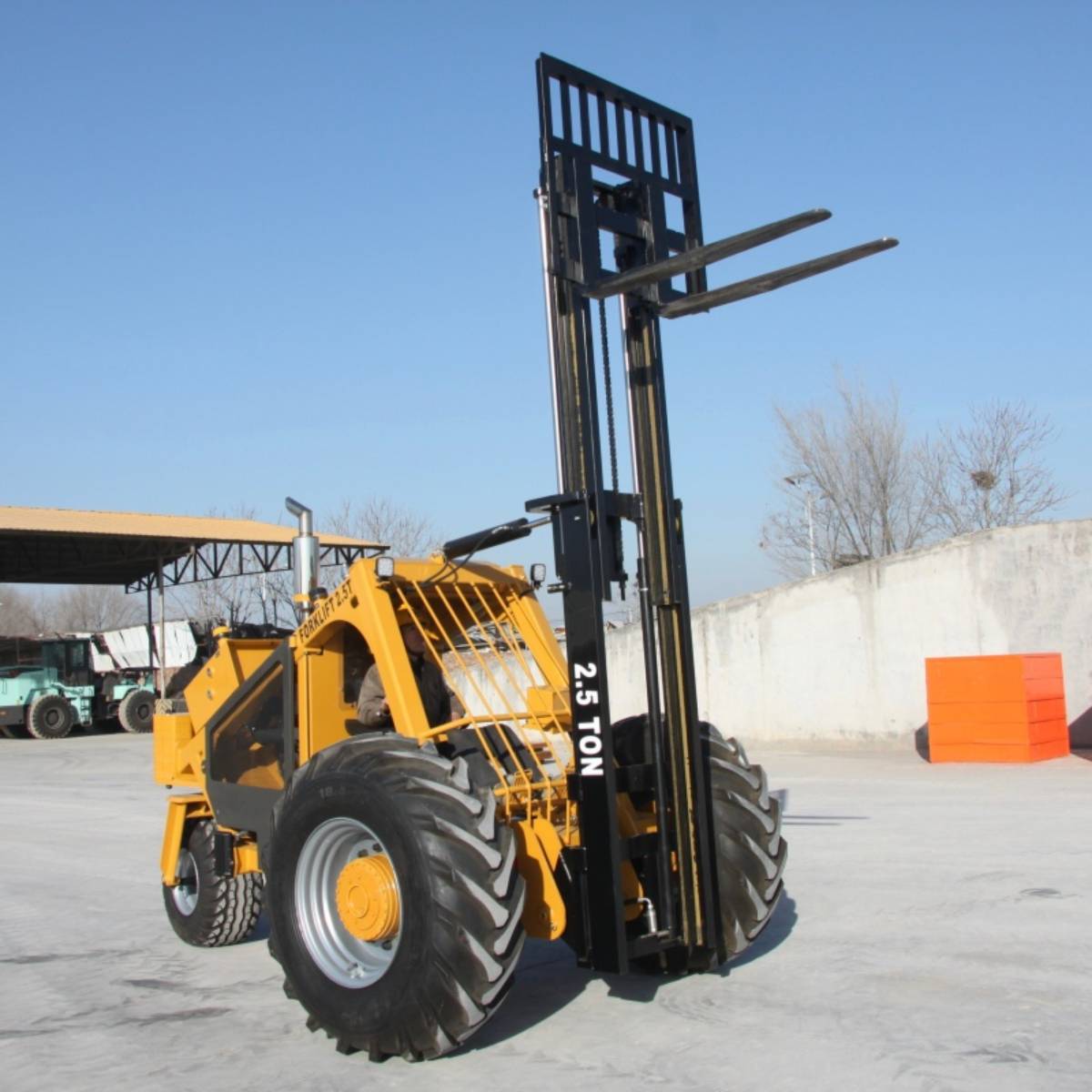

Operating heavy machinery in agricultural or unpaved construction environments demands specific physical parameters. Standard indoor forklifts fail due to insufficient clearance and traction loss. As a leading 3-wheel rough terrain forklift manufacturer, Xinghao engineers this unit specifically to combat mud, loose soil, and spatial constraints.
The integration of oversized front drive tires combined with a single rear steering wheel physically forces traction while allowing the vehicle to pivot within a 2955 mm radius. Supported by a robust hydraulic system operating at 13.8 Mpa and generating a maximum towing force of 22 KN, this unit translates raw diesel torque into continuous forward movement on gradients up to 20°.
Technical Specifications & Performance
| Category | Specification | Parameter Details |
| Capacity & Dimensions | Rated Load |
3000 Kg |
| Load Center |
500 mm |
|
| Overall Length |
4300 mm |
|
| Overall Width |
2450 mm |
|
| Overall Height |
2420 mm |
|
| Performance Metrics | Lifting Height |
3000 mm (2-stage mast) |
| Min. Ground Clearance |
300 mm |
|
| Turning Radius |
2955 mm |
|
| Max Climb Ability |
20° |
|
| Max Towing Force |
22 KN |
|
| Driving Speed |
15 km/h (Forward / Reverse) |
|
| Chassis & Drivetrain | Engine Options |
Deutz or Xinchai (Stage 2 to Stage 5) |
| Front Tires |
18.4-26 (Pneumatic) |
|
| Rear Tire |
400x15.5 (Pneumatic) |
|
| Hydraulic Working Pressure |
13.8 Mpa |
Our product
Shipping & Global Delivery
B2B procurement requires predictable and optimized freight costs. As an experienced 3-ton all-terrain forklift factory, we have engineered this model to maximize container space.

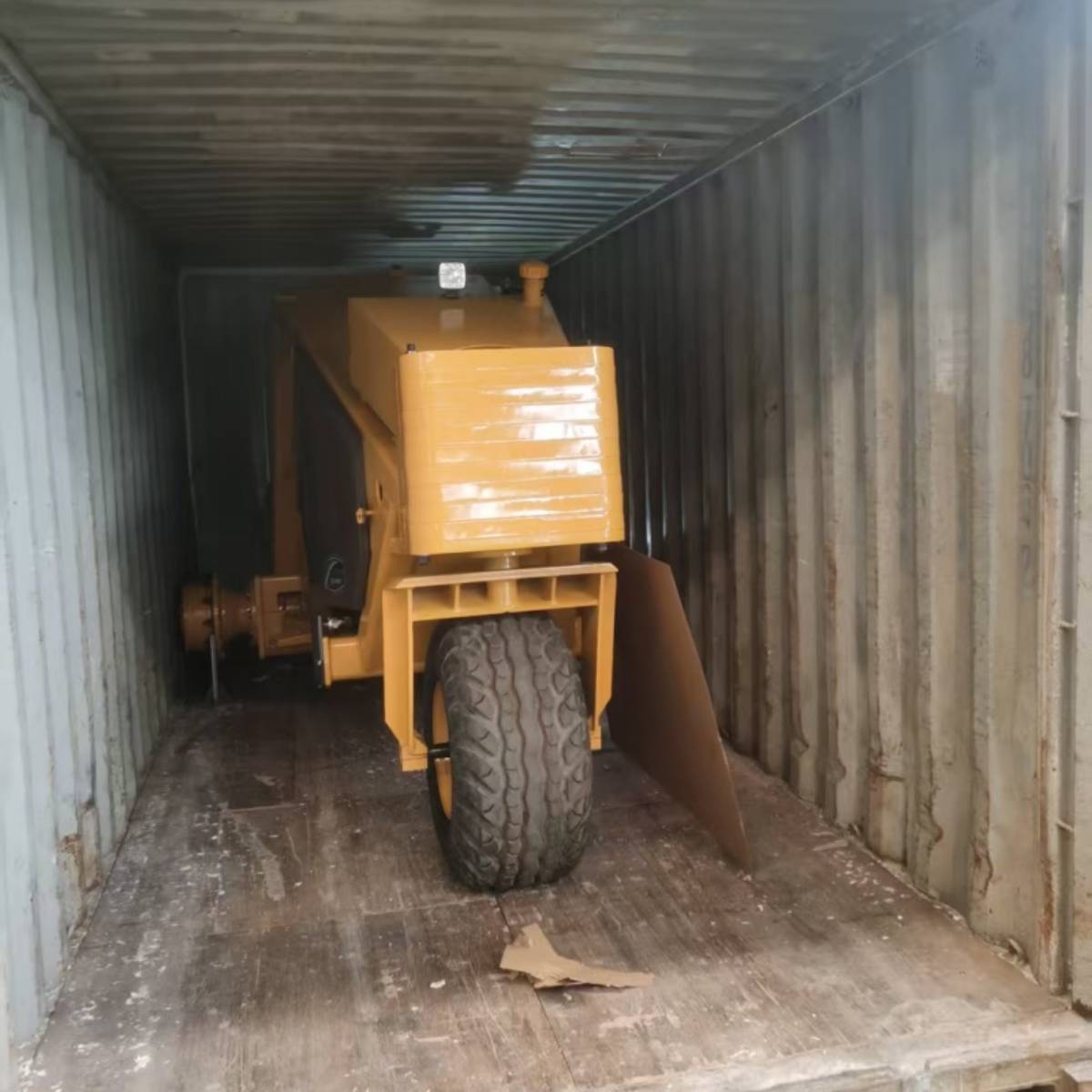

- LCL Shipment: A single unit can be shipped via LCL (Less than Container Load) with necessary industrial packaging and surface protection.
- FCL Shipment (High-Density): To lower your landed cost (Capex), we provide a structural knockdown solution. By dismounting the mast and the large pneumatic tires, we can safely secure 3 units inside a standard 40HQ container.
Typical Project Applications
This specific chassis design is strictly utilized in environments where concrete surfaces are unavailable:
- Agriculture & Farming: Navigating tight barn corridors, handling feed, and operating on wet soil.
- Construction Sites: Lifting materials over debris, mud, and unpaved foundations.
- Lumber & Forestry: Moving heavy loads across uneven terrain requiring high ground clearance.
Shipping & Global Delivery
Q: Can we request a specific engine brand to meet our local emission laws?
A: Yes. We supply this unit with either Deutz or Xinchai engines. Depending on your region's EPA or Euro compliance requirements, you can select emission standards ranging from Stage 2 up to Stage 5.
Q: How does the 3-wheel configuration perform in mud compared to a 4-wheel setup?
A: The 3-wheel geometry concentrates the vehicle's weight over the large front drive tires, maximizing the mechanical contact patch. Combined with the 300 mm ground clearance, it excels in preventing the chassis from bottoming out in deep mud.
Q: What is the standard warranty provided by Xinghao?
A: We provide a standard factory warranty of 1 year or 2000 working hours from the date of the Bill of Lading (B/L), whichever comes first, supported by our global parts dispatch.
Why Source From Xinghao MHE?
Choosing a reliable diesel rough terrain forklift supplier in China dictates the long-term Opex of your fleet. Xinghao MHE guarantees stringent factory testing, direct OEM pricing, and rapid spare parts availability. We focus on mechanical reliability and TCO (Total Cost of Ownership) reduction for our global dealers and direct project buyers.
Download Spec Sheet & Request a Quote
Ready to configure this unit for your project? Contact our engineering team today to receive detailed hydraulic schematics, engine specifications, and an exact CIF/FOB quotation based on your required delivery port.
