3 Ton Articulated VNA Forklift
3 Ton Capacity for High-Density Narrow-Aisle Storage
The 3 ton VNA forklift combines a 3,000 kg rated load with a 210-degree articulated steering angle and 80 V AC electric drive. Published stacking aisle requirements are approximately 2.2 m for 800×1200 mm pallets and 2.4 m for 1000×1200 mm pallets, making pallet size and rack geometry the key inputs for model selection.
3,000 kg Rated load capacity
500 mm Standard load center
210° Articulated steering angle
80 V AC electrical platform

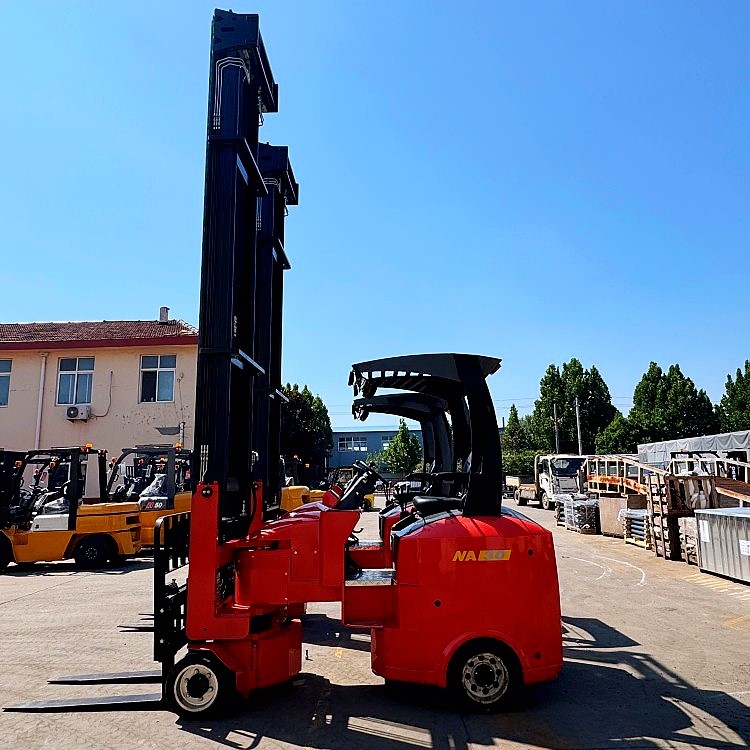

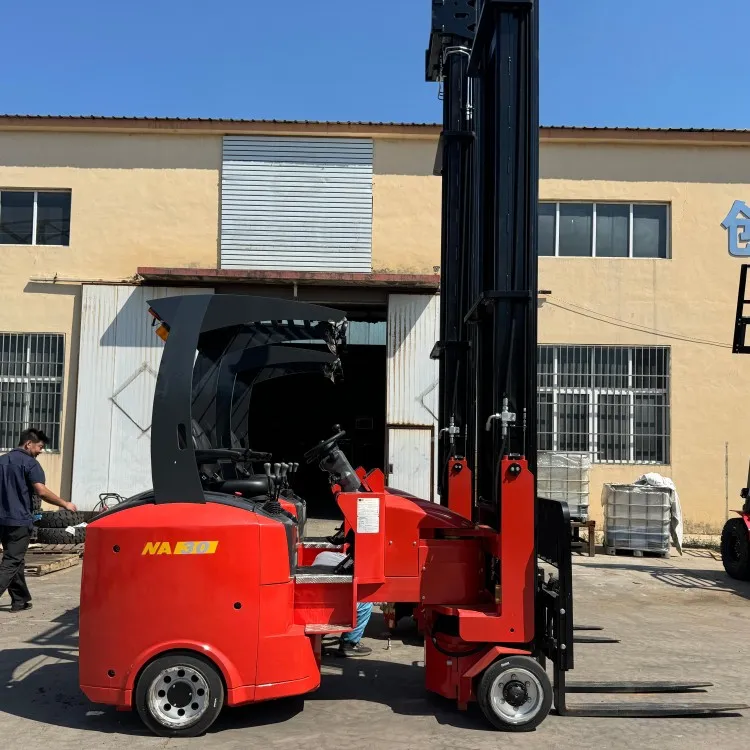

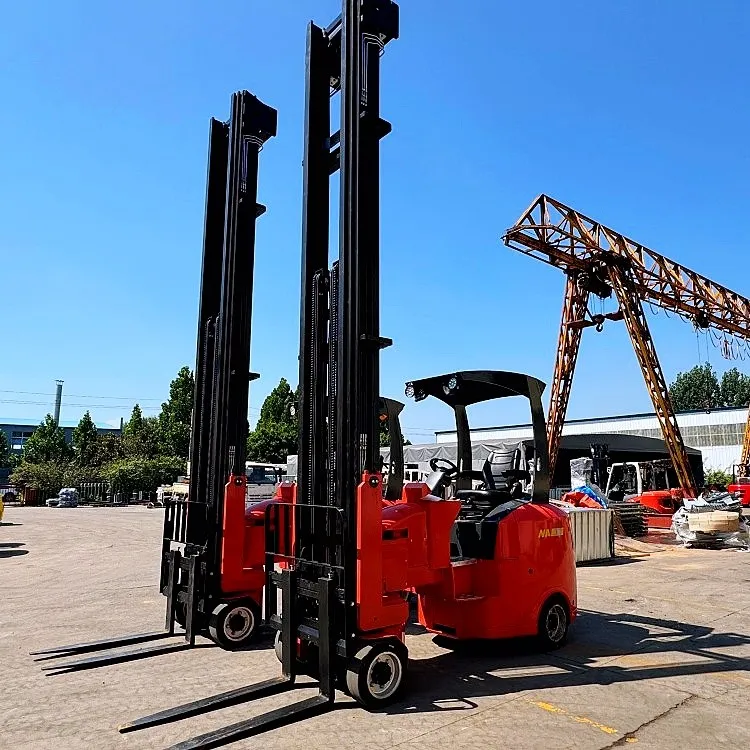

3 ton articulated VNA forklift, alternative mast configurations and operator display for warehouse configuration review.
Warehouse Positioning
Choose 3 Ton Capacity When Pallet Loads Increase
This model is positioned above the 2.5 ton VNA configuration for warehouses handling heavier pallets while still requiring articulated access inside narrow rack aisles.
3,000 kg Rated Load Adds capacity for heavier palletized inventory at the specified 500 mm load center.
2.2–2.4 m Aisle Class Published aisle values vary with pallet width and orientation.
210° Articulation Allows the mast section to turn toward the rack inside the working aisle.
Electric Warehouse Drive 80 V AC traction and lifting systems support indoor pallet handling.
Technical Data
3 Ton VNA Forklift Specifications
Core Machine Data
- Rated capacity: 3,000 kg
- Load center: 500 mm
- Truck width: 1,600 mm
- Wheelbase: 1,895 mm
- Service weight: 7,800 kg
- Articulation angle: 210°
| Product Type | Articulated electric VNA forklift |
|---|---|
| Rated Load Capacity | 3,000 kg |
| Standard Load Center | 500 mm |
| Electrical System | AC |
| Mast Type | 3-stage full free lift mast |
| Published Mast Range | 4,500–12,400 mm in the detailed specification table |
| Rated-Weight Lifting Height | 3,000 mm |
| Mast Tilt, Forward / Rear | 1° / 3° |
| Overall Length Without Forks | 2,800 mm |
| Overall Width | 1,600 mm |
| Overhead Guard Height | 2,400 mm |
| Fork Size | 45 × 122 × 960 mm |
| Fork Carriage Width | 1,060 mm |
| Fork Outside Width | 244–1,040 mm |
| Typical Stacking Aisle | Approx. 2,200 mm for 800×1200 mm pallet |
| Typical Stacking Aisle | Approx. 2,400 mm for 1000×1200 mm pallet |
| Articulation Angle | 210° |
| Front Tire Size | 412 × 178 mm |
| Rear Tire Size | 457 × 170 mm |
| Wheelbase | 1,895 mm |
| Travel Speed, Load / No Load | 8 / 11 km/h |
| Lift Speed, Load / No Load | 300 / 400 mm/s |
| Lowering Speed, Load / No Load | 400 / 340 mm/s |
| Gradeability, Load / No Load | 8% / 10% |
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
| Service Weight with Battery | 7,800 kg |
| Lead-Acid Battery | 80 V / 400 Ah |
| Lithium Battery Option | 80 V / 410 Ah |
| Drive Motor | 11 kW |
| Lift Motor | 14 kW |
Aisle Selection
Pallet Width Changes the Required Working Aisle
The detailed specification lists an approximately 2.2 m stacking aisle for an 800×1200 mm pallet and approximately 2.4 m for a 1000×1200 mm pallet.
Final aisle requirements depend on pallet orientation, load overhang, rack clearance and the actual warehouse geometry.
- Clear rack-to-rack aisle width
- Pallet dimensions and orientation
- Maximum load overhang
- Rack upright clearance
- Highest pallet position
- Floor flatness and joint condition
Send the Rack Drawing Before Choosing the Mast
A 3-ton capacity figure does not determine whether the truck fits the warehouse.
Rack height, aisle width, pallet dimensions and top pallet level should be checked together before the mast configuration is finalized.
Articulated Operation
210° Articulation Supports Rack Alignment
Transfer Travel
The truck can move between warehouse areas with the front section aligned for normal travel.
Rack Approach
The articulated front section turns toward the storage rack inside the working aisle.
Pallet Placement
Electro-hydraulic proportional control helps the operator regulate lifting and lowering during rack positioning.
Electric System
80 V AC Platform with Two Battery Options
80 V AC Control
The product uses an AC electrical platform for traction and lifting functions.
11 kW Drive Motor
Published traction motor power is 11 kW.
14 kW Lift Motor
Published lifting motor power is 14 kW.
Battery Selection
Lead-Acid or Lithium for Different Fleet Plans
The published configuration lists an 80 V / 400 Ah lead-acid battery and an optional 80 V / 410 Ah lithium battery.
Battery choice should be confirmed according to existing charging infrastructure, shift pattern and fleet standardization.
Mast Selection
Confirm Lift Height Against the Highest Pallet
The product page contains different published mast-height ranges, so the final mast should be specified from the actual top pallet level and required free lift.
Provide rack beam heights and the highest pallet position when requesting the quotation.
Warehouse Applications
Where the 3 Ton VNA Forklift Fits
Heavy Pallet Rack Storage
The 3-ton capacity class suits warehouses handling heavier palletized goods in narrow rack aisles.
High-Density Warehouses
Articulated operation allows narrower stacking aisles where the warehouse layout is designed for VNA handling.
Rack-to-Loading Area Transfer
The articulated truck can move outside the storage aisle on suitable hard surfaces, reducing unnecessary pallet transfers.
Before Quotation
Data Needed to Configure the 3 Ton VNA Forklift
1
Aisle
Send clear aisle width and rack-to-rack dimensions.
2
Pallet
Send pallet size, orientation, load center and maximum weight.
3
Rack
Send highest pallet level, free lift and overhead clearance requirements.
4
Power
Send battery preference, shifts, quantity and destination country.
Related Equipment
Compare Capacity Before Finalizing the Warehouse Truck
VNA Articulated Forklifts Compare articulated warehouse trucks across different load classes. 2.5 Ton VNA Forklift Compare the lower-capacity model for lighter pallet loads and narrower fleet requirements. 2 Ton VNA Forklift Compare a lighter articulated forklift for lower pallet weights. 1.5 Ton VNA Forklift Compare the compact load class for lower capacity warehouse applications. Electric Reach Trucks Compare conventional reach trucks where the available aisle is wider. After-sales & Parts Review service and replacement-parts support. About Xinghao Review company and equipment manufacturing information. Contact Xinghao Send warehouse drawings and purchasing requirements.
FAQ
3 Ton VNA Forklift Buying Questions
What is the rated capacity of the 3 ton VNA forklift?
The rated capacity is 3,000 kg at a standard load center of 500 mm.
What aisle width does the 3 ton VNA forklift need?
Published stacking aisle figures are approximately 2,200 mm for an 800×1200 mm pallet and 2,400 mm for a 1000×1200 mm pallet. Final requirements depend on rack geometry, pallet orientation and clearance.
How high can the 3 ton VNA forklift lift?
The detailed parameter table lists 4,500–12,400 mm mast options, while the product introduction contains a different published range. The final mast height should therefore be confirmed from the actual rack and top pallet level.
What battery options are available?
The published specification lists an 80 V / 400 Ah lead-acid battery and an optional 80 V / 410 Ah lithium battery.
How does the 3 ton model differ from the 2.5 ton VNA forklift?
The main difference is rated load capacity and the corresponding warehouse geometry. The 3 ton model is rated for 3,000 kg, while the 2.5 ton model is rated for 2,500 kg. Aisle and rack dimensions should still be checked for each model.
What should I send for a quotation?
Send clear aisle width, pallet dimensions, maximum load, highest pallet level, battery preference, shift pattern, quantity and destination country.
Confirm the Aisle, Pallet and Rack Height Together
Send the warehouse layout, clear aisle width, pallet dimensions, maximum pallet weight, highest pallet level, battery preference, shift pattern, quantity and destination country. These details allow the 3 ton VNA forklift configuration to be checked before quotation.
