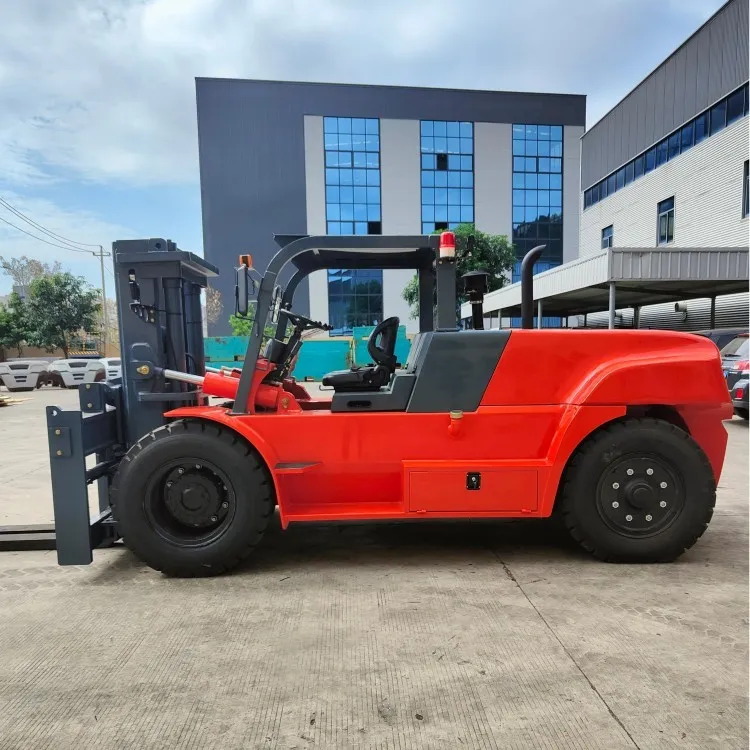

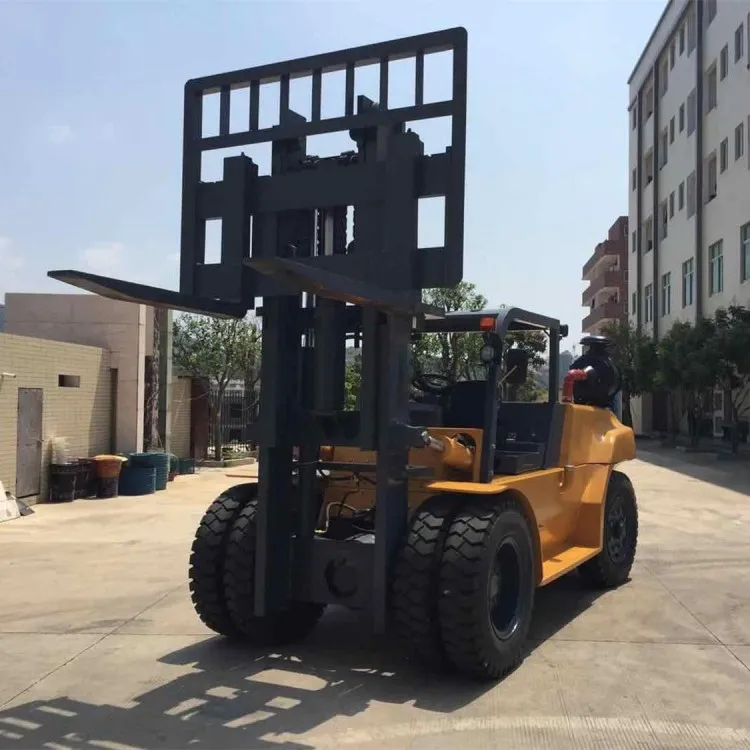

10 Ton Container Forklift for Loading Operations
The FDC100 is a 10,000 kg diesel counterbalance forklift with a 600 mm load center and 2,300 mm duplex full-free mast. Its compact chassis is configured for heavy cargo transfer where doorway, container-entry and working-space limits need to be checked closely.

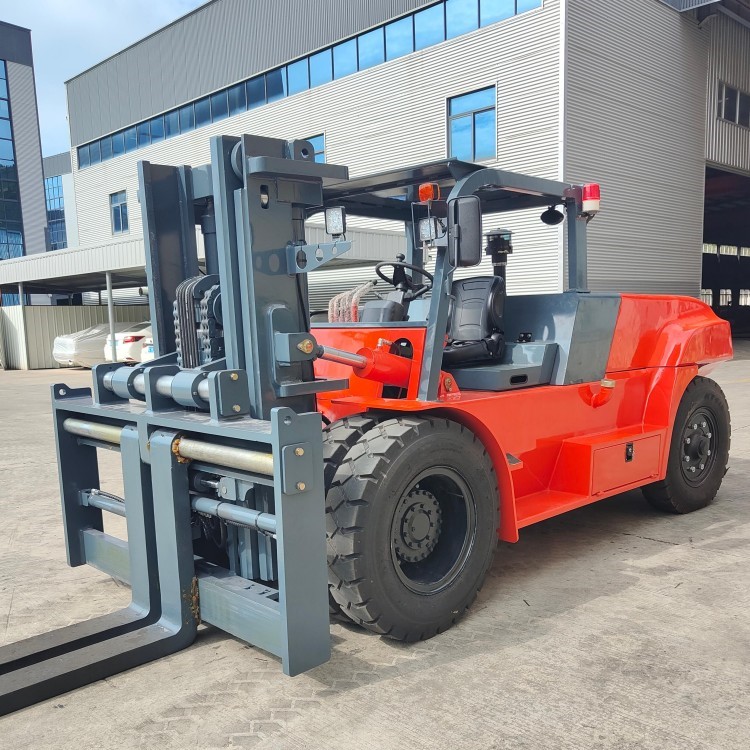

Full-Free Mast for Restricted-Height Work
The published configuration uses a duplex 2-stage full-free mast with a 2,300 mm lift height. This arrangement is intended for loading tasks where vertical clearance is more important than high open-yard stacking.
Container doorway height, overhead guard height, load dimensions and the required fork elevation should be confirmed together before the truck is selected for container-entry work.
Published mast lifting height.
Duplex 2-stage mast configuration.
Basis of the 10,000 kg rated load.
Published chassis dimension.
Technical Specifications
| Model | FDC100 |
|---|---|
| Rated Capacity | 10,000 kg |
| Load Center | 600 mm |
| Operating Weight | Approx. 13,000 kg |
| Wheelbase | 2,800 mm |
| Tyres | Front / Rear 8.25-20-18PR |
| Mast Type | Duplex 2-stage full-free mast |
| Lift Height | 2,300 mm |
| Maximum Height | 3,460 mm |
| Overall Width | Approx. 1,940 mm |
| Length to Fork Face | Approx. 4,310 mm |
| Travel Speed, Loaded / Unloaded | 23 / 28 km/h |
| Lift Speed | 220 / 280 mm/s |
| Traction | 80 kN |
| Gradeability | 20 / 22% |
| Published Engine Option | Yuchai YJ6J125-T300, approx. 97 kW |
Check Container Entry Before Ordering
A low mast alone does not guarantee that a forklift can enter every shipping container. The complete truck height, doorway opening, floor condition, cargo position and available turning space must also be checked.
- Container doorway height
- Forklift overall height
- Load dimensions and center
- Required fork elevation
- Container floor capacity
- Internal turning clearance
10 Ton Container Forklift Video
View the forklift configuration and container-loading arrangement in the product video.
Travel and Yard Performance
Published travel speed is 23 km/h loaded and 28 km/h unloaded, with 80 kN traction and 20/22% gradeability. These figures are relevant when the route includes loading ramps, yard travel or repeated movement between dock and storage areas.
Ramp angle, surface condition and actual load should be checked against the final truck configuration before operation.
Typical Handling Tasks
Move heavy palletized cargo into or out of containers.
Transfer heavy cargo between loading and staging areas.
Handle dense palletized materials in restricted work zones.
Move heavy loads between vehicles, docks and storage areas.
Related Container Handling Equipment
10 Ton Container Forklift FAQ
The truck uses a compact chassis and full-free mast for restricted-height loading work. Confirm the container doorway, overall truck height, cargo dimensions and internal clearance before selecting it for container entry.
The current FDC100 specification lists a 2,300 mm lifting height with a duplex 2-stage full-free mast.
The current product record contains more than one engine reference. Confirm the required engine, emission requirement and destination market when requesting the final specification.
Provide load weight and dimensions, load center, container doorway size, required fork height, aisle or turning space, ramp conditions, engine or emission requirements, quantity and destination country.
Confirm Your FDC100 Configuration
Send your load dimensions, container doorway, required fork height, working space and engine requirements to confirm the suitable configuration.
