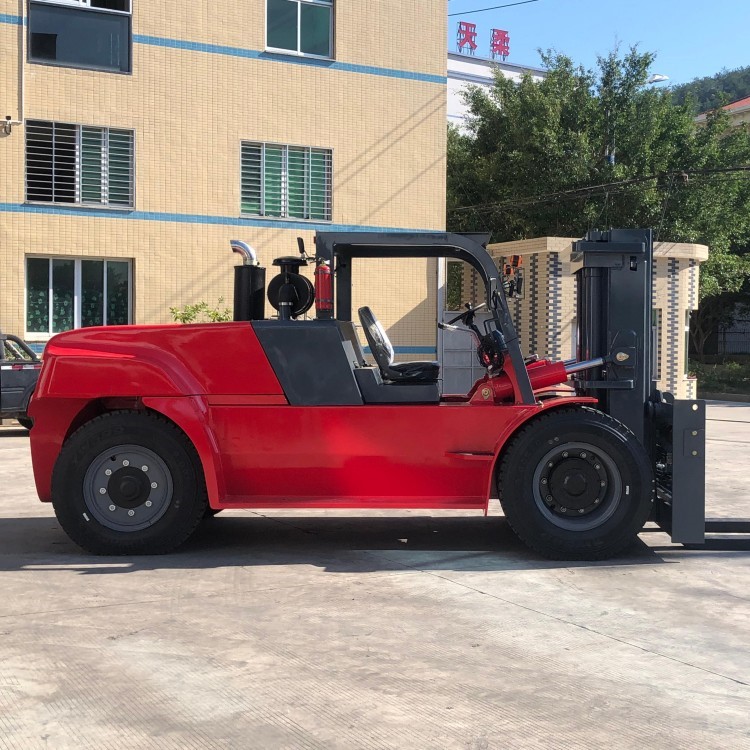

12 Ton Container Forklift for Heavy Cargo
The FDC120 is a 12,000 kg diesel counterbalance forklift with a 600 mm load center and 2,300 mm lifting height. Its low-mast configuration is intended for heavy cargo handling where overall height and container-entry clearance need to be considered.

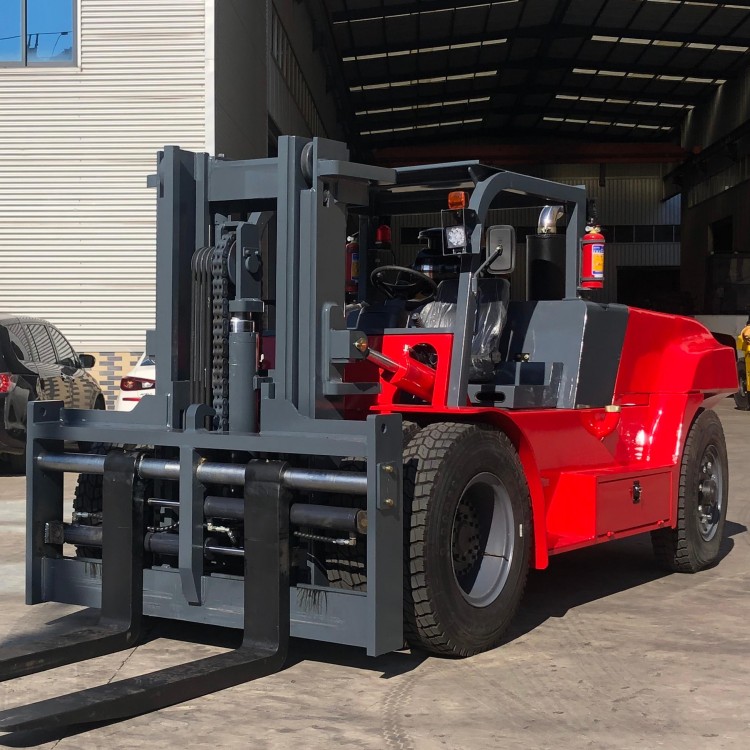

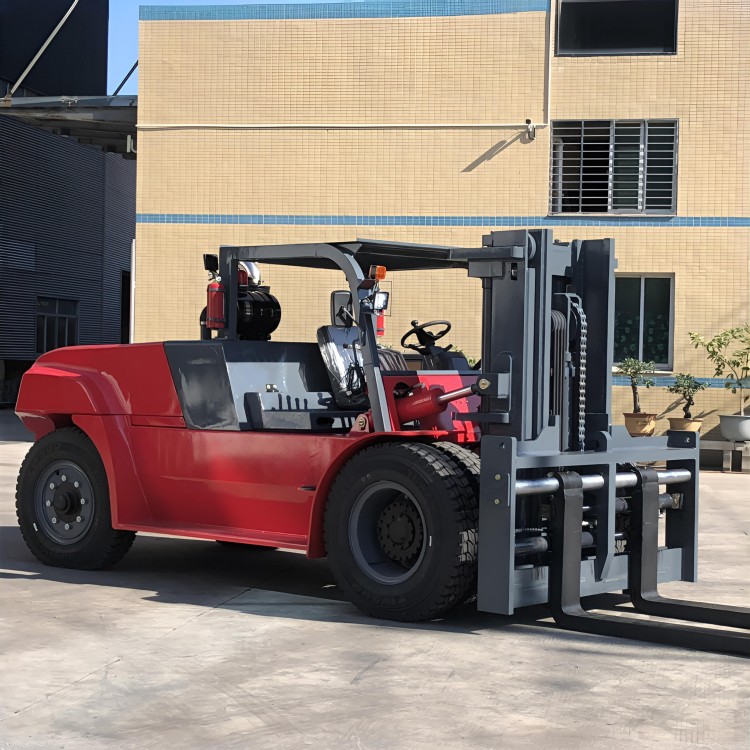

Low-Mast Configuration for Restricted Height
The 2,300 mm lifting height is paired with a compact mast arrangement for loading work where overhead clearance matters. This makes mast height, doorway dimensions and required fork elevation key selection points.
Rated at a 600 mm load center.
Configured for lower-height handling tasks.
Heavy counterbalance chassis layout.
Forward and rearward mast tilt angles.
Technical Specifications
| Model | FDC120 |
|---|---|
| Rated Capacity | 12,000 kg |
| Load Center | 600 mm |
| Operating Weight | 15,000 kg |
| Wheelbase | 3,000 mm |
| Front / Rear Track | 1,470 / 1,670 mm |
| Lifting Height | 2,300 mm |
| Maximum Working Height | 3,460 mm |
| Fork Size | 1,520 × 180 × 80 mm |
| Mast Tilt | 6° forward / 12° rearward |
| Travel Speed, Loaded / Unloaded | 23 / 28 km/h |
| Loaded Gradeability | Approx. 20% |
| Brake System | Hydraulic disc braking |
| Power Type | Diesel |
Check Container Entry Dimensions
Container entry depends on the complete truck configuration, not only the lifting height. Check the mast, overhead guard, container doorway and cargo position together before selecting the forklift for internal container work.
- Container doorway height
- Truck overall height
- Load dimensions
- Load center
- Required fork elevation
- Internal working clearance
12 Ton Container Forklift Video
View the machine configuration and container-handling layout in the product video.
Working Space and Heavy Load Handling
The FDC120 has a 3,000 mm wheelbase and is designed around 12-ton counterbalance handling. Working space should be checked with the actual load because long cargo can increase the area required for turning and positioning.
Fork length, attachment dimensions, load center and surface conditions should be included when calculating the required operating area.
Typical Handling Tasks
Move heavy cargo into and out of container loading areas.
Handle dense machinery parts and palletized materials.
Transfer heavy goods between staging and loading zones.
Move large loads between manufacturing work areas.
Related Container Handling Equipment
12 Ton Container Forklift FAQ
The FDC120 is rated for 12,000 kg at a 600 mm load center. Actual load dimensions and attachments should be confirmed before final configuration.
The current FDC120 specification lists a 2,300 mm lifting height and 3,460 mm maximum working height.
Engine information should be confirmed for the selected configuration and destination market when requesting the final technical specification.
Provide load weight and dimensions, load center, required fork height, container doorway dimensions, working space, operating surface, engine requirements, quantity and destination country.
Confirm Your FDC120 Configuration
Send your load dimensions, container doorway, required fork height, operating space and destination to confirm the suitable configuration.
