Electric Forklifts for Warehouse and Industrial Material Handling
Xinghao manufactures electric counterbalance forklifts for pallet handling, production logistics and heavier industrial loads. Select the truck from actual payload, load center, lift height, aisle and turning space, battery duty cycle and charging conditions rather than choosing from capacity alone.
Start with Capacity Class and Duty Cycle
1.5t–3.5t Compact Electric
Counterbalance forklifts for pallet movement, receiving, dispatch, production supply and general warehouse routes.
- 1.5, 2.0, 2.5, 3.0 and 3.5 ton classes
- 500 mm load center on current core models
- Compact chassis for indoor logistics
- Battery configuration varies by model

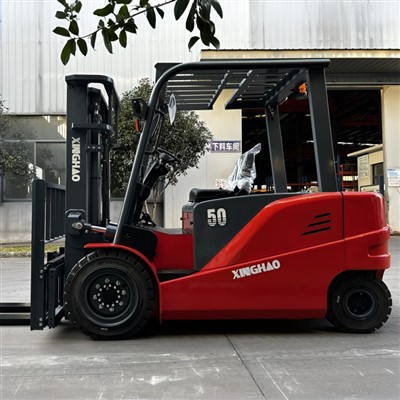

4t–7t Heavy Duty Electric
Larger electric counterbalance trucks for heavier pallets, manufacturing components and industrial material flow.
- 4, 5 and 7 ton capacity classes
- Larger chassis and turning envelope
- Industrial AC electric drive
- Battery and mast selected by duty
Lithium-ion Series
Use this series when lithium battery configuration is a primary procurement requirement rather than an optional power choice.
- Model-specific lithium configurations
- Battery voltage and Ah must be confirmed
- Charger matched to operating schedule
- Lead-acid comparison available on some models
Which Electric Forklift Category Should You Open First?
-
Electric Sit-Down Pneumatic Tire ForkliftThe Electric Sit-Down Pneumatic Tire Forklift combines a battery-electric powertrain, a seated counterbalance layout, and pneumatic tires for material handling environments where standard indoorAdd to Inquiry -
Lithium Ion 3 Wheel Electric ForkliftThe Lithium Ion 3 Wheel Electric Forklift combines a counterbalance lifting system with a compact three-wheel chassis and lithium-ion battery power.Add to Inquiry -
Electric All-Terrain ForkliftAn electric all-terrain forklift combines the zero-emission operating profile of a battery-powered industrial truck with the ground clearance, traction control, and tyre specifications required forAdd to Inquiry -
Wide Tire Electric ForkliftA wide-tire electric forklift combines a heavy-duty industrial counterbalance chassis with an electric powertrain and large-profile tires configured for demanding ground conditions.Add to Inquiry -
Pneumatic Tire Electric Counterbalance ForkliftThe pneumatic tire electric counterbalance forklift combines a battery-electric drive system with a four-wheel counterbalanced chassis and pneumatic tires. It is built for material handlingAdd to Inquiry -
Outdoor Electric Pneumatic Tire ForkliftThe Outdoor Electric Pneumatic Tire Forklift combines zero-emission battery power with rugged pneumatic tires and a stable counterbalance chassis. It is engineered for heavy-duty material handlingAdd to Inquiry -
Electric Industrial Pneumatic Tire ForkliftHeavy material handling in manufacturing plants and distribution yards often requires operating across uneven asphalt, concrete, and transition ramps. Traditional cushion-tire electric forkliftsAdd to Inquiry -
4 Wheel Electric Pneumatic Tire ForkliftEngineered for heavy-duty material handling across mixed indoor and outdoor environments, this 4-wheel electric pneumatic tire forklift bridges the gap between internal combustion (IC) power andAdd to Inquiry -
80V 4 Wheel Electric ForkliftThe 80V 4-Wheel Electric Forklift series is engineered to bridge the performance gap between traditional Internal Combustion (IC) trucks and zero-emission electric material handling equipment. BuiltAdd to Inquiry -
48V 4 Wheel Electric ForkliftA four-wheel counterbalance electric forklift is selected when operational stability, predictable handling, and zero indoor emissions take precedence over the tight turning radius of a three-wheelAdd to Inquiry -
Lithium Ion 4 Wheel Electric ForkliftLithium-ion 4-wheel electric forklifts combine a stable counterbalanced four-wheel chassis with AC electric drive systems and high-efficiency lithium iron phosphate battery packs. Engineered forAdd to Inquiry -
4 Wheel Sit Down Electric ForkliftThe 4 wheel sit down electric forklift is a counterbalanced industrial truck engineered for pallet handling, container loading, production logistics, and general material movement. Its four-wheelAdd to Inquiry
Compare the Truck Around the Load, Warehouse and Shift
Electric forklift selection should start with operating conditions. Rated tonnage alone does not confirm aisle fit, lift capability or whether a battery and charger can support the planned working schedule.
Electric Counterbalance Forklift Selection Matrix
| Capacity Class | Typical Selection Role | Current Example | What to Verify |
|---|---|---|---|

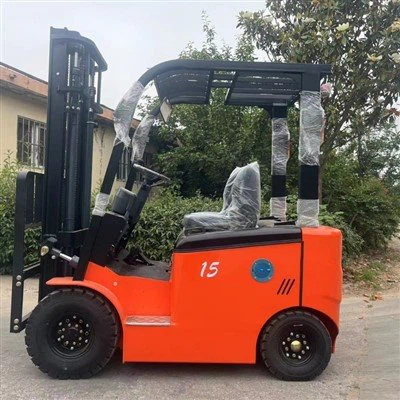

| 1.5 Ton | Compact warehouse pallet handling | FB15 | 1,500 kg @ 500 mm, aisle and turning clearance |

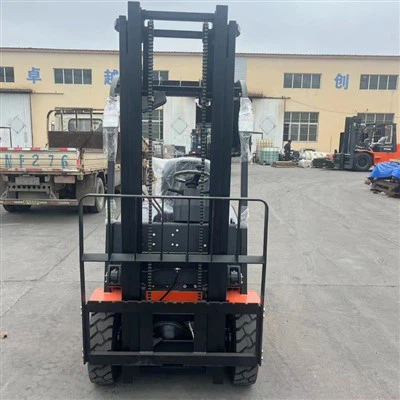

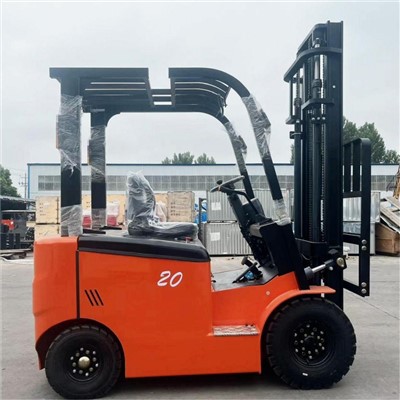

| 2.0 Ton | General pallet movement with additional capacity above FB15 | FB20 | Load, battery option and shift requirement |

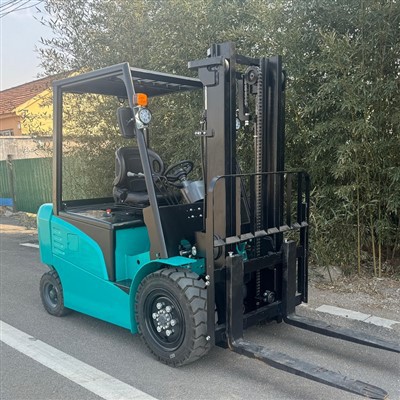

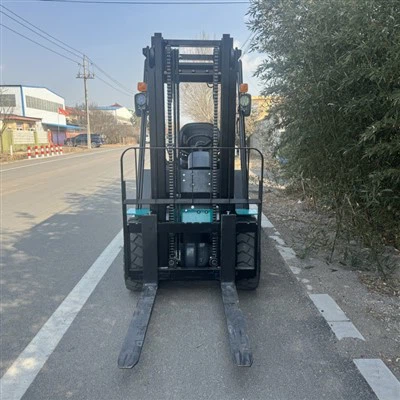

| 2.5 Ton | Warehouse and production handling for heavier standard pallets | FB25 | 48V baseline versus optional lithium configuration |

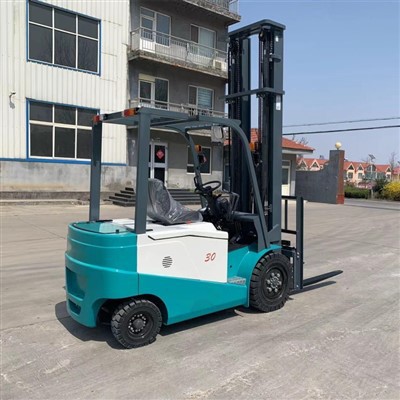

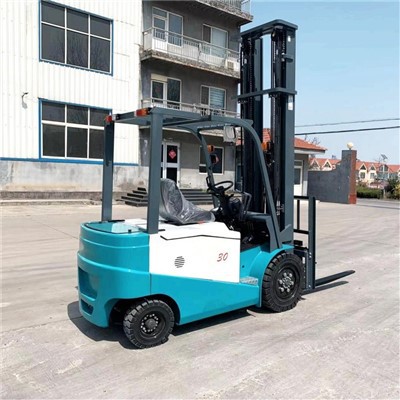

| 3.0 Ton | Higher-capacity compact counterbalance handling | FB30 | 80V system, 2,320 mm turning radius and load center |

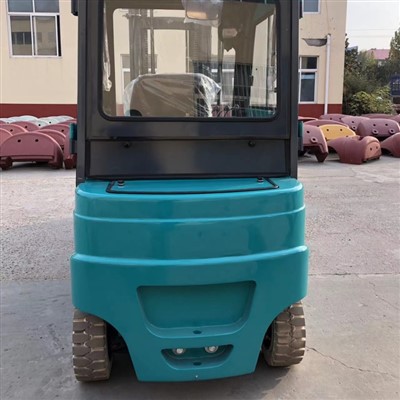

| 3.5 Ton | Upper end of the compact electric class | FB35 | Chassis fit, mast, battery and load requirement |

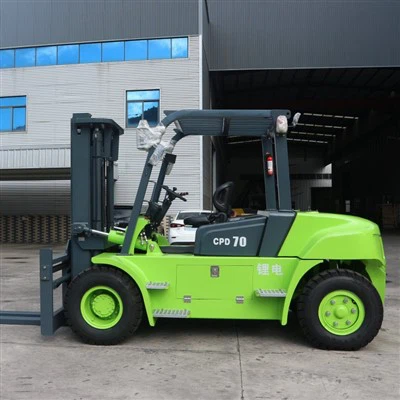

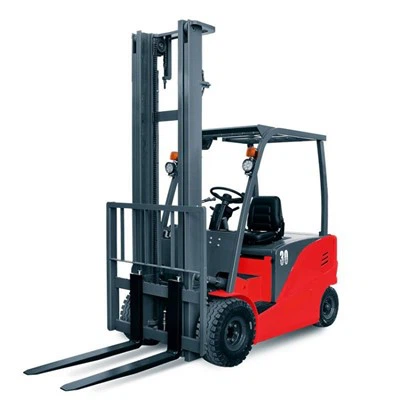

| 4–7 Ton | Heavy manufacturing and industrial loads | FE40 / FB70 and related models | 600 mm load center on selected models, larger chassis and battery duty |
Lithium and Lead-Acid Specifications Are Model-Specific
Do not assume one battery voltage or capacity applies across the complete Xinghao electric forklift range. Current model data illustrates substantial differences between capacity classes.
For example, the FB15 publishes a 48 V / 500 Ah battery system. The FB20 and FB25 publish 48 V / 600 Ah baseline configurations with optional 80 V lithium packages, while the FB30 uses an 80 V system.
- Hours per shift
- Number of daily shifts
- Available charging windows
- Travel distance and lift frequency
- Battery chemistry preference
- Site electrical supply
Avoid One-Size-Fits-All Battery Claims
Charging time, runtime and charger power depend on the selected battery package and the actual operating cycle.
We confirm the battery and charger together in the quotation instead of applying one rapid-charging figure to every electric forklift.
Compare Current Electric Forklift Models
View 1.5 Ton →
View 2 Ton →
View 2.5 Ton →
View 3 Ton →
Where Electric Counterbalance Forklifts Fit Best
Warehousing & Distribution
Pallet transfer, receiving, dispatch and general counterbalance handling on suitable warehouse routes.
Manufacturing Logistics
Move materials, components and finished goods between storage, production and staging areas.
Indoor Industrial Handling
Battery-electric drive avoids engine exhaust at the truck during operation, making it relevant for many enclosed facilities.
A Counterbalance Electric Forklift Is Not the Best Answer for Every Warehouse
Very Narrow Aisles
When rack density and working aisle width are the main constraints, compare an articulated VNA forklift.
Explore VNA Forklifts →High-Rack Storage
When the primary task is deep rack access at height, compare an electric reach truck.

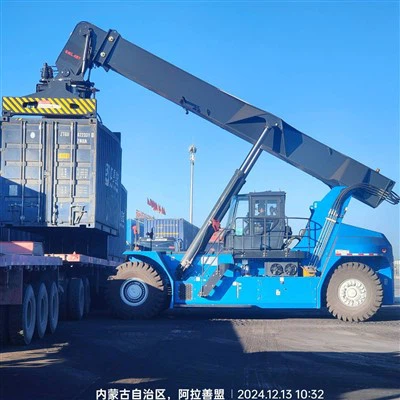

Explore Reach Trucks →Container Yard Handling
Loaded and empty container operations require purpose-selected port machinery rather than a standard warehouse forklift.
Explore Port Machinery →Send These Details Before We Recommend an Electric Forklift
Load
Maximum weight, dimensions and load center.
Warehouse
Aisle width, doorway, turning area and rack height.
Shift
Operating hours, shifts and charging windows.
Order
Battery preference, attachments, quantity and destination.
Continue Your Equipment and Supplier Evaluation
Electric Forklift Buying Questions
Start with the heaviest routine load, actual load center and required lift height. Then check the truck dimensions, turning radius and route before selecting the final capacity class.
No. Battery voltage, capacity and chemistry vary by model. Current examples include 48 V compact configurations, 80 V systems and optional lithium battery packages.
Compare shift hours, charging windows, battery maintenance requirements, site electrical supply and the battery options available for the selected forklift model.
It depends on the specific truck, pallet and aisle dimensions. For very narrow rack aisles or high-density storage, compare VNA forklifts and electric reach trucks before choosing a standard counterbalance truck.
It can in suitable applications, but the comparison should include load capacity, route, surface, gradients, working hours, battery charging conditions and required attachments rather than power source alone.
Send maximum load weight and dimensions, load center, required lift height, aisle and doorway dimensions, shift hours, charging windows, battery preference, attachments, quantity and destination.
Match the Electric Forklift to the Real Operating Cycle
Send us the maximum load, pallet dimensions, required lift height, aisle and doorway dimensions, shift schedule, available charging windows, battery preference, attachments, quantity and destination. We will use these details to narrow the suitable electric forklift series and model configuration.
