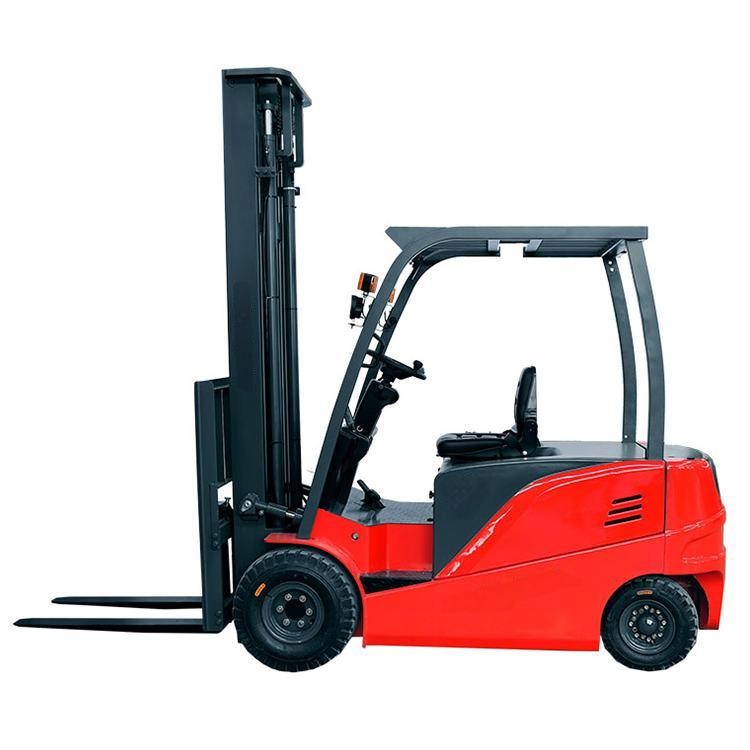

4 Ton Electric Counterbalance Forklift
The FB40 is a seated electric forklift rated for 4,000 kg at a 500 mm load center, with an 80V battery platform and AC traction drive for industrial material handling.
AC Drive for Industrial Loads
The FB40 uses a 14 kW AC traction motor, hydraulic steering and solid rubber tyres for seated counterbalance operation.
Electric drive for routine industrial travel.
Steering system for counterbalance operation.
For industrial floors and prepared yard surfaces.
Listed with the specified battery configuration.
Technical Specifications
| Model | FB40 |
|---|---|
| Power Type | Battery electric |
| Operation Type | Seated |
| Rated Capacity | 4,000 kg |
| Load Center | 500 mm |
| Front Overhang | 484 mm |
| Wheelbase | 1,800 mm |
| Service Weight | 5,300 kg including battery |
| Tyres | Solid rubber |
| Turning Radius | 2,300 mm |
| Travel Speed, Laden / Unladen | 10 / 12 km/h |
| Lifting Speed, Laden / Unladen | 200 / 300 mm/s |
| Lowering Speed, Laden / Unladen | 300 / 460 mm/s |
| Gradeability, Laden / Unladen | 14 / 15% |
| Drive Motor | 14 kW AC |
| Braking | Hydraulic |
| Steering | Hydraulic |
Battery Options
Standard battery configuration for conventional charging schedules.
Available for applications where lithium charging better matches the shift pattern.
Match Capacity to the Load
The 4,000 kg rating is based on a 500 mm load center. Long loads, attachments and higher lift positions can reduce available capacity.
Lift height and mast configuration should be selected according to the actual rack, doorway and operating requirements.
- Maximum load weight
- Load dimensions and center
- Required lift height
- Attachment type and weight
Typical Applications
Move heavier components and production materials.
Transfer heavier pallets between storage and dispatch.
Handle dense loads with the appropriate forks or attachment.
Move palletized materials on prepared operating surfaces.
4 Ton Electric Forklift FAQ
Not necessarily. Capacity depends on load center, lift height, mast configuration and attachment.
Yes. An 80V / 460Ah lithium configuration is listed alongside the 80V / 450Ah lead-acid battery.
Provide load weight and dimensions, lift height, attachment, doorway or aisle limits, shift hours, battery preference, quantity and destination country.
Configure Your FB40
Send your load, lift height, attachment, working space and shift requirements to confirm the mast, battery and charger configuration.
