Product Overview

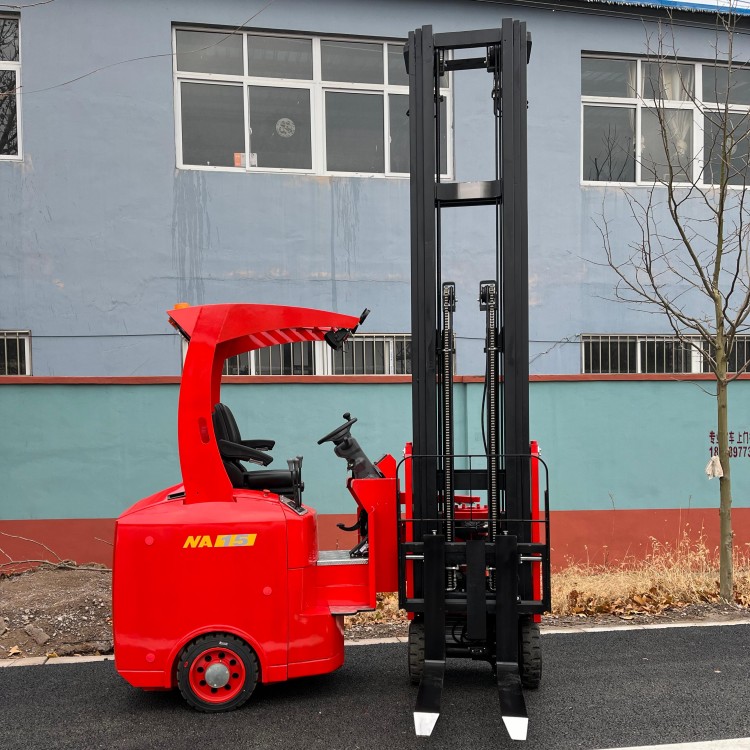

An articulated narrow aisle truck, the 1.5-ton VNA forklift was created especially for warehouse settings where high rack storage is necessary and aisle space is at a premium. This kind of forklift makes it possible to service taller racking rows without extending aisles, increasing usable floor space and supporting increased pallet density-a crucial component of contemporary warehouse architecture.
In contrast to traditional counterbalance or reach trucks, its articulated design pivots at the chassis and permits vertical lift within constrained rack layouts, making it appropriate for handling in small warehouses.
Key Characteristics and Specifications
These points reflect both performance and practical planning requirements:
- Rated Load Capacity: 1,500 kg at 500 mm load centre
- Lift Range: Mast options covering approx. 4500 – 8200 mm depending on configuration
- Operating System: Full AC control with 80 V ZAPI controller for smoother acceleration, lift control and electrical reliability
- Battery Options: Lead-acid or lithium battery choices depending on duty cycle and charging infrastructure
- Chassis Width: 1000 mm total width, enabling minimum stacking aisle widths as small as 1600 mm (800×1200 pallet) and 1800 mm (1000×1200 pallet)
- Turning Angle / Manoeuvre: ~210° articulation pivot for tight turns inside rack aisles
- Performance Figures: Travel speed ~10/12 km/h (loaded/unloaded), lift speed ~350/430 mm/s (loaded/unloaded), gradeability ~8/10 %
- Service Weight: ~6500 kg with battery
These figures should be cross-checked against your actual rack heights and aisle widths to confirm fit and duty capability before purchase.
When and Where It's Used
High Rack Storage Zones
This forklift is suited for warehouses focusing on high-density pallet storage where each centimetre of aisle width matters. Compared to standard reach trucks, articulated narrow aisle forklifts can operate in reduced aisle widths while accessing the same rack levels.
Order Picking & High Flow Environments
In facilities with frequent inbound/outbound discrete pallet moves and high rack stacking, this articulated design supports fast placement and retrieval without long repositioning moves.
Compact Warehouses & Reconfiguration Projects
For existing warehouse layouts that cannot be expanded, this model allows more pallet positions without construction work or aisle widening.
Dual-Purpose Indoor/Outdoor Use
When operating areas extend beyond fully paved floors, the articulated narrow aisle truck offers better positioning flexibility than many tight-turn reach trucks.
Video Description
Procurement Considerations
- Provide your rack height, pallet size and desired aisle width to get an accurate configuration and quote.
- Battery choice affects charging infrastructure and duty cycle planning - lithium cells typically allow faster recharge windows for multi-shift setups.
- For fleet purchase or bulk order, aligning configurations (battery type, mast height, control setup) across units simplifies spares and operator training.
This forklift isn't the fastest at ground travel, nor designed for heavy off-road use - it is a warehouse handler first, optimised for space-constrained rack access.
FAQ - Real Buyer Questions
Q: What minimum aisle width is required?
A: With this model's chassis width, aisle widths start around 1600 mm for standard pallets and 1800 mm for larger pallets - final values depend on racking depth and pallet overhang.
Q: Can this model be part of a mixed-fleet plan?
A: Yes. It pairs well with standard counterbalance forklifts and reach trucks. Use articulated units where aisle width is tight and conventional trucks elsewhere.
Q: What battery option should I choose?
A: Lead-acid batteries suit single/shallow shift usage. Lithium packs suit multi-shift operations with fast charging windows, reducing downtime.
Q: Is operator training included?
A: On-site training can be arranged, especially for multiple units.
Next Step - Inquiry
To prepare a tailored quotation, provide:
- Required quantity and delivery timeline
- Aisle widths and pallet dimensions
- Rack height and desired lift range
- Preferred battery and optional feature needs
With this information, we can issue a detailed offer for your equipment procurement and fleet purchase planning.
