Compact 4WD Telehandler
2.5 Ton Capacity in a 1.835 m Wide Off-Road Chassis
The 4WD telescopic handler combines a 2,500 kg rated load with 5.827 m maximum lift height and 2.19 m forward outreach. Its compact 1,835 mm overall width, 4WD drivetrain and selectable steering modes suit construction yards, agricultural facilities and outdoor material handling sites where both reach and maneuverability are required.
2,500 kg Maximum rated load
5.827 m Maximum lift height
2.19 m Maximum forward outreach
800 kg Capacity at maximum reach

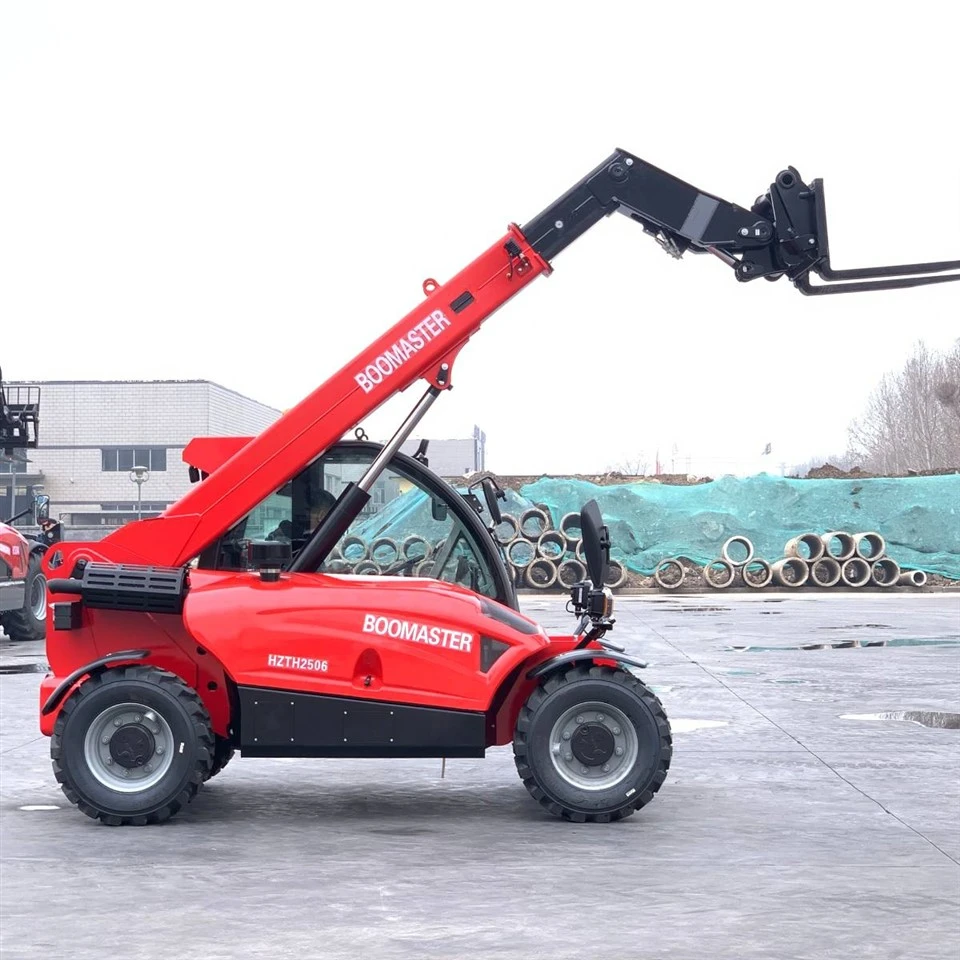

Compact telescopic handler with pallet forks and off-road chassis.
Enclosed cab and compact body for restricted work areas.

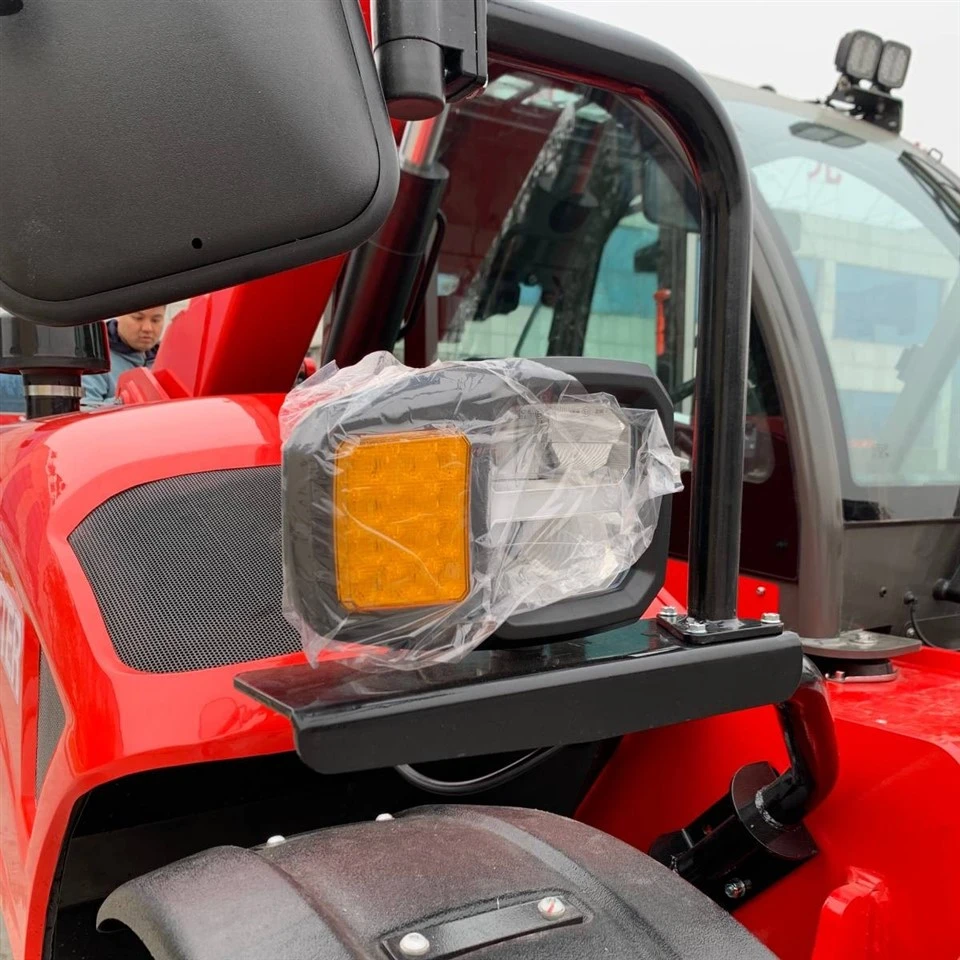

Cab-mounted work light for outdoor operating visibility.
Machine Fit
Compact Reach for Confined Outdoor Work Areas
The 1,835 mm overall width, 3,300 mm turning radius and selectable steering modes make this configuration useful where access space matters as much as telescopic reach.
Compact 1,835 mm Width
The narrow chassis helps the machine enter restricted farm yards, construction access routes and material storage areas.
348 mm Ground Clearance
The underbody clearance supports travel over uneven outdoor surfaces and typical jobsite irregularities.
Three Steering Modes
Front-wheel, four-wheel and crab steering provide different options for normal travel, tight turns and lateral positioning.
Kubota Diesel Power
The HZTH2506 configuration uses a Kubota V3307-DI-T-EU02 diesel engine rated at 54.6 kW at 2,600 rpm.
Danfoss Hydraulics
Danfoss components are specified for the closed travel pump, working pump and travel motor.
Four-Wheel Drive
Four-wheel drive supports material handling on outdoor surfaces where an indoor warehouse forklift is not the appropriate machine.
Technical Data
4WD Telescopic Handler 2.5T Specifications
Core Operating Data
- Rated load: 2,500 kg
- Machine weight: 4,900 kg
- Lift height: 5,827 mm
- Forward outreach: 2,190 mm
- Turning radius: 3,300 mm
- Travel speed: 25 km/h
| Rated Load | 2,500 kg |
|---|---|
| Maximum Lifting Height | 5,827 mm |
| Maximum Forward Outreach | 2,190 mm |
| Capacity at Maximum Reach | 800 kg |
| Machine Weight | 4,900 kg |
| Overall Length | 5,123 mm |
| Overall Width | 1,835 mm |
| Overall Height | 2,140 mm |
| Wheelbase | 2,300 mm |
| Front Track | 1,512 mm |
| Minimum Ground Clearance | 348 mm |
| Minimum Turning Radius | 3,300 mm |
| Maximum Travel Speed | 25 km/h |
| Engine Model | Kubota V3307-DI-T-EU02 |
| Rated Engine Power | 54.6 kW |
| Rated Engine Speed | 2,600 rpm |
| Drive Form | Four-wheel drive |
| Steering Modes | Front-wheel / four-wheel / crab steering |
| Tire | 12-16.5 |
| Diesel Tank Capacity | 58 L |
| Hydraulic Oil Volume | 95 L |
| Boom Extension Time | 7 s |
| Boom Retraction Time | 4.5 s |
| Main Boom Rising Time | 8 s |
| Main Boom Lowering Time | 6.5 s |
| Closed Travel Pump | Danfoss |
| Working Pump | Danfoss |
| Travel Motor | Danfoss |
Steering Geometry
Choose the Steering Mode for the Work Area
Front-Wheel Steering
Use front-wheel steering for conventional forward travel when sufficient maneuvering space is available.
Four-Wheel Steering
Four-wheel steering reduces the space needed to turn around stored materials, buildings and restricted access routes.
Crab Steering
Crab steering allows diagonal movement for lateral positioning beside walls, stacks or confined loading points.
Load Selection
Check Capacity at the Required Boom Position
The 2,500 kg figure is the maximum rated capacity. Permissible load changes as the boom extends and the load moves farther from the machine.
At the published maximum horizontal outreach of 2,190 mm, maximum horizontal lifting capacity is 800 kg.
- Maximum material or pallet weight
- Load dimensions and load center
- Required lifting height
- Required horizontal outreach
- Fork or attachment requirement
Is a Compact 5.8 m Model Enough?
This configuration is especially relevant when machine width, turning space and outdoor mobility are major selection constraints.
If the job requires more vertical reach, greater forward outreach or heavier capacity at extension, compare a larger telehandler before finalizing the order.
Application Fit
Typical Jobs for a Compact 4WD Telehandler
Agricultural Facilities
Compact width and multi-mode steering are useful around farm yards, barns and material storage areas with restricted access.
Construction Sites
Telescopic reach supports placement of palletized materials where additional vertical or forward positioning is needed.
Outdoor Material Yards
Four-wheel drive and 348 mm ground clearance suit unpaved work areas where a conventional warehouse forklift may not be appropriate.
Powertrain
Kubota Engine with Danfoss Drive Components
The HZTH2506 uses a Kubota V3307-DI-T-EU02 diesel engine with rated output of 54.6 kW at 2,600 rpm.
Danfoss is specified for the closed travel pump, working pump and travel motor.
Machine Geometry
Dimensions to Check Before Ordering
Overall dimensions are 5,123 mm long, 1,835 mm wide and 2,140 mm high. Compare these figures with gates, building entrances, transport limits and the narrowest worksite access point.
The 3,300 mm minimum turning radius should also be checked against the available turning area for repeated loading cycles.
Before Quotation
Data Needed for Correct Model Selection
1
Load
Provide maximum weight, dimensions and load center.
2
Reach
Provide required lift height and maximum forward distance.
3
Worksite
Provide surface condition, slopes, access width and typical travel route.
4
Order
Provide required quantity and destination country.
Compare Equipment
Continue Telehandler and Rough-Terrain Selection
Telehandler Range Compare compact and higher-reach telescopic handlers. 2.5 Ton Compact Telehandler Compare another 2.5 ton compact configuration. 3500kg Rough Terrain Telehandler Compare a 3.5 ton model with greater lifting height and outreach. 4WD Rough Terrain Equipment Compare other off-road material handling machines. Telehandler Attachments Review attachment choices for agricultural material handling. After-sales & Parts Review service and replacement-parts support. About Xinghao Review company and equipment manufacturing information. Contact Xinghao Send load, worksite and purchasing requirements.
FAQ
4WD 2.5 Ton Telescopic Handler Buying Questions
What is the rated capacity of this 4WD telescopic handler?
The maximum rated lifting capacity is 2,500 kg. Actual permissible capacity depends on the boom position and working reach.
How high can the 2.5 ton telehandler lift?
The published maximum lifting height is 5,827 mm, approximately 5.8 meters.
How much can it lift at maximum forward reach?
Maximum forward outreach is 2,190 mm. The published maximum horizontal lifting capacity at maximum reach is 800 kg.
Which steering modes are available?
The machine supports front-wheel steering, four-wheel steering and crab steering for different travel and positioning needs.
What engine is used in the HZTH2506?
The HZTH2506 specification lists a Kubota V3307-DI-T-EU02 diesel engine rated at 54.6 kW at 2,600 rpm.
What information is needed for a quotation?
Provide maximum load weight, required lift height and outreach, worksite surface, access width, quantity and destination country.
Check Whether the Compact 2.5T Model Fits Your Site
Send the maximum load, required lifting height, forward outreach, site surface, access width, quantity and destination country. Xinghao can use these working conditions to confirm the appropriate telehandler configuration before quotation.
