5018 High-Reach Telehandler
5 Ton Capacity with Nearly 18 m Vertical Reach
The 5018 combines a 5,000 kg rated load with 17.925 m maximum lifting height and 14.365 m maximum forward extension. Its published load data includes 2,800 kg capacity at maximum height and 1,100 kg at full extension, making load geometry a central part of model selection for high-reach construction and material handling work.
5,000 kg Rated lifting capacity
17.925 m Maximum lifting height
14.365 m Maximum full extension
1,100 kg Capacity at full extension

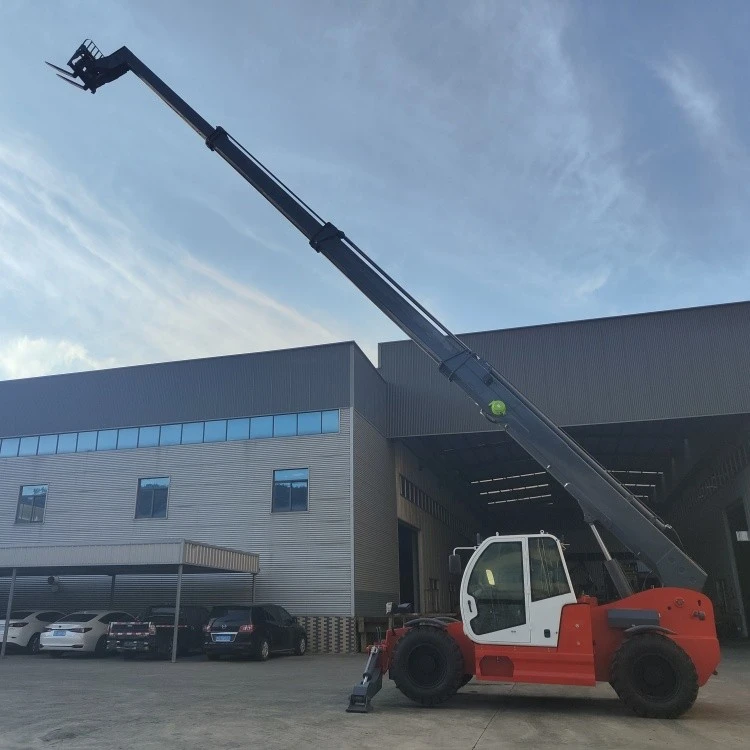

5018 telehandler with the multi-section boom extended for high-level material placement.

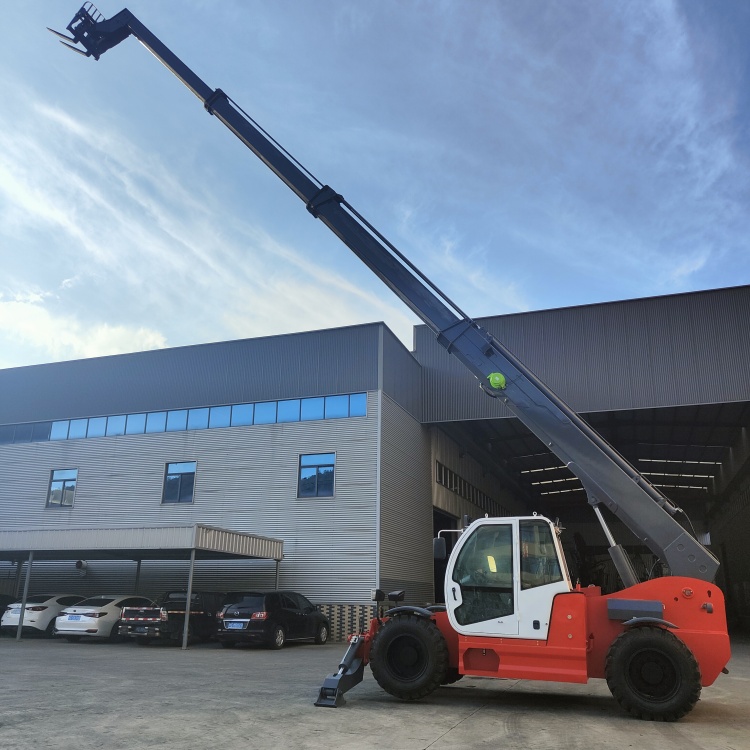

High-reach boom profile with front stabilizer deployed.

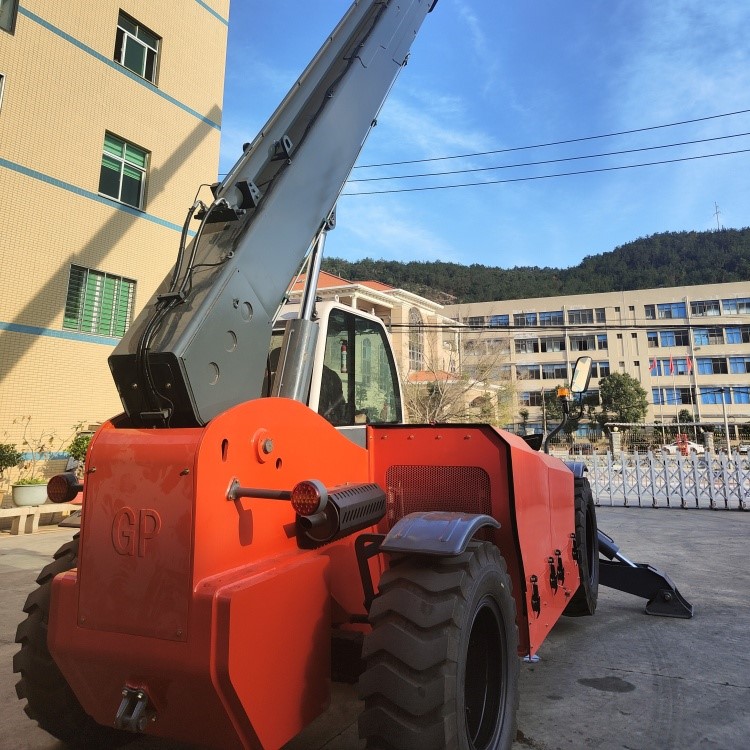

Rear chassis, off-road tire and boom base structure.
Residual Capacity
5 Ton Rated Load Does Not Mean 5 Ton at 18 m
High-reach telehandler selection should use the working load at the required boom position, not only the nominal machine capacity. The published 5018 data gives separate capacities for maximum height and maximum forward extension.
5,000 kg
Maximum rated machine capacity under the specified rated operating condition.
2,800 kg
Published capacity at the maximum lifting height position.
1,100 kg
Published lifting capacity at maximum full extension.
14.365 m
Maximum published full-extension distance from the machine.
Technical Specification
5 Ton 18 m Telehandler Specifications
Core Operating Data
- Model: 5018
- Rated load: 5,000 kg
- Lift height: 17,925 mm
- Full extension: 14,365 mm
- Operating weight: 12,800 kg
- Hydraulic flow: 145 L/min
| Model | 5018 |
|---|---|
| Rated Load Capacity | 5,000 kg |
| Maximum Lifting Height | 17,925 mm |
| Capacity at Maximum Height | 2,800 kg |
| Maximum Full Extension | 14,365 mm |
| Capacity at Full Extension | 1,100 kg |
| Overall Length | 6,530 mm |
| Overall Width | 2,380 mm |
| Overall Height | 2,485 mm |
| Operating Weight | 12,800 kg |
| Wheelbase | 2,900 mm |
| Engine Brand | Cummins |
| Engine Model | QSB3.9-C125-30 |
| Published Emission Configuration | National III |
| Rated Engine Power | 92 kW at 2,200 rpm |
| Maximum Torque | 480 N·m at 1,600 rpm |
| Transmission | Hydrostatic |
| Maximum Travel Speed | 40 km/h |
| Gradeability | 30% |
| Departure Angle | 30° |
| Rear Axle Frame Swing | 8° |
| Hydraulic System Flow | 145 L/min |
| Hydraulic Oil Tank | 180 L |
| Diesel Tank | 160 L |
| Minimum Ground Clearance | 400 mm |
| Tire Specification | 16.70-24 off-road tire |
High-Reach Selection
Confirm the Exact Working Point Before Ordering
For an 18 m class telehandler, the same load can create very different machine demands depending on whether it is lifted vertically beside the machine or positioned far forward.
The required lift should therefore be defined by load weight, load center, vertical height and horizontal reach together.
- Maximum lifted weight
- Load dimensions and center of gravity
- Highest required placement point
- Maximum forward placement distance
- Attachment type and attachment weight
- Ground condition and available outrigger area
Example: Maximum Height vs Full Reach
The published specification lists 2,800 kg capacity at maximum height but 1,100 kg at maximum full extension.
This difference is why an importer or contractor should send the real working geometry before choosing the 5018 only from its 5-ton nominal rating.
Machine Configuration
Systems Supporting High-Reach Material Handling
Four-Section Telescopic Boom
The published 5018 configuration uses a four-section telescopic boom to reach the 18 m operating class.
Self-Leveling Forks
Automatic fork leveling helps maintain load orientation as the boom changes elevation.
Load Limiter
The listed configuration includes a load limiting system for operation within the permitted working envelope.
Front Outriggers
Front stabilizers provide additional support when the machine is configured for high-reach lifting work.
Hydraulic Quick Change
The published configuration includes hydraulic quick change for attachment replacement.
Full Electric Control
Electronic travel and proportional hydraulic controls are included in the listed machine configuration.
Steering & Access
Three Steering Modes for a 6.53 m Long Machine
Front-Wheel Steering
Suitable for normal travel where the worksite provides sufficient turning space.
Four-Wheel Steering
Improves maneuverability when turning around structures, stacks and restricted loading areas.
Crab Steering
Allows diagonal repositioning when the telehandler must move laterally near a wall or placement point.
Powertrain
Cummins Power with Hydrostatic Travel
The published 5018 configuration uses a Cummins QSB3.9-C125-30 diesel engine rated at 92 kW at 2,200 rpm and 480 N·m at 1,600 rpm.
Hydrostatic transmission supports controlled travel and positioning around high-reach lifting points.
Rough-Terrain Geometry
Clearance, Axle Swing and Off-Road Tires
The machine specification includes 400 mm minimum ground clearance, an 8-degree rear axle frame swing and 16.70-24 off-road tires.
Buyers should still provide the actual site gradient, ground firmness and access route before confirming machine suitability.
Application Fit
Where an 18 m Class Telehandler Adds Value
High-Level Construction
The 17.925 m lifting height supports placement of palletized materials and components at elevated construction positions.
Industrial Installation
Long forward extension allows materials to be positioned beyond obstacles where vertical lifting alone is insufficient.
Large Outdoor Yards
Off-road tires, ground clearance and multiple steering modes support repositioning around large outdoor material handling areas.
Attachment Planning
Attachment Weight Must Be Included in Load Selection
The machine includes additional hydraulic piping, valves and hydraulic quick change for compatible attachments. At long boom extension, the attachment itself becomes an important part of the working load calculation.
1
Forks
Provide fork length, pallet size and load center.
2
Bucket
Provide material type, density and required bucket volume.
3
Grab or Clamp
Provide load dimensions and required gripping method.
4
Other Tools
Confirm attachment weight and hydraulic interface before production.
Procurement Check
Information Needed Before Quotation
1
Load
Maximum weight, dimensions and load center.
2
Geometry
Required height and maximum horizontal placement distance.
3
Worksite
Surface condition, gradient, access space and stabilizer area.
4
Order
Quantity, destination country and required attachment.
Compare High-Reach Models
Match Capacity Before Choosing the 18 m Platform
Telehandler Range Compare compact, high-reach and heavy-capacity telescopic handlers. 4 Ton 18 m Telehandler Compare the lower rated-capacity model in the same high-reach class. 5.5 Ton 18 m Telehandler Compare additional nominal capacity while retaining an 18 m class boom. 6 Ton 18 m Telehandler Compare a heavier 18 m configuration for higher load requirements. After-sales & Parts Review parts and service support for exported machines. About Xinghao Review company and equipment manufacturing information. Contact Xinghao Send load geometry and purchasing requirements. Construction & Mining Equipment Review equipment for demanding outdoor construction applications.
FAQ
5 Ton 18 m Telehandler Buying Questions
What is the rated capacity of the 5018 telehandler?
The published rated capacity is 5,000 kg. Available capacity changes with boom height, forward extension, load center and attachment.
What is the exact maximum lifting height?
The detailed 5018 specification lists 17,925 mm maximum lifting height, which is approximately 17.9 meters and is marketed in the 18 m telehandler class.
How much can the 5018 lift at maximum height?
The published capacity at maximum lifting height is 2,800 kg.
What is the capacity at maximum forward extension?
Maximum full extension is listed as 14,365 mm, with 1,100 kg published lifting capacity at that position.
Which engine is used in the 5 ton 18 m telehandler?
The published configuration uses a Cummins QSB3.9-C125-30 engine rated at 92 kW at 2,200 rpm.
What should I send for a 5018 quotation?
Provide maximum load weight, load center, required lifting height, horizontal reach, attachment type, ground conditions, quantity and destination country.
Confirm Residual Capacity at Your Working Reach
Send the load weight, load center, required vertical height, forward reach, attachment, ground conditions, quantity and destination country. These details allow the 5018 working geometry to be checked before quotation.
