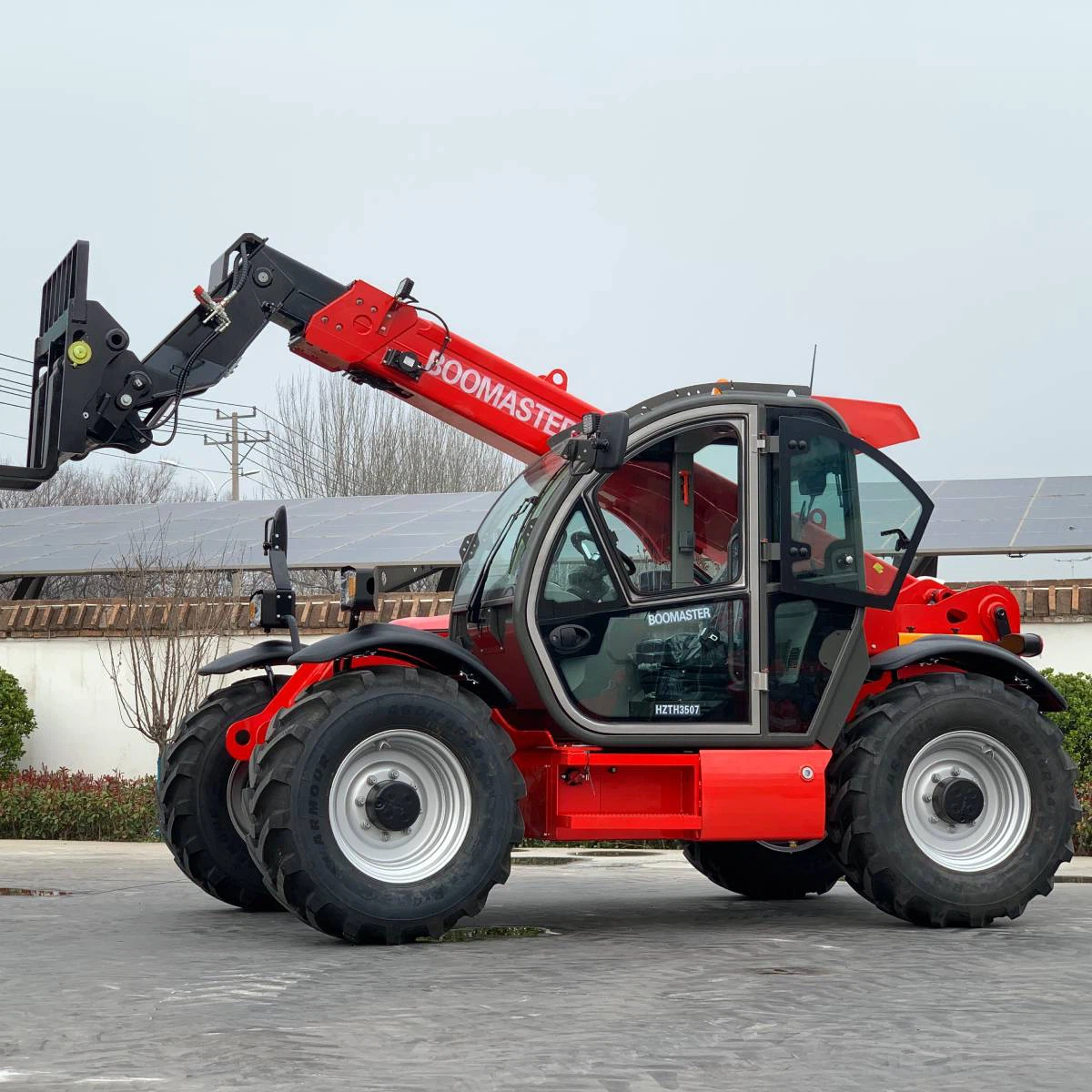

3.5 Ton Telehandler for Rough Terrain
With a 3,500 kg rated capacity, 7.0 m maximum lift height and 3.8 m maximum outreach, this 4WD telehandler is designed for lifting and positioning materials across uneven outdoor sites.
4WD Mobility and Steering
Four-wheel drive, 460/70R24 tyres and 430 mm minimum ground clearance support travel across gravel, compacted soil and uneven work areas.
Traction for outdoor travel and uneven ground.
Matched with a high-low speed gearbox.
Provides chassis clearance on rough routes.
Supports movement between work areas.
2-Wheel Steering
For normal travel between working areas.
4-Wheel Steering
For tighter turns around confined jobsites.
Crab Steering
For diagonal positioning beside loads or obstacles.
Technical Specifications
| Rated Load Capacity | 3,500 kg |
|---|---|
| Maximum Lifting Height | 7.0 m |
| Maximum Outreach | 3.8 m |
| Engine | Yuchai YC4DK100-T304 |
| Engine Power | 73 kW |
| Drive System | Danfoss piston pump & variable motor |
| Axle | Carraro wet brake axle |
| Gearbox | Carraro high-low speed gearbox |
| Drive | 4WD |
| Steering | 2-wheel / 4-wheel / crab |
| Overall Dimensions | 4936 × 2300 × 2550 mm |
| Minimum Ground Clearance | 430 mm |
| Machine Weight | 7,710 kg |
| Tyres | 460/70R24 |
| Maximum Travel Speed | 40 km/h |
| External Turning Radius | 3.9 m |
| Boom Raising Time | 8.2 s |
| Boom Lowering Time | 6.4 s |
Lift Up and Reach Forward
The telescopic boom reaches up to 7.0 m vertically and 3.8 m forward, allowing loads to be positioned beyond the reach of a conventional vertical mast.
Available capacity changes as the boom extends. Model selection should therefore use the required working point rather than the 3,500 kg rated capacity alone.
- Maximum load weight
- Required placement height
- Required forward reach
- Load center and attachment
Powertrain and Hydraulic Control

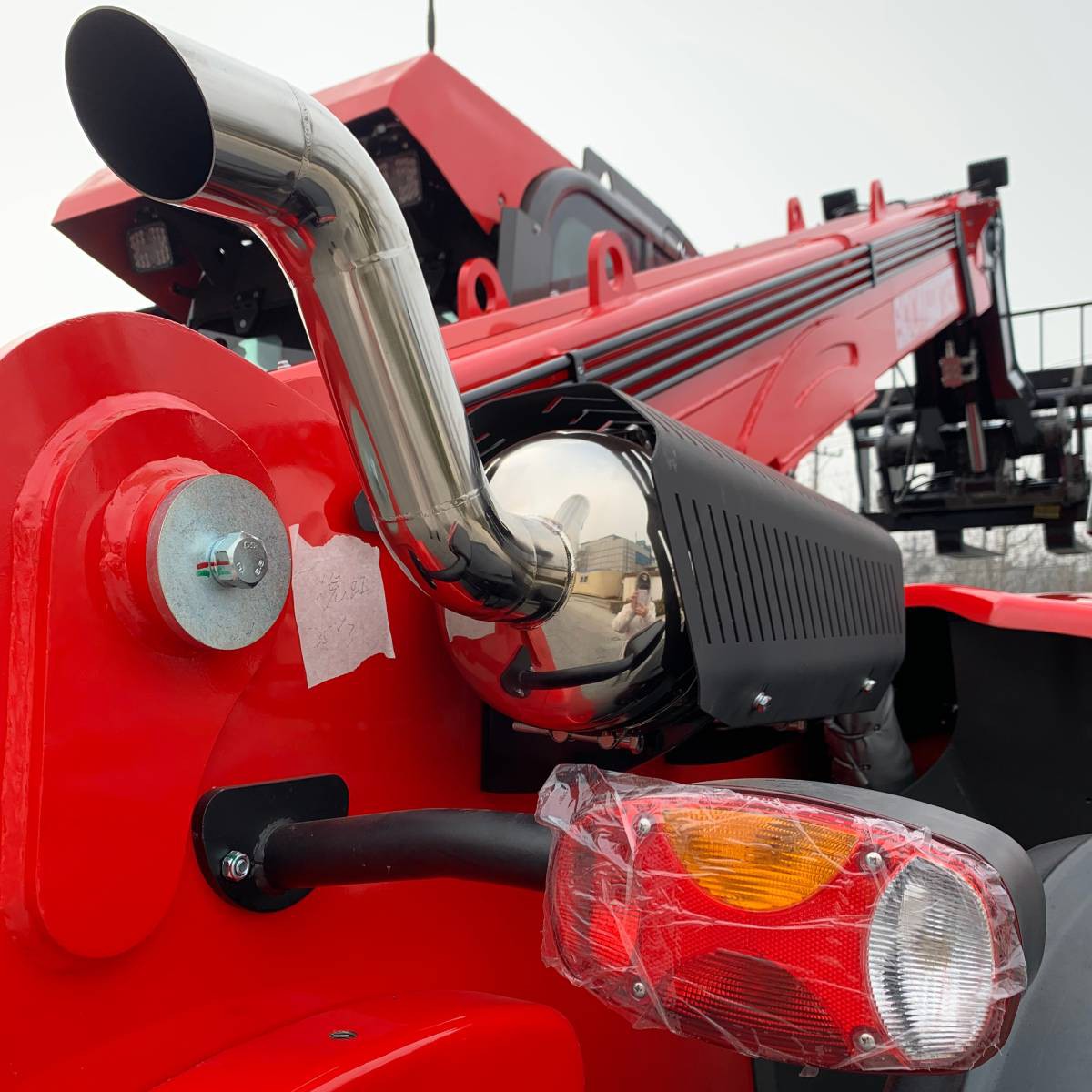

The machine uses a 73 kW Yuchai YC4DK100-T304 diesel engine, Danfoss piston pump and variable motor, with Carraro axle and gearbox components.
A load-sensitive electro-hydraulic control system manages boom functions for lifting and load positioning.
Typical Applications
Lift palletized materials to elevated work areas.
Move and position supplies across outdoor yards.
Place palletized products where forward reach is required.
Handle materials where paved access is limited.
Telehandler or Rough Terrain Forklift?
A telehandler is suited to work that requires both lift height and forward reach. A masted rough terrain forklift is better suited to applications centered on vertical lifting.
For jobs requiring up to 7.0 m of lift height and forward placement up to 3.8 m, this telehandler provides the additional reach of a telescopic boom.
3500kg Rough Terrain Telehandler FAQ
Not necessarily. Working capacity changes with boom extension, height, load center and attachment. Use the approved load chart for the required working point.
The machine provides 2-wheel steering, 4-wheel steering and crab steering.
Provide load weight, load dimensions, required lift height, forward reach, attachment, ground conditions, gradient, quantity and destination country.
Confirm Your Working Point
Send the load weight, lift height, forward reach, attachment and site conditions for configuration confirmation and quotation.
