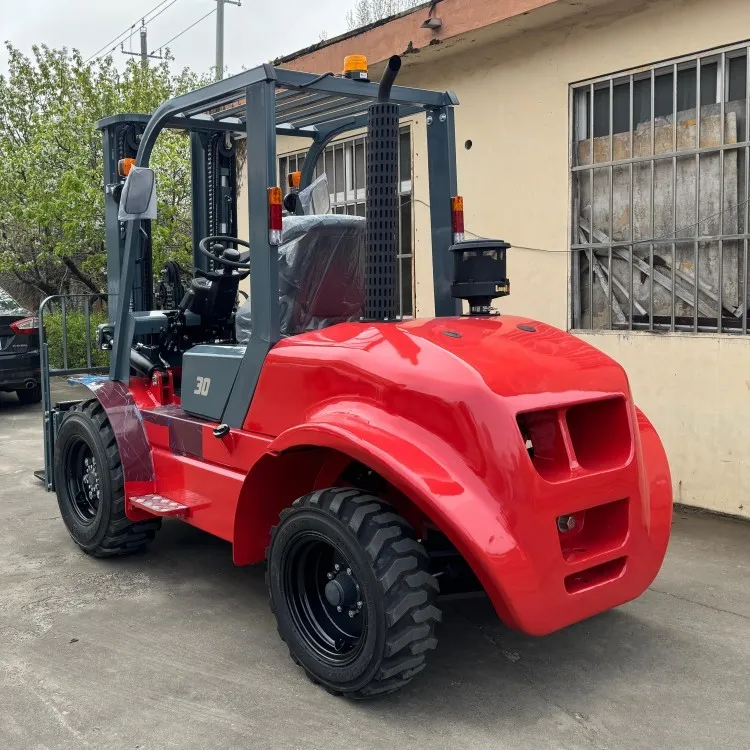

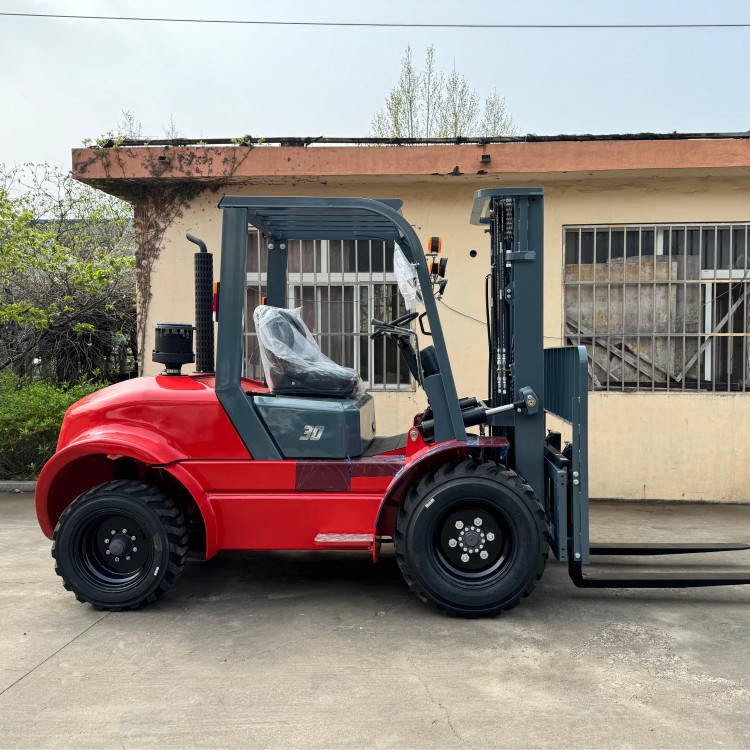

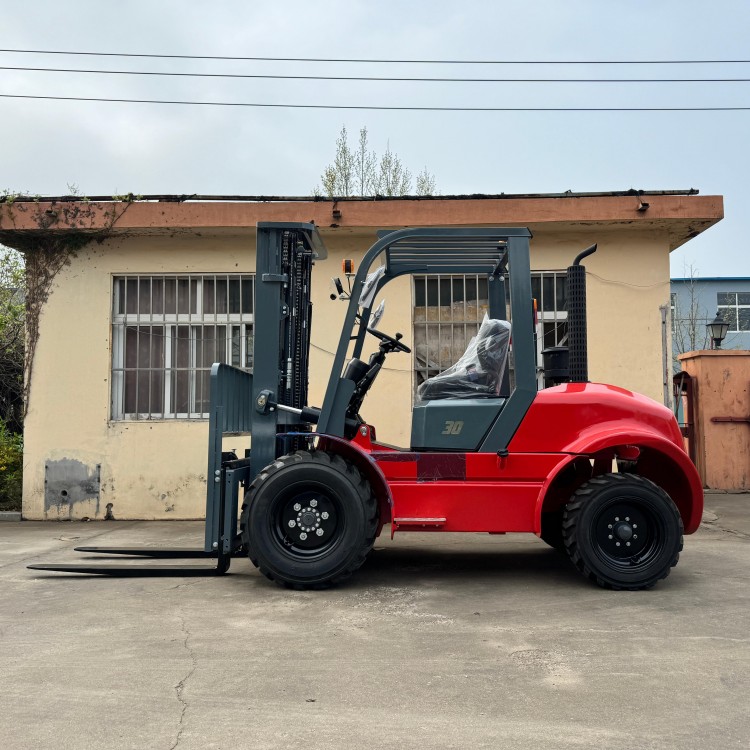

3 Ton Rough Terrain Forklift for Unpaved Worksites
The FD30-RT combines a 3,000 kg rated capacity, 500 mm load center and 3,000 mm standard lift height with an outdoor chassis available in 2WD or 4WD configurations.
Outdoor Mobility and Traction
Deep-tread off-road tyres, 300 mm ground clearance and a hydrodynamic transmission support travel across gravel, compacted soil and uneven outdoor routes.
Choose the drivetrain according to site traction needs.
Deep tread supports mixed outdoor surfaces.
Extra clearance helps on uneven travel routes.
Suitable for extended outdoor material handling.
FD30-RT Technical Specifications
| Model | FD30-RT |
|---|---|
| Power Type | Diesel |
| Rated Capacity | 3,000 kg |
| Load Center | 500 mm |
| Drive Type | 2WD / 4WD |
| Standard Lift Height | 3,000 mm |
| Fork Size | 1220 × 125 × 45 mm |
| Mast Tilt F / R | 6° / 12° |
| Length Without Forks | 3,300 mm |
| Overall Width | 1,760 mm |
| Closed Mast Height | 2,325 mm |
| Overhead Guard Height | 2,420 mm |
| Ground Clearance | 300 mm |
| Turning Radius | 3,800 mm |
| Wheelbase | 1,850 mm |
| Front / Rear Tread | 1,385 / 1,380 mm |
| Operating Weight | 5,550 kg |
| Travel Speed | 32 km/h |
| Lifting / Lowering Speed | 430 / 460 mm/s |
| Maximum Gradeability | ≥35% |
| Front Tyre | 14-17.5 |
| Rear Tyre | 10-16.5 |
| Battery | 24 V / 60 Ah |
| Fuel Tank | 100 L |
| Transmission | Hydrodynamic |
2WD or 4WD?
2WD
Suitable for firm outdoor yards, compacted surfaces and moderate gradients where additional traction is not regularly required.
4WD
Better suited to loose gravel, soft soil, muddy sections and changing surface conditions.
- Maximum loaded travel gradient
- Soft or muddy ground conditions
- Available turning clearance
- Loaded and unloaded travel routes
Typical Applications
Handling palletized materials across unfinished outdoor routes.
Outdoor loading and transfer on gravel or compacted ground.
Moving feed, fertilizer and palletized farm materials.
Transport between storage zones with mixed surface conditions.
A 3 tonne outdoor option for construction and industrial users.
Vertical lifting and load transfer on outdoor project sites.
What to Confirm Before Ordering
Load
Maximum weight, dimensions and load center.
Lift Height
Required height and available overhead clearance.
Terrain
Gravel, soil, mud or mixed outdoor surfaces.
Gradient
Steepest slope travelled while carrying a load.
Drive Type
2WD or 4WD according to traction requirements.
Destination
Country, quantity and applicable configuration requirements.
Rough Terrain Forklift or Telehandler?
Choose the FD30-RT when the job mainly requires outdoor travel and vertical mast lifting. A telehandler is more suitable when significant forward reach or placement over obstacles is required.
3 Ton Rough Terrain Forklift FAQ
The rated capacity is 3,000 kg at a 500 mm load center. Capacity should be reconfirmed for different lift heights or attachments.
Yes. The FD30-RT is available in 2WD and 4WD configurations. The suitable option depends on terrain and traction needs.
The listed ground clearance is 300 mm.
Its off-road tyres and available 4WD configuration support gravel, dirt and uneven outdoor routes. Very soft ground and steep slopes should be confirmed before ordering.
Please provide load weight and dimensions, lift height, terrain, maximum gradient, quantity and destination country.
Get the Right FD30-RT Configuration
Send your load weight, lift height, terrain, maximum gradient, quantity and destination country for configuration confirmation and quotation.
