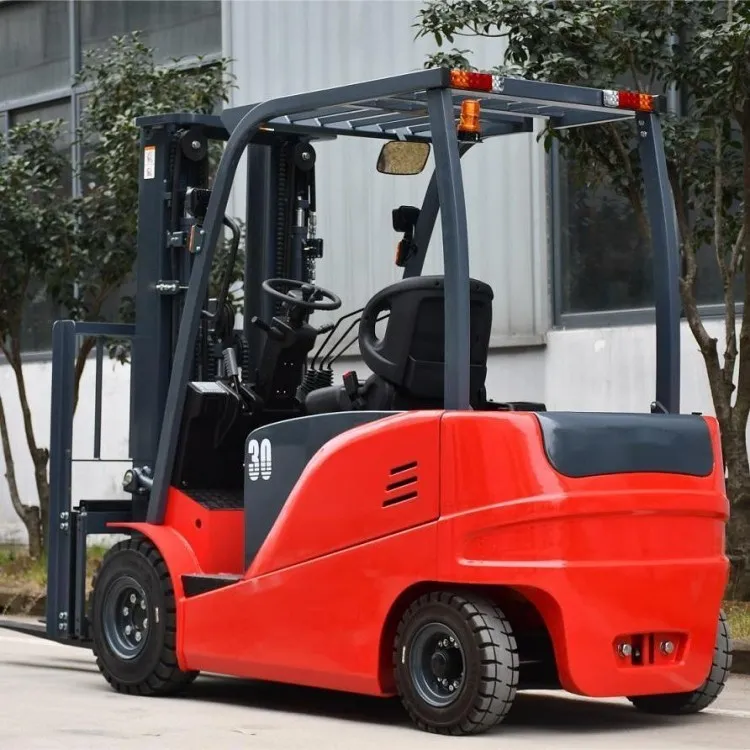

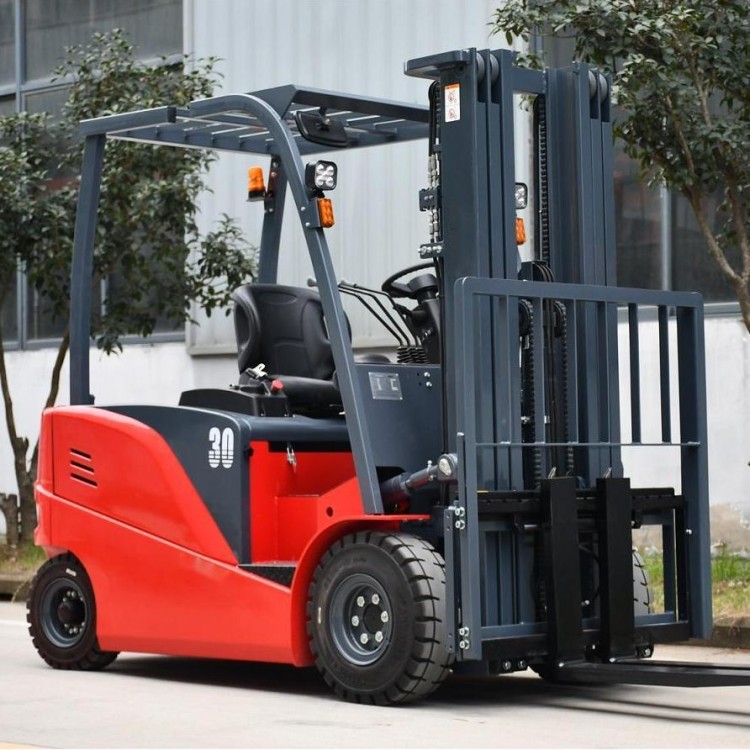

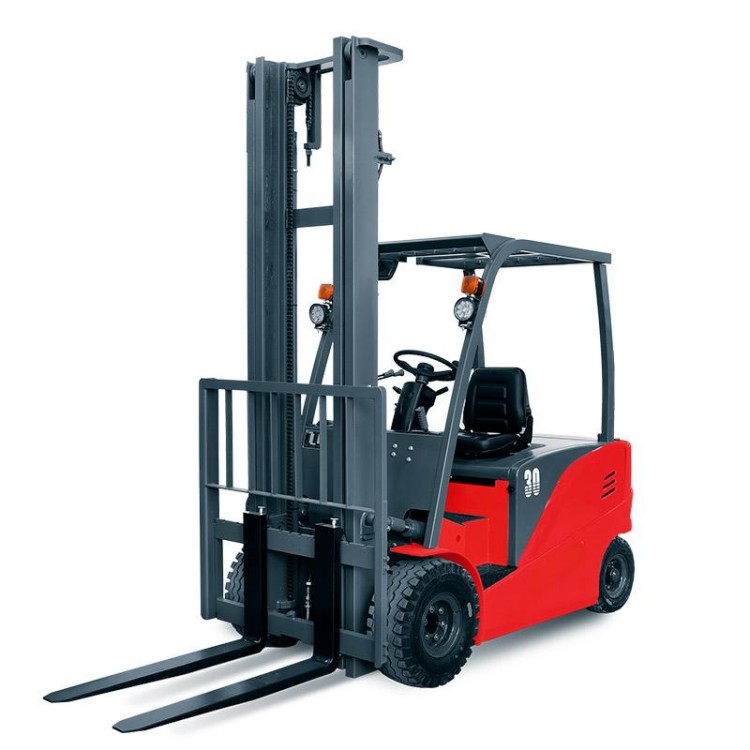

4 Ton Electric Forklift Truck: Where FE40 Fits
The 4 ton electric forklift truck is listed as an FE40 seated counterbalance model for facilities moving substantial palletized loads while avoiding engine exhaust at the point of use. Its published basis combines a 4,000 kg rated load, 600 mm load center, AC electric drive and a maximum lift height of 4,500 mm.
The capacity label is not a complete selection result. Buyers should still confirm the load dimensions, residual capacity at the required height, attachment weight, aisle geometry, floor condition, shift intensity and charging window before freezing the order.
ModelFE40
Rated capacity4,000 kg
Load center600 mm
Listed lift height4,500 mm
Published Technical Baseline
The following values are taken from the current product record. Details not shown on that record-including battery voltage, amp-hour capacity, chemistry, charger rating, tyre specification and controller brand-should be treated as order-specific until confirmed in the quotation.
| Selection point | Current published value | Required procurement check |
|---|---|---|
| Model | FE40 | Confirm that the quotation, nameplate data and technical schedule use the same model identity. |
| Rated capacity | 4,000 kg | Verify the rating at the stated 600 mm load center and obtain capacity information for the selected mast and attachment. |
| Load center | 600 mm | Calculate the actual load center from the pallet or load dimensions; long or uneven loads may change the effective center. |
| Maximum lift height | 4,500 mm | Confirm mast type, lowered height, free lift, extended height and residual capacity at the working level. |
| Drive system | AC electric drive system | Record the drive and lift motor specification, controller configuration and service documentation. |
| Battery description | Industrial traction battery | Specify chemistry, voltage, capacity, connector, charging method and battery-handling arrangement. |
| Travel speed | 18 / 22 km/h, loaded / unloaded | Confirm the test basis and site speed restrictions; operating policy may require a lower travel limit. |
| Operating weight | Approximately 8,500 kg | Verify the final weight with the selected battery and mast for floor loading, dock plates and transport planning. |
Do not combine this FE40 specification with the separate FB40 page. The FB40 record uses a 500 mm load center and different published battery data.
Size the Battery Around the Working Day
A battery cannot be selected responsibly from the forklift capacity alone. The same truck can have very different energy demand in a light single-shift warehouse and in a high-throughput operation with long travel runs, frequent lifting and limited charging time.
Map the shift
Record operating hours, breaks, idle time, days per week and whether the truck shares duties with another unit.
Describe the cycle
Estimate travel distance, lift frequency, typical load weight, lift height and any ramp use.
Define charging
State available input power, charger location, ventilation constraints and the longest reliable charging window.
Add operating margin
Allow for peak days, battery ageing, temperature and future workload without inventing a fixed runtime claim.
Ask the supplier to show the proposed battery voltage, capacity and charger rating on the commercial and technical documents. "Industrial traction battery" alone is not enough for fleet planning.
Lead-Acid or Lithium: Decide by Workflow
Lead-acid planning questions
- Is there a dedicated charging and battery-care area?
- Can the operation allow full charging and cooling periods?
- Who is responsible for inspection and routine battery care?
- Is battery change equipment required for multi-shift use?
Lithium planning questions
- Are short charging opportunities available during breaks?
- Does the proposed battery include a compatible BMS and charger?
- What connector, communications and temperature limits apply?
- What shipping and destination documentation is required?
Neither chemistry should be promised as standard for this page without a confirmed FE40 battery schedule. The correct choice depends on shift structure, charging discipline, local service capability and total fleet workflow.
Turn the Shift Data Into a Configuration
Send the load weight and dimensions, lift height, attachment, operating hours, charging window, available electrical supply, floor conditions and destination country. These details allow a more useful technical response than capacity alone.
Request a Shift-Fit ReviewCheck Load Center and Lift Height Together
Start with the actual load
The published 4,000 kg figure is tied to the stated 600 mm load center. A long load, attachment or offset center changes the moment acting on the truck. Provide the load dimensions and center-of-gravity information rather than only its gross weight.
At 4,500 mm, the buyer should review the applicable residual-capacity information. If a side shifter, fork positioner, clamp or another attachment is needed, include its weight, thickness and forward offset in the review.
Measure the whole vertical envelope
- Highest fork level required by the racking or process.
- Lowest doorway, trailer or overhead obstruction on the route.
- Need for free lift when operating inside containers or low roofs.
- Extended mast clearance above lights, pipes and sprinklers.
- Fork length and carriage width for the actual load.
Operating Environment Questions
Warehouse aisles
Measure aisle width, turning space, rack clearances and pedestrian interaction. The truck dimensions and turning radius must be confirmed for the ordered unit.
Production supply
Document cycle frequency, floor transitions and the need for precise low-speed positioning near machines or work cells.
Loading docks
Verify final operating weight against dock plates, ramps, lifts and floor loading. Include gradients in the duty-cycle description.
Mixed indoor and outdoor use
State surface condition, rainfall exposure and temperature. Tyres and electrical protection should match the real route.
Noise-sensitive areas
Electric drive removes engine noise, but warning devices, tyres, hydraulics and load movement still contribute to workplace sound.
Cold or hot environments
Provide the operating and charging temperature range so battery, charger and thermal-management suitability can be reviewed.
Pre-Order Evidence and Delivery Control
For a capital-equipment purchase, the order should be tied to a configuration record and evidence from the actual unit or matching build specification.
| Checkpoint | Recommended buyer record | Why it matters |
|---|---|---|
| Specification freeze | Model, battery, charger, motors, mast, forks, attachment, tyres, operator station and destination voltage | Prevents an option discussed during sales from being treated as included without documentation. |
| Capacity review | Load center, lift height and attachment-specific capacity information | Connects the rated load to the actual handling task. |
| Functional evidence | Agreed photos or video, machine identification and function-check record | Helps confirm the completed unit corresponds to the order. |
| Battery and charger | Nameplate data, connectors, charger input/output and operating instructions | Supports electrical preparation and commissioning at destination. |
| Shipping scope | Final weight, dimensions, removed parts, packing list and reassembly responsibilities | Reduces surprises during freight planning and site commissioning. |
| Service handover | Manuals, maintenance schedule and agreed spare or wear items | Gives the local service team a clear starting point. |
Related Equipment and Procurement Paths
- 4–7 ton heavy-duty electric forklift range
- Electric forklift product overview
- Lithium-ion forklift series
- FB40 4 ton electric forklift
- 5 ton electric forklift truck
- 7 ton electric forklift
- Warehouse and logistics solutions
- After-sales and parts information
- Manuals and training support
- Xinghao company profile
Frequently Asked Questions
Does the FE40 lift 4,000 kg at every height?
The page lists 4,000 kg at a 600 mm load center, but capacity at height also depends on the mast and attachment configuration. Request capacity information for the actual 4,500 mm working height, load dimensions and selected attachment.
What battery voltage and capacity are supplied?
The current FE40 page identifies an industrial traction battery but does not publish voltage or amp-hour capacity. These values, the chemistry and charger specification should be confirmed from the proposed configuration.
How long will the forklift run per charge?
Runtime cannot be confirmed without the battery capacity and duty cycle. Provide shift length, travel distance, load profile, lift frequency, gradients, temperature and charging opportunities so the battery requirement can be assessed.
Can this truck work outdoors?
Mixed indoor and outdoor work should be reviewed against the actual surface, weather exposure, temperature, gradients and selected tyres. Do not assume outdoor suitability from the electric power source alone.
Is the FE40 the same as the FB40 model?
No. The website presents them as separate product records. The FE40 page lists a 600 mm load center and 4,500 mm maximum lift height, while the FB40 page publishes a different 500 mm load-center basis and separate configuration data.
What information is needed to quote a 4 ton electric forklift truck?
Send load weight and dimensions, load center, lift height, attachment, aisle and doorway measurements, floor and ramp conditions, operating hours, charging window, available electrical supply and destination country.
Request the FE40 Configuration in Writing
Use the inquiry to confirm the battery, charger, mast, attachment and capacity basis together. This keeps the technical schedule, quotation and delivery scope aligned.
