50 Ton Diesel Forklift for Extreme Industrial Loads
This 50 ton diesel forklift is published with a 50,000 kg rated capacity at a 1,250 mm load center. The current specification combines a 4,000 mm lift, 3,000 mm forks, Cummins KTA19-C diesel power and an approximately 84,000 kg service weight for very heavy industrial load handling.
At 50 Tons, Load Geometry and Site Capacity Matter Together
A 50,000 kg rating does not describe every possible 50 ton load. Cargo depth, center of gravity, support points and attachment geometry can change the load moment, while the site must also support the machine, cargo and loaded maneuvering envelope.
Heavy Chassis, Mast and Fork-Carriage Views

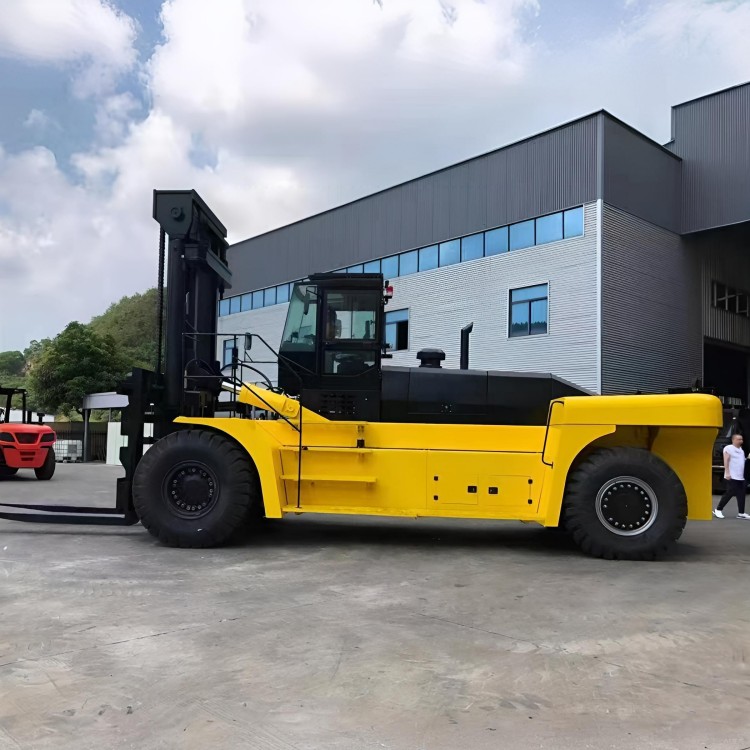

Side view showing the long industrial chassis, mast, cab and rear counterweight.
Front three-quarter view showing the heavy mast, wide carriage and fork structure.
Front view provides a useful reference for mast width and fork positioning.
Current 50 Ton Forklift Technical Specifications
| Parameter | Published 50 Ton Data | Buyer Check |
|---|---|---|
| Rated Load | 50,000 kg | Apply to the published load-center condition. |
| Load Center | 1,250 mm | Compare with actual cargo C.G. |
| Lift Height | 4,000 mm | Confirm real placement height. |
| Fork Size | 3000 × 300 × 125 mm | Check fork entry and support points. |
| Service Weight | Approx. 84,000 kg | Critical for pavement and route review. |
| Wheelbase | 4,400 mm | Include in maneuvering assessment. |
| Mast Tilt | 6° forward / 12° backward | Confirm with final mast build. |
| Turning Radius | 5,100 mm | Add load projection and clearance. |
| Travel Speed | 25 / 28 km/h loaded / unloaded | Site speed depends on conditions. |
| Loaded Gradeability | 18% | Check slope length and surface. |
| Drawbar Pull | Approx. 280 kN | Treat as machine-performance reference. |
| Front Tires | 8 × 18.00-25-36PR | Confirm final tire specification. |
| Rear Tires | 4 × 16.00-25-36PR | Confirm final tire specification. |
| Transmission | ZF automatic 4F / 4R | Confirm ordered drivetrain. |
A 3 m Fork Still Has to Match the Cargo Structure
Longer forks do not automatically make every oversized load suitable for forklift handling. The published 3000 × 300 × 125 mm fork arrangement should be checked against the real load underside.
- Available fork-entry depth
- Support-point spacing
- Fork-pocket dimensions
- Pickup direction
- Center-of-gravity position
- Attachment mass and thickness
Send a Cargo Drawing
Large machinery, fabricated structures and project cargo often have restricted support zones or uneven weight distribution.
Mark the load weight, dimensions, C.G., fork entry and support points before the final fork and attachment build is approved.
Cummins KTA19-C and ZF Automatic Transmission
The current target page identifies one published powertrain direction for this 50 ton configuration. Final engine certification and transmission specification should still be confirmed on the quotation.
Plan the Worksite around an 84 Ton Truck before Adding the Cargo
At this machine class, pavement and route suitability become central procurement questions. The published truck service weight is approximately 84,000 kg before the carried load is added.
Check slab and pavement capacity, local weak points, drainage channels, steel plates, ramps, gate thresholds and staging zones using both machine and cargo weight.
Turning Radius Is Not the Same as Loaded Working Envelope
The current product specification publishes a 5,100 mm turning radius. The actual space needed in operation can be larger because the forks and cargo project beyond the bare truck.
Forklift, Container Forklift or Reach Stacker?
50 Ton Forklift Fits When
The cargo has defined fork support points and the task is mainly counterbalance lifting and horizontal transfer.
Check Container Forklift When
ISO-container handling is the dominant duty and the pickup interface differs from normal fork-supported industrial cargo.
Check Reach Stacker When
Loaded containers require horizontal reach, multiple stacking rows or a spreader-based pickup system.
45 Ton, 46 Ton or 50 Ton: Select by Load Moment and Site Fit
Stay with the lower class when the real cargo and approved load moment fit the 45 ton configuration.
Compare 45 Ton →Compare the intermediate class when 46,000 kg capacity matches the project without moving directly to 50 tons.
Compare 46 Ton →Use this configuration when the real load requires the published 50,000 kg / 1,250 mm working condition and the site supports the larger machine.
Where a 50 Ton Fork-Supported Platform Fits
Heavy Machinery
Machine bases, presses and industrial assemblies with verified fork support and center-of-gravity data.
Steel & Fabrication
Dense fabricated structures and large industrial components where the load interface is known.
Heavy Project Cargo
Oversized cargo movement in industrial yards where pavement and maneuvering space support the complete loaded machine.
Send the Load and Worksite Data before Finalizing the 50 Ton Truck
Cargo
Maximum weight, dimensions and center of gravity.
Pickup
Fork entry, support points, fork spacing and attachment.
Site
Pavement, gates, turns, ramps and operating route.
Build
Lift height, engine, transmission, emission requirement and destination.
Continue the Heavy-Lift Selection
50 Ton Diesel Forklift Buying Questions
The current product specification lists 50,000 kg rated capacity at a 1,250 mm load center. Actual load geometry and attachment should also be checked.
The current target page lists 3000 × 300 × 125 mm forks. Confirm fork entry, support points and center of gravity before finalizing the load interface.
The current product page lists a Cummins KTA19-C water-cooled diesel engine with a published 352 kW output. Confirm the final engine and emission specification for the destination.
The current target page publishes an approximate 84,000 kg service weight. Pavement and route checks should also account for the carried cargo.
Use a heavy forklift when the load can be supported by forks and the duty is mainly counterbalance lifting and transfer. Compare a reach stacker when loaded containers require significant horizontal reach or multi-row stacking.
Send maximum cargo weight and dimensions, center of gravity, fork entry and support geometry, required lift height, attachment, pavement and route conditions, engine or emission requirement, quantity and destination.
Verify the Load and Ground before Selecting the 50 Ton Platform
Send the maximum cargo weight, dimensions, center of gravity, fork-entry geometry, support points, required lift height, attachment, pavement and route conditions, engine or emission requirement, quantity and destination. These inputs allow the 50,000 kg / 1,250 mm configuration to be reviewed against both the cargo and the published 84-tonne machine platform.
