22 Ton Diesel Forklift for Heavy Industrial Cargo
The Xinghao FD220 is published with a 22,000 kg rated capacity at a 900 mm load center. Current product data lists a 4,000 mm mast lift, 2,200 mm forks, Weichai or Cummins diesel power and a 31,000 kg service weight for heavy fork-supported industrial loads.
A 22 Ton Rating Must Be Checked at the 900 mm Load Center
The FD220 rating is published at a 900 mm load center. Long machinery, fabricated structures and other irregular cargo can move the center of gravity farther forward and change the working condition.
FD220 Heavy Chassis, Mast and Fork Configuration

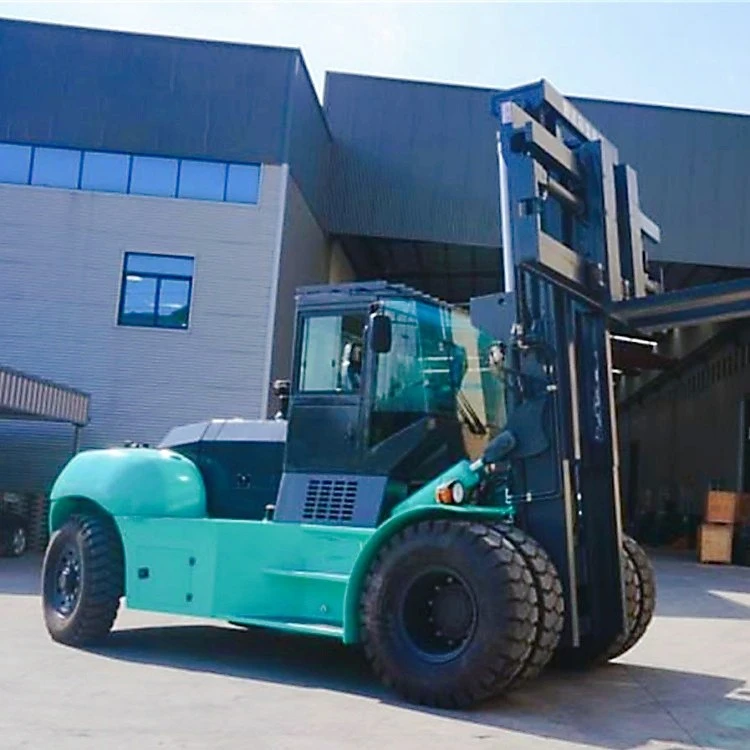

Shows the enclosed cab, heavy mast and front pneumatic tire arrangement.

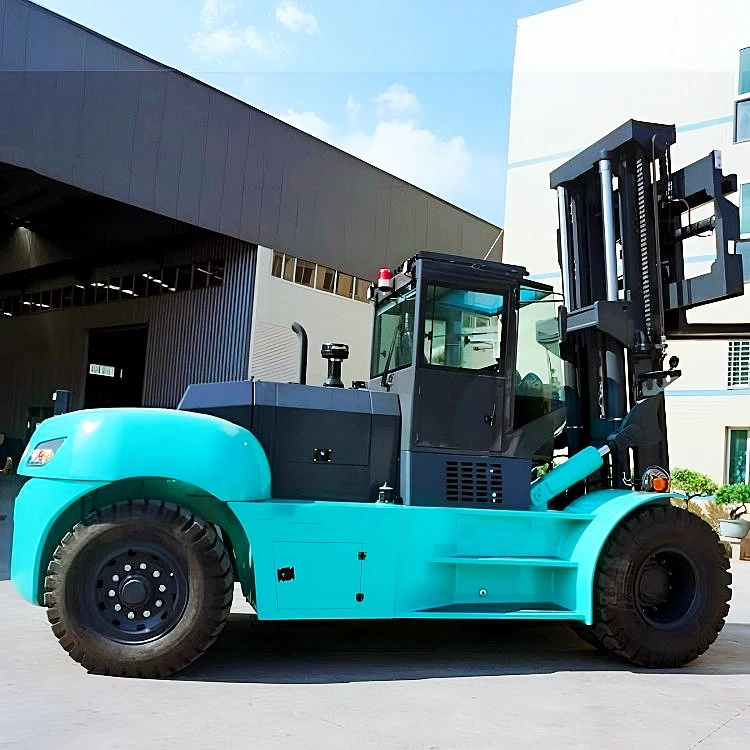

Side-front view showing the mast, carriage and chassis proportions.

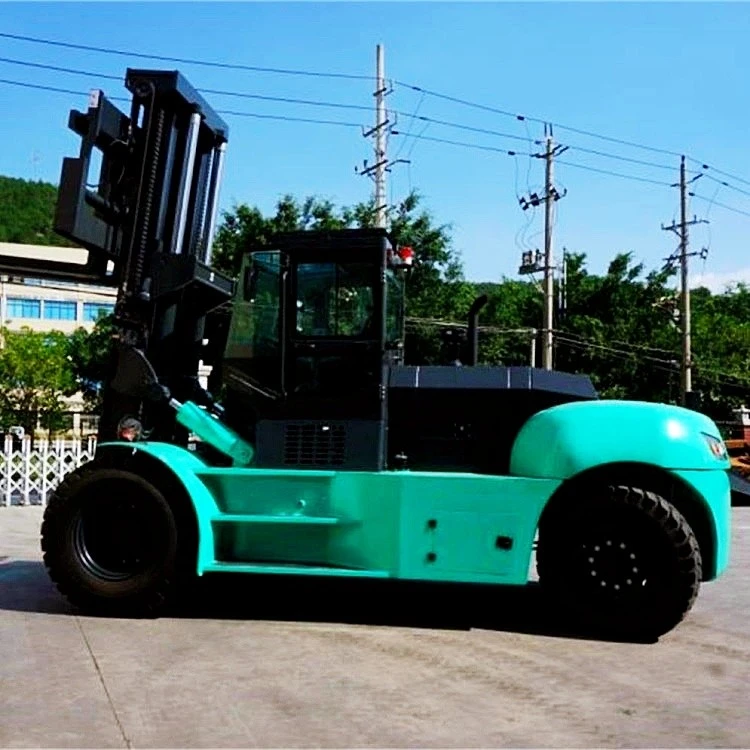

Useful reference for the long counterbalance chassis and wheelbase.

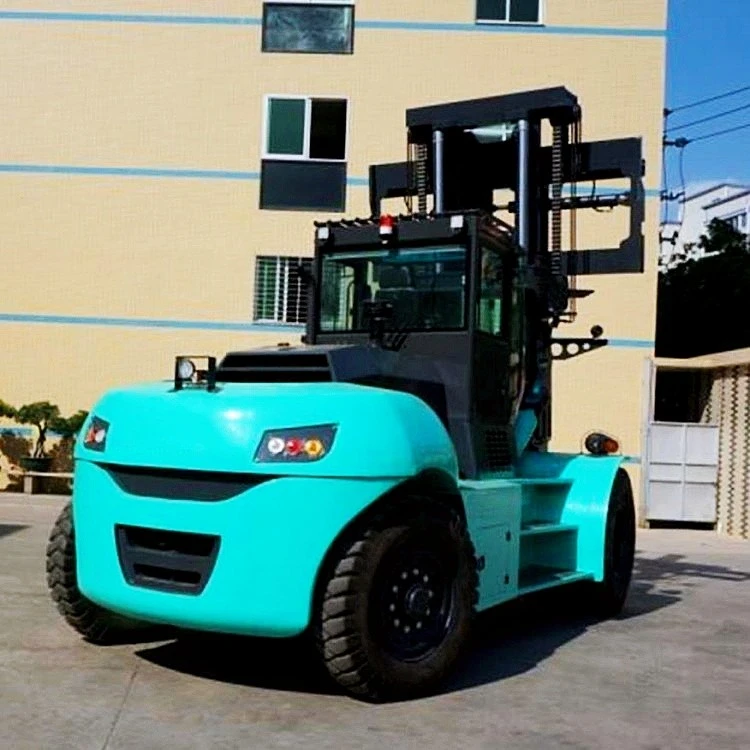

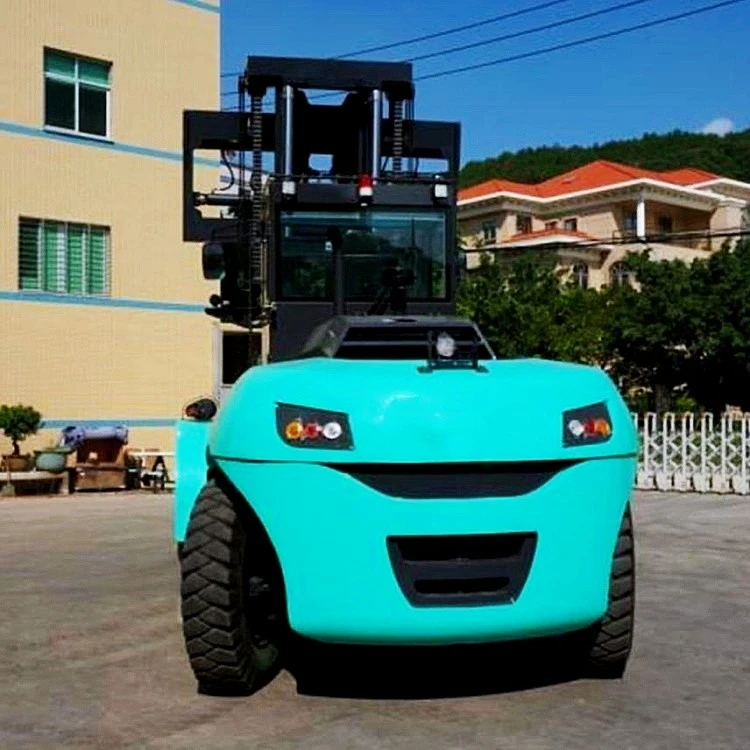

Shows the front stance, mast opening and operator cab position.
FD220 Technical Specifications
| Parameter | Published FD220 Data | Buyer Check |
|---|---|---|
| Rated Capacity | 22,000 kg | Apply to the published load-center condition. |
| Load Center | 900 mm | Compare with actual cargo C.G. |
| Service Weight | 31,000 kg | Include in pavement and route review. |
| Wheelbase | 4,200 mm | Use with final dimensional drawing. |
| Mast Lift Height | 4,000 mm | Confirm actual required fork height. |
| Mast Lowered Height | 3,930 mm | Check gates and overhead clearance. |
| Maximum Height | 5,900 mm | Check roof and overhead restrictions. |
| Cab Height | 3,360 mm | Include in route clearance. |
| Overall Width | 2,930 mm | Check gates and operating lanes. |
| Fork Face to Rear | 6,300 mm | Add fork and cargo projection. |
| Fork Size | 2200 × 240 × 100 mm | Check support geometry. |
| Carriage Width | 2,930 mm | Confirm load support requirement. |
| Turning Radius | 5,940 mm | Do not treat as the loaded sweep envelope. |
| Travel Speed | 26 / 30 km/h loaded / unloaded | Operating speed depends on site conditions. |
| Lifting Speed | 260 / 270 mm/s loaded / unloaded | Use as published machine reference. |
| Gradeability | 20 / 22% loaded / unloaded | Check slope length and surface condition. |
| Ground Clearance | 340 / 420 mm | Mast / wheelbase-center references. |
| Front Tires | 14.00-24, 4 tires | Confirm final tire specification. |
| Rear Tires | 12.00-24, 2 tires | Confirm final tire specification. |
| Transmission | 2 forward / 1 reverse | Confirm final drivetrain build. |
Match the 2,200 mm Forks to the Cargo Structure
The published FD220 fork size is 2200 × 240 × 100 mm. Fork length alone does not determine whether an irregular heavy load can be handled correctly.
The underside structure, support locations, center of gravity and pickup direction should be reviewed before the final fork arrangement is approved.
- Maximum recurring cargo weight
- Overall cargo dimensions
- Actual center-of-gravity location
- Fork-entry direction
- Required insertion depth
- Support-point spacing
Send the Load Drawing
Machinery, steel structures, dies and other oversized industrial cargo often have restricted lifting zones or uneven weight distribution.
Mark the load weight, C.G., dimensions and permitted fork support areas on one drawing before selecting the final configuration.
Weichai and Cummins Diesel Engine Options
Current FD220 data lists two diesel-engine references. The exact engine, emission documentation and transmission package should be confirmed for the final destination and ordered truck.
A 31 Ton Truck Changes the Worksite Check
The FD220 itself is published at 31,000 kg service weight before cargo is added. For this class of forklift, pavement, turning area and route clearance should be reviewed with the loaded machine rather than the bare chassis alone.
Check slab or yard bearing capacity, drainage channels, ramps, thresholds, gate width, overhead clearance and the loaded turning envelope before delivery.
The 5,940 mm Turning Radius Is Only the Truck Reference
Long forks and oversized cargo create a larger sweep than the bare forklift. Route planning should therefore include the truck, fork and actual load projection together.
Compare 20, 22 and 25 Ton Platforms by the Real Load
Stay with the lower class when the actual cargo, load center and operating conditions fit the approved 20 ton configuration.
Compare 20 Ton →Use this page when the project fits the published 22,000 kg / 900 mm FD220 condition and its site envelope.
Move higher when the real load moment or required operating condition exceeds the approved FD220 configuration.
Compare 25 Ton →Heavy Industrial Applications for the FD220
Heavy Machinery
Move machine bases, presses, dies and other dense equipment after the C.G. and support zones are confirmed.
Steel & Fabrication
Handle compatible fabricated structures and heavy steel components with a planned fork interface.
Industrial Yard Logistics
Transfer heavy cargo between production, storage and loading areas where pavement and route conditions suit the machine.
Send the Load and Site Data before Finalizing FD220
Cargo
Maximum weight, dimensions and center of gravity.
Pickup
Fork entry, insertion depth, support spacing and attachment.
Worksite
Pavement, gates, turning space, ramps and operating route.
Final Build
Lift height, engine, emission requirement, quantity and destination.
Continue the Heavy Forklift Selection
22 Ton Diesel Forklift FAQ
The current FD220 specification lists 22,000 kg rated capacity at a 900 mm load center. Actual cargo geometry, mast, forks and attachment should be checked before applying that rating to a specific load.
The detailed specification lists a 4,000 mm mast lifting height, a 3,930 mm lowered mast height and a 5,900 mm maximum height reference.
Current product data lists Weichai WD10G220E21 at 162 kW and Dongfeng Cummins 6CTA8.3-C215-II at 160 kW. Confirm the exact engine and destination documentation with the final quotation.
The FD220 specification lists 2200 × 240 × 100 mm forks. Fork-entry depth, support spacing and cargo center of gravity should still be checked for the actual load.
It can be evaluated for compatible heavy cargo in rail and intermodal facilities, but suitability depends on the actual load, pickup interface, route and worksite. Do not assume the truck can move railway vehicles or loaded ISO containers from the application name alone.
Send maximum cargo weight and dimensions, center of gravity, fork-entry and support geometry, required lift height, attachment, pavement and route conditions, destination, emission requirement and quantity.
Match the FD220 to the Real Load and Worksite
Send the maximum cargo weight, dimensions, center of gravity, fork-entry geometry, support points, required lift height, attachment, pavement and route conditions, preferred engine, destination-market requirements and quantity. These inputs allow the 22,000 kg / 900 mm FD220 configuration to be reviewed against the actual handling task.
