20 Ton Diesel Forklift Rated at a 1,000 mm Load Center
The Xinghao FD200 / CPCD200 is rated for 20,000 kg at a 1,000 mm load center and combines a 5,000 mm published lift height with a 29,000 kg operating weight, 3,970 mm wheelbase and 5,600 mm minimum turning radius. Model selection should start from the actual cargo dimensions and center of gravity before the engine, mast, forks or attachment are finalized.
20 Tons and 1,000 mm Must Be Evaluated Together
A 20,000 kg capacity statement is incomplete without the rated load center. Long machinery, deep steel bundles or oversized industrial cargo can move the center of gravity beyond the 1,000 mm reference and change the usable working capacity.
Heavy Chassis and Counterweight Configuration

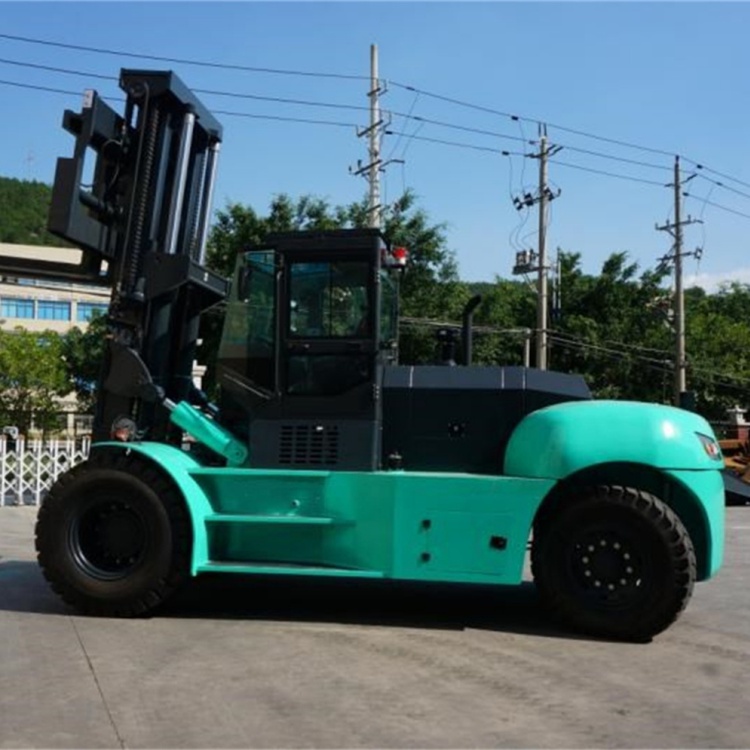

Full-machine view showing the mast, cab, long wheelbase and rear counterweight.

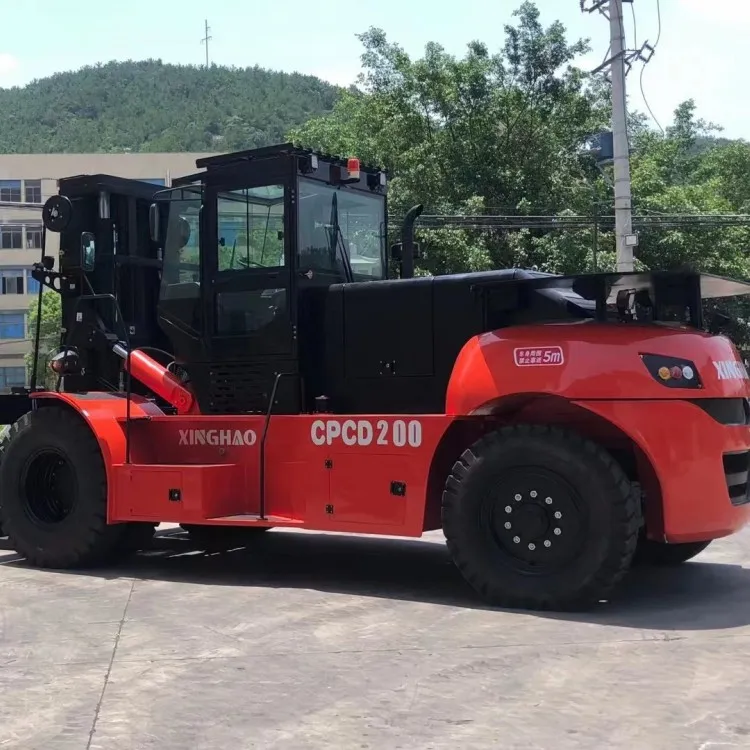

Rear three-quarter view of the CPCD200 counterweight, tire and cab arrangement.

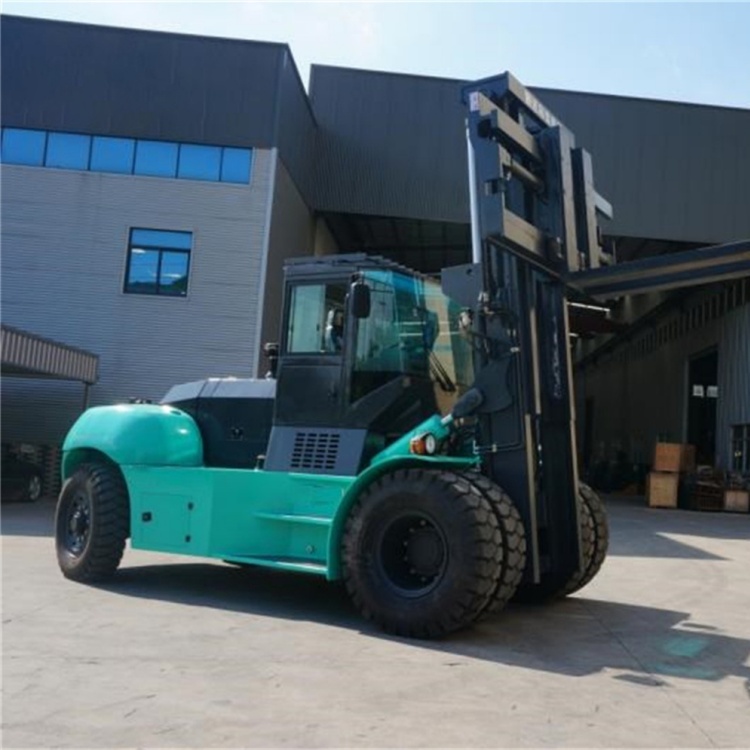

Machine view showing the heavy mast, pneumatic tire and counterbalance layout.
Published Chassis, Mast and Load-Interface Data
| Area | Specification | FD200 / CPCD200 |
|---|---|---|
| Capacity | Rated Load | 20,000 kg |
| Capacity | Load Center | 1,000 mm |
| Machine | Operating Weight | 29,000 kg |
| Chassis | Wheelbase | 3,970 mm |
| Mast | Tilt, Front / Rear | 6° / 12° |
| Mast | Height, Fork Lowered | 3,480 mm |
| Mast | Lifting Height | 5,000 mm |
| Machine | Cab / Head Guard Height | 3,300 mm |
| Machine | Overall Width | 2,930 mm |
| Load Interface | Fork Dimensions | 1800 × 220 × 100 mm |
| Load Interface | Fork Carriage Width | 2,500 mm |
| Clearance | Under Mast, Loaded | 270 mm |
| Clearance | Wheelbase Center, Loaded | 350 mm |
| Maneuvering | Minimum Turning Radius | 5,600 mm |
| Tires | Front | 14.00-24-20PR × 4 |
| Tires | Rear | 12.00-20-20PR × 2 |
| Transmission | Forward / Reverse | 2 / 1 |
| Brake | Driving Brake | Hydraulic clamp disc |
Check the Cargo against the 1,800 mm Fork and 2,500 mm Carriage
The published standard fork is 1800 × 220 × 100 mm and the current fork carriage width is 2,500 mm. Those dimensions are important when the truck handles steel, machinery, molds or other loads that do not use a standard pallet.
If longer forks, a sideshift, fork positioner or another attachment is required, the added mass and forward thickness should be included in the final capacity review.
- Load width and depth
- Fork pocket spacing
- Required fork length
- Center-of-gravity position
- Attachment mass
- Attachment effective thickness
Attachment Changes the Working Condition
A clamp, fork positioner or longer fork arrangement can move the effective load farther forward.
Ask for the final usable capacity with the proposed attachment rather than assuming the base 20,000 kg rating remains unchanged.
Three Published FD200 Engine Configurations
Engine brand alone is not enough for an export specification. The current FD200 data lists one Weichai and two Dongfeng Cummins engine options with different displacement and rated output.
Compare Published Performance with the Real Yard Cycle
These values should be evaluated against travel distance, lift frequency, surface condition, gradients and daily working hours rather than treated as stand-alone productivity claims.
A 29 Ton Truck Requires a Real Route Check
A Logical Match When
- The load fits the verified 20T / 1000 mm condition
- The 5,000 mm lift height matches the task
- The site supports a 2,930 mm-wide truck
- The 5,600 mm turning radius fits the route
- Diesel power suits the operating environment
Recheck the Equipment Choice When
- The load center extends beyond 1,000 mm
- The load needs a specialized pickup method
- Turning space is below the machine requirement
- The required lift height differs from 5,000 mm
- The task is dedicated container stacking
A Heavy Forklift Is Not Automatically a Container Stacker
The FD200 is a heavy counterbalance forklift. If the primary task is dedicated ISO-container lifting or stacking, container size, pickup interface, load-center geometry and stacking pattern should be evaluated against dedicated container-handling equipment rather than using forklift tonnage alone.
Watch the 20 Ton Diesel Forklift in a Loading Operation
Use the existing machine video to review the overall chassis, mast and operating proportions. The signed technical quotation should remain the controlling source for the final engine, mast, forks and attachment.
18 Ton, 20 Ton or 25 Ton: Where Should the Project Start?
Compare the lower class when the real load and load moment remain within the approved 18 ton configuration.
Compare 18 Ton →Use FD200 as the starting point when the project requires 20,000 kg at the published 1,000 mm load-center condition.
Move to the 25 ton class when the load requirement or load moment exceeds the approved FD200 working condition.
Compare 25 Ton →Typical FD200 Heavy-Lift Applications
Heavy Machinery
Move machinery, dies and fabricated assemblies after confirming the actual load center and lifting interface.
Steel & Industrial Materials
Handle dense or long industrial loads where fork length, carriage width and center of gravity are critical.
Yard & Terminal Transfer
Transfer heavy cargo between production, storage and loading areas where the route supports the truck footprint.
Describe One Real Load before Asking for Price
Cargo
Maximum weight, length, width, height and center of gravity.
Mast & Forks
Required lift height, fork length, spacing and attachment.
Site
Gates, turning area, pavement, gradients and travel route.
Market
Engine preference, emission requirement, quantity and destination.
Continue the Heavy Forklift Selection
FD200 20 Ton Forklift Buying Questions
No. The published rating is 20,000 kg at a 1,000 mm load center. Load dimensions, center of gravity, lift height and attachment should be checked together.
The current published FD200 data lists a 5,000 mm lifting height. If your task requires another mast, confirm the dimensions and usable capacity for that exact configuration.
The published minimum turning radius is 5,600 mm. Site planning should also include fork length, cargo dimensions and operating clearance.
Current product data lists Weichai WP10G220E343, Cummins 6CTA8.3-C215 and Cummins QSC8.3-C215 configurations. Confirm the exact engine and emission package for the destination market.
The current FD200 specification lists 1800 × 220 × 100 mm forks and a 2,500 mm fork carriage width. Longer forks or attachments should be checked as a separate configuration.
Send maximum load weight and dimensions, center of gravity, required lift height, fork spacing or attachment, gate and turning-space limits, ground condition, slopes, engine or emission requirement, quantity and destination.
Send the Load First. Then Confirm the FD200.
Send the maximum load weight, dimensions, center of gravity, required lift height, fork or attachment needs, available working space, surface conditions, engine or emission requirement, quantity and destination. We can then check whether the published 20,000 kg / 1,000 mm FD200 configuration is appropriate before pricing is finalized.
