14 Ton Diesel Forklift for Heavy Yard and Industrial Handling
Our CPCD140 diesel forklift is rated for 14,000 kg at a 600 mm load center. It is positioned for industrial buyers handling heavy fabricated loads, machinery, packaged cargo and other material where standard mid-capacity forklifts are no longer sufficient.
Why Choose the 14 Ton Class Instead of 13.5 or 15 Ton?
The CPCD140 sits between the 13.5 ton and 15 ton models. The difference should not be treated as a marketing number. Buyers should compare the maximum routine load, actual load center, mast requirement and site geometry before fixing the capacity class.
A 14 ton model is most relevant when the load envelope requires more than the 13.5 ton rating but does not justify moving to the larger 15 ton chassis.
CPCD140 Chassis, Counterweight and Mast Layout
Review the CPCD140 from multiple angles before confirming mast, fork, cab and attachment requirements.

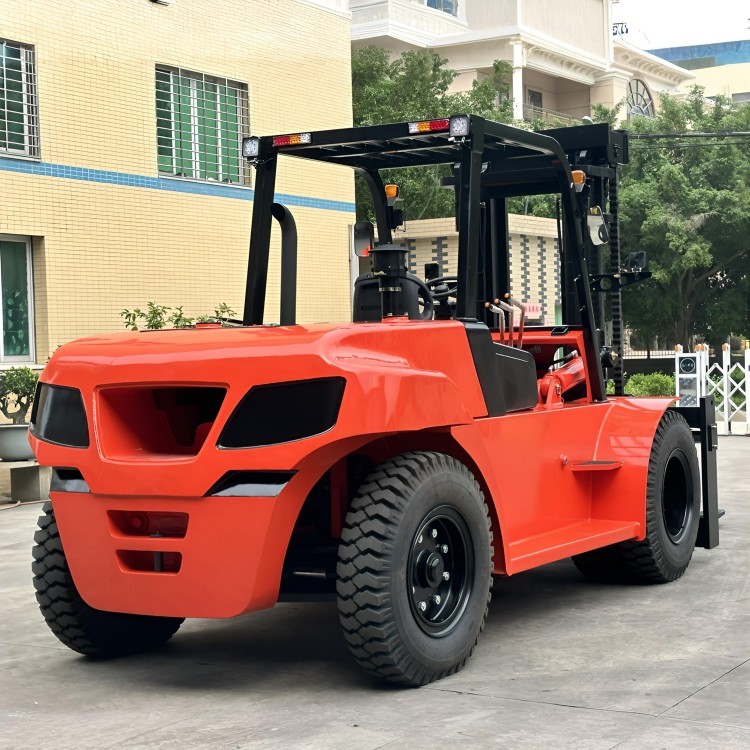

Rear three-quarter view showing the counterweight, pneumatic tires and heavy industrial chassis proportions.

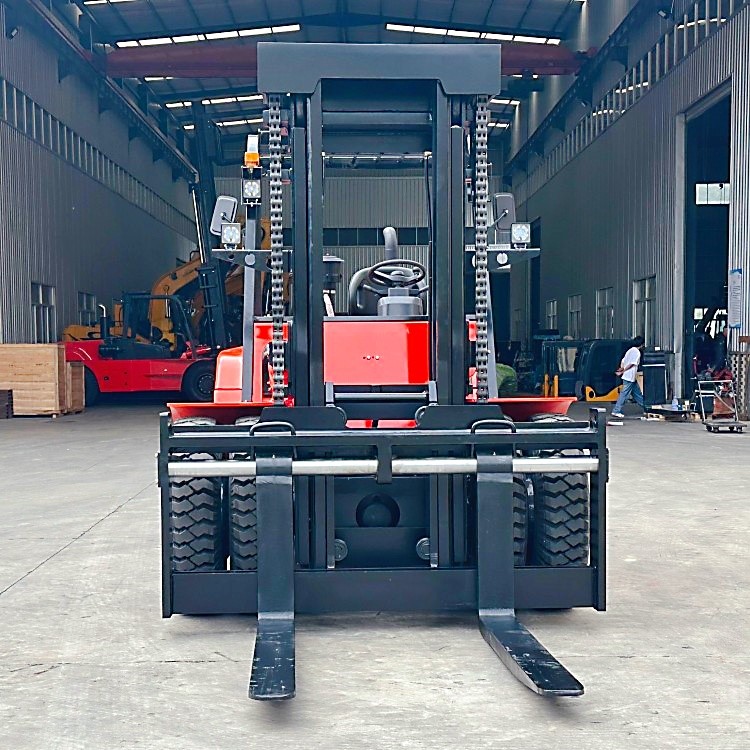

Front view showing the wide mast structure, carriage and long heavy-duty fork layout.
Side view showing the mast position, operator area, wheelbase proportions and rear counterweight.
Watch the Heavy-Lift Forklift Platform
The original product video covers the 13.5 ton, 14 ton and 15 ton heavy-lift forklift platform and gives buyers a visual reference for chassis and mast proportions.
Final CPCD140 engine, mast and equipment configuration should follow the confirmed quotation.
CPCD140 14 Ton Diesel Forklift Specifications
Published Selection Values
- Model: CPCD140
- Rated load: 14,000 kg
- Load center: 600 mm
- Width: 2,350 mm
- Cab height: 2,760 mm
- Diesel engine options available
| Model | CPCD140 |
|---|---|
| Rated Load Capacity | 14,000 kg |
| Rated Load Center | 600 mm |
| Published Lift Range | 3 m standard reference; taller mast configurations to be confirmed |
| Overall Length | 6,530 mm |
| Overall Width | 2,350 mm |
| Cab Height | 2,760 mm |
| Travel Speed, Loaded / Unloaded | 23 / 28 km/h |
| Lifting Speed, Loaded / Unloaded | 220 / 280 mm/s |
| Ground Clearance at Mast | Approx. 320 mm |
| Ground Clearance at Wheelbase Center | Approx. 360 mm |
| Front Tires | 12.00-20 |
| Rear Tires | 11.00-20 |
| Transmission | 2 forward / 2 reverse gears |
| Brake System | Hydraulic clamp disc |
| Engine Options | Yuchai YC6J150-T301 / Dongfeng Cummins 6BT5.9-C130 / Cummins QSB4.5-C130 |
| Engine Output | Depends on selected engine; confirm before order |
Treat Lift Height as a Configuration, Not a Single Number
The current CPCD140 product introduction advertises lift heights from 3 m to 6 m, while the formal specification data is centered on the standard configuration. Buyers should therefore confirm the required mast height and corresponding capacity before order.
- Required fork height
- Maximum loaded cargo weight
- Load center at the working height
- Mast lowered height restriction
- Doorway or roof clearance
- Attachment weight and depth
Why This Matters on a 14 Ton Truck
The nominal 14,000 kg rating is specified at the rated load center. Increasing mast height, changing attachment geometry or moving the center of gravity forward can change the usable capacity at height.
Send the load drawing and required fork height for configuration review.
Match the Engine to the Destination Market
The current CPCD140 listing includes multiple Yuchai and Cummins engine choices. Because these configurations do not all share the same engine displacement or rated output, the final engine specification should be fixed in the quotation.
Use Published Travel and Lift Data for Route Planning
Published loaded travel speed.
Published unloaded travel speed.
Published loaded lifting speed.
Published unloaded lifting speed.
Route planning should also include load length, turning space, gate dimensions, surface condition and braking requirements. Published speed figures should not be treated as a target operating speed in every work zone.
Typical 14 Ton Heavy-Lift Applications
Heavy Manufacturing
Move large machine components, fabricated assemblies and heavy production materials.
Freight & Industrial Yards
Handle dense cargo and packaged industrial loads where the route supports the truck dimensions.
Steel & Stone Loads
Check long or dense loads using the actual center of gravity, fork length and load moment.
Do Not Combine the Best Value from Every Optional Configuration
Engine brand, rated output, mast height, attachment package and emission specification belong to specific configurations. A purchasing specification should describe one complete CPCD140 build rather than combining separate optional values into a single assumed standard.
Send These Details for a CPCD140 Quote
Load
Maximum weight, dimensions and actual load center.
Mast
Required fork height, lowered mast height and attachment.
Site
Gate width, turning area, surface and ramp conditions.
Market
Engine preference, emission requirement, quantity and destination.
Compare the 14 Ton Class with Adjacent Models
CPCD140 14 Ton Forklift Buying Questions
The CPCD140 is rated for 14,000 kg at a 600 mm load center. Loads with a longer center of gravity should be checked separately.
The current product introduction refers to lift heights from 3 m to 6 m. Confirm the required mast, lowered height and capacity at working height before finalizing the order.
The current listing includes Yuchai YC6J150-T301, Dongfeng Cummins 6BT5.9-C130 and Cummins QSB4.5-C130. The exact engine output and emission specification should be confirmed with the selected configuration.
The published dimensions are approximately 6,530 mm long, 2,350 mm wide and 2,760 mm high at the cab. Check the actual configured truck and load against the required route.
Compare the maximum routine load, actual load center, lift height and attachment. Use the lowest capacity class that satisfies the real operating requirement with the approved configuration.
Send load weight and dimensions, load center, required fork height, fork or attachment requirement, site route, surface and ramp conditions, engine or emission preference, quantity and destination.
Configure the CPCD140 Around the Actual Load
Send us the load weight, dimensions, center of gravity, required lift height, mast clearance, fork or attachment requirement, yard route, engine or emission requirement, quantity and destination. We will use these details to confirm the appropriate 14 ton forklift configuration before quotation.
