16 Ton Diesel Forklift for Heavy and Long Industrial Loads
Xinghao's 16 ton diesel forklift platform is rated for 16,000 kg and is available in different load-center and chassis configurations. A 600 mm CPCD160 reference suits more compact load geometry, while the published FD160 long-load specification uses a 900 mm load center, larger chassis and heavier operating weight.
600 mm and 900 mm Load Centers Require Different 16 Ton Builds
Do not treat the two published load-center specifications as interchangeable. Longer load centers increase the load moment and can require a longer wheelbase, heavier chassis and different engine package.
CPCD160 600 mm Configuration
The compact published reference is centered on a 16,000 kg rating at a 600 mm load center.
- 16,000 kg rated capacity
- 600 mm rated load center
- 6,660 mm published overall length
- 2,350 mm published overall width
- 2,780 mm published cab height
- Engine specification confirmed by build
FD160 900 mm Long-Load Configuration
The detailed FD160 specification uses a longer 900 mm load-center reference and a larger heavy-duty chassis.
- 16,000 kg rated capacity
- 900 mm rated load center
- 3,600 mm wheelbase
- 21,000 kg operating weight
- 5,050 mm turning radius
- 1,800 × 200 × 90 mm forks
FD160 Heavy Chassis, Mast and Counterweight Layout

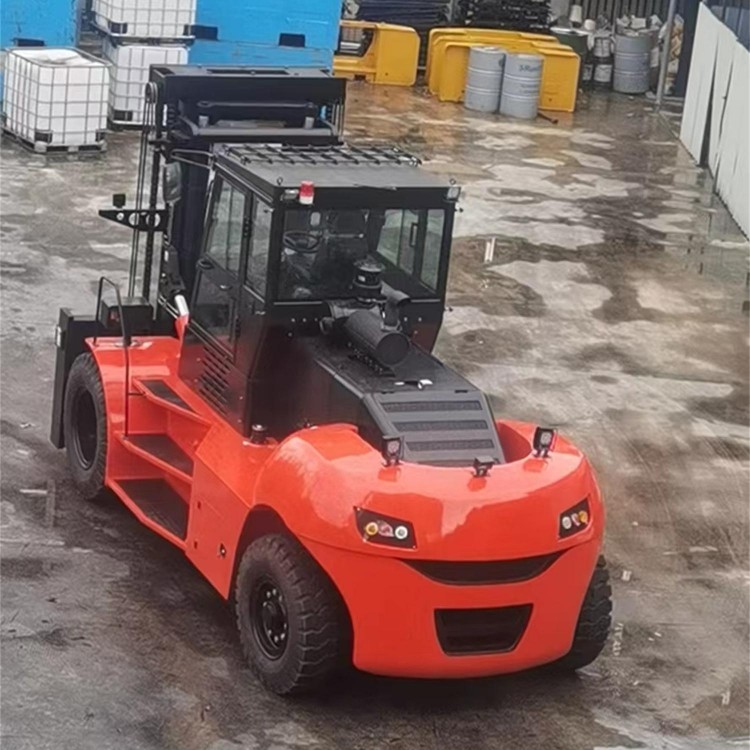

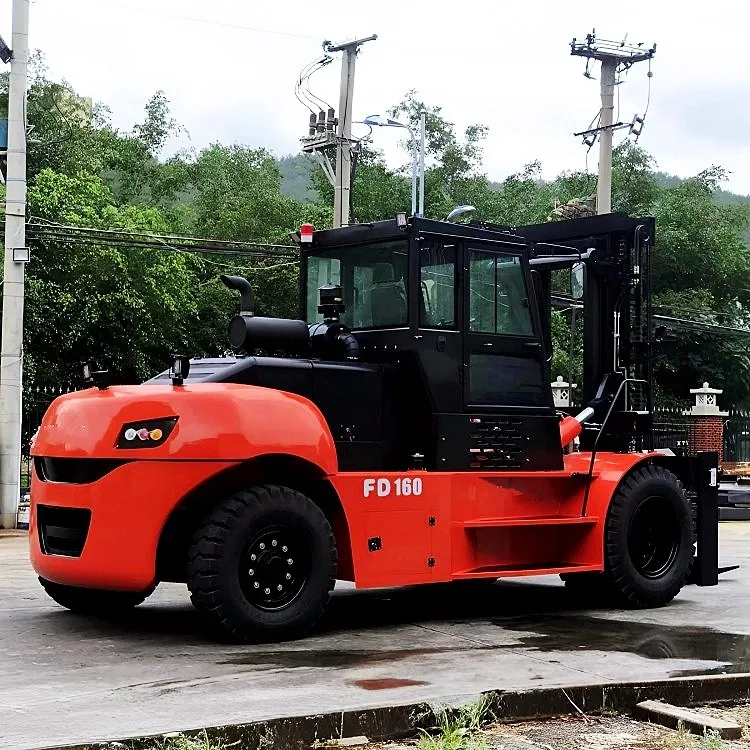

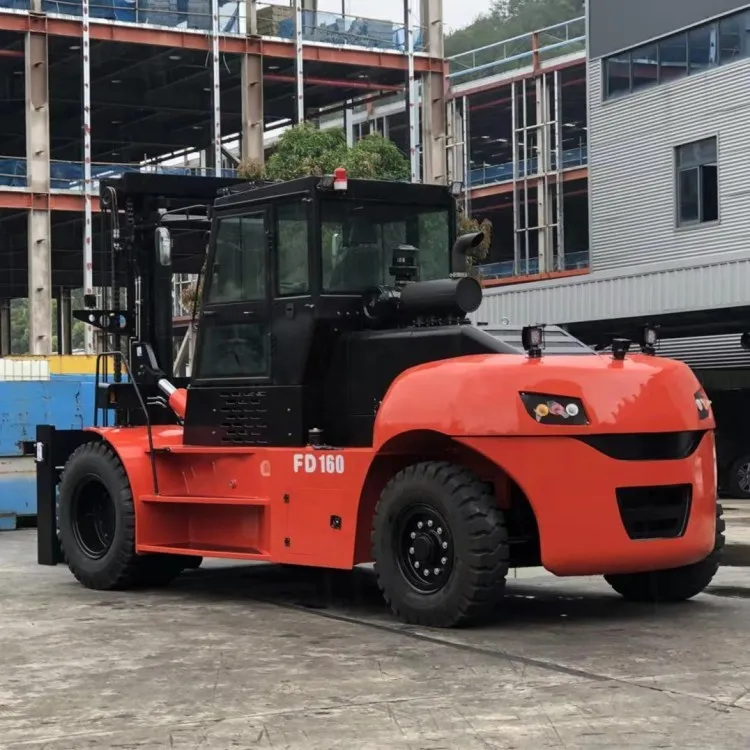

Rear three-quarter view of the FD160 heavy-duty chassis and mast structure.

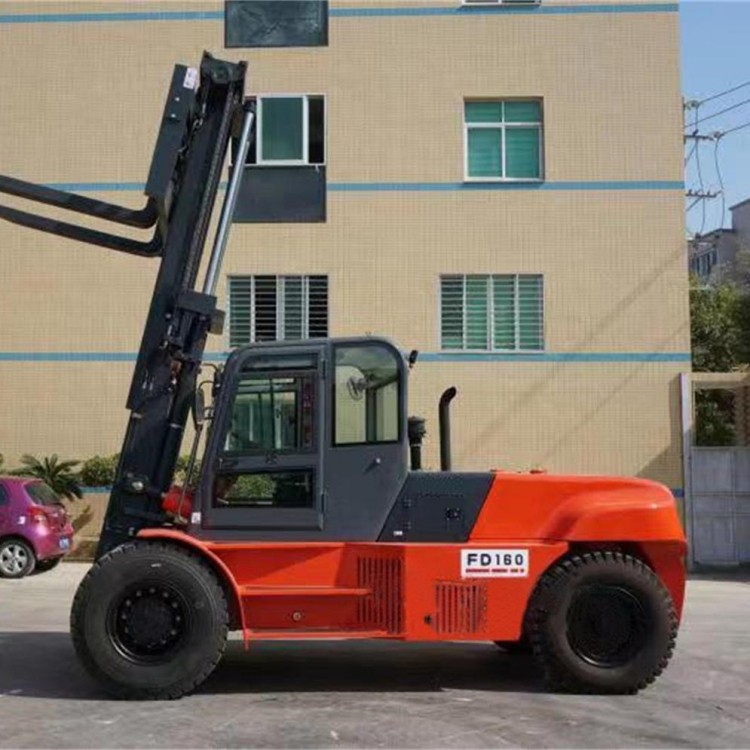

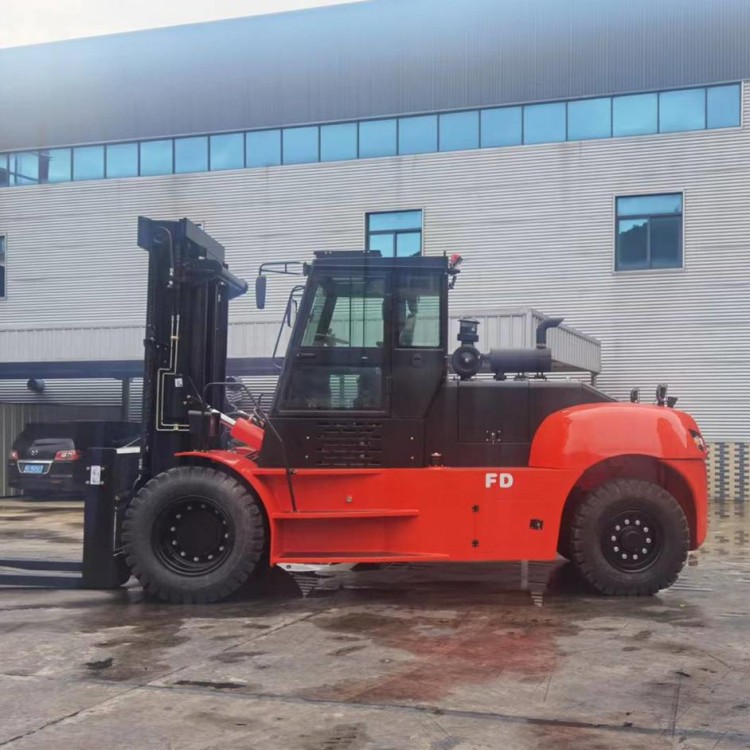

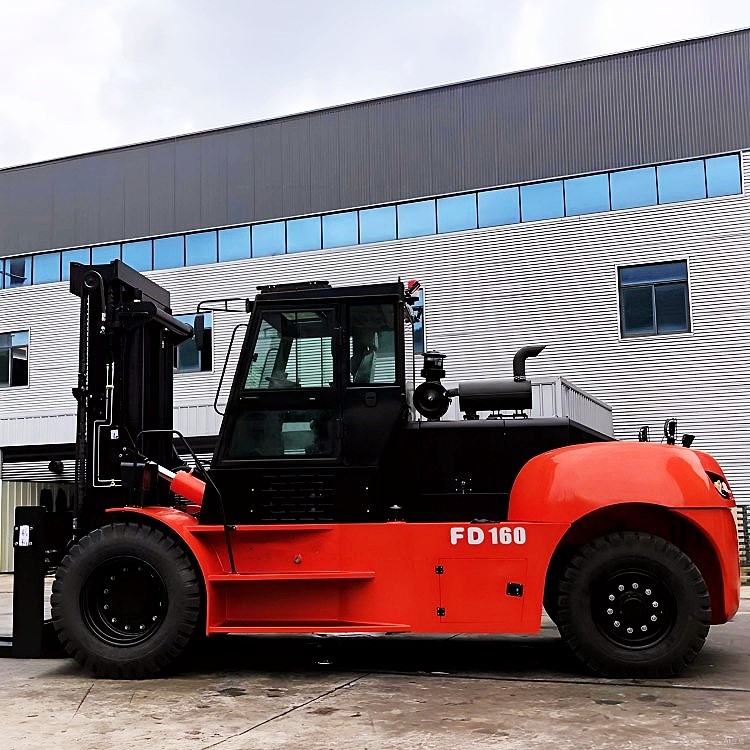

Side view showing the cab, pneumatic tire arrangement and rear counterweight.

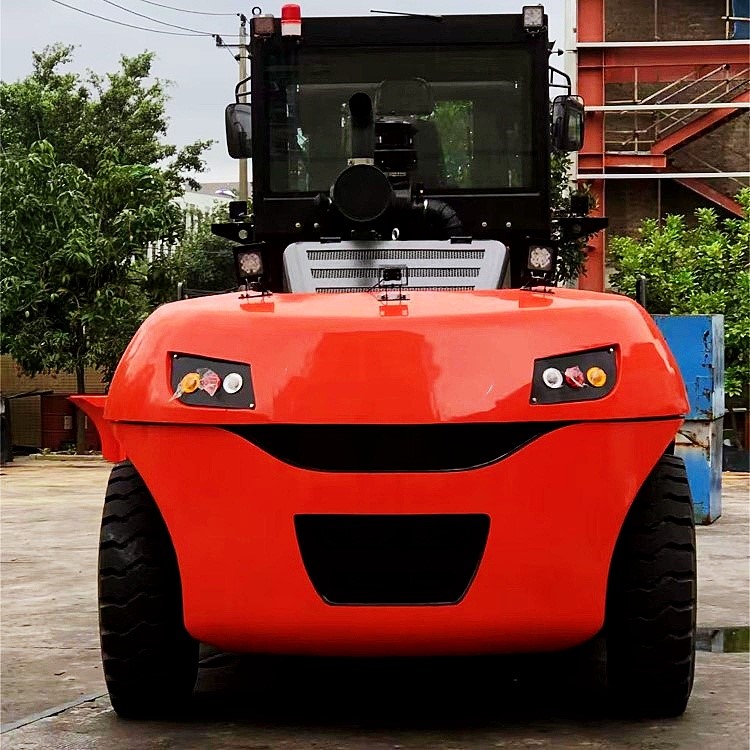

Heavy rear structure supporting the FD160 counterbalance layout.
CPCD160 600 mm vs FD160 900 mm Reference Data
| Parameter | 600 mm CPCD160 Reference | 900 mm FD160 Reference |
|---|---|---|
| Rated Capacity | 16,000 kg | 16,000 kg |
| Rated Load Center | 600 mm | 900 mm |
| Wheelbase | Confirm selected build | 3,600 mm |
| Operating Weight | Confirm selected build | 21,000 kg |
| Lift Height | Configured by mast | 3,500 mm published |
| Maximum Height | Confirm selected mast | 5,180 mm |
| Overall Width | 2,350 mm | 2,550 mm |
| Cab Height | 2,780 mm | 3,365 mm |
| Fork Dimensions | Confirm selected build | 1,800 × 200 × 90 mm |
| Turning Radius | Confirm selected build | 5,050 mm |
| Travel Speed | 22 / 30 km/h | 22 / 30 km/h |
| Lift Speed | 240 / 300 mm/s | 240 / 300 mm/s |
| Traction Force | Confirm selected build | 130 kN |
| Gradeability | Confirm selected build | 20% / 22% |
| Transmission | 2 forward / 1 reverse | 2 forward / 1 reverse |
A 16 Ton Load at 900 mm Is Not the Same Task as 16 Tons at 600 mm
Forklift capacity depends on both load weight and the distance of the load center from the fork face. Moving the center of gravity farther forward increases the load moment even when gross weight remains unchanged.
This is why the 900 mm FD160 specification uses a larger published chassis than the compact 600 mm reference.
- Maximum load weight
- Load length and depth
- Actual center of gravity
- Fork-entry direction
- Required fork length
- Attachment weight and thickness
Use the Real Load Center in the RFQ
Machinery, steel products, stone, long packaged cargo and other industrial loads can place their center of gravity well beyond a standard pallet reference.
Send a load drawing whenever the center of gravity cannot be represented accurately by a simple pallet size.
Match the Engine to the Selected 16 Ton Chassis
The current 16 ton product data contains different engine packages for different published configurations. Engine model and rated output should therefore be confirmed together with the selected load-center and chassis specification.
The 900 mm Load-Center Configuration Needs More Yard Space
Check gates, cross aisles, loading lanes, pavement capacity, ramps and staging areas against the selected chassis. Long loads can require more maneuvering space than the bare truck turning radius alone.
See the 16 Ton Forklift with a 600 mm Load-Center Reference
Use the machine video as a visual reference for chassis, mast and operating proportions. Final load center, engine, fork and mast configuration should follow the confirmed technical quotation.
Typical 16 Ton Heavy-Lift Applications
Machinery & Fabrication
Handle machine assemblies, dies and heavy fabricated components after confirming load center and fork geometry.
Steel, Stone & Long Loads
The 900 mm configuration is relevant when load depth pushes the center of gravity beyond a standard pallet reference.
Industrial Yard Logistics
Move dense industrial cargo where pavement, turning zones and access support the heavy chassis.
Confirm One Complete CPCD160 or FD160 Build Before Order
Do not combine the 600 mm load-center dimensions with the 900 mm chassis, or mix engine ratings from separate configurations. The approved quotation should define one complete load center, wheelbase, operating weight, engine, mast, forks, attachment and emission package.
Send These Details for the Correct 16 Ton Configuration
Load
Weight, length, width, height and center of gravity.
Fork & Mast
Fork length, spacing, lift height and attachment.
Site
Gates, turns, pavement, ramps and working route.
Market
Engine, emission requirement, quantity and destination.
Compare the 16 Ton Class with Adjacent and Regulated-Market Options
16 Ton Diesel Forklift Buying Questions
The platform is rated for 16,000 kg, but the rated load center must also be specified. Current published configurations include both 600 mm and 900 mm load-center references.
They represent different load geometry and chassis requirements. The 900 mm configuration is intended for a longer load-center reference and uses a larger published FD160 chassis.
The current detailed FD160 900 mm specification lists a 5,050 mm minimum turning radius. Actual maneuvering space must also include fork and load length.
The detailed heavy FD160 specification lists Yuchai YJ6J175-T302, Dongfeng Cummins 6BTAA5.9-C190 and Cummins QSB6.7-C190 configurations. Confirm the exact engine and emission requirement before order.
It can be configured for longer-load applications, but the load center, center of gravity, fork size and attachment must be checked. Send a load drawing for machinery or irregular cargo.
Send maximum load weight and dimensions, actual load center, required lift height, fork or attachment requirement, yard dimensions, surface and ramp conditions, engine or emission requirement, quantity and destination.
Configure the 16 Ton Forklift around the Real Load Center
Send us the load weight, length, width, center of gravity, required lift height, fork size, attachment, yard geometry, engine or emission requirement, quantity and destination. We will use these inputs to determine whether the 600 mm CPCD160 or the longer-load FD160 configuration is the more appropriate starting point.
