45 Ton Reach Stacker Container Handler
The Xinghao Reach Stacker Container Handler is designed for loaded ISO container handling in ports, inland depots and intermodal yards. It provides 45 / 31 / 16 tonne row capacities with a Cummins QSM11 engine, ZF automatic transmission, AxleTech drive axle, Linde hydraulics and an ISO 20-foot / 40-foot container spreader.
Capacity by Container Row
The 45-tonne rating applies to the nearest working row. Capacity decreases as horizontal reach increases.
Maximum rated capacity at the nearest working position.
Rated capacity at the second working row.
Rated capacity at the farther third-row position.
Reach Stacker Machine Views

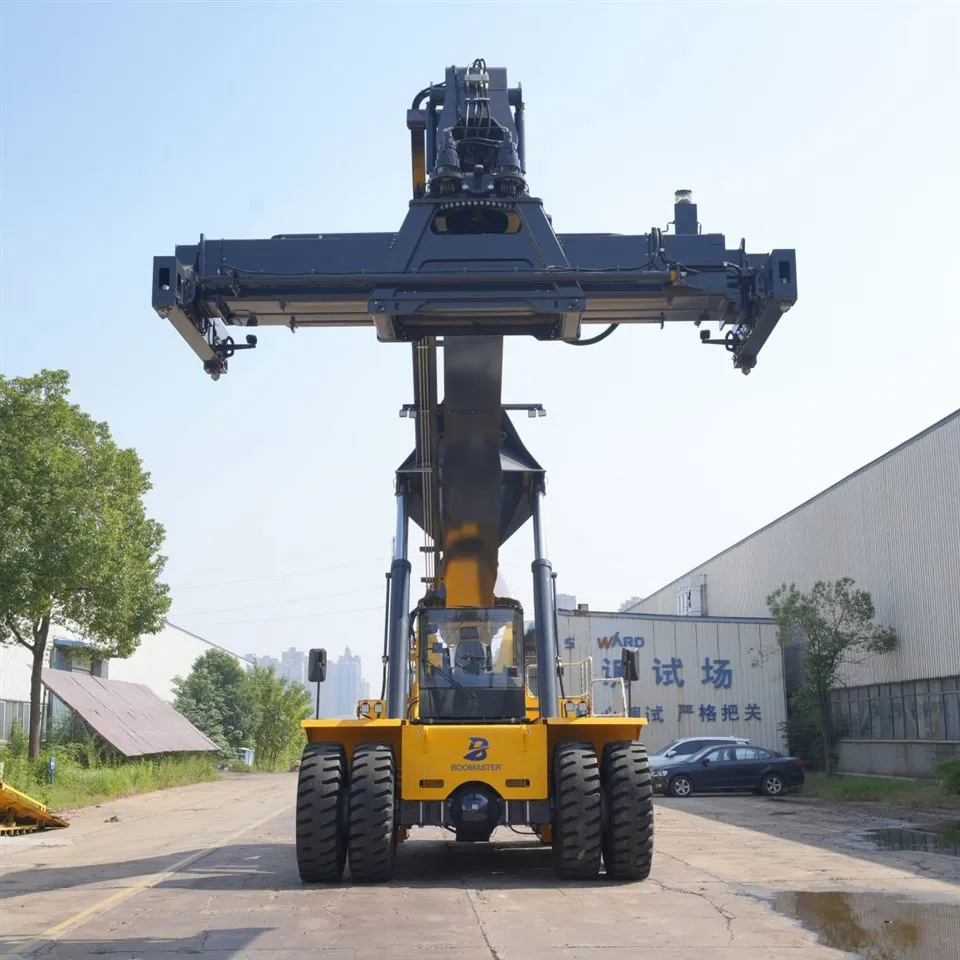

Front view showing the container spreader, telescopic boom, cab and tyre arrangement.

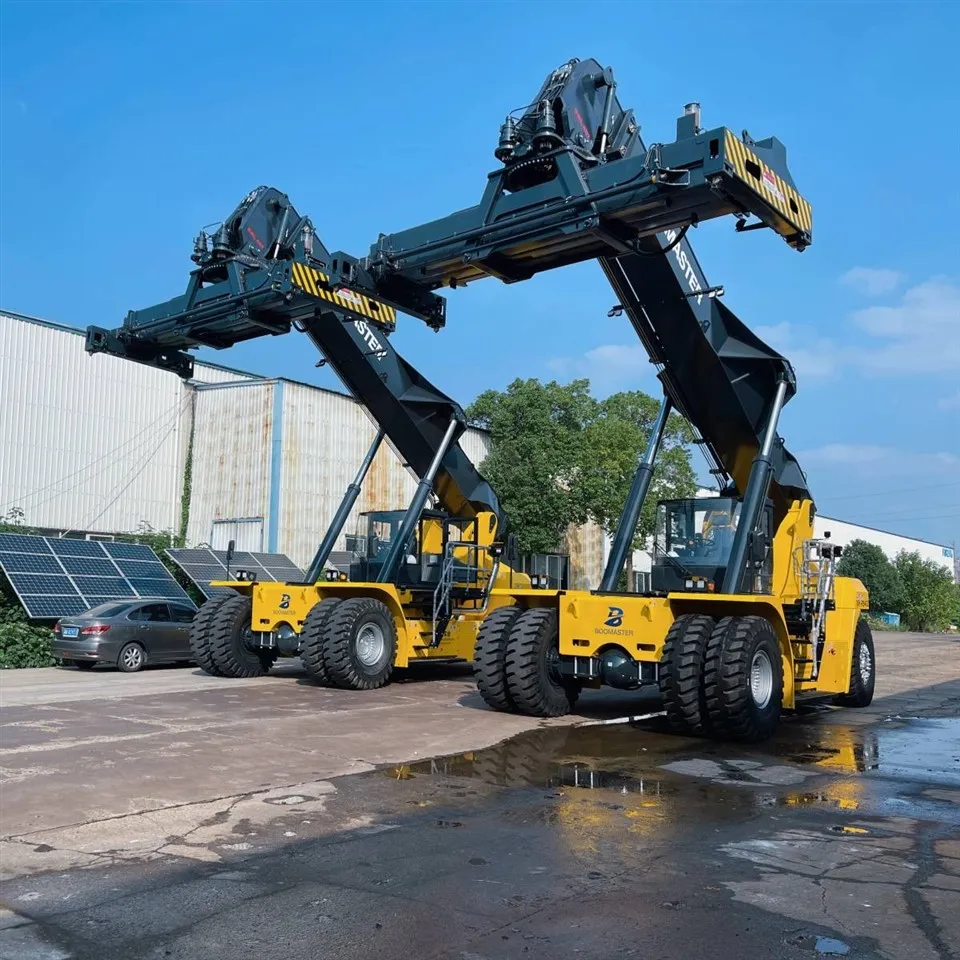

Two machines showing the telescopic boom, container spreader and heavy chassis.
Side view of the boom, lift cylinders, cab and machine chassis.
Technical Specifications
| Specification | Value |
|---|---|
| Rated Capacity | 45,000 kg |
| 1st / 2nd / 3rd Row Capacity | 45 / 31 / 16 t |
| Service Weight | 71,400 kg |
| Engine | Cummins QSM11 |
| Rated Power | 250 kW @ 2,100 rpm |
| Maximum Torque | 1,674 Nm @ 1,400 rpm |
| Transmission | ZF 15WG261 automatic |
| Drive Axle | AxleTech PRC7545W4S586C |
| Steer Axle | AnQing |
| Hydraulic System | Linde |
| Control System | Full CAN-bus |
| 20' Container Turning Radius | 8,605 mm |
| 40' Container Turning Radius | 9,900 mm |
| Overall Dimensions | 8410 × 4180 × 3400 mm |
| Tyres | 18.00-25, 40PR pneumatic |
| Container Spreader | ISO 20' / 40' |
| Service Brake | Hydraulic wet-disc |
| Parking Brake | Automatically applied when power is off |
Cummins QSM11 and ZF Drivetrain
The Cummins QSM11 engine is rated at 250 kW at 2,100 rpm and produces 1,674 Nm maximum torque at 1,400 rpm. Power is transmitted through a ZF 15WG261 automatic transmission and AxleTech drive axle.
Linde Hydraulics and Machine Control
Match Capacity to the Yard Layout
Container weight, required working row and available travel space should be checked together before selecting the machine.
Send the container weight, container size, required working row, travel distance, yard dimensions and destination.
Turning Space for 20 ft and 40 ft Containers
Turning radius is 8,605 mm with a 20-foot container and 9,900 mm with a 40-foot container. Yard planning should also include clearance for the container during turning.
ISO 20' and 40' Container Spreader
The top-lift spreader supports ISO 20-foot and 40-foot containers. Container size, gross weight and working row should be confirmed together.
Front view of the telescopic boom and top-lift container spreader.
Side view of the telescopic boom, cylinders and spreader assembly.
Reach Stacker Container Handler or Another Machine?
For loaded ISO containers that require telescopic boom reach into multiple storage rows.
Compare when vertical-mast handling is sufficient and telescopic reach into multiple rows is not required.
Compare Container Forklifts →Compare when the main task is handling and stacking unloaded ISO containers.
Compare Empty Container Handlers →Related Container Handling Equipment
Reach Stacker Container Handler FAQ
