Port Reach Stacker for Loaded Container Yards
The Xinghao Port Reach Stacker is a 45-tonne-class diesel container handler for ports, inland terminals and intermodal yards. The current configuration combines 45 / 31 / 16 tonne row capacities with a Cummins QSM11 engine, ZF automatic transmission, AxleTech drive axle, Linde hydraulics and an ISO 20-foot / 40-foot container spreader.
Capacity by Container Row
The 45-tonne rating applies to the nearest listed working row. Capacity decreases as the boom reaches farther into the stack.
Maximum rated capacity at the nearest container position.
Rated capacity for the second working row.
Rated capacity for the farther third-row position.
Port Reach Stacker Machine Views

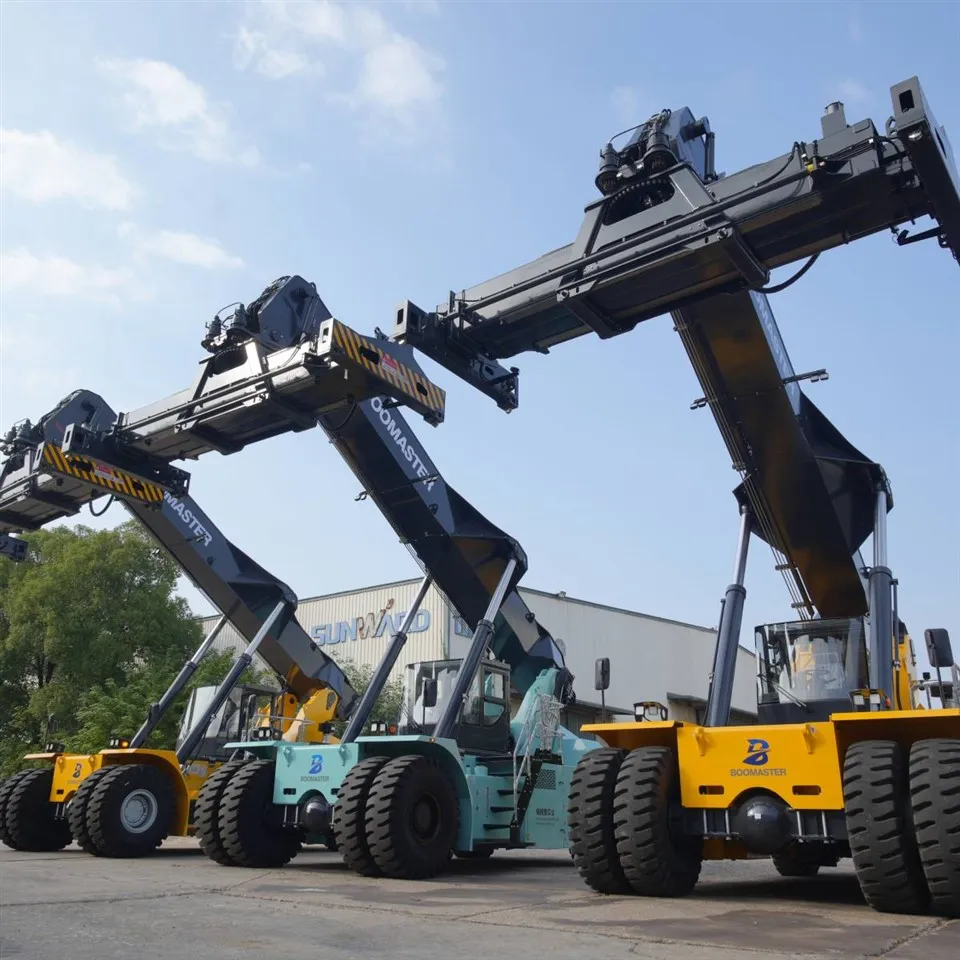

Multiple machines showing telescopic boom, cab and heavy chassis layout.
Front cab view showing the seat, steering position and windshield area.
Joystick, switches and display interface inside the operator cab.
Technical Specifications
| Specification | Value |
|---|---|
| Rated Capacity | 45,000 kg |
| 1st / 2nd / 3rd Row Capacity | 45 t / 31 t / 16 t |
| Service Weight | 71,400 kg |
| Engine | Cummins QSM11 |
| Rated Power | 250 kW @ 2,100 rpm |
| Maximum Torque | 1,674 Nm @ 1,400 rpm |
| Transmission | ZF 15WG261 automatic |
| Drive Axle | AxleTech PRC7545W4S586C |
| Steer Axle | AnQing |
| Hydraulic System | Linde |
| Control System | Full CAN-bus |
| Turning Radius with 20' Container | 8,605 mm |
| Turning Radius with 40' Container | 9,900 mm |
| Overall Dimensions | 8410 × 4180 × 3400 mm |
| Tyres | 18.00-25, 40PR pneumatic |
| Container Spreader | ISO 20' / 40' |
| Service Brake | Hydraulic wet-disc |
Cummins, ZF, AxleTech and Linde Configuration
The current diesel platform uses a Cummins QSM11 engine rated at 250 kW at 2,100 rpm with 1,674 Nm maximum torque at 1,400 rpm. It is paired with the ZF 15WG261 automatic transmission, AxleTech drive axle and Linde hydraulic system.
Match the Machine to the Container Flow
Port reach stacker selection should reflect the actual container mix, working rows and yard traffic rather than only the first-row capacity.
Check Turning Space before Finalizing the Yard Layout
The listed turning radius is 8,605 mm with a 20-foot container and 9,900 mm with a 40-foot container. Yard design should also allow for container sweep and additional operating clearance.
Yard Surface and Travel Route
The operating area should be checked for the actual machine, container load and travel path. Pavement suitability belongs to the responsible site or engineering team.
ISO 20' and 40' Container Handling
The current spreader configuration is listed for ISO 20-foot and 40-foot containers. Container size, gross mass and required working row should be confirmed together.
Port Reach Stacker or Another Container Handler?
Suitable for loaded containers where telescopic boom reach into multiple rows is required.
Compare when vertical-mast handling is sufficient and multi-row telescopic reach is not required.
Compare Container Forklifts →Compare when the primary task is handling and stacking unloaded containers.
Compare Empty Container Handlers →Related Container Handling Equipment
Port Reach Stacker FAQ
Q: Can the Port Reach Stacker lift 45 tonnes in every row?
A: No. The current configuration lists 45 tonnes in the first row, 31 tonnes in the second row and 16 tonnes in the third row.
Q: What engine is used in the Port Reach Stacker?
A: The current specification lists a Cummins QSM11 diesel engine rated at 250 kW at 2,100 rpm with maximum torque of 1,674 Nm at 1,400 rpm.
Q: Which container sizes can it handle?
A: The listed spreader configuration supports ISO 20-foot and 40-foot containers.
Q: How much turning space should be planned?
A: The listed turning radius is 8,605 mm with a 20-foot container and 9,900 mm with a 40-foot container. Additional operating clearance should be included.
Q: Why does the working row matter?
A: Available capacity decreases as the container position moves farther from the machine. The container weight and working row must therefore be checked together.
Q: What information should I provide for a quotation?
A: Provide maximum container gross weight, container size mix, required working rows, moves per hour, operating hours, travel distance, yard dimensions, gradients, pavement conditions, destination and quantity.
Match the Port Reach Stacker to Your Container Yard
Send the maximum container gross weight, 20-foot / 40-foot mix, required working rows, moves per hour, operating hours, travel distance, yard dimensions, gradients, pavement conditions, destination and quantity. Xinghao can review the machine configuration against the actual terminal duty.
