Hoist Reach Stacker for Loaded Container Lifting
The Xinghao Hoist Reach Stacker is a 45-tonne-class diesel container handler for loaded ISO container lifting and multi-row placement. Its current configuration combines 45 / 31 / 16 tonne row capacities with a Cummins QSM11 engine, ZF automatic transmission, AxleTech drive axle, Linde hydraulic system and ISO 20-foot / 40-foot container spreader.
Check Container Weight against the Required Row
The 45-tonne rating applies to the nearest listed working row. Available capacity decreases as the boom reaches farther into the container stack, so container gross mass and row position must be checked together.
Maximum rated capacity at the nearest listed container position.
Rated capacity for the second working row.
Rated capacity for the farther third-row working position.
Boom, Spreader and Operator Area

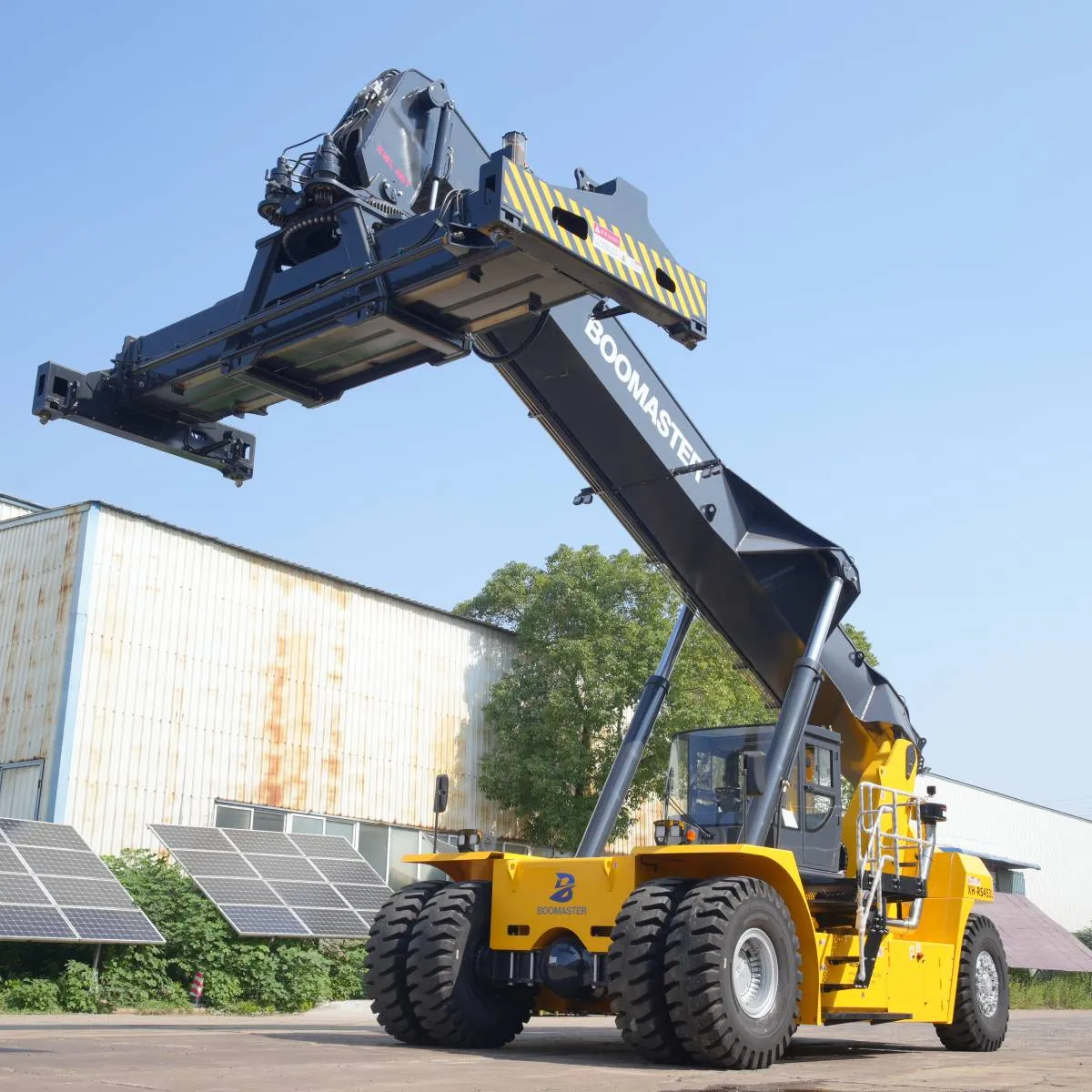

Full machine view showing the telescopic boom, container spreader, cab and heavy chassis.
Detailed view of the cab, access platform, boom structure and adjacent components.

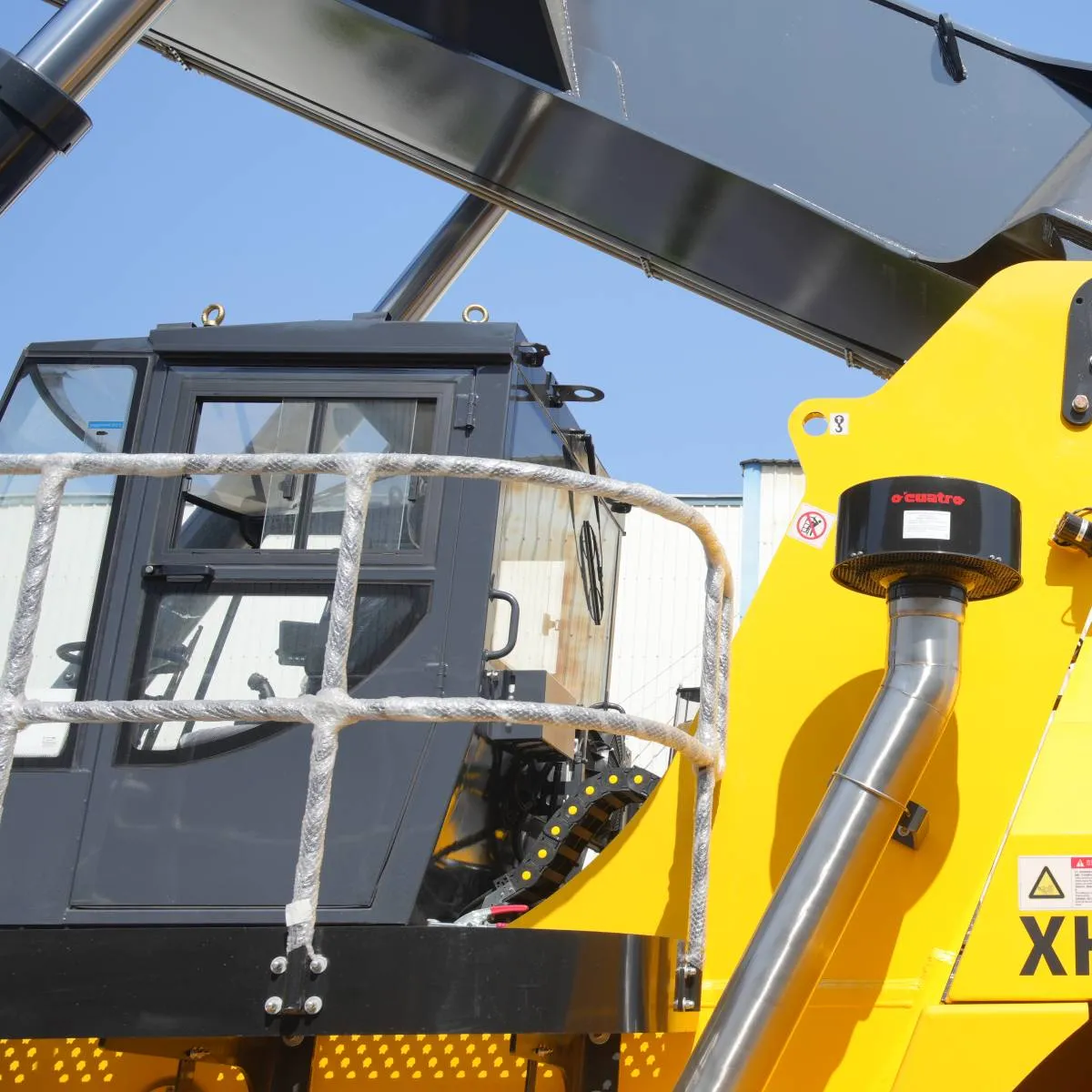

Close view of the cab and operator visibility area beneath the boom.
Hoist Reach Stacker Specifications
| Specification | Value |
|---|---|
| Rated Load Capacity | 45,000 kg |
| 1st / 2nd / 3rd Row Capacity | 45 t / 31 t / 16 t |
| Service Weight | 71,400 kg |
| Engine | Cummins QSM11 |
| Listed Engine Configuration | Euro III |
| Rated Power | 250 kW @ 2,100 rpm |
| Maximum Torque | 1,674 Nm @ 1,400 rpm |
| Transmission | ZF 15WG261 automatic |
| Drive Axle | AxleTech PRC7545W4S586C |
| Steer Axle | AnQing |
| Hydraulic System | Linde |
| Control System | Full CAN-bus |
| Turning Radius with 20' Container | 8,605 mm |
| Turning Radius with 40' Container | 9,900 mm |
| Overall Dimensions | 8410 × 4180 × 3400 mm |
| Tyres | ZHONGWEI 18.00-25, 40PR pneumatic |
| Container Spreader | ISO 20' / 40' |
| Service Brake | Hydraulic wet-disc |
| Parking Brake | Automatic engagement when power is off |
| Optional Configuration | Cold-climate package |
Cummins QSM11 and ZF Automatic Drivetrain
The current diesel configuration uses a Cummins QSM11 engine rated at 250 kW at 2,100 rpm with 1,674 Nm maximum torque at 1,400 rpm. The engine is paired with the ZF 15WG261 automatic transmission.
Axles, Hydraulics and Braking
Define the Hoisting Position before Selecting the Machine
Container weight alone does not describe the complete lifting requirement. The RFQ should identify where the container must be picked up and where it must be placed.
- Maximum gross container weight
- 20 ft / 40 ft container mix
- Required first / second / third row
- Required container placement height
- Available machine approach distance
- Travel distance before and after lifting
- Yard surface and gradients
Row Position Changes Capacity
A 35-tonne container fits within the listed 45-tonne first-row capacity but exceeds the 31-tonne second-row rating.
The working row must therefore be identified before the lift is evaluated.
Confirm the Container and Spreader Interface
The current spreader configuration is listed for ISO 20-foot and 40-foot containers. Container size, gross mass and required working row should be defined together in the equipment specification.
Check the Lift Area before Container Handling
The equipment and yard should be reviewed as one operating system. Machine dimensions, turning space, container sweep and the surface beneath the loaded machine all affect whether the planned handling route is practical.
Turning Radius with 20 ft and 40 ft Containers
The current specification lists an 8,605 mm turning radius with a 20-foot container and 9,900 mm with a 40-foot container. Additional operating clearance should be included in the yard plan.
Six Checks before the Machine Configuration Is Approved
Cold-Climate Configuration for Low-Temperature Projects
A cold-climate package is listed as an optional configuration. The final scope should be defined from the project's expected operating temperature and storage conditions rather than from the country name alone.
Component and Shipment Preparation

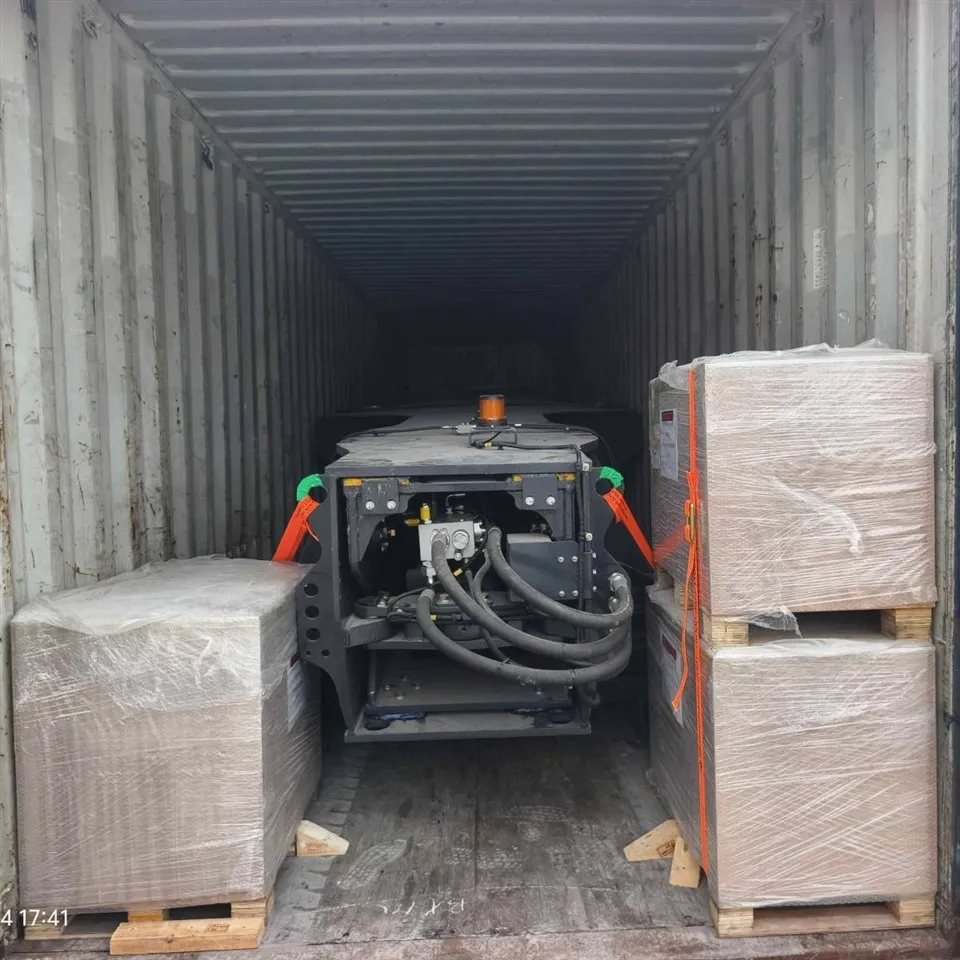

Machine component and packed items secured inside a shipping container during export preparation.
Cab, boom and adjacent machine components shown before project delivery.
Hoist Reach Stacker or Reach Stacker Crane?
Use this page when the main purchasing question is container weight, working row, lift position, spreader and yard conditions.
Review the crane-oriented page when the application focuses on controlled container placement and lifting workflow.
View Reach Stacker Crane →Review the heavy-duty page when container throughput, yard surface and repeated heavy working conditions are the main selection inputs.
View Heavy Duty Reach Stacker →Information Needed for a Hoist Reach Stacker Quote
Related Container Handling Equipment
Hoist Reach Stacker FAQ
Match the Hoist Reach Stacker to the Lift Plan
Send the maximum container gross weight, 20-foot / 40-foot container mix, required working row, placement height, machine approach space, travel distance, yard gradients, pavement conditions, destination country and quantity. Xinghao can review the machine configuration against the actual container handling requirement.
