45 Ton Reach Stacker Crane for Loaded Containers
The Xinghao Reach Stacker Crane handles loaded ISO containers in ports, inland depots and intermodal yards. It provides 45 / 31 / 16 tonne row capacities with a Cummins QSM11 engine, ZF automatic transmission, Linde hydraulics and an ISO 20-foot / 40-foot container spreader.
Capacity by Working Row
The 45-tonne rating applies to the nearest working row. Capacity decreases as horizontal reach increases.
Maximum rated capacity at the nearest container position.
Rated capacity at the second container row.
Rated capacity at the third container row.
Reach Stacker Crane in Detail

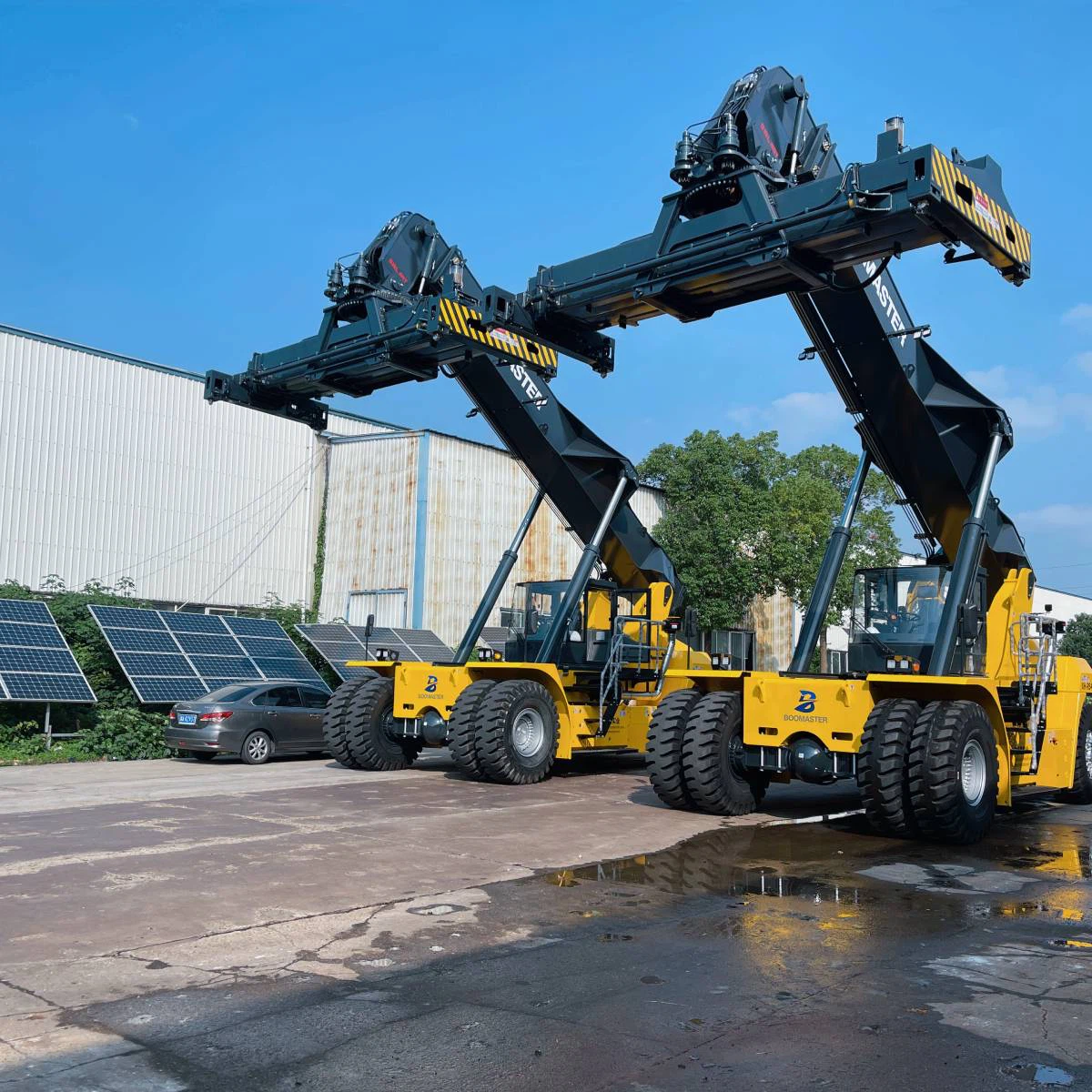

Telescopic booms, top-lift spreaders, cabs and heavy chassis.

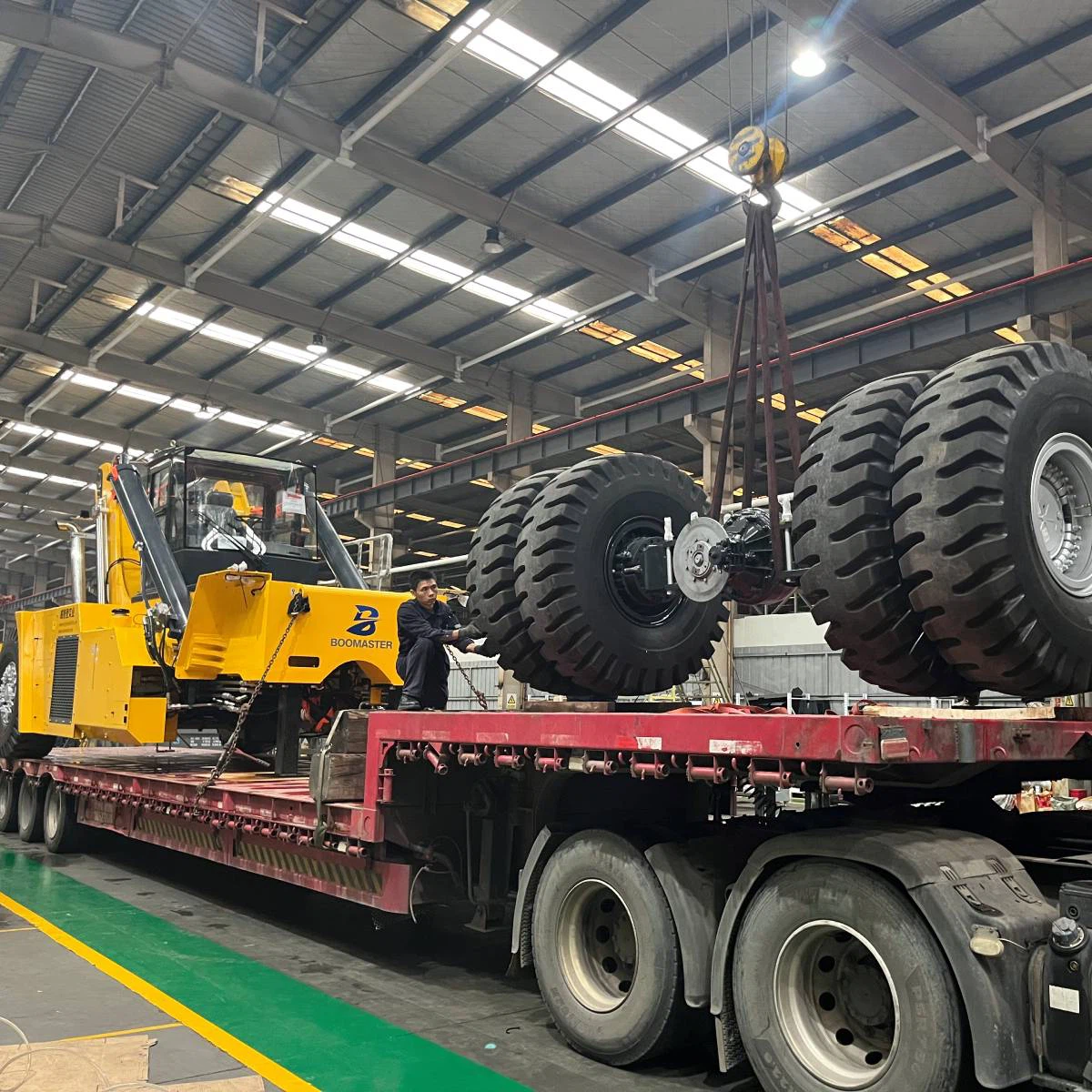

Machine components prepared for heavy-equipment transport.

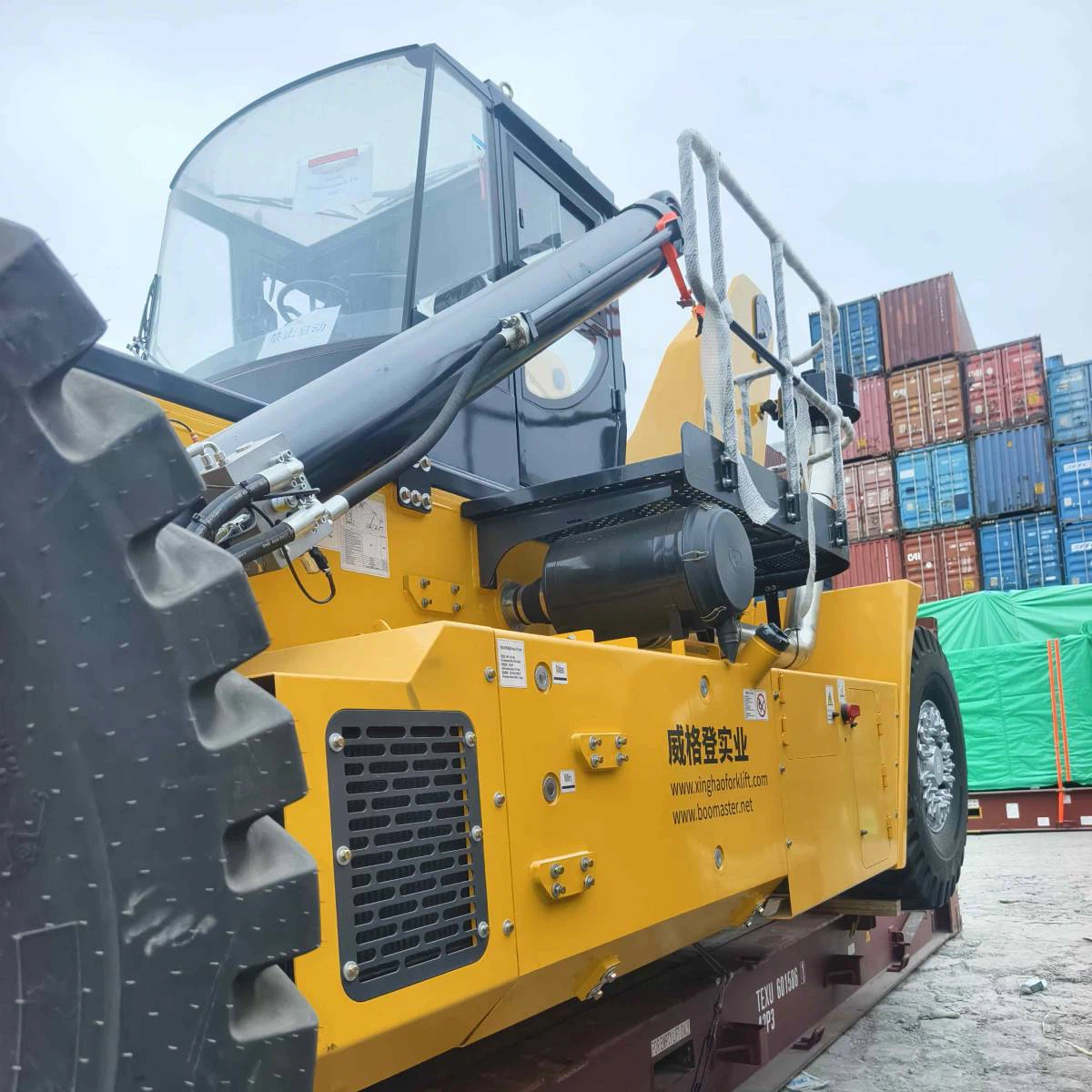

Side view of the chassis, cab and hydraulic components.
Technical Specifications
| Specification | Value |
|---|---|
| Rated Load Capacity | 45,000 kg |
| 1st / 2nd / 3rd Row Capacity | 45 / 31 / 16 t |
| Engine | Cummins QSM11 |
| Rated Power | 250 kW @ 2,100 rpm |
| Maximum Torque | 1,674 Nm @ 1,400 rpm |
| Transmission | ZF 15WG261 automatic |
| Hydraulic System | Linde |
| Control System | Full CAN-bus |
| 20' Container Turning Radius | 8,605 mm |
| 40' Container Turning Radius | 9,900 mm |
| Container Spreader | ISO 20' / 40' |
| Tyres | 18.00-25, 40PR pneumatic |
Cummins, ZF and Linde Systems
The machine uses a Cummins QSM11 diesel engine rated at 250 kW at 2,100 rpm with 1,674 Nm maximum torque at 1,400 rpm. The drivetrain uses a ZF 15WG261 automatic transmission, while boom and spreader functions are supplied by the Linde hydraulic system.
Container Weight, Row and Yard Space
Container gross weight, required working row and available turning space should be checked together.
Provide container weight, size, working row, yard dimensions, destination and quantity.
Turning Radius with 20 ft and 40 ft Containers
Turning radius is 8,605 mm with a 20-foot container and 9,900 mm with a 40-foot container. Additional clearance is required around the container during turning.
Reach Stacker, Container Forklift or Empty Handler?
For loaded ISO containers that require a telescopic boom and access to multiple rows.
For loads that can be handled with a vertical mast without telescopic multi-row reach.
Container Forklifts →For lifting and stacking unloaded ISO containers.
Empty Container Handlers →Reach Stacker Crane FAQ
