Reach Container Stacker for Loaded ISO Containers
The Xinghao Reach Container Stacker is a 45-tonne-class diesel machine for loaded container handling in ports, inland depots and intermodal yards. It combines 45 / 31 / 16 tonne row capacities with a Cummins QSM11 engine, ZF transmission, AxleTech drive axle, Linde hydraulics and an ISO 20-foot / 40-foot spreader.
Capacity by Container Row
The 45-tonne rating applies to the nearest working row. Available capacity decreases as horizontal reach increases.
Maximum rated capacity at the nearest listed container position.
Rated capacity for the second working row.
Rated capacity at the farther third-row position.
Machine and Cab Views

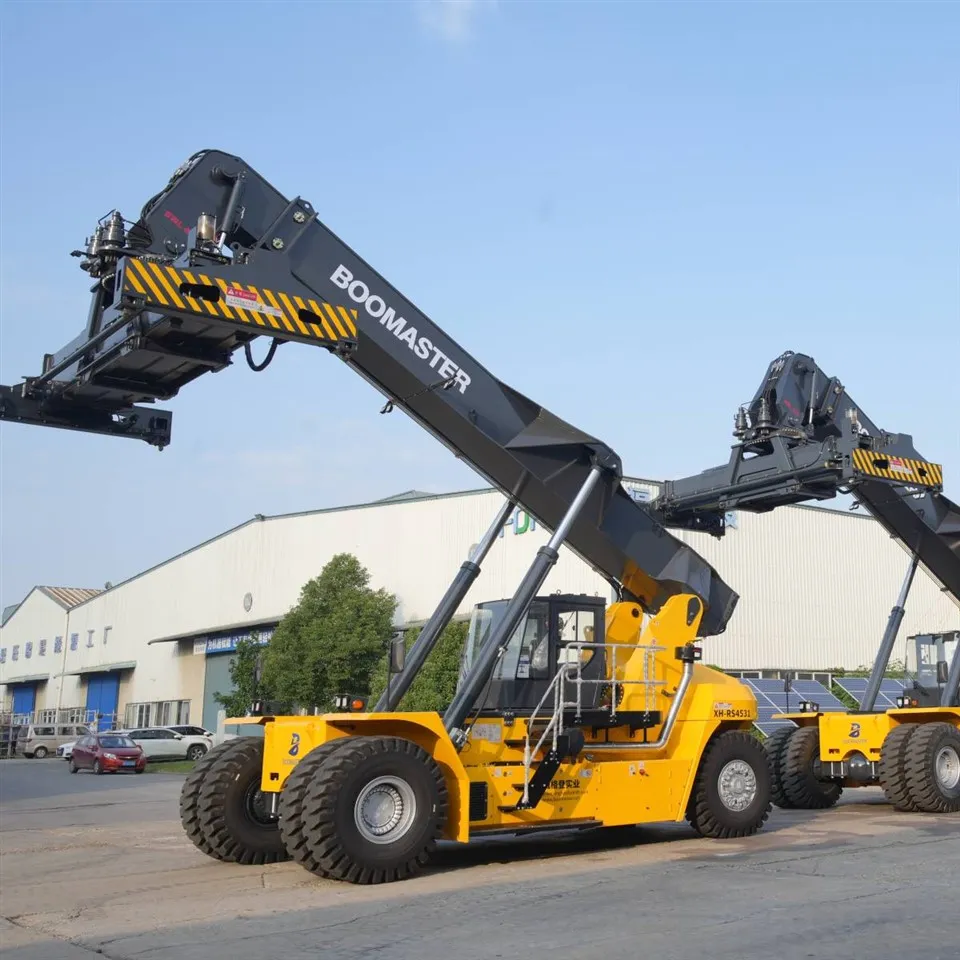

Telescopic boom, cab, chassis and container spreader.
Machine body and wheel components during heavy-equipment transport preparation.
Monitor, switches and joystick in the operator cab.
Technical Specifications
| Specification | Value |
|---|---|
| Rated Capacity | 45,000 kg |
| 1st / 2nd / 3rd Row Capacity | 45 / 31 / 16 t |
| Service Weight | 71,400 kg |
| Engine | Cummins QSM11 |
| Rated Power | 250 kW @ 2,100 rpm |
| Maximum Torque | 1,674 Nm @ 1,400 rpm |
| Transmission | ZF 15WG261 automatic |
| Gear Range | 5 forward / 3 reverse |
| Drive Axle | AxleTech PRC7545W4S586C |
| Steer Axle | AnQing |
| Hydraulic System | Linde |
| Control System | Full CAN-bus |
| Turning Radius with 20' Container | 8,605 mm |
| Turning Radius with 40' Container | 9,900 mm |
| Overall Dimensions | 8410 × 4180 × 3400 mm |
| Tyres | 18.00-25, 40PR pneumatic |
| Container Spreader | ISO 20' / 40' |
| Service Brake | Hydraulic wet-disc |
| Parking Brake | Automatically applied when power is off |
Cummins, ZF, AxleTech and Linde
The diesel platform uses a Cummins QSM11 engine rated at 250 kW at 2,100 rpm with 1,674 Nm maximum torque at 1,400 rpm. It is paired with a ZF 15WG261 automatic transmission, AxleTech drive axle and Linde hydraulic system.
Match Container Weight to the Yard Layout
Container gross mass, required working row and available yard space should be checked together.
Turning Space for 20 ft and 40 ft Containers
The listed turning radius is 8,605 mm with a 20-foot container and 9,900 mm with a 40-foot container. Additional clearance should be included in the yard layout.
ISO 20' and 40' Container Spreader
The spreader configuration supports ISO 20-foot and 40-foot containers. Container size, gross mass and working row should be confirmed together.
Reach Container Stacker or Another Container Handler?
For loaded ISO containers that require telescopic boom reach into multiple rows.
Compare when vertical-mast handling is sufficient and multi-row reach is not required.
Compare Container Forklifts →Compare when the main task is handling and stacking unloaded containers.
Compare Empty Container Handlers →Related Container Handling Equipment
Reach Container Stacker FAQ
Q: Can the Reach Container Stacker lift 45 tonnes in every row?
A: No. Rated capacities are 45 tonnes in the first row, 31 tonnes in the second row and 16 tonnes in the third row.
Q: What engine is used?
A: The diesel configuration uses a Cummins QSM11 engine rated at 250 kW at 2,100 rpm with maximum torque of 1,674 Nm at 1,400 rpm.
Q: Can it handle 20 ft and 40 ft containers?
A: Yes. The spreader configuration supports ISO 20-foot and 40-foot containers.
Q: What is the turning radius?
A: The listed turning radius is 8,605 mm with a 20-foot container and 9,900 mm with a 40-foot container.
Q: What information should I provide for a quotation?
A: Provide maximum container gross weight, 20-foot / 40-foot mix, required working rows, travel distance, yard dimensions, gradients, destination and quantity.
Match the Reach Container Stacker to Your Yard
Send the maximum container gross weight, 20-foot / 40-foot mix, required working rows, travel distance, yard dimensions, gradients, destination and quantity. Xinghao can review the machine configuration against the container-handling requirement.
