CPCD100 Heavy-Duty Diesel Forklift
10 Ton Capacity for Heavy Industrial Handling
The CPCD100 is a 10,000 kg class diesel counterbalanced forklift for heavy pallets, machinery, steel products and other industrial loads. Its published specification uses a 600 mm load center, 3,900 mm outside turning radius and up to 24 km/h loaded travel speed, making load geometry and available operating space the first factors to check before selecting the final configuration.
10,000 kg Rated load capacity
600 mm Standard load center
3,900 mm Outside turning radius
22% Full-load gradeability

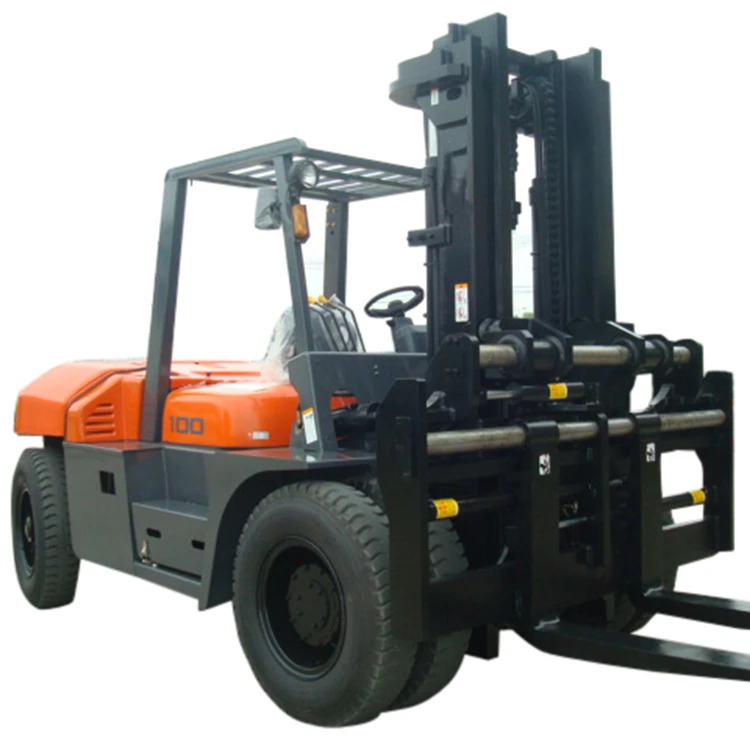

CPCD100 complete machine, front mast and tire arrangement, and side chassis view for load, access and configuration review.
Model Positioning
When a 10 Ton Counterbalanced Forklift Makes Sense
A 10-ton forklift is appropriate when the load exceeds conventional 5–8 ton forklift classes but does not yet require the substantially larger chassis used by 12-ton and heavier industrial trucks.
10 Ton Load Class Suitable for heavy palletized goods, machinery and industrial material within the rated load envelope.
600 mm Load Center Load dimensions must be checked because longer loads move the center of gravity forward.
3.9 m Turning Radius Yard layout and aisle geometry should be checked before choosing the truck.
Diesel Power Intended primarily for industrial and outdoor material-handling duty.
Technical Data
CPCD100 10 Ton Diesel Forklift Specifications
Core Selection Data
- Rated capacity: 10,000 kg
- Load center: 600 mm
- Fork length: 1,220 mm
- Outside radius: 3,900 mm
- Loaded speed: 24 km/h
- Weight: approx. 12,450 kg
| Model | FD100T / CPCD100 |
|---|---|
| Power Type | Diesel |
| Rated Load Capacity | 10,000 kg |
| Standard Load Center | 600 mm |
| Fork Size | 1,220 × 175 × 75 mm |
| Overall Length Without Fork | 4,255 mm |
| Overall Width | 2,245 mm |
| Published Raised Height | 4,420 mm |
| Outside Turning Radius | 3,900 mm |
| Travel Speed, Loaded | 24 km/h |
| Travel Speed, Unloaded | 30 km/h |
| Full-Load Gradeability | 22% |
| Operating Weight | Approx. 12,450 kg |
| Tire Type | Pneumatic, 4 front / 2 rear |
| Service Brake | Power service brake |
| Parking Brake | Mechanical parking brake |
| Electrical Battery | 2 × 12 V / 80 Ah |
| Engine Configuration | Confirm engine brand, model, power and emission level for the destination market |
| Mast Configuration | Confirm required lift height, lowered mast height and mast stage before order |
Load Selection
10,000 kg Capacity Depends on Load Position
The published rated capacity is referenced to a 600 mm load center. A long machine, steel component or oversized pallet can move the center of gravity farther forward even when its total weight remains below 10 tons.
Buyers should therefore provide the load dimensions together with the weight before the mast, fork and attachment configuration is finalized.
- Maximum load weight
- Load length, width and height
- Actual or estimated load center
- Required lifting height
- Fork or attachment requirement
- Travel surface and site gradient
Do You Really Need 10 Tons?
A truck should not be selected simply by choosing the next larger nominal capacity.
If regular loads remain within the 8-ton class, compare the smaller CPCD80 first. If normal loads exceed 10 tons, move to the 12-ton heavy-lift class instead of planning routine operation near or above the CPCD100 rating.
Mast & Fork Selection
Specify the Lift Height from the Real Work Point
The current product page publishes different mast and lift-height descriptions in separate sections. The safest procurement method is to specify the mast from the real load placement requirement instead of assuming one mast applies to every CPCD100 quotation.
Required Fork Height
Measure the highest position where the bottom of the load must be placed.
Lowered Mast Height
Check doors, workshops, trailers and other overhead restrictions along the travel route.
Fork Length
Standard published fork length is 1,220 mm. Longer loads should be specified before the final fork configuration is selected.
Engine Selection
Confirm Engine and Emission Configuration by Market
The current CPCD100 page references more than one Isuzu engine designation as well as a Weichai option. For procurement, the quotation should state the exact engine model, rated power and applicable emission configuration.
Engine Model
Ask for the exact engine model included in the offered machine rather than relying only on the engine brand.
Emission Requirement
Confirm local requirements before ordering, particularly when the destination market regulates non-road diesel engines.
Local Serviceability
Consider filters, routine parts and local engine support together with purchase price.
Site Geometry
Check Turning Space Before Moving to a 10 Ton Truck
The published outside turning radius is 3,900 mm, while the machine width is 2,245 mm and the length without forks is 4,255 mm.
These figures should be compared with the actual aisle, loading bay, yard corner and door dimensions before the truck is approved for the site.
- Narrowest travel route
- Loading-bay turning area
- Door and gate width
- Load overhang during travel
- Trailer or container approach space
Performance
Travel Speed and Gradient Should Match the Duty Cycle
24 km/h Loaded
Published loaded travel speed for movement between handling points.
30 km/h Unloaded
Published no-load travel speed for return travel and repositioning.
22% Gradeability
Published full-load gradeability. Actual site slope, surface and load condition should still be reviewed before selection.
Typical Applications
Where the 10 Ton Diesel Forklift Fits Best
Steel & Manufacturing
Handle heavy fabricated parts, tooling and industrial materials where load dimensions remain compatible with the truck.
Logistics & Freight Yards
Move heavy palletized or crated cargo between outdoor storage, loading and dispatch areas.
Construction Materials
Suitable for heavier building materials and equipment on appropriate hard-surface work areas.
8T / 10T / 12T Selection
Choose Capacity from the Normal Working Load
Consider 8 Ton
Start with the 8-ton class when normal loads remain clearly below 10,000 kg and the smaller chassis better suits the site.
Choose 10 Ton
Use the CPCD100 when the actual load and load center require the 10-ton rated class.
Move to 12 Ton
Compare the 12-ton heavy-lift class when regular operating loads exceed the intended working range of the CPCD100.
Before Quotation
Send These Details for CPCD100 Configuration
1
Load
Maximum weight, dimensions and load center.
2
Lift
Required lift height, fork length and attachment type.
3
Site
Surface, gradient, gate width and turning area.
4
Market
Destination, emission requirement, quantity and preferred engine configuration.
Related Equipment & Support
Continue Heavy-Duty Forklift Selection
1.5t–10t Standard Diesel Forklifts Compare standard diesel counterbalanced forklifts across different capacity classes. 8 Ton Diesel Forklift Compare a lower-capacity chassis for loads below the CPCD100 class. 12 Ton Diesel Forklift Move into the heavy-lift range when normal payloads exceed 10 tons. Euro V / Stage V Forklifts Review diesel options for markets with stricter emission requirements. After-sales & Parts Review service and replacement-parts support. Certificates Review certificates currently published by Xinghao. About Xinghao Review company and equipment manufacturing information. Contact Xinghao Send your load and operating requirements.
FAQ
10 Ton Diesel Forklift Buying Questions
What is the rated capacity of the CPCD100?
The published rated load capacity is 10,000 kg at a 600 mm load center.
What is the turning radius of the 10 ton forklift?
The current CPCD100 specification lists a 3,900 mm outside turning radius.
Which engine does the CPCD100 use?
The current product page references multiple Isuzu engine configurations and a Weichai option. The exact engine model, power and emission level should therefore be confirmed in the quotation for the destination market.
What lifting height is available?
The current page contains different published lift-height descriptions. Buyers should specify the required fork height and lowered mast height so the correct mast configuration can be confirmed before ordering.
Should I choose an 8 ton, 10 ton or 12 ton forklift?
Select the capacity from the normal maximum load, load center and required attachment. Use the 10-ton class when the load requires it, rather than oversizing or routinely operating a smaller truck near its limit.
What information should I send for a quotation?
Send maximum load weight, load dimensions, load center, required lifting height, fork or attachment requirements, site conditions, emission requirement, quantity and destination country.
Configure the CPCD100 Around the Actual Load
Send the maximum load weight, dimensions, load center, required lifting height, fork length, attachment, site conditions, emission requirement, quantity and destination country. These details allow the 10 ton diesel forklift configuration to be checked before quotation.
