FD20 Standard Diesel Forklift
Compact 2 Ton Diesel Forklift for Yard and Factory Handling
The FD20 combines a 2,000 kg rated load, 500 mm load center and 3,000 mm standard lifting height in a compact diesel counterbalanced chassis. With a 2,170 mm outside turning radius and 1,150 mm overall width, it is intended for routine pallet and material handling where maneuverability is as important as diesel operating range.
2,000 kg Rated load capacity
500 mm Standard load center
3,000 mm Standard lifting height
2,170 mm Outside turning radius

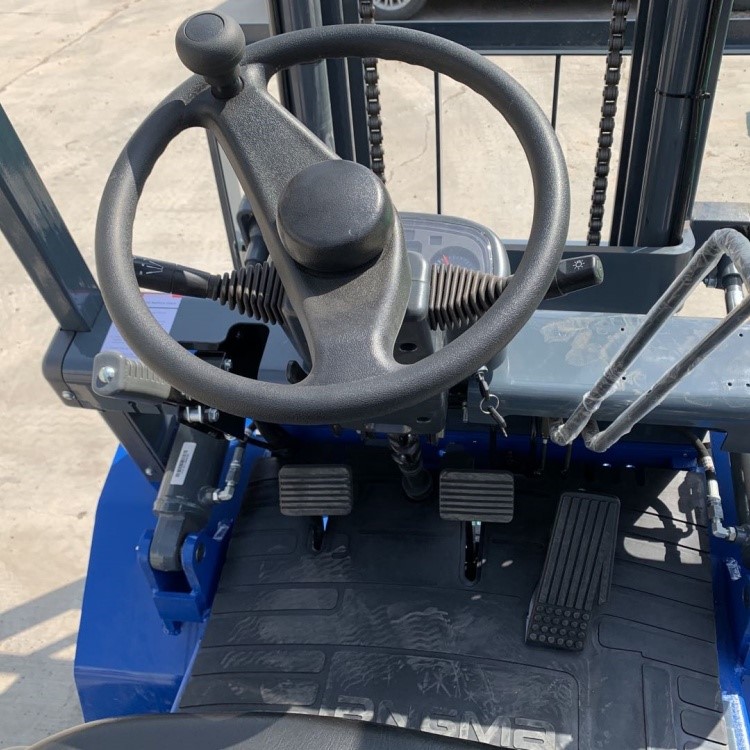

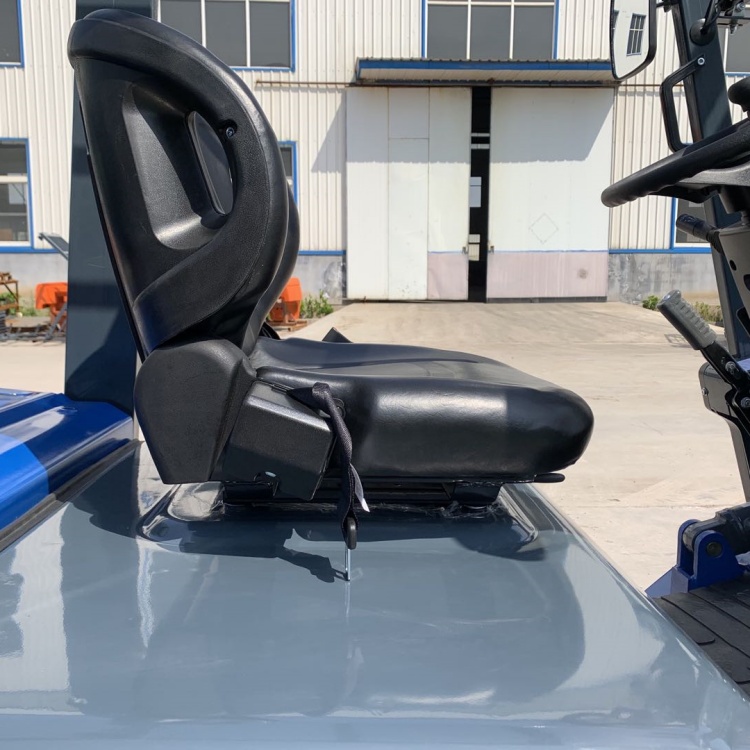

Front mast and fork carriage, operator station and rear chassis views of the FD20 for mast, access and site-fit review.
Model Positioning
Why Choose a 2 Ton Diesel Forklift?
The FD20 sits in the compact end of Xinghao's standard diesel forklift range. It suits buyers who need more operating flexibility outdoors than a small warehouse-only truck, without moving to the larger footprint of a 3-ton or 5-ton diesel forklift.
2 Ton Load Class Suitable for routine palletized and industrial loads within the rated capacity.
1.15 m Truck Width Compact overall width helps when working around factories and yard lanes.
2.17 m Turning Radius Supports maneuvering where available turning space is limited.
Diesel Duty Suitable for outdoor and well-ventilated industrial handling applications.
Technical Data
FD20 2 Ton Diesel Forklift Specifications
Core Machine Data
- Rated capacity: 2,000 kg
- Load center: 500 mm
- Lift height: 3,000 mm
- Truck width: 1,150 mm
- Turning radius: 2,170 mm
- Operating weight: 3,320 kg
| Model | FD20 |
|---|---|
| Power Type | Diesel |
| Rated Load Capacity | 2,000 kg |
| Load Center | 500 mm |
| Standard Lifting Height | 3,000 mm |
| Fork Length | 1,070 mm |
| Fork Adjustment Range | 200–1,024 mm |
| Overall Length Without Forks | 2,530 mm |
| Overall Width | 1,150 mm |
| Overhead Guard Height | 2,070 mm |
| Wheelbase | 1,600 mm |
| Minimum Ground Clearance | 110 mm |
| Outside Turning Radius | 2,170 mm |
| Mast Tilt, Forward / Rear | 6° / 12° |
| Hoisting Speed, No Load / Full Load | 550 / 530 mm/s |
| Travel Speed, No Load / Full Load | 19 / 19 km/h |
| Published Gradeability | <20% |
| Maximum Traction, Full Load / No Load | 20 / 15 kN |
| Operating Weight | 3,320 kg |
| Front Tire | 7.00-12-12PR |
| Rear Tire | 6.00-9-10PR |
| Engine Brand | Isuzu |
| Engine Model | C240 |
| Cylinders | 4 |
| Rated Engine Power | 35.4 kW at 2,500 rpm |
| Rated Torque | 137.7 N·m at 1,800 rpm |
| Transmission | 1 forward / 1 reverse power shift |
| Cab Configuration | Open cab |
| Side Shift | Optional |
Load Selection
Check the 500 mm Load Center Before Ordering
The FD20 is rated for 2,000 kg at a 500 mm load center. Load dimensions matter because a longer pallet or irregular product can move the center of gravity farther from the fork face.
A load can weigh less than 2,000 kg and still require additional review if its geometry creates a longer effective load center.
- Maximum load weight
- Pallet or product dimensions
- Actual load center
- Required lifting height
- Fork or side-shift requirement
- Operating surface and route
When Should You Move Above 2 Tons?
Use the FD20 when normal operating loads remain comfortably within the 2-ton class.
If regular loads are close to or above 2,000 kg, compare a 2.5-ton or 3-ton model instead of planning daily work at the capacity limit.
Mast & Side Shift
3 m Standard Mast with Optional Side Shift
3,000 mm Standard Lift
The verified FD20 parameter table lists a standard lifting height of 3,000 mm.
1,070 mm Forks
Standard published fork length is 1,070 mm. Longer loads should be checked before order.
Optional Side Shift
Side shift can reduce the need to reposition the whole truck during final pallet alignment.
Engine & Transmission
Isuzu C240 with Power-Shift Transmission
35.4 kW Engine Output
The current specification lists the Isuzu C240 at 35.4 kW at 2,500 rpm.
137.7 N·m Torque
Published rated torque is 137.7 N·m at 1,800 rpm.
1F / 1R Power Shift
The FD20 specification lists one forward and one reverse power-shift gear.
Maneuverability
Compact Dimensions for Factory and Yard Routes
The FD20 is 1,150 mm wide with a 1,600 mm wheelbase and 2,170 mm outside turning radius. These dimensions make it considerably more compact than Xinghao's heavier diesel forklifts.
Buyers should compare these values with the actual gate width, aisle, truck loading area and turning point before approving the model.
- Factory aisle width
- Loading bay dimensions
- Gate and doorway width
- Available turning area
- Load overhang during travel
Tire & Ground Conditions
Pneumatic Tires for Suitable Industrial Surfaces
The verified FD20 specification uses 7.00-12-12PR front tires and 6.00-9-10PR rear tires. The machine has 110 mm minimum ground clearance, so it should be treated as a standard industrial diesel forklift rather than a rough-terrain forklift.
Paved Yard
Suitable for normal hard-surface yard handling where ground condition is controlled.
Factory Exterior
Useful for truck unloading and material transfer around suitable outdoor surfaces.
Uneven Terrain
For deep mud, large ruts or soft ground, compare a dedicated rough-terrain forklift instead.
Typical Applications
Where the FD20 Fits Best
Factory Material Transfer
Move components, pallets and production materials between suitable indoor and outdoor handling zones.
Logistics Yards
Load and unload palletized cargo around trucks, staging zones and dispatch areas.
Building Materials
Handle palletized construction materials within the verified 2-ton working class.
Capacity Comparison
2 Ton vs 2.5 Ton vs 3 Ton Diesel Forklift
2 Ton FD20
Prioritize compact size when regular loads remain within the 2,000 kg class.
2.5 Ton Class
Consider additional rated capacity when normal loads move beyond the FD20 working range.
3 Ton Class
Move to 3 tons when heavier daily loads justify the larger capacity and chassis.
Before Quotation
Send These Details for FD20 Configuration
1
Load
Maximum weight, pallet size and load center.
2
Lift
Required lift height, fork length and side-shift requirement.
3
Site
Surface condition, aisle width and turning space.
4
Order
Quantity, destination country and local emission requirement.
Related Equipment & Support
Continue Diesel Forklift Selection
1.5t–10t Standard Diesel Forklifts Compare standard diesel forklifts across different load classes. 2.5 Ton Diesel Forklift Compare additional rated capacity for slightly heavier daily loads. 3 Ton Diesel Forklift Compare the next major standard diesel capacity class. 2 Ton LPG Forklift Compare another 2-ton power option for suitable mixed-use applications. After-sales & Parts Review service and replacement-parts support. Certificates Review certifications currently published by Xinghao. About Xinghao Review company and equipment manufacturing information. Contact Xinghao Send technical and purchasing requirements.
FAQ
2 Ton Diesel Forklift Buying Questions
What is the rated capacity of the FD20 forklift?
The FD20 is rated for 2,000 kg at a standard 500 mm load center.
What is the standard lifting height?
The verified FD20 parameter table lists a standard lifting height of 3,000 mm.
What engine does the 2 ton diesel forklift use?
The current FD20 specification lists an Isuzu C240 four-cylinder diesel engine rated at 35.4 kW at 2,500 rpm.
Is side shift available?
Yes. The current product page lists side shift as an optional configuration.
Is this a rough-terrain forklift?
No. The FD20 is a standard diesel counterbalanced forklift with 110 mm minimum ground clearance. For mud, deep ruts or soft ground, a dedicated rough-terrain forklift should be considered.
What information should I send for a quotation?
Send maximum load weight, pallet or load dimensions, load center, required lift height, fork or side-shift requirement, worksite conditions, quantity and destination country.
Configure the FD20 Around Your Daily Load
Send the maximum load weight, load dimensions, load center, required lifting height, fork length, side-shift requirement, worksite conditions, quantity and destination country. These details allow the FD20 configuration to be checked before quotation.
