HZTH3507 Heavy-Duty Telehandler
3.5 Ton Capacity with 7 m Reach and 4WD Mobility
The HZTH3507 combines a 3,500 kg rated load with 7 m maximum lifting height and 3.8 m forward outreach. Its 4WD chassis, three steering modes, 430 mm ground clearance and 3.9 m external turning radius suit outdoor material handling where capacity, reach and maneuverability must work together.
3,500 kg Rated lifting capacity
7 m Maximum lifting height
3.8 m Maximum forward outreach
3.9 m External turning radius

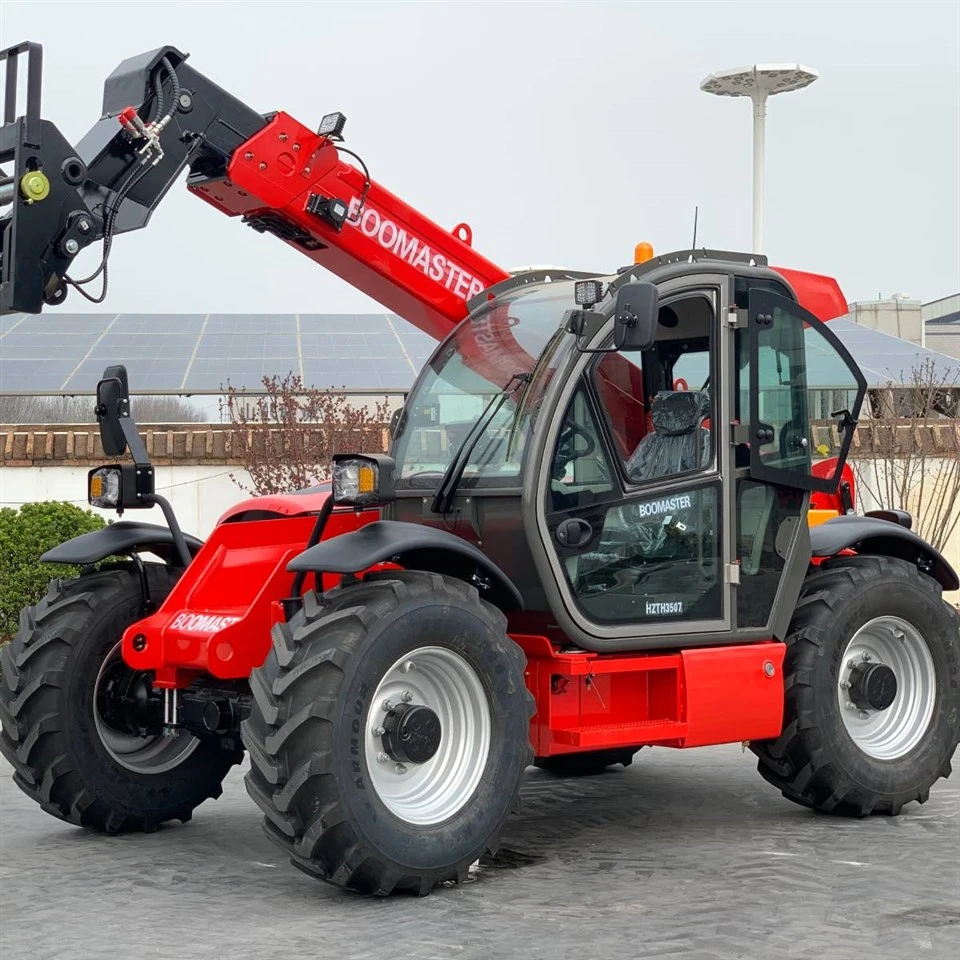

HZTH3507 complete machine, front fork carriage and rear chassis details for configuration review.
Machine Positioning
A 3.5 Ton Telehandler for Moderate Reach Work
The 7 m lift class is well suited to buyers who need more reach than a conventional rough-terrain forklift but do not require the larger chassis and longer boom of a 10 m to 18 m telehandler.
3.5 Ton Load Class Handles heavier palletized and construction materials within the verified load envelope.
7 m Vertical Reach Covers low-rise construction, truck loading and elevated material placement.
3.8 m Forward Reach Allows material placement beyond obstacles and loading edges.
4WD Outdoor Mobility Supports travel across construction yards, farms and unpaved industrial areas.
Key Systems
Powertrain and Chassis Components
Yuchai Diesel Power
The current HZTH3507 configuration uses a Yuchai YC4DK100-T304 diesel engine rated at approximately 73 kW.
Danfoss Hydraulics
Danfoss piston pump and variable motor components are used in the published hydraulic configuration.
Carraro Drivetrain
The machine uses a Carraro wet brake axle and high-low speed gearbox configuration.
Four-Wheel Drive
Four-wheel drive supports traction on outdoor and uneven work areas.
430 mm Ground Clearance
Increased underbody clearance helps the chassis pass typical outdoor surface irregularities.
Three Steering Modes
Front-wheel, four-wheel and crab steering provide different options for travel and positioning.
Technical Data
HZTH3507 Telehandler Specifications
Core Machine Data
- Rated load: 3,500 kg
- Lift height: 7 m
- Forward outreach: 3.8 m
- Machine weight: 7,710 kg
- Turning radius: 3.9 m
- Ground clearance: 430 mm
| Model | HZTH3507 |
|---|---|
| Rated Load Capacity | 3,500 kg |
| Maximum Lifting Height | 7.0 m |
| Maximum Forward Outreach | 3.8 m |
| Overall Length | 4,936 mm |
| Overall Width | 2,300 mm |
| Overall Height | 2,550 mm |
| Machine Operating Weight | 7,710 kg |
| Minimum Ground Clearance | 430 mm |
| External Turning Radius | 3.9 m |
| Engine | Yuchai YC4DK100-T304 |
| Rated Engine Power | Approx. 73 kW |
| Hydraulic Core | Danfoss piston pump & variable motor |
| Axle | Carraro wet brake axle |
| Transmission | Carraro high-low speed gearbox |
| Drive | 4WD |
| Steering Modes | Front-wheel / four-wheel / crab steering |
Load Selection
Check Capacity at the Required Boom Position
The 3,500 kg figure is the rated machine capacity, not the available capacity at every boom position.
Lifting height, forward outreach, load center and attachment weight should be considered together before the model is confirmed.
- Maximum lifted weight
- Load dimensions and load center
- Required lifting height
- Required horizontal outreach
- Fork or attachment requirement
- Ground condition and site gradient
When 7 m Is the Better Choice
A 7 m machine is appropriate when buyers need 3.5-ton capacity and useful telescopic reach without moving to a larger high-reach chassis.
If the load must be placed significantly above 7 m, compare a higher-reach telehandler before placing the order.
Steering
Three Steering Modes for Site Positioning
Front-Wheel Steering
Suitable for normal travel when adequate maneuvering space is available.
Four-Wheel Steering
Reduces turning space when operating around stored materials and buildings.
Crab Steering
Allows diagonal movement for lateral alignment beside loads or structures.
Component Configuration
Key Powertrain Components for Procurement Review
Yuchai Engine
YC4DK100-T304 diesel power for the HZTH3507 configuration.
Carraro Axle & Gearbox
Wet brake axle and high-low speed gearbox are listed in the current configuration.
Danfoss Hydraulics
Piston pump and variable motor components are used in the hydraulic drive system.
Rough-Terrain Operation
4WD Alone Does Not Determine Site Suitability
The 430 mm minimum ground clearance and 4WD drivetrain are relevant for uneven outdoor work areas.
Ground firmness, slope, ruts, access width and turning space should still be checked before the machine is selected.
- Ground firmness and surface type
- Maximum operating gradient
- Narrowest access width
- Available turning area
- Daily travel distance
Typical Applications
Where a 3.5 Ton 7 m Telehandler Fits
Construction Sites
Lift palletized building materials and place loads at low-rise elevated work positions.
Agricultural Yards
Move palletized supplies and other materials where traction and forward reach are needed.
Outdoor Industrial Handling
Position materials beyond loading edges, stored equipment or other site obstacles.
Attachment Selection
Match the Attachment to the Load
Attachment weight and geometry affect the operating load. Forks, buckets and other tools should therefore be specified together with the required lifting height and outreach.
1
Forks
Provide pallet size, load center and maximum load weight.
2
Bucket
Provide material type, density and required bucket volume.
3
Clamp or Grab
Provide material dimensions and the required gripping method.
4
Other Tools
Confirm attachment weight and hydraulic requirements before ordering.
Before Quotation
Information Needed for Model Confirmation
1
Load
Maximum weight, dimensions and load center.
2
Reach
Required lift height and forward distance.
3
Worksite
Ground surface, gradient and access width.
4
Purchase
Quantity, destination and attachment needs.
Related Equipment
Continue Telehandler Selection
Telehandler Range Compare capacity, reach and machine size across Xinghao telehandlers. 3500kg Rough Terrain Telehandler Compare another 3.5-ton rough-terrain configuration. 2.5 Ton Telehandler Compare a lighter machine when compact size has greater priority. 4 Ton Telehandler Compare additional rated capacity for heavier material handling. After-sales & Parts Review service and replacement-parts support. About Xinghao Review company and equipment manufacturing information. Construction & Mining Review equipment for demanding outdoor construction applications. Contact Xinghao Send technical and purchasing requirements.
FAQ
7 m Heavy-Duty Telehandler Buying Questions
What is the rated capacity of the HZTH3507?
The HZTH3507 has a rated lifting capacity of 3,500 kg. Actual allowable load depends on boom position, load center and attachment.
What is the maximum lifting height?
The published maximum lifting height is 7.0 meters.
What is the maximum forward outreach?
The published maximum forward outreach is 3.8 meters.
Which steering modes are available?
The machine supports front-wheel, four-wheel and crab steering.
What engine is used in this telehandler?
The current configuration lists a Yuchai YC4DK100-T304 diesel engine rated at approximately 73 kW.
What should I send for a quotation?
Provide maximum load weight, load center, required lifting height and outreach, attachment type, site conditions, quantity and destination country.
Confirm the 3.5 Ton Load at Your Required Reach
Send the maximum load, load center, required lifting height, forward outreach, attachment, site conditions, quantity and destination country. These details allow the HZTH3507 configuration to be checked before quotation.
