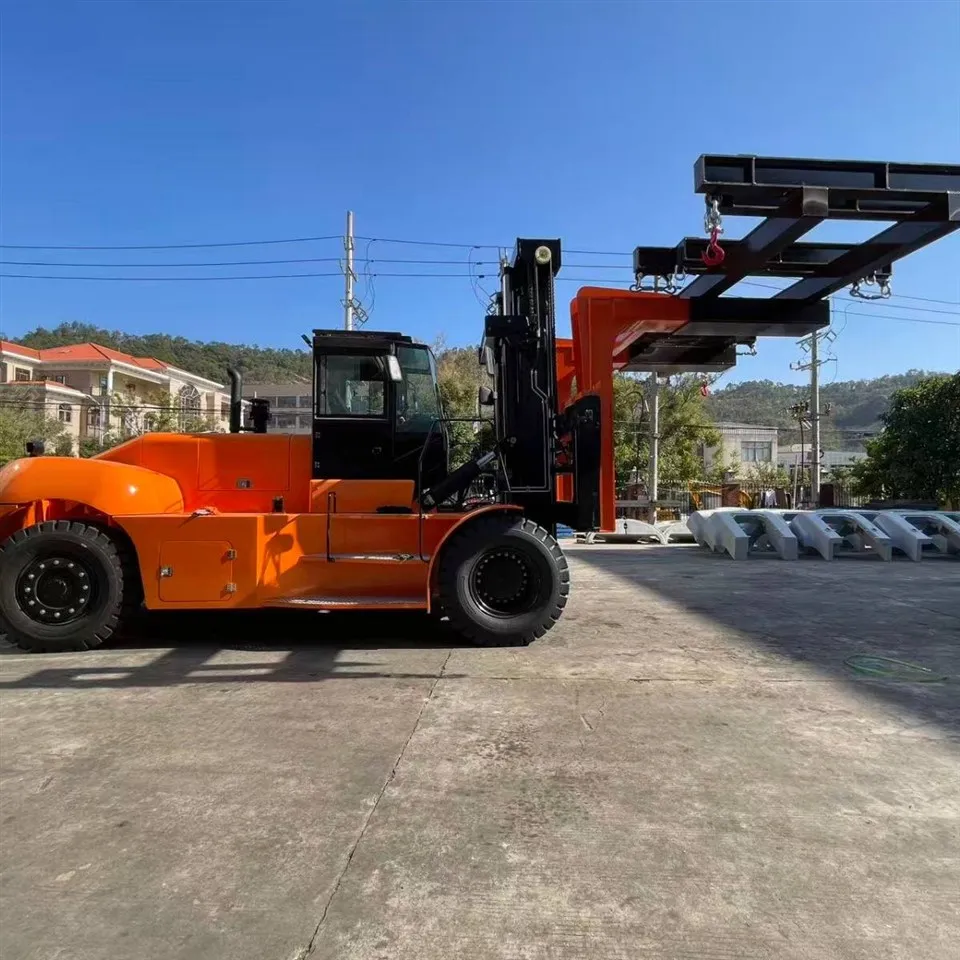

Euro V Diesel Forklift 25 Ton

In yards where cargo weight is defined in tens of tons rather than pallets, large forklifts of the 25-ton class are typically utilized. Steel coils, hefty containers, industrial assemblies, and precast structural components are examples of typical loads.
This kind of labor is what the Euro V Diesel Forklift 25 Ton is designed for. When the truck is working near its rated capacity, its arrangement prioritizes lifting stability and predictable control. The truck is kept balanced when lifting or moving heavy loads across open yard surfaces because to its long chassis architecture, wide axle spacing, and large rear counterweight.





• Rated Capacity: 25,000 kg
• Load Center: 1,220 mm
• Operating Weight: 35,000 kg
• Wheelbase: 4,400 mm
• Standard Lift Height: 4,000 mm
• Maximum Lift Height: 5,940 mm
• Fork Dimensions: 2400 × 285 × 110 mm
• Fork Carriage Width: 3,000 mm
• Overall Width: 3,070 mm
• Turning Radius: 6,480 mm
• Travel Speed: 25 / 30 km/h
• Lifting Speed: 260 mm/s
• Gradeability: 20%
• Engine Output: 160–162 kW

When forklifts move beyond the 20-ton range, the operating behavior becomes noticeably different from smaller warehouse trucks. Acceleration is less important than steady torque and smooth control.

This model is powered by an industrial diesel engine designed to deliver consistent pulling force at lower speeds. In day-to-day yard operation this allows the truck to move heavy cargo gradually without abrupt movements that could shift the load.

The wide mast structure and long wheelbase also help keep the truck stable when traveling with raised loads.



Most machines of this size spend their working life outdoors. They move cargo between storage rows, loading docks, and transport vehicles rather than narrow warehouse aisles.

Typical tasks include:

• staging steel coils before shipment
• positioning machinery components during factory assembly
• loading heavy crates onto trailers
• moving precast construction elements around production yards

Because loads are often irregular in shape and weight distribution, operators usually prefer trucks that behave predictably even when working near maximum capacity.



Ask for Details





For a forklift lifting 25 tons, the frame design plays a larger role than additional electronics or operator features. The truck relies on a reinforced chassis and a large rear counterweight to manage load forces through the structure.

Axle spacing and tire width are also selected to maintain ground contact and traction when the truck is carrying dense cargo across yard surfaces.

These structural choices are intended to keep the machine stable during long work shifts and repeated lifting cycles.



Our Product



Companies purchasing forklifts in this capacity range usually look beyond the basic specifications. Service access, parts availability, and mechanical simplicity are often more important over the long term.

This model follows a relatively conventional mechanical layout using established industrial engine platforms. Maintenance teams familiar with heavy equipment can typically service the truck without specialized diagnostic systems.

For operations running several large forklifts, this type of straightforward design can make fleet maintenance more manageable.
