5 Ton 7.2 m Telehandler
Heavy 5 Ton Capacity Without a High-Reach Chassis
The 5 ton telehandler combines a 5,000 kg rated load with 7.2 m maximum lifting height and 3.93 m horizontal reach. It is suited to buyers who need heavier material handling at moderate height rather than the longer boom geometry of a 10 m, 12 m or higher-reach telehandler.
5,000 kg Rated lifting capacity
7.2 m Maximum lifting height
3.93 m Maximum horizontal reach
81 kW Cummins engine output
Load Priority 5-ton rated capacity for heavier pallets, construction materials and industrial loads.
Height Class 7.2 m vertical reach for moderate-height placement and loading work.
Forward Reach 3.93 m maximum horizontal reach for placing loads beyond obstacles.
Outdoor Mobility Off-road tires and rear axle swing support uneven worksite conditions.

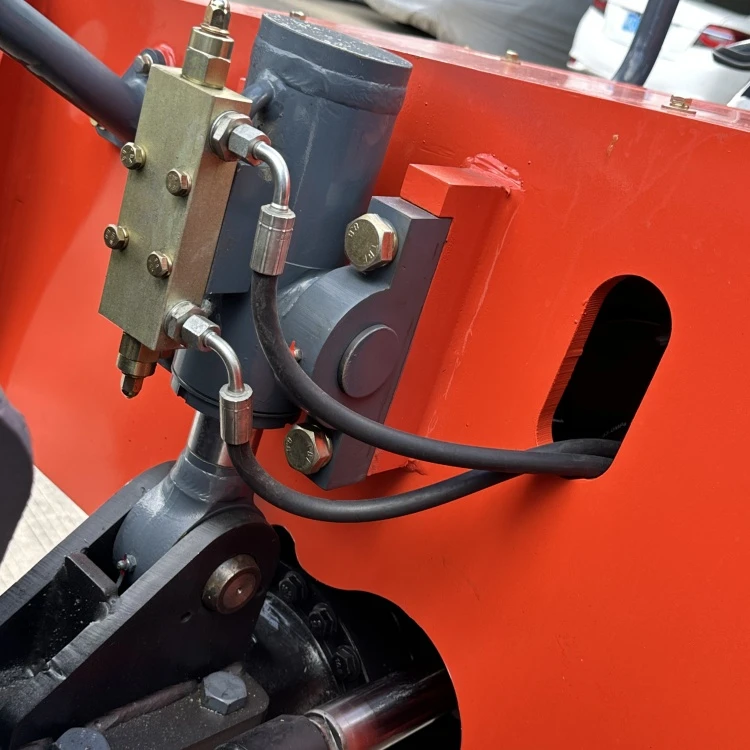

Boom pivot hydraulic line and joint assembly.

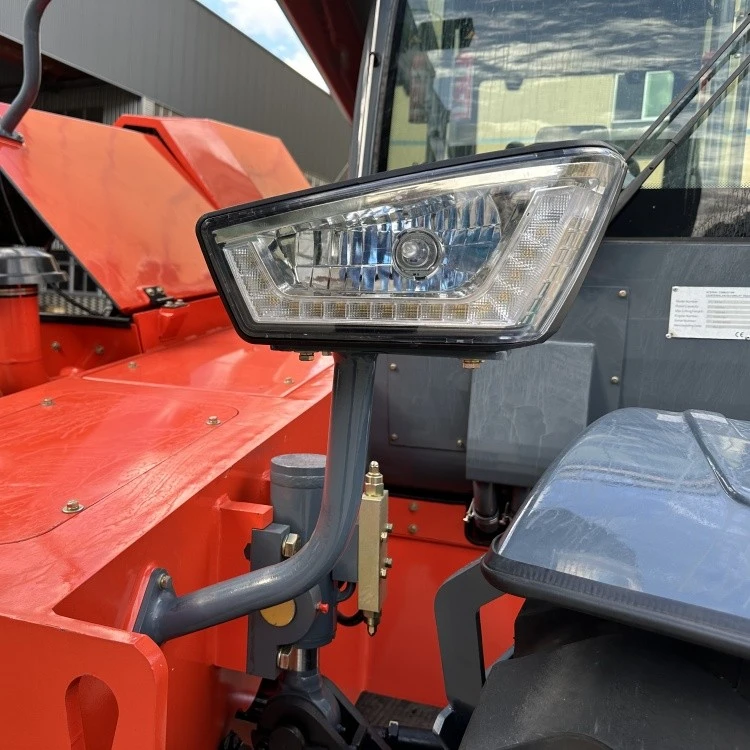

Cab-side work light for outdoor operation.

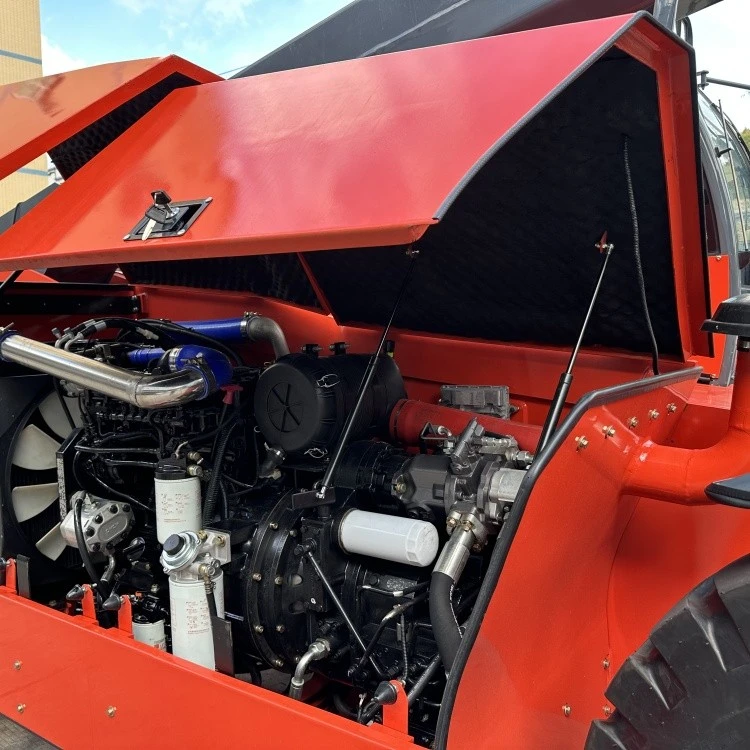

Side-access engine and hydraulic compartment.

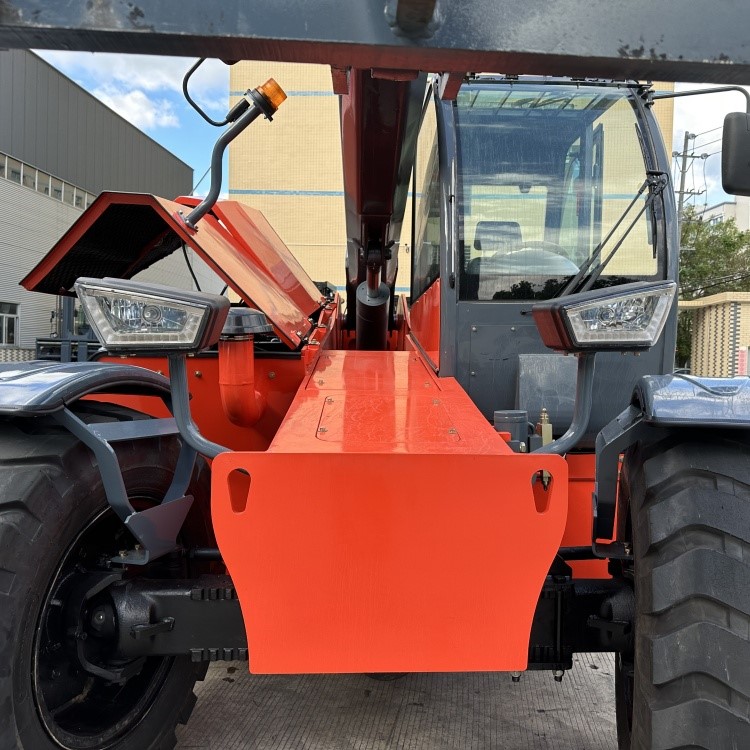

Front chassis, cab glazing and work lights.
Configuration
A 5 Ton Telehandler Built Around Moderate Reach
This configuration emphasizes rated capacity, hydraulic performance and outdoor mobility rather than extreme lifting height. That distinction is important when comparing it with Xinghao's longer 5-ton telehandlers.
Cummins Diesel Engine
The published configuration uses a Cummins QSB3.9-C110-30 engine rated at 81 kW at 2,200 rpm.
Hydrostatic Transmission
Hydrostatic drive supports controlled travel speed during repeated approach and positioning cycles.
Self-Leveling Forks
Fork leveling helps maintain load orientation as boom angle changes during lifting.
Load Limiter
The listed machine configuration includes a load limiter for operation within the permitted lifting envelope.
Rear Axle Swing
The published chassis specification includes a 5-degree rear axle frame swing for changing ground conditions.
Auxiliary Hydraulics
Extra hydraulic piping and valve provisions allow compatible front attachments to be specified with the machine.
Technical Data
5 Ton Telehandler Specifications
Core Machine Data
- Rated load: 5,000 kg
- Lift height: 7.2 m
- Horizontal reach: 3.93 m
- Machine weight: 8,150 kg
- Travel speed: 25 km/h
- Hydraulic flow: 145 L/min
| Rated Load | 5,000 kg |
|---|---|
| Maximum Lifting Height | 7.2 m |
| Maximum Horizontal Reach | 3.93 m |
| Overall Length | 5,150 mm, pallet forks removed |
| Overall Width | 2,250 mm |
| Overall Height | 2,300 mm |
| Machine Weight | 8,150 kg |
| Engine Model | Cummins QSB3.9-C110-30 |
| Published Emission Configuration | National Standard III |
| Rated Engine Power | 81 kW at 2,200 rpm |
| Maximum Torque | 480 N·m at 1,600 rpm |
| Transmission | Hydrostatic |
| Maximum Travel Speed | 25 km/h |
| Gradeability | 30% |
| Departure Angle | 33° |
| Rear Axle Frame Swing | 5° |
| Hydraulic System Pressure | 26 MPa |
| Hydraulic System Flow | 145 L/min |
| Hydraulic Tank Capacity | 150 L |
| Tire Specification | 16.70-24 off-road tire |
Load Selection
Check the Working Load, Not Only the 5 Ton Rating
Rated capacity is only one part of telehandler selection. Boom extension, lifting height, attachment weight and load center change the actual working condition.
- Maximum load weight
- Load dimensions and load center
- Required lifting height
- Required horizontal reach
- Fork or attachment type
- Ground condition and slope
Is 7.2 m the Right Reach?
Choose this model when 5-ton rated capacity is more important than very high vertical reach.
If the same load must be placed above the 7.2 m class, compare the 5 Ton 10 m or 5 Ton 12 m telehandler before ordering.
Application Fit
Where a 5 Ton 7.2 m Telehandler Fits Best
Construction Material Handling
Five-ton capacity supports heavier palletized building materials where moderate boom reach is sufficient.
Agricultural Yards
Off-road tires and attachment hydraulics make the machine relevant to outdoor handling of palletized and bulk materials.
Industrial Outdoor Handling
The 3.93 m forward reach helps position heavy loads beyond obstacles or across loading gaps in open yards.
Hydraulic & Attachment Selection
145 L/min Flow for Working and Attachment Functions
The published hydraulic system is rated at 26 MPa with 145 L/min flow. Attachment type should be confirmed before ordering because attachment weight, hydraulic demand and load center affect the final working configuration.
Pallet Forks
Send pallet dimensions, load center and maximum lifted weight.
Bucket Applications
Send material type, density and required bucket capacity.
Other Hydraulic Tools
Confirm tool weight and hydraulic interface before final machine configuration.
Powertrain
Cummins QSB3.9 Power for the 5 Ton Class
The listed QSB3.9-C110-30 diesel engine produces 81 kW at 2,200 rpm and maximum torque of 480 N·m at 1,600 rpm.
The published engine configuration is National Standard III. Buyers should confirm destination-market emission requirements before placing an order.
Terrain & Mobility
Off-Road Tires with Rear Axle Articulation
The machine uses 16.70-24 off-road tires and a rear axle frame with 5-degree swing.
Ground firmness, gradients, travel route and turning area should still be supplied during model selection.
Model Comparison
Choose Reach According to the Highest Working Point
5 Ton / 7.2 m
Prioritize rated capacity and moderate reach for regular outdoor material handling.
5 Ton / 10 m
Move to the 10 m class when the same project requires a higher placement point.
5 Ton / 12 m
Consider the 12 m class when vertical reach becomes a primary selection requirement.
Quotation Checklist
Send the Operating Conditions Before Pricing
1
Load
Maximum weight, dimensions and load center.
2
Reach
Highest lifting point and forward distance.
3
Site
Ground surface, slope and access conditions.
4
Order
Quantity, destination and attachment needs.
Related Equipment & Support
Continue Model and Supplier Evaluation
Telehandler Range Compare lifting capacity and reach across Xinghao telehandler models. 4 Ton Telehandler Compare a lower-capacity telehandler for lighter material handling duties. 7 Ton Telehandler Compare a heavier-capacity option when loads exceed the 5-ton class. 10 Ton Telehandler Review higher-capacity equipment for heavy industrial material handling. After-sales & Parts Review service and replacement-parts support. Company Profile Review company and equipment manufacturing information. Construction & Mining Review equipment for demanding outdoor construction environments. Contact Xinghao Send technical and purchasing requirements.
FAQ
5 Ton Telehandler Buying Questions
What is the rated lifting capacity of this 5 ton telehandler?
The published rated capacity is 5,000 kg. Actual permissible load depends on boom position, load center and attachment.
What is the maximum lifting height?
The published maximum lifting height is 7.2 meters.
What is the maximum horizontal reach?
Maximum published horizontal reach is 3.93 meters. Working load at extension should be confirmed for the actual job.
Which engine is used in the 5 ton telehandler?
The current specification lists a Cummins QSB3.9-C110-30 diesel engine rated at 81 kW at 2,200 rpm.
Should I choose the 7.2 m or 10 m 5 ton model?
Choose according to the required lifting height and horizontal placement distance. The 7.2 m machine suits moderate-height work, while the 10 m model should be considered when greater vertical reach is required.
What should I send when requesting a quotation?
Provide maximum load weight, load center, required lifting height and reach, attachment type, ground conditions, quantity and destination country.
Confirm Whether 7.2 m Reach Fits Your Job
Send the maximum load, required lifting height, forward reach, load center, attachment, worksite conditions, quantity and destination country. These details allow the correct telehandler configuration to be checked before quotation.
