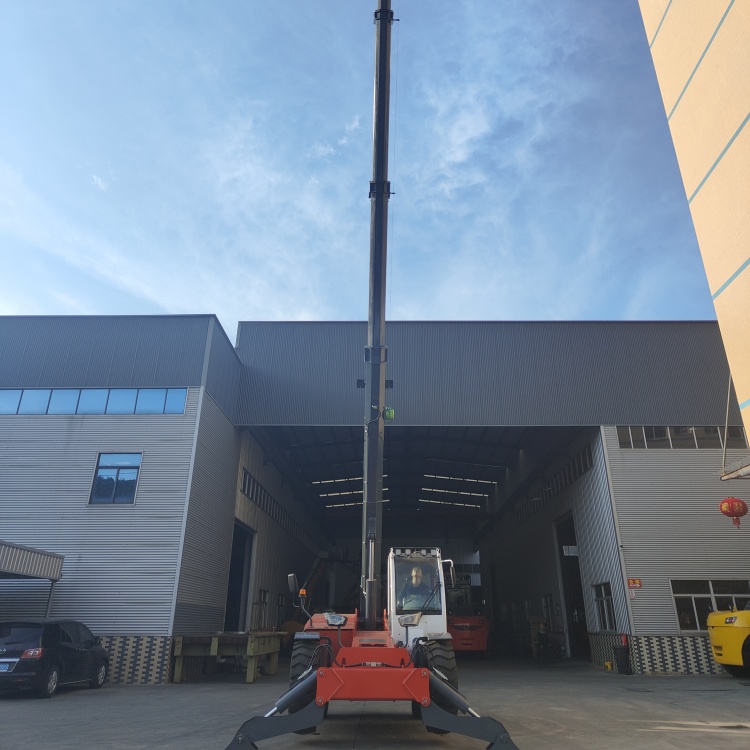

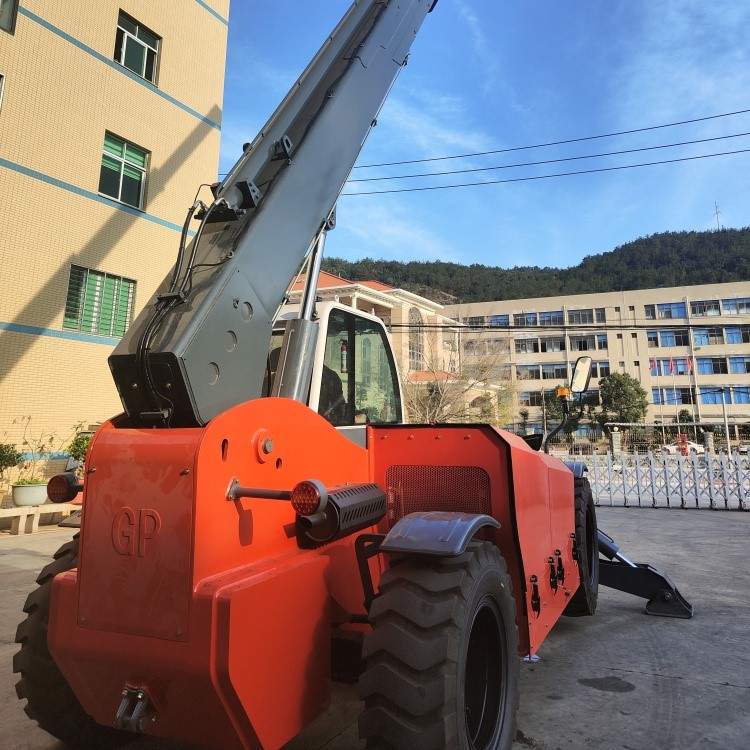

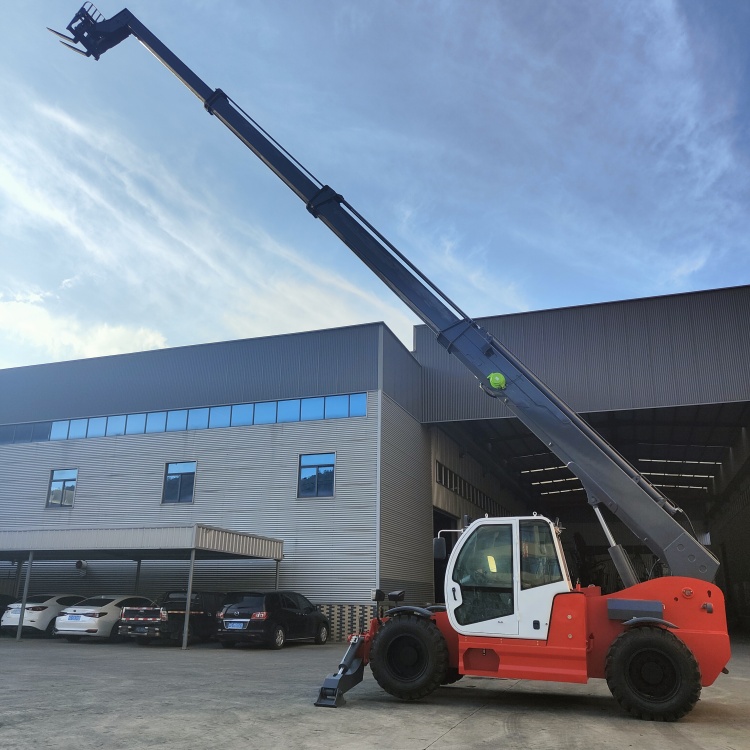

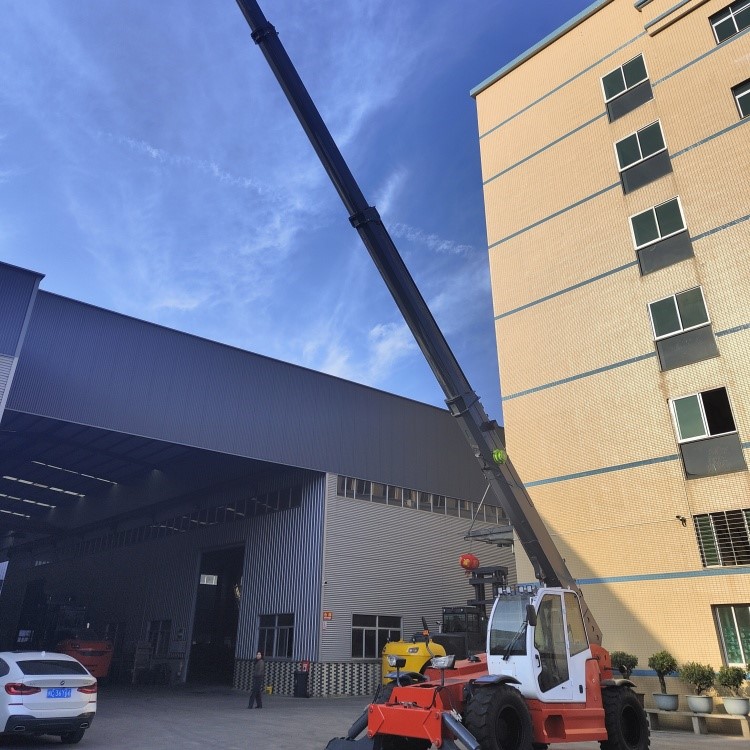

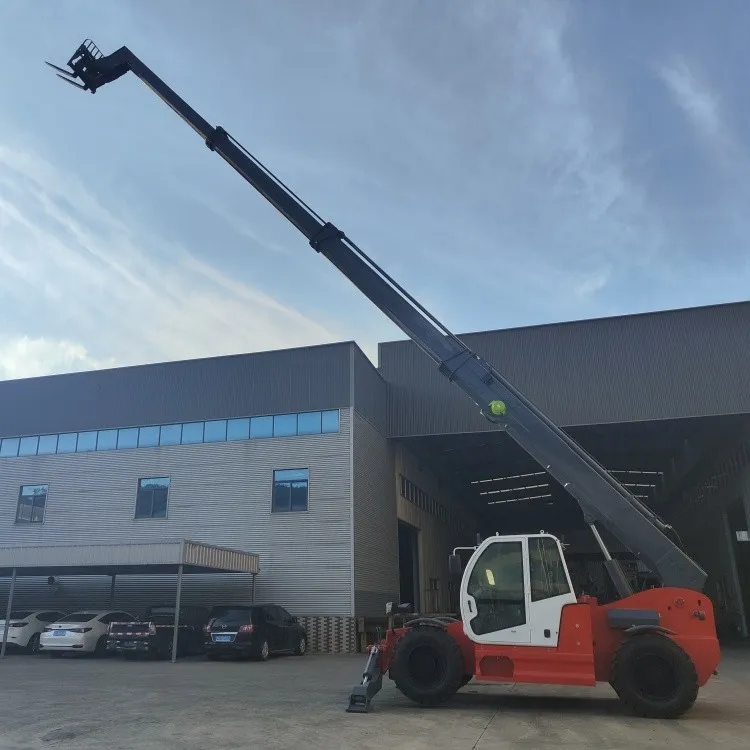

5 Ton 18 m Telehandler

Name: China 5 Ton 18 m Telehandler Suppliers and Factory - Good Price 5 Ton 18 m Telehandler - Xinghao Forklift
Brand: XingHao
SKU: 266085992

XINGHAO 5 Ton 18 M Telescopic Handler (5018): High - Reach Excellence for Heavy - Duty Operations
5 Ton Telehandler with 18m Lifting Hight Digging Bucket for Europe

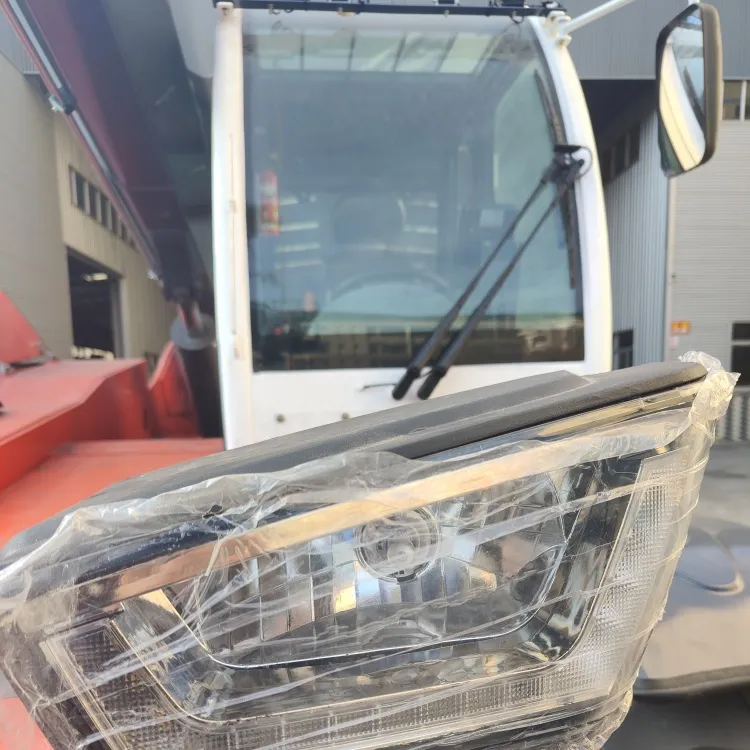

It is equipped with 4-section telescopic boom with a luxury cab with LED lights/window-breaking hammer/fire extinguisher/rear sliding window/10-inch driving + reversing image/rear + right front camera, electronically controlled travel, automatic leveling of forks, load-sensitive multi-valve electric proportional control system, 440/80R24 tubeless tires, single-bridge load of 18 tons for gas brake bridge, special forklift overall high-speed and low-speed gearbox, four-wheel drive, front-wheel steering + four-wheel steering + crab-walking three steering modes, plate-fin radiator, front and rear adjustable large-shell instrument steering wheel, color LCD display, multimedia, torque limiting system, adjustable luxury seat, hydraulic quick change, heating and cooling air conditioning, rubber six hose (with sheath), frame 355 manganese plate, telescopic arm material BS1000 high-strength manganese plate, load 5 tons, 1220mm sliding fork, lifting 18 meters, frame tilt function, with outriggers.

5 tons 18 m telehandler,
*with load limiter,
*with cummins stage 3 engine,
*with Self-leveling forks,
*with Cab with air-conditioned and heating, fan.
*with swings rear axle,
*with Closed hydrostatic system,
*with extra hydralic Pipe / valva for attachment,
*with Off-road tires 24.
*with adjustable seat,
*with cover for cab glass,
*with hydralic wet axle
*full electric control

Send Inquiry

Description

Key Features & Attachments

What is a Telehandler Forklift?

Telehandler forklift namely telescopic forklift or telehandler, is a multi-purpose forklift with off-road performance and telescopic arm.They feature the following three steering modes to meet various maneuverability requirements.

►Two-wheel steer is perfect for roading

►Four-wheel steer provides great manoeuvrability in tight spaces

►Crab steer is designed to edge your telehandler either close to or away from walls

Video Description

Technical Specifications

Parameter	Value
Rated Load	5,000 kg
Max Lifting Height	17.9 m
Max Horizontal Reach	14.4 m
Engine	Cummins QSB3.9 - C125 - 30
Power	92 kW @ 2,200 RPM
Transmission	Hydrostatic
Max Speed	40 km/h
Tire Size	16.70 - 24 Off - Road
Weight	12,800 kg
Hydraulic Oil Tank	180 L
Diesel Tank	160 L

Performance Advantages

NO.	Items		Parameters
NO.	Items		5018
1.	Outline dimension	Length ( m m )	6530
2.		Width ( m m )	2380
3.		Height ( m m )	2485
4.	Dead weight (kg)		12800
5.	Wheelbase ( m m )		2900
6.	Capacity Kg		5000
7.	Max Lifting Height (mm)		17925
8.	Maximum height weight(kg)		2800
9.	Maximum full extension distance(mm)		14365
10.	Maximum lifting capacity at full extension(kg)		1100
11.	Hydraulic system flow (1/min)		145
12.	Hydraulic fuel tank capacity (L)		180
13.	Engine	Brand	Cummins
14.		Model	QSB3.9-C125-30
15.		Emission	National III
16.		Power (kw@rev)	92/2200
17.		Torque(N@rev)	480/1600
18.	Maximum mobile speed (kmh)		40
19.	Grade ability ((% )		30%
20.	Departure angle(°)		30
21.	Swing angle of axle frame (°)		8
22.	Tire specification		16.70-2 or 16.70-24
23.	Landing clearance		Min.400 mm
