Product Overview
The 4 ton 12 m telehandler is built for jobs where a conventional forklift simply cannot reach. On construction sites or agricultural yards, materials often need to be lifted over obstacles or placed at height. A telescopic boom makes that possible while keeping the machine compact enough to move easily around the jobsite.
This model combines lifting strength with a stable chassis and four-wheel drive. Operators can move loads across rough ground and still maintain precise control when positioning materials on scaffolding, platforms, or storage racks.
For equipment buyers planning fleets or supplying machinery to projects, working with a reliable telehandler manufacturer ensures consistent quality and long-term parts support.
Main Features
Extended Reach for Elevated Work
A 12-meter lifting height allows operators to place materials at upper floors or elevated work areas. It reduces the need for additional lifting equipment on many job sites.
Built for Rough Ground
The machine uses a four-wheel drive layout with large off-road tyres, giving it good traction on gravel, soil, and uneven construction surfaces.
Stable Hydraulic Control
The hydraulic system delivers smooth boom extension and lifting control, which is important when handling palletized materials or heavy construction supplies.
Strong Structural Frame
A reinforced chassis and telescopic boom provide the rigidity needed for regular heavy-duty use in industrial environments.

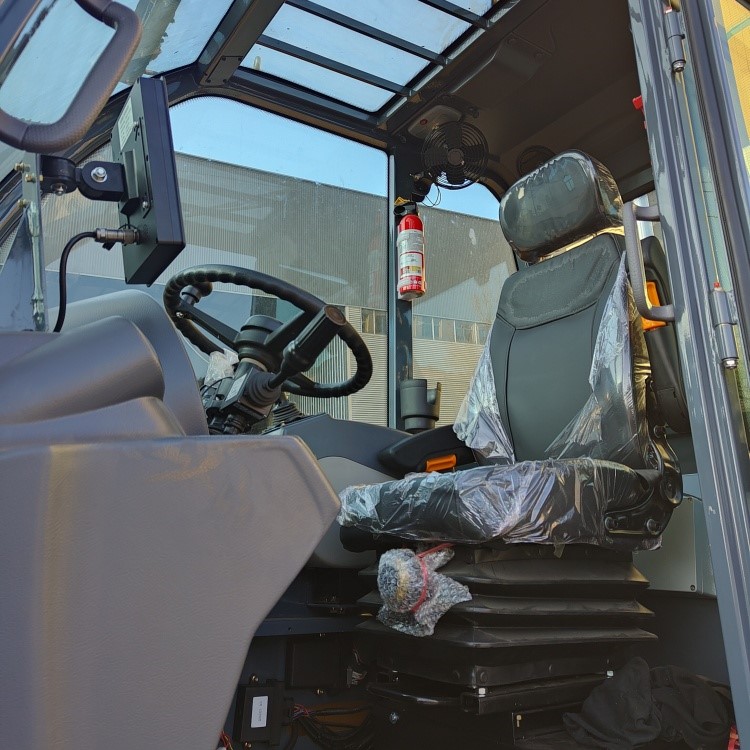

Operator Visibility
The cab design offers clear forward and upward visibility so operators can monitor load placement more easily.
Technical Specifications
- Rated Load Capacity: 4,000 kg
- Maximum Lift Height: 12,000 mm
- Maximum Forward Reach: approx. 7,400 mm
- Overall Length (without forks): approx. 6,100 mm
- Overall Width: approx. 2,260 mm
- Overall Height: approx. 2,540 mm
- Wheelbase: approx. 3,300 mm
- Ground Clearance: approx. 400 mm
- Operating Weight: approx. 10,500 kg
- Engine: diesel engine (Yuchai or Cummins option)
- Rated Power: approx. 92 kW
- Transmission: hydraulic transmission system
- Maximum Travel Speed: approx. 30 km/h

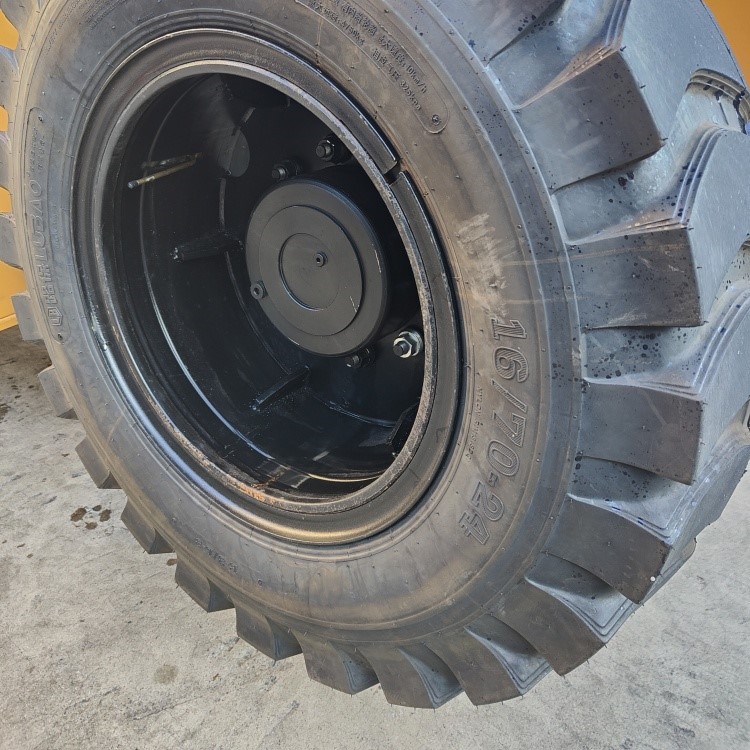

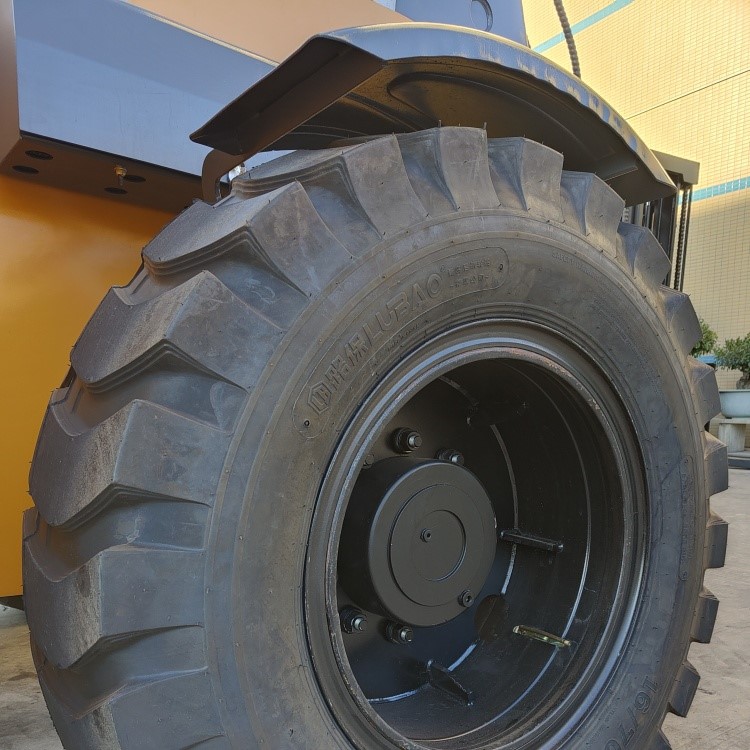

- Tyres: heavy-duty off-road tyres 16/70-24
Typical Applications
The 4 ton 12 m telehandler is commonly used in environments where reach and terrain capability are both required.
Construction projects often rely on telehandlers to move palletized materials such as bricks, cement, and steel components to elevated working areas.
Agricultural operations use the machine for loading hay bales, feed bags, and farm supplies.
In industrial storage yards, it is useful for stacking large materials and loading trucks where traditional forklifts cannot reach.
For companies expanding equipment fleets, our team also supports bulk telehandler purchase planning so machines can be delivered with consistent configuration and spare parts availability.
Working With a Reliable Supplier
Selecting a telehandler is not only about lifting capacity. Buyers also consider long-term serviceability and parts availability.
As an experienced telehandler supplier, we support international distributors, equipment dealers, and project contractors with stable manufacturing and technical assistance.
For contractors sourcing multiple units for projects or equipment rental businesses, we can arrange bulk telehandler purchase options with coordinated production and delivery schedules.
With outrigger
Without outrigger
|
Name of performance project |
Performance or parameters |
Remarks |
|||
|
Outline dimension |
Length (mm) |
6550 |
Remove the pallet fork |
||
|
Width (mm) |
2380 |
||||
|
Height (mm) |
2485 |
|
|||
|
Dead weight (kg) |
10000 |
||||
|
Hydraulic system pressure (MPa) |
30 |
||||
|
Hydraulic system flow (l/min) |
145 |
||||
|
Hydraulic fuel tank capacity (l) |
150 |
||||
|
Engine |
Model |
Cummins QSB3.9-C125- 30 |
National Standard 3 |
||
|
Power (kw@rev) |
93/2200 |
||||
|
Torque (N@rev) |
480/1600 |
||||
|
Maximum mobile speed (km/h) |
25 |
||||
|
Gradeability (º) |
30% |
||||
|
Departure angle (º) |
33 |
||||
|
Swing angle of rear axle frame (º) |
5 |
||||
|
Tire specification |
16.70-24 |
||||
