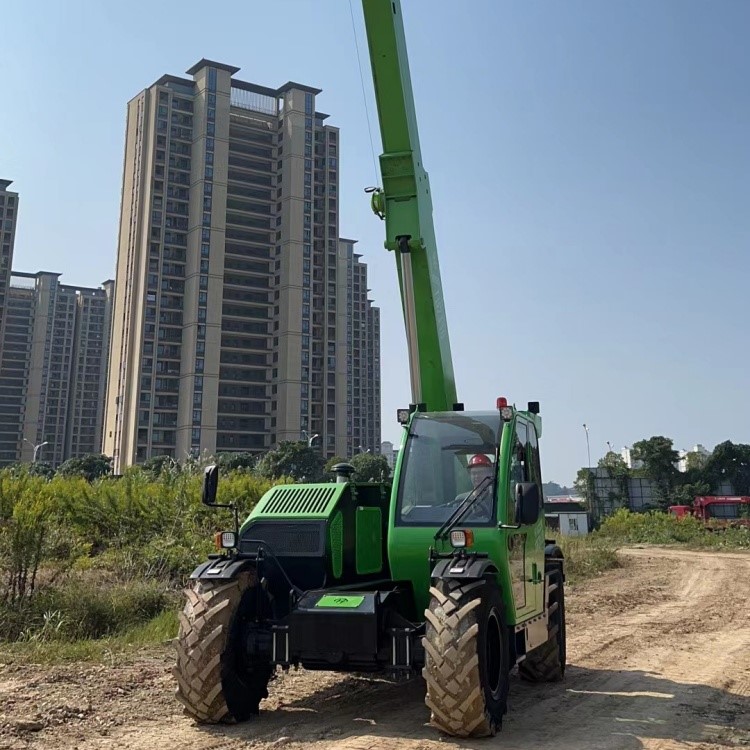

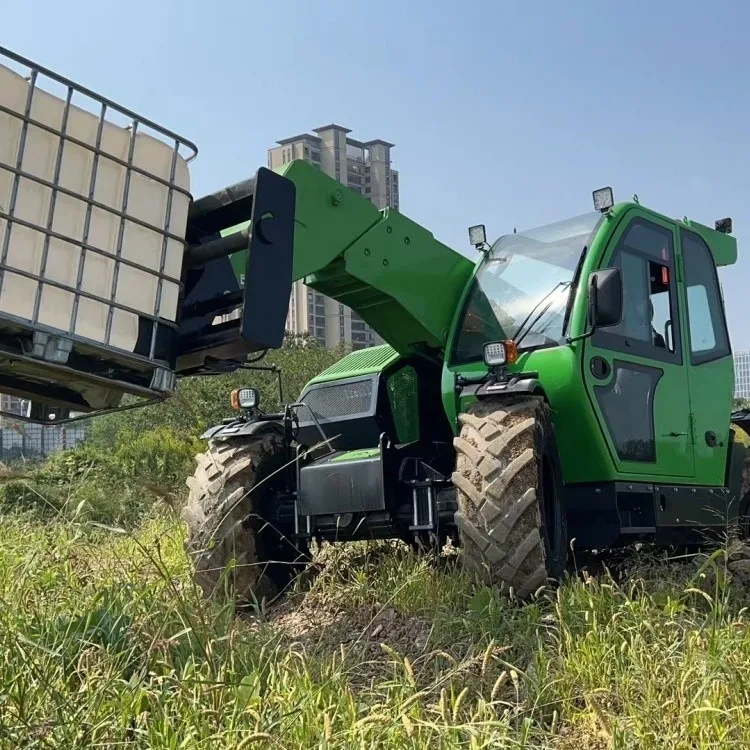

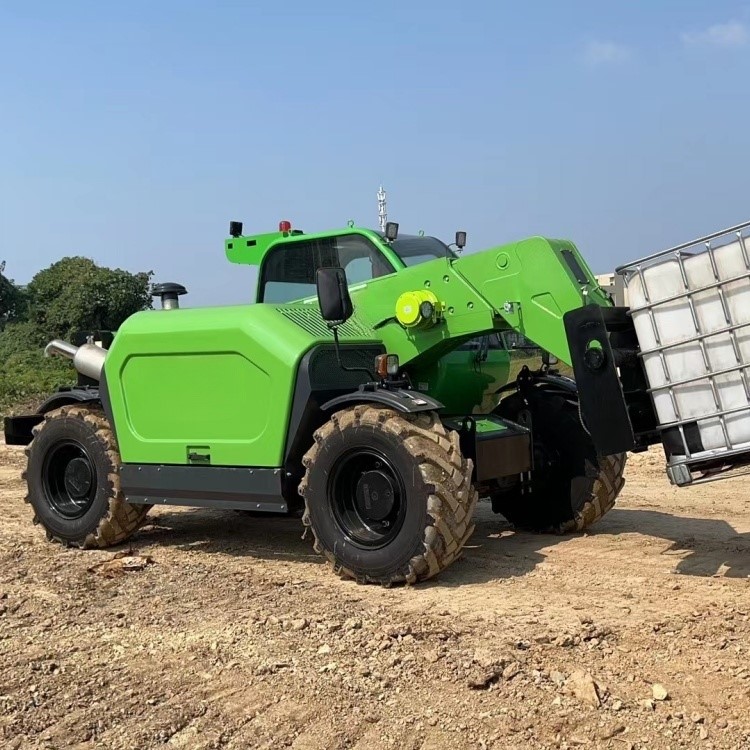

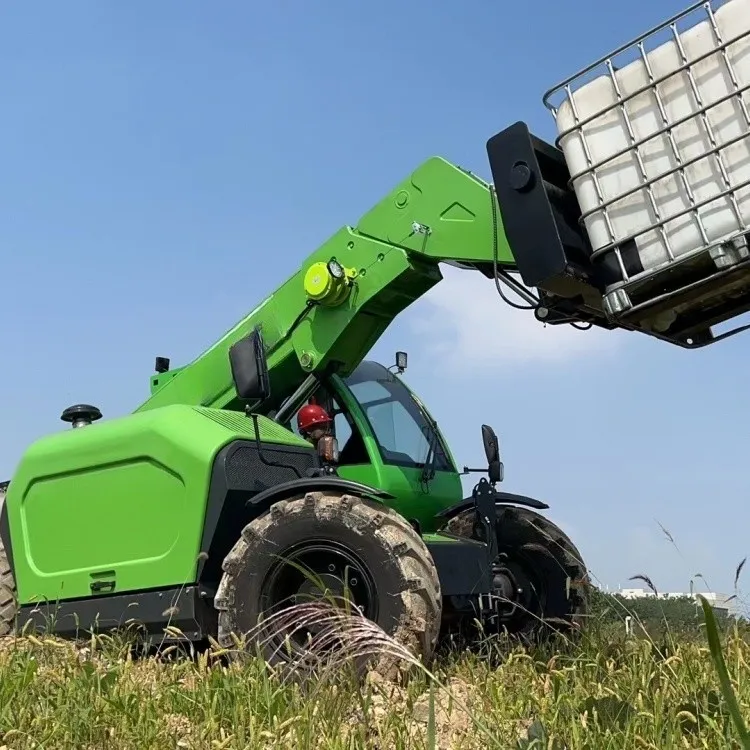

Main Features and Attachments of 10ton 7m new telescopic forklift
The 10 Ton Telescopic Handler comes with a variety of interchangeable attachments that can be quickly swapped to adapt to different tasks:
- Hydraulic Bucket (3.0m³): This attachment is great for handling bulk materials in the agricultural and construction industries. It can be used to load grains, soil, sand, and gravel. The self - leveling feature ensures accurate and stable material handling in farms and construction sites.
- Self - Leveling Forks: Specifically designed for warehouse and logistics operations, these forks can safely stack pallets, steel beams, and construction materials with a 10 - ton capacity.
- Rotating Work Platform (ISO Certified): Turn the machine into a mobile aerial work platform with this attachment. It allows personnel to perform maintenance, inspections, or installations at heights of up to 9.6 meters.
- Hydraulic Clamp: Engineered for the stone - processing industry, this clamp can securely grip and transport heavy stone slabs, marble, and concrete blocks.
- Snow Plow/Brush: Ideal for winter maintenance, these attachments can quickly clear snow and debris from roads, parking lots, and industrial areas.
Video Description
Common Applications of 10 ton telescopic forklift
- Construction: It can be used to transport heavy steel beams to elevated construction sites, assist in roofing projects, and handle precast concrete panels.
- Mining: The machine can safely operate in narrow mine shafts and load/unload heavy mining equipment.
- Logistics: It streamlines the process of stuffing and unstuffing containers in ports and distribution centers.
Technical Specifications of 10 ton telehandler for sale
|
Parameter |
Value |
|
Rated Load |
10,000 kg |
|
Max Lifting Height |
9.6 m |
|
Max Horizontal Reach |
5.0 m |
|
Engine |
Cummins QSB4.5 (97 kW) |
|
Transmission |
Hydrostatic |
|
Max Speed |
40 km/h |
|
Tire Size |
18 - 24 Off - Road |
|
Weight |
13,500 kg |
|
Hydraulic Oil Tank |
200 L |
|
Diesel Tank |
160 L |
Performance Benefits
|
Name of performance project |
Performance or parameters |
Remarks |
||
|
Outline dimension |
Length (mm) |
6560 |
Remove the pallet fork |
|
|
Width (mm) |
2550 |
|||
|
Height (mm) |
2965 |
|||
|
Dead weight (kg) |
13500 |
|||
|
Hydraulic system pressure (MPa) |
26 |
|||
|
Hydraulic system flow (l/min) |
145 |
|||
|
Engine |
Model |
QSB4.5(97kw,130HP) |
National Standard III |
|
|
Power (kw@rev) |
97/2200 |
|||
|
Torque (N@rev) |
480/2200 |
|||
|
Maximum mobile speed (km/h) |
40 |
|||
|
Gradeability (º) |
32% |
|||
|
Departure angle (º) |
33 |
|||
|
Swing angle of rear axle frame (º) |
8 |
|||
|
Tire specification |
18-24 |
|||
|
Hydraulic oil tank |
200 L |
|||
|
Diesel oil tank |
160 L |
|||
|
Hydraulic pump type |
Gear Pump for power steering and movements |
|||
|
Boom lifting Speed |
15.1 s |
|||
|
Boom Extension Speed |
10.4 s |
|||
Outstanding Maneuverability
4WD & 4WS Steering: The four - wheel drive and four - wheel steering provide stability on uneven terrain, while the crab mode allows for tight turns in confined spaces.
Adjustable Swing Axles: With ±8° articulation, the machine offers better off - road performance.
Advanced Hydraulics
Closed Hydrostatic System: This system is energy - efficient and uses load - sensing technology to ensure smooth lifting and lowering operations.
Hydraulic Wet Axles: They are durable and require little maintenance, even in harsh conditions.
Operator Comfort
Air - Conditioned Cab: The spacious cab has panoramic visibility, Bluetooth connectivity, and ergonomic controls to reduce operator fatigue.
Adjustable Seat & Steering Wheel: These features are designed to provide maximum comfort during long working hours.
Reasons to Choose XINGHAO 10 Ton Telescopic Handler
- Cost - Effective: It has a competitive 10 Ton Telehandler Price and low fuel consumption, ensuring a long service life and good return on investment.
- Factory - Direct Quality: As a leading 10 Ton Telehandler Factory, we maintain strict quality control and offer customizable solutions to meet your specific needs.
- Global Support: We have a wide network of 10 Ton Telehandler Suppliers worldwide, providing reliable after - sales service.
Industry Applications
- Agriculture: It can efficiently handle large hay bales, load silos, and distribute livestock feed.
- Construction: The machine is suitable for transporting materials to elevated work sites, supporting steel erection, and handling heavy - duty masonry tasks.
- Mining: It can safely navigate underground tunnels and handle explosives or mining equipment.
- Energy: It is used for installing wind turbine components and maintaining solar panel arrays.
In - Depth Technical Analysis
Structural Design of 10 ton telehandler factory
Heavy - Duty Boom: Made from high - strength steel, it ensures maximum durability and stability during operations.
Counterweight System: This system optimizes weight distribution, allowing for safe lifting even at full extension.
Engine and Transmission
Cummins QSB4.5 Engine: It delivers 97 kW of power and 480 N·m of torque, ensuring reliable performance in various applications.
Hydrostatic Transmission: It provides smooth and infinitely variable speed control for precise maneuvering.
Hydraulic System
Closed - Loop Circuit: This circuit reduces energy loss and ensures consistent performance, even when the machine is under load.
Load - Sensing Pump: It automatically adjusts the flow and pressure according to the task requirements.
Safety Features of 10 ton telehandler supplier
Load Limiter: This feature prevents overloading and alerts operators when unsafe conditions are detected.
Anti - Roll Over Protection: It ensures the stability of the machine during elevated operations.
Competitive Advantages
Rapid Cycle Times: With a boom lifting speed of 15.1 seconds and an extension speed of 10.4 seconds, it increases productivity.
Low Ground Pressure: This feature reduces soil compaction, making it suitable for use in agricultural settings.
Modular Design: It allows for easy maintenance and quick replacement of components, minimizing downtime.
Contact Us Today to get a customized quote or to learn more about how the XINGHAO 10 Ton Telescopic Handler can enhance your operations.
