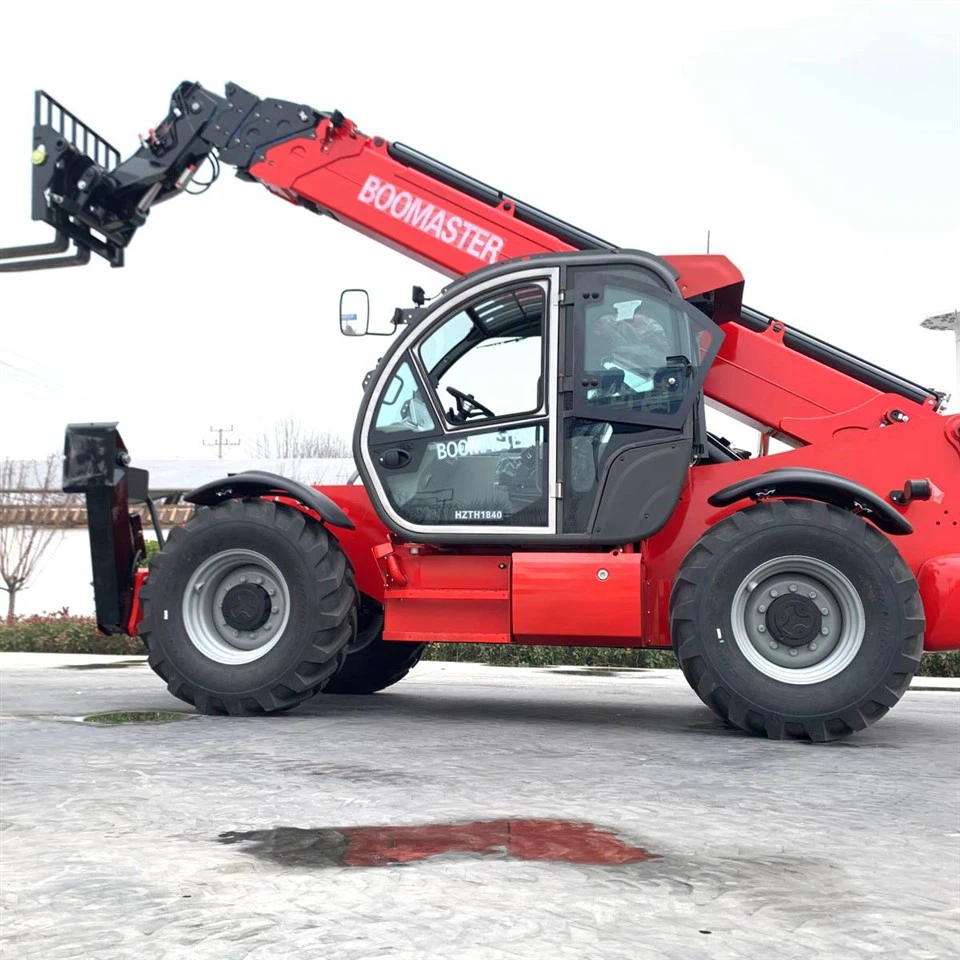

4 Ton Telehandler 13.5m Lift Height
Hoisting heavy building materials to a four-story vertical height introduces severe physical risks. When extending a boom to 13.5 meters, the machine's center of gravity shifts radically forward, transforming minor ground variations into critical tipping hazards. Engineered to neutralize these high-altitude operational risks, the 4 Ton Telehandler 13.5m Lift Height is fundamentally designed around static stability. By integrating heavy-duty front outriggers (stabilizer legs) and a frame tilting function (±9°), operators can physically anchor the chassis to the ground, ensuring a rigid, level lifting platform even on heavily graded or uneven construction sites.
Cummins Torque and Carraro Drivetrain Integration
Moving a massive chassis across broken terrain requires an engine that resists bogging down under sudden hydraulic demand. This unit is equipped with the Euro III Cummins QSB3.9-C110 diesel engine, producing a reliable 81 KW of power.
To translate this power into physical movement, the drivetrain relies entirely on Carraro components. It utilizes a Carraro heavy-duty wet brake axle and a Carraro high-low speed transmission, achieving a maximum controlled travel speed of 30 km/h. Navigating tight industrial yards is managed through three selectable steering modes (front-wheel, four-wheel, and crab movement) alongside an external turning radius of 4.2 meters. With 0.43 meters of ground clearance, the undercarriage easily clears mud, debris, and steep ramps.
Our Product
Liebherr Hydraulic Control for High-Reach Accuracy
At maximum extension, a poorly calibrated hydraulic system will cause the boom to bounce, endangering personnel and structural steel below. To guarantee millimeter-level precision, this chassis discards standard gear pumps in favor of a closed hydraulic system driven by a Liebherr piston pump and Liebherr variable motor.
This high-end configuration, managed by a load-sensitive multi-way valve electro-hydraulic control system, allows for incredibly precise load placement. Even when operating at the absolute maximum outreach of 9.5 meters, the hydraulic pressure remains constant and controllable. The boom geometry and outrigger deployment allow the machine to retain a 3000 kg lift capacity at maximum height, and a 1650 kg capacity at maximum forward reach-critical metrics for heavy infrastructure projects.
Operator Safety and Load Monitoring
Operating at 13.5 meters requires absolute confidence from the driver. The fully enclosed luxury cabin acts as a command center, featuring an integrated torque limiting system. This computer constantly monitors the boom angle, extension length, and payload weight, providing visual and auditory warnings through the 10-inch color LCD display before the machine ever reaches its physical tipping point.
The hydraulic circuits are secured with imported Michelin hoses clad in protective sheaths to prevent burst failures under extreme pressure. Furthermore, a controllable speed automatic reverse-blowing cooling fan and a plate-fin radiator prevent engine and hydraulic oil overheating during continuous, multi-shift lifting operations.
B2B Procurement from Direct China Suppliers
Acquiring specialized high-reach equipment through third-party distributors significantly increases your total cost of ownership. By partnering with direct China suppliers, fleet managers eliminate these unnecessary retail layers. You deal directly with our factory engineering team, ensuring every chassis meets your specific site requirements. For operations that also require lower-level material handling, our assembly lines simultaneously produce the 3.5 Ton Telescopic Forklift 7m Reach to standardize your heavy equipment fleet. This direct B2B model guarantees transparent pricing, immediate access to authentic OEM spare parts, and straightforward technical support.
