Advantages and Highlights
* Powerful international brand engines. Special CARRARO transmissions and axles for smooth drive.
* The international top-level full-hydraulic wet brake system features stable and reliable braking and guarantees driving safety.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* The frame leveling function equipped (The body is capable of 10º swing in both leftward and rightward directions) realizes powerful site adaptability and meets the needs of diversified working conditions.
* Optional aerial working platform, bucket and various tools to meet customer needs.

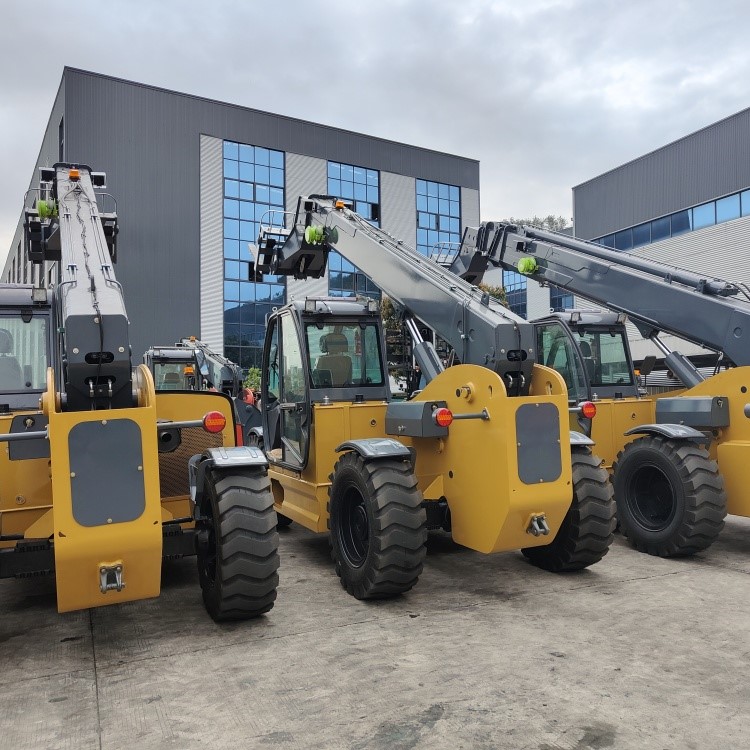

4.5 tons 10 m telehandler & 4.5 ton 10 m telescopic forklift
*With load limiter
*With Cummins National III engine

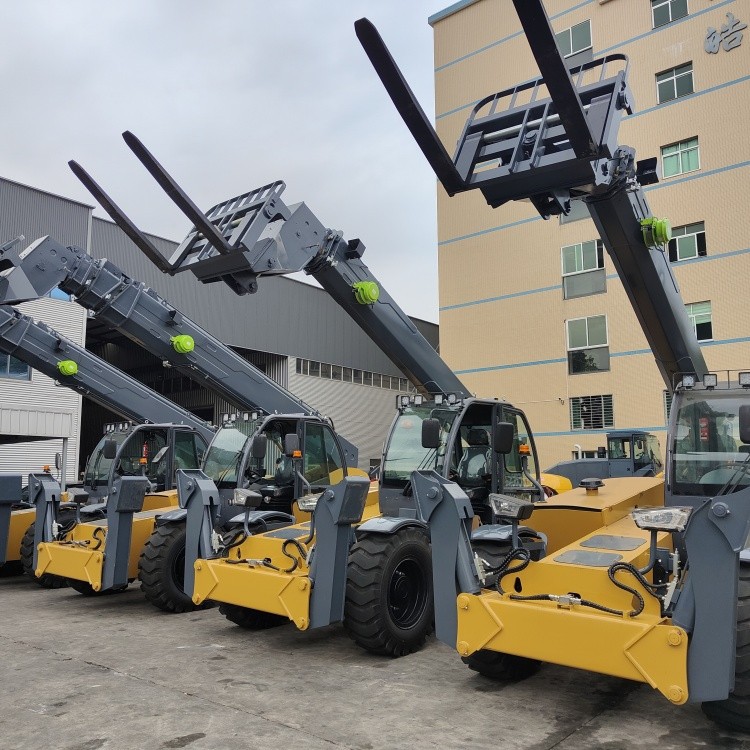

*With Self-leveling forks

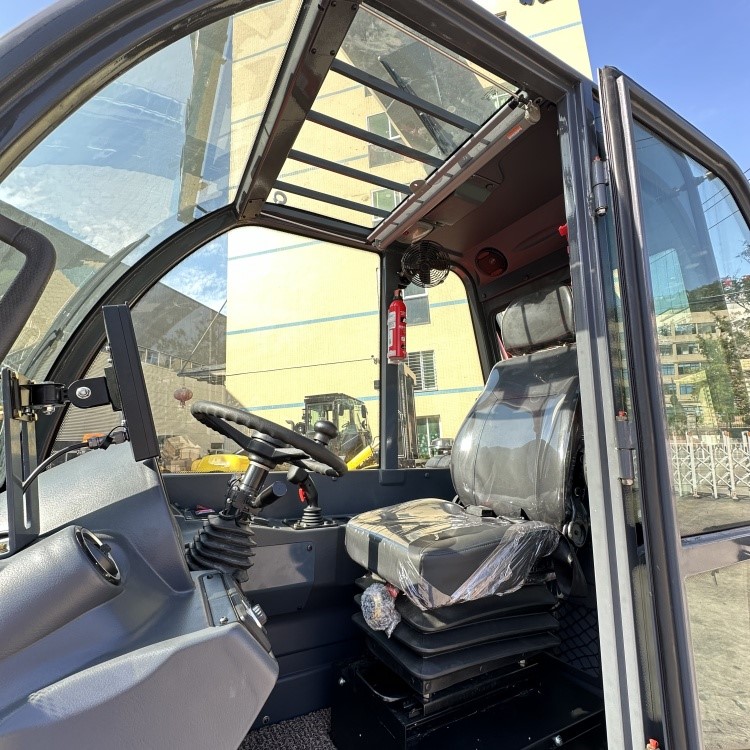

*Cab with air-conditioned and heating, fan
*The swings rear axle
*Closed hydrostatic system
*Engine and hydralic system preheat
*Extra hydralic Pipe / valva for attachment
*With Off-road tires 24.
*Adjustable seat

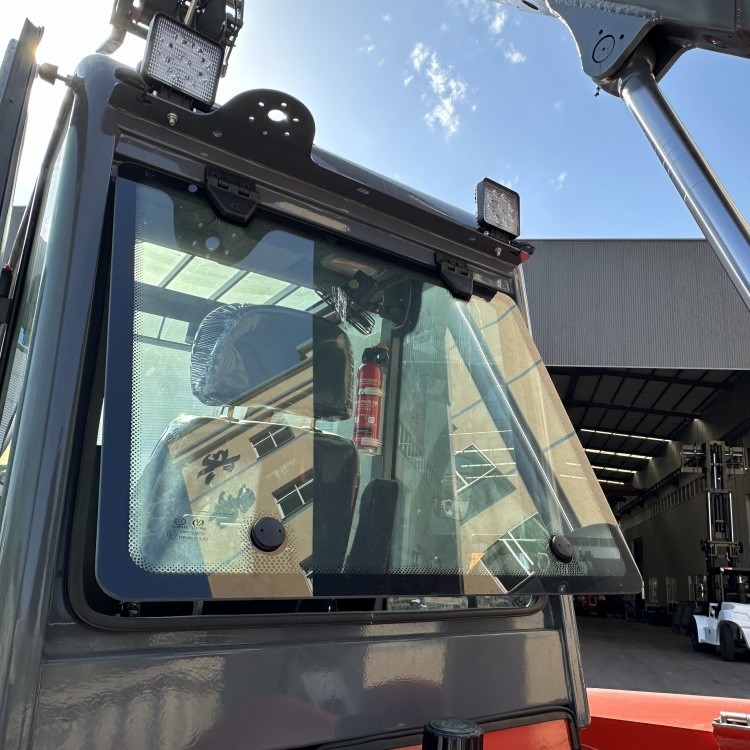

*Cover for cab glass
*Hydralic wet axle
*40KM transmission
Video Description
Technical Specifications from 4.5 ton 10 m telehandler supplier
|
Parameter |
Value |
|
Rated Load |
4,500 kg |
|
Max Lifting Height |
10 m |
|
Max Horizontal Reach |
6.38 m |
|
Engine |
Cummins QSB3.9 - C110 - 30 |
|
Power |
81 kW @ 2,200 RPM |
|
Transmission |
Hydrostatic |
|
Max Speed |
40 km/h |
|
Tire Size |
16.70 - 24 Off - Road |
|
Weight |
8,850 kg |
|
Hydraulic Oil Tank |
145 L |
|
Diesel Tank |
160 L |
Performance Advantages
|
Name of performance project |
Performance or parameters |
Remarks |
|||
|
Outline dimension |
Length (mm) |
4935 |
Remove the pallet fork |
||
|
Width (mm) |
2380 |
||||
|
Height (mm) |
2510 |
|
|||
|
Dead weight (kg) |
8850 |
||||
|
Hydraulic system pressure (MPa) |
28 |
||||
|
Hydraulic system flow (l/min) |
110 |
||||
|
Hydraulic fuel tank capacity (l) |
145 |
||||
|
Engine |
Model |
QSB3.9-C110-30 |
National Standard III |
||
|
Power (kw@rev) |
81/2200 |
||||
|
Torque (N@rev) |
480/1600 |
||||
|
Maximum mobile speed (km/h) |
40 |
||||
|
Gradeability (º) |
40% |
||||
|
Departure angle (º) |
33 |
||||
|
Swing angle of rear axle frame (º) |
5 |
||||
|
Tire specification |
16.70-24 |
||||
|
Lifting height (mm) |
9970 |
||||
|
Lifting capacity at height 9970 |
1950 |
||||
|
Max. extention |
6380 |
||||
