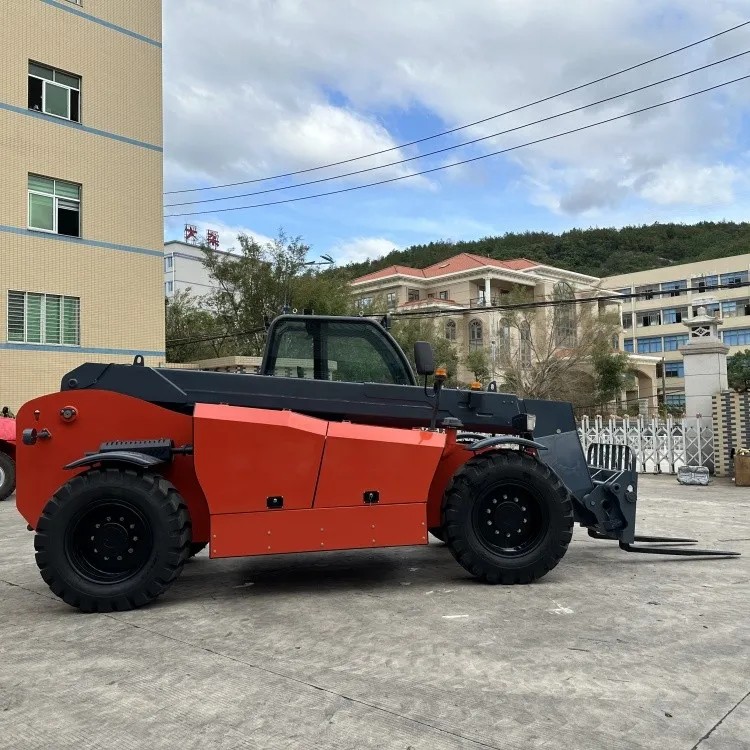

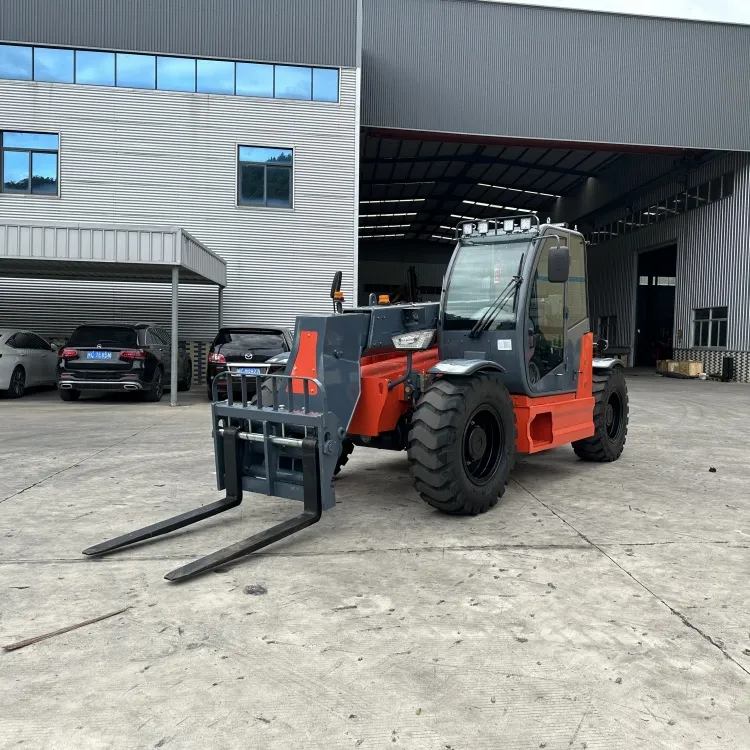

A Versatile 3.5 Ton Telehandler for Everyday Job Sites
Not every job requires a large machine. In many cases, what contractors and operators need is a machine that can move easily, handle different materials, and work reliably day after day.
This 3.5 Ton Telehandler is designed for that purpose. It offers enough lifting capacity for most palletized goods and construction materials, while remaining compact enough to operate in confined areas.
For buyers managing mixed applications-construction, agriculture, or yard handling-this type of machine is often chosen as a practical alternative to both forklifts and small loaders.
A Balanced Choice Between Capacity and Mobility
Machines in the 3–4 ton range are widely used because they strike a workable balance:
- Sufficient capacity for most daily handling tasks
- Lower operating and transport costs compared to larger units
- Easier operation, especially in smaller job sites
With a lifting height of around 7 meters, this 3.5 ton telescopic handler is suitable for:
- Material placement on low-rise buildings
- Loading and unloading in agricultural environments
- General yard handling and stacking
It is not designed for extreme lifting, but for consistent, efficient daily use.
Design Focus: Simplicity and Reliability
From a technical standpoint, this model avoids unnecessary complexity and focuses on durability.
- Hydrostatic transmission system
- Provides smooth control, especially at low speeds during positioning
- Rear axle oscillation design
- Improves stability when working on uneven ground
- Self-leveling forks
- Maintain load balance when lifting to height
- Closed hydraulic system
- Reduces contamination risk and simplifies maintenance
- Quick attachment interface
- Allows fast switching between different working tools
These are the aspects that typically matter more than specifications on paper when the machine is used daily.
Multi-Attachment Capability
One of the key reasons buyers choose a telehandler is flexibility.
This model supports a range of attachments, including:
- Forks for pallet handling
- Buckets for bulk materials
- Clamps for irregular loads
- Work platforms for elevated operations
For contractors and equipment owners, this means one machine can cover multiple tasks, reducing the need for additional equipment.
Technical Specifications
- Rated Load Capacity: 3,500 kg
- Maximum Lifting Height: 7.2 m
- Maximum Forward Reach: 3.93 m
- Operating Weight: 7,050–7,350 kg
- Engine: Cummins QSB3.9-C100-30
- Rated Power: 74 kW @ 2200 rpm
- Max Torque: 480 Nm @ 1600 rpm
- Transmission: Hydrostatic
- Maximum Travel Speed: 25–32 km/h
- Hydraulic System Pressure: 30 MPa
- Hydraulic Flow: 145 L/min
- Fuel Tank Capacity: 120 L
- Tire Size: 16/70-20 or 16/70-24 pneumatic
- Overall Dimensions: approx. 5000 × 2220 × 2410 mm
Typical Applications
This compact telehandler is commonly used in:
Construction sites
- Transporting bricks, pallets, and building materials
- Supporting low-rise structure work
Agriculture
- Feed handling and loading
- Bale transport
- General farm operations
Yards and warehouses
- Material stacking
- Equipment loading and unloading
It is especially useful where both reach and maneuverability are required.
What Buyers Usually Consider
From a purchasing perspective, this type of machine is often selected for:
- Fleet standardization
- Rental business expansion
- Multi-purpose equipment replacement
The main reasons include:
- Straightforward mechanical structure
- Widely available spare parts
- Lower total cost of ownership over time
Rather than focusing on maximum performance, buyers typically choose it for reliability and consistent usage.
The 3.5 Ton Telehandler is built for users who need a dependable and flexible machine rather than maximum capacity. It performs well across a range of everyday tasks and is easy to integrate into existing equipment fleets.
For most small to mid-scale operations, it provides a practical balance between cost, capability, and usability.
