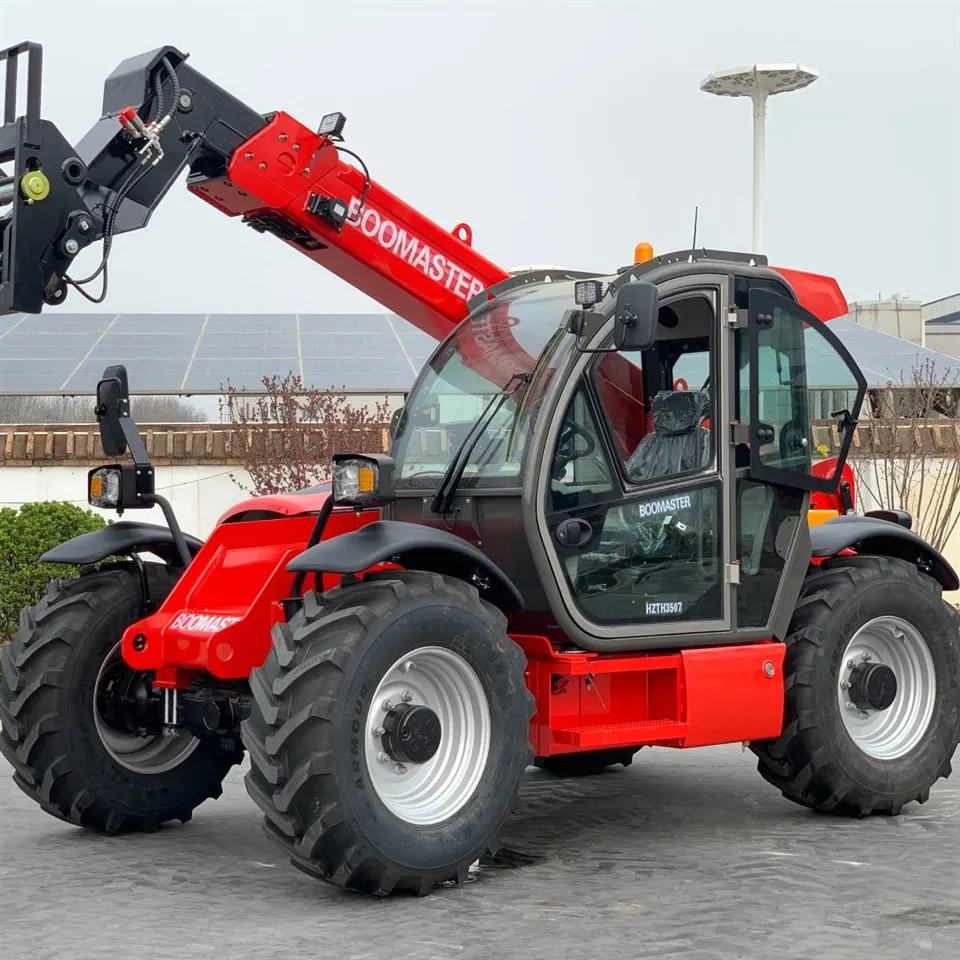

7m Lifting Height Telescopic Handler Heavy Duty
Lifting a 3500 kg payload to a vertical height of 7.0 meters fundamentally alters the mechanical leverage of any material handling machine. As the boom extends, the load's center of gravity shifts drastically toward the front axle. Attempting this lift on unpaved construction sites causes standard counterbalance forklifts to experience severe rear-wheel lift or lateral tipping. Built specifically to neutralize this physical risk, the 7m Lifting Height Telescopic Handler Heavy Duty relies on a massive 7710 kg high-density chassis and an extended wheelbase. It anchors the lifting fulcrum firmly to the ground, ensuring absolute physical stability during heavy structural placements without requiring stationary outriggers.
Yuchai Mechanical Torque and Carraro Drivetrain Integration
Pushing an 11-ton combined mass (machine plus payload) through deep mud or over 15% gradients requires sustained low-RPM mechanical torque, not just peak horsepower. This chassis is powered by the proven Yuchai YC4DK100-T304 diesel engine, yielding a highly stable 73 KW of continuous net power.
To transfer this mechanical force into physical ground traction without power loss, the drivetrain routes through an authentic Carraro high-low speed electronically controlled gearbox and Carraro heavy-duty wet brake axles. Coupled with a permanent four-wheel-drive (4WD) architecture and a 430.0 mm minimum ground clearance, the undercarriage actively crushes through site debris. Operators can maneuver through tightly spaced scaffolding using three independent steering configurations: front-wheel, four-wheel, and crab steering, compressing the external turning radius to a highly restricted 3.9 meters.
Suppressing Mast Deflection with Danfoss Hydrostatics
At maximum boom extension, pressure fluctuations in standard open-loop gear pumps cause the mast to violently stutter, creating a pendulum effect that threatens structural steel and personnel below. We physically eliminate this instability.
This equipment utilizes a premium closed hydrostatic system driven by a Danfoss piston pump and a Danfoss variable motor. Governed by a load-sensitive multi-way valve, the operator maintains millimeter-level micro-movement control over the boom. Retraction, extension, and hoisting occur with zero mechanical hesitation, effectively eliminating hydraulic shock and keeping the machine's center of gravity strictly within the safe operational envelope.
Our product
Structural Operator Protection and Torque Monitoring

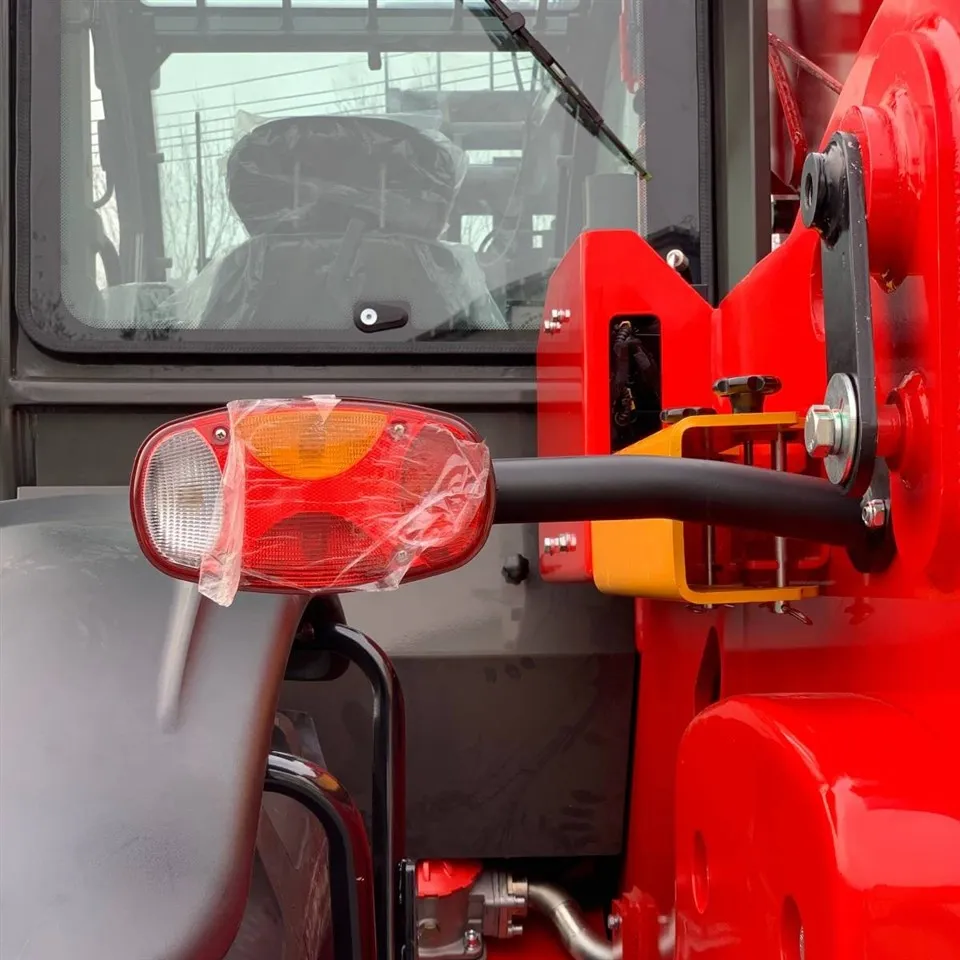

Operating near physical tipping thresholds requires hardcoded mechanical fail-safes, not just operator intuition. The fully enclosed ROPS/FOPS certified cabin surrounds the operator with a robust heavy-duty steel frame, providing a physical survival cell against falling precast concrete or rollover events.
Internally, a factory-calibrated Load Moment Indicator (LMI) acts as the primary safety governor. By continuously monitoring the boom angle, extension length, and payload weight, the onboard computer will automatically lock out dangerous hydraulic extension functions before the machine exceeds its physical load chart limits.
Capital Efficiency and Direct Procurement
Heavy machinery procurement must focus on optimizing the Total Cost of Ownership (TCO). Acquiring your fleet through multi-tiered regional dealerships adds heavy retail markups that artificially inflate your capital expenditure. As one of the premier 7m Lifting Height Telescopic Handler Heavy Duty suppliers, we bypass these retail margins entirely.
Sourcing a China 7m Lifting Height Telescopic Handler Heavy Duty ensures transparent B2B pricing and direct engineering support. Furthermore, working directly with a 7m Lifting Height Telescopic Handler Heavy Duty factory guarantees that your equipment is built with authentic OEM components-such as imported Michelin hoses with protective sheaths-and allows for custom attachment matching based on your specific site requirements.
Stop risking site safety and project budgets on equipment pushed beyond its structural limits. Contact our export engineering team today to review the complete load capacity chart, discuss specific attachment flow rates, and secure a direct quote for the 7m Lifting Height Telescopic Handler Heavy Duty.
